Share My Creation Snooker / Billiards - Basic simulation

EDIT: v1.02 update. Tided up the code


Hi folks

A Snooker/Billards simulation for Basic4Android
This example is fully operational although there is no code to "pot" a ball
All you can do here is aim and shoot. Its enough to get you going though

INSTRUCTIONS
# Touch / Move finger on the table to position cue ball travel direction
# Slide the power bar to set the cue power

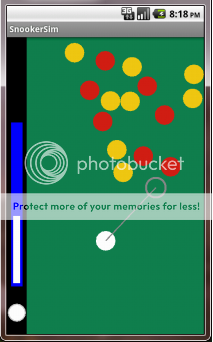

# Touch the lower/left white ball to shoot
# Use MENU option to reset ball layout



B4X:
#Region Module Attributes
    #FullScreen: False
    #IncludeTitle: True
    #ApplicationLabel: SnookerSim
    #VersionCode: 1
    #VersionName: 1.02
    #SupportedOrientations: portrait
    #CanInstallToExternalStorage: False
#End Region

' 2D Snooker physics (basic simulation)- Jim Brown
' v1.02 - Added additional comments and relabelled variables
' Credits: Joseph Humfrey
' NOTE: Uses the "Phone" library (keep phone awake)

Sub Process_Globals
    Dim time As Timer
    Dim awake As PhoneWakeState
    Dim FRICTION  As Float        ' fiction of the balls
    Dim BALL_MASS  As Float        ' weight of the balls
    Dim BALL_RADIUS As Float    ' radius of the balls
    Dim BALL_DIAMETER As Float    ' diameter of the balls
    Dim NUMBALLS As Int            ' how many balls to control
    Dim mouseX,mouseY,cueAngle,cuePower As Float
    Dim ballsmoving As Boolean    ' flag to indicate whether or not any of the balls are moving
    Type balltype (x As Float, y As Float, dx As Float, dy As Float, color As Int)
    Dim ball(50) As balltype
End Sub

Sub Globals
    Dim centerX,centerY As Int    ' center of the snooker table display area (panel 2)
    Dim powerBarX,powerBarY,powerBarWidth,powerBarHeight As Int    ' power bar positions (panel 1)
    Dim count As Int
    ' display-related variables
    Dim pan1,pan2 As Panel
    Dim can1,can2 As Canvas
    Dim rec As Rect
End Sub

Sub Activity_Create(FirstTime As Boolean)
    ' display / system setup
    pan1.Initialize("panel1")    ' this panel will display the 'power bar' and 'take shot' ball
    pan2.Initialize("panel2")    ' this panel is the main snooker table area
    Activity.AddView(pan1,0%x,0%y,12%x,100%y)
    Activity.AddView(pan2,14%x,0%y,100%x-14%x,100%y)
    can1.Initialize(pan1) : can2.Initialize(pan2)
    centerX=pan2.Width/2 : centerY=pan2.Height/2
    ' How many pottable balls in game (excluding cue ball)
    ' NOTE: Use 3,6,10,15,21 ... (since the balls are placed in a triangle format)
    NUMBALLS=15
    ' General physics settings
    FRICTION=0.981 : BALL_MASS=60.0 : BALL_RADIUS=pan2.Width/(NUMBALLS*1.5)
    BALL_DIAMETER=BALL_RADIUS*2.0
    ' Timer
    time.Initialize("Timer1",12)
    ' Menus
    Activity.AddMenuItem("Reset","Menu_ResetTable")
    Activity.AddMenuItem("Exit","Menu_ExitGame")
    ' power bar position
    powerBarX=10 : powerBarY=pan1.Height-128 : powerBarWidth=pan1.Width-20 : powerBarHeight=pan1.Height/2.5
    '
    If FirstTime=True Then Menu_ResetTable_Click
End Sub

Sub Activity_Resume
    time.Enabled=True
    awake.KeepAlive(True)
End Sub

Sub Activity_Pause (UserClosed As Boolean)
    time.Enabled=False
    awake.ReleaseKeepAlive
End Sub

' user has touched Panel 1 (the left panel)
Sub panel1_Touch (Action As Int, X As Float, Y As Float)
    If ballsmoving=True Then Return
    ' check if touched point is over the 'power bar' indicator
    If Y>=powerBarY-powerBarHeight AND Y<=powerBarY Then
        If Y<powerBarY-powerBarHeight+8 Then Y=powerBarY-powerBarHeight+8
        If Y>powerBarY-16 Then Y=powerBarY-16
        cuePower=(powerBarY-Y)/8.0
        RenderPanel1
        Return
    End If
    ' check if touch point is over the 'take shot' ball
    If Y>=powerBarY+32 Then
        cueAngle=180.0-ATan2D(mouseX-ball(0).X,mouseY-ball(0).y)
        ball(0).dx=SinD(cueAngle)*cuePower : ball(0).dy=-CosD(cueAngle)*cuePower
        can1.DrawColor(Colors.Black) : pan1.Invalidate
        ballsmoving=True
    End If
End Sub

' user has touched Panel 2 (the snooker table panel)
Sub panel2_Touch (Action As Int, X As Float, Y As Float)
    mouseX=X : mouseY=Y : RenderPanel2
End Sub

' Reset the table
Sub Menu_ResetTable_Click()
    SetupTriangle : SetupCueBall : ballsmoving=True
    RenderPanel1 : RenderPanel2
End Sub

Sub Menu_ExitGame_Click()
    Activity.Finish
End Sub

Sub Timer1_Tick
    count=count+1
    If ballsmoving=True Then
        UpdatePhysics
        RenderPanel2
        If count Mod(20)=0 Then
            If AreBallsMoving=False Then
                ballsmoving=False : RenderPanel1 : RenderPanel2
            End If
        End If
    End If
End Sub

Sub RenderPanel1()
    ' power bar indicator
    rec.Initialize(powerBarX,powerBarY-powerBarHeight,powerBarX+powerBarWidth,powerBarY)
    can1.DrawRect(rec,Colors.Blue,True,0)
    rec.Initialize(powerBarX+5,powerBarY-(cuePower*8),powerBarX+powerBarWidth-6,powerBarY-8)
    can1.DrawRect(rec,Colors.White,True,0)
    ' take shot ball
    can1.DrawCircle(powerBarX+(powerBarWidth/2.0),powerBarY+64,pan1.Width/2-20,Colors.LightGray,True,0)
    can1.DrawCircle(powerBarX+(powerBarWidth/2.0),powerBarY+64,pan1.Width/2-26,Colors.White,True,0)
    pan1.Invalidate
End Sub

Sub RenderPanel2()
    can2.DrawColor(Colors.RGB(16,127,78))    ' erase the background with the given colour
    ' Draw each ball. Note that ball(0) is the cue ball
    For i=0 To NUMBALLS
        can2.DrawCircle(ball(i).x, ball(i).y, BALL_RADIUS, ball(i).color, True,0)
    Next
    ' Render the aiming line and circle (only when all balls have stopped moving)
    If ballsmoving=False Then
        can2.DrawLine(ball(0).x,ball(0).y,mouseX,mouseY,Colors.Black,4.0)
        can2.DrawCircle(mouseX,mouseY,BALL_RADIUS,Colors.Black,False,6.0)
    End If
    pan2.Invalidate
End Sub

' Arrange balls in a triangle formation
Sub SetupTriangle()
    Dim ballTriangleSize,i As Int
    i=0
    Do Until i>=NUMBALLS
        ballTriangleSize=ballTriangleSize+1
        i=i+ballTriangleSize
    Loop
    i=1
    For xloop=ballTriangleSize To 1 Step -1
        For yloop=1 To xloop
            ball(i).y=(5-xloop)*BALL_DIAMETER+120+RNum
            ball(i).x=(yloop*BALL_DIAMETER)-(xloop*BALL_DIAMETER)/2.0+(centerX)+RNum
            ball(i).dx=0.0 : ball(i).dy=0.0
            ' yellow or red ball colour
            If i Mod(2)=0 Then
                ball(i).color=Colors.RGB(210,30,20)
            Else
                ball(i).color=Colors.RGB(240,200,18)
            End If
            i=i+1
        Next
    Next
End Sub

' Position the cue ball and set the aiming direction to point above the ball
Sub SetupCueBall()
    ball(0).x=centerX+BALL_RADIUS+RNum
    ball(0).y=pan2.Height-BALL_RADIUS-Rnd(60,65)
    ball(0).dx=0.0 : ball(0).dy=0
    ball(0).color=Colors.White
    mouseX=centerX+BALL_RADIUS+Rnd(-10,10) : mouseY=pan2.Height/2.75 : cuePower=Rnd(70,80)
End Sub

Sub UpdatePhysics()
    Dim actualDist, collisionNormalAngle,moveDist As Float
    Dim nX,nY,a1,a2,optimisedP As Float
    For i=0 To NUMBALLS
        ' MOVEMENT
        ' Update ball postion
        ball(i).x=ball(i).x+ball(i).dx : ball(i).y=ball(i).y+ball(i).dy
        ' Slow the ball down via the global friction value
        ball(i).dx=ball(i).dx*FRICTION : ball(i).dy=ball(i).dy*FRICTION
        ' Stop ball completely when below certain speed
        If Abs(ball(i).dx)<0.068 Then ball(i).dx=0.0
        If Abs(ball(i).dy)<0.068 Then ball(i).dy=0.0
        ' COLLISION CHECKS
        ' Check each other ball (b) against current ball (i)
        For b=0 To NUMBALLS
            ' No need to check ball against itself
            If b=i Then Continue
            ' Get the distance between the 2 balls being checked
            actualDist=Sqrt( Power(ball(b).x-ball(i).x,2) + Power(ball(b).y-ball(i).y,2) )
            ' Collided? Check actual distance against ball diameter
            If actualDist<BALL_DIAMETER Then
                ' Obtain the angle of ball (b) against ball (i)
                collisionNormalAngle=ATan2D(ball(b).y-ball(i).y,ball(b).x-ball(i).x)
                ' Position exact touch (no intersection)
                moveDist=(BALL_DIAMETER-actualDist)*0.5
                ball(i).x=ball(i).x+moveDist*CosD(collisionNormalAngle+180)
                ball(i).y=ball(i).y+moveDist*SinD(collisionNormalAngle+180)
                ball(b).x=ball(b).x+moveDist*CosD(collisionNormalAngle)
                ball(b).y=ball(b).y+moveDist*SinD(collisionNormalAngle)
                ' COLLISION RESPONSE
                ' n = vector connecting centres of balls
                '     Find components normalised vector
                nX=CosD(collisionNormalAngle)
                nY=SinD(collisionNormalAngle)
                ' Find length of components movement vectors (via dot product)
                a1=ball(i).dx*nX + ball(i).dy*nY
                a2=ball(b).dx*nX + ball(b).dy*nY
                ' Optimised = 2*(a1-a2)/(BallMass1+BallMass2)
                optimisedP=(2.0 * (a1-a2) ) / (BALL_MASS*2)
                ' Find resultant vectors
                ball(i).dx=ball(i).dx-(optimisedP*BALL_MASS*nX)
                ball(i).dy=ball(i).dy-(optimisedP*BALL_MASS*nY)
                ball(b).dx=ball(b).dx+(optimisedP*BALL_MASS*nX)
                ball(b).dy=ball(b).dy+(optimisedP*BALL_MASS*nY)
            End If
        Next
        ' Simple bounce off walls check
        If ball(i).x<BALL_RADIUS Then
            ball(i).x=BALL_RADIUS : ball(i).dx=ball(i).dx*-0.9
        End If
        If ball(i).x>pan2.Width-BALL_RADIUS Then
            ball(i).x=pan2.Width-BALL_RADIUS : ball(i).dx=ball(i).dx*-0.9
        End If
        If ball(i).y<BALL_RADIUS Then
            ball(i).y=BALL_RADIUS : ball(i).dy=ball(i).dy*-0.9
        End If
        If ball(i).y>pan2.Height-BALL_RADIUS Then
            ball(i).y=pan2.Height-BALL_RADIUS : ball(i).dy=ball(i).dy*-0.9
        End If
    Next
End Sub

' Return TRUE if any of the balls are moving
Sub AreBallsMoving() As Boolean
    For obj=0 To NUMBALLS
        If ball(obj).dx<>0.0 OR ball(obj).dy<>0.0 Then Return True
    Next
    Return False
End Sub

' Return a random float between -0.5 and +0.5
' Used to add a slight re-positioning of the balls
Sub RNum() As Float
    Dim f As Float = Rnd(-100,100)
    Return f/200.0
End Sub
