B4J Library [ABMaterial] Creating ABMModalSheets at runtime

Discussion in 'B4J Libraries & Classes' started by Mashiane, Aug 26, 2018.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

    Well, I'm rather exited... been wanting to do this eversince I started learning ABM. At times you just need a simple modal without the heavy load of actually building in in code. Let it rather be created at runtime and you can get/set content to it.



    1. Click a button
    2. Build and modal form and show it
    3. Click on modal save & return a map of the contents
    4. Click on modal cancel & hide the modal

    2018-08-26
    1. Build and show the modal form skeleton.

    Reproduction

    1. Define your form in Class_Globals

    Code:
    Dim mymdl As MashForm
    2.Add a button to your page in ConnectPage to build & show the modal sheet

    Code:
    'create a test button for the modal sheet
        Dim btnMdl As ABMButton
        btnMdl.InitializeRaised(
    page,"btnMdl","","","Runtime Modal","")

    page.Cell(2,1).AddComponent(btnMdl)
    3. Call the button click method to build the modal and show it.

    The purpose of the form controls is for them to be built and placed in the right spots. This is the same methodology that the ABMGenerator follows so this will come handy esp for me. I reference data in other tables so without having to open another page, i can just add new records to a reference list and get the data on my form, wala!

    Code:
    'create a run time modal sheet
    Sub btnMdl_Clicked(Target As String)
        mymdl.Initialize(
    page,theme,"simplelogin",ABM.MODALSHEET_SIZE_NORMAL,False,"id","users","FORM COMPONENTS")
        mymdl.IsTextSelectable =
    False
        mymdl.IsDismissible =
    False
        mymdl.ForceLeft =
    True
        mymdl.CenterHeading =
    True
        mymdl.WhiteHeading =
    True

    'mymdl.AddTextBox("emailaddress","Email Address","",2,1,0,0,0,12,12,12,True)
        'mymdl.AddTextBox("password","Password","",2,1,0,0,0,12,12,12,True)
        mymdl.AddCheckBox("chk","ABMCheckBox","1",3,1,0,0,0,12,12,12,False)
        mymdl.AddComboBox(
    "cbo","ABMComboBox","",4,1,0,0,0,12,12,12,False)
        mymdl.AddDatePick(
    "dp","ABMDatePick","",5,1,0,0,0,12,12,12,True)
        mymdl.AddDateScroll(
    "ds","ABMDateScroll","",6,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimePick(
    "dtp","ABMDateTimePick","",7,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimeScroll(
    "dts","ABMDateTimeScroll","",8,1,0,0,0,12,12,12,True)
        mymdl.AddDouble(
    "dbl","ABMDouble","0",9,1,0,0,0,12,12,12,True)
        mymdl.AddInteger(
    "int","ABMInt","0",10,1,0,0,0,12,12,12,True)
        mymdl.AddSwitch(
    "swt","ABMSwitch","0",11,1,0,0,0,12,12,12,True)
        mymdl.AddTextArea(
    "txta","ABMTextArea","",12,1,0,0,0,12,12,12,False)
        mymdl.AddTextBox(
    "txt","ABMTextBox","",13,1,0,0,0,12,12,12,True)
        mymdl.AddTimePick(
    "tp","ABMTimePick","",14,1,0,0,0,12,12,12,True)
        mymdl.AddTimeScroll(
    "ts","ABMTimeScroll","",15,1,0,0,0,0,12,12,True)
        mymdl.showmodal
    End Sub
    • ForceLeft will ensure that your cancel button is forced to the left
    • CenterHeading will apply a theme to the heading to center the heading
    • WhiteHeading will apply a theme to the heading to make it have a white forecolor
    • We are adding form controls and we will place them at particular RCs indicating their offsets and sizes using OS,OM,OL,SS,SM,SL (Offset Small,Offset Medium,Offset Large,Size Small, Size Medium,Size Large) methodology. This is just the grid specifications. For more details see the ABMGridBuilder.
    4. Trap the Save / Cancel event of the modal

    The cancel & save events are controls that will link to the modal form. You need to specify these in your page. Our modal sheet name is 'simplelogin' so the save and cancel button names will be simpleloginsave and simplelogincancel respectively. For now let's just show a msgbox for each.

    Code:
    Sub simpleloginsave_Clicked(Target As String)

    page.Msgbox("","Modal sheet save clicked!","Modal Sheet Save","OK",False,"","")
    End Sub

    Sub simplelogincancel_Clicked(Target As String)

    page.Msgbox("","Modal sheet cancel clicked!","Modal Sheet Cancel","OK",False,"","")
    End Sub
    Watch this space!!!

    Update:

    On save, we want to return the contents of the modal sheet as a record.. this is achieved by calling .GetFormData. To set the content you will have to add a method to run an inverse of that function eg. SetFormData

    Code:
    Sub simpleloginsave_Clicked(Target As String)

    Dim record As Map = mymdl.GetFormData

    Log(record)
    End Sub

    Sub simplelogincancel_Clicked(Target As String)
        mymdl.hide
    End Sub
    This was to find out of this could be done and whether the contents of the form can be read. As it is a custom class, you can extend it to meet your needs.

    Enjoy..


    Attached Files:

    Last edited: Aug 27, 2018
    fredo, amaxco, MichalK73 and 5 others like this.
  2. Mashiane

    Mashiane Expert Licensed User

    Phew... the next challenge is building the grid to hold the contents that are being added.


    1. Each element added to the form is stored in a map using the field name. This will create uniqueness. An ABM.GEN_NONE item is added as soon as the class is initialized. This will store the key of the record being added.
    2. To add rows to the modal sheet, I am using .Content.AddRowsM to also specify the margins. By default the bottom margin is set to 20 as it normally is done.
    3. All cell adding methods are a variant of AddCellsOSMPV, i.e. O - offsets, S - size, M - margin, P - padding and V - visibility, so I am using that method.
    4. The row number cannot be less than zero
    5. The offsets, sizes should also be between 12 and 1 and not more or less.

    Now the trick is ensuring that all the controls that are being added are added to a proper grid. This mega sub below ensures that the grid is build property by reading each added control. There can be 12 cells / columns in a row, so I am adding each cell adding method to take care of these 12 cells.

    Each method to AddText, AddCombo etc, is a variant of this master call as depicted below.

    Code:
    private Sub AddComponent(fieldName As StringLabel As String, TypeOf As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, _
        iSizeSmall
    As Int, iSizeMedium As Int, iSizeLarge As Int,bEnabled As Boolean,bUseInUpdates As Boolean,bIsVisible As Boolean, Visibility As String, sHeaderTheme As String, sCellTheme As String, _
        bCanSearch
    As Boolean,bCanSort As Boolean,bRequired As Boolean,iHeaderHeight As Int, iHeaderWidth As Int)

    If iRow < 1 Then
            LogError(
    $"MashForm: ${fieldName} row cannot be less than 1."$)

    Return

    End If

    If iCell > 13 Or iCell < 1 Then
            LogError(
    $"MashForm: ${fieldName} cell cannot be more than 13 or less than 1."$)

    Return

    End If

    If iOffsetSmall > 13 Or iOffsetSmall < 0 Then
            LogError(
    $"MashForm: ${fieldName} offset small cannot be more than 13 or less than 1."$)

    Return

    End If

    If iOffsetMedium > 13 Or iOffsetMedium < 0 Then
            LogError(
    $"MashForm: ${fieldName} offset medium cannot be more than 13 or less than 1."$)

    Return

    End If

    If iOffsetLarge > 13 Or iOffsetLarge < 0 Then
            LogError(
    $"MashForm: ${fieldName} offset large cannot be more than 13 or less than 1."$)

    Return

    End If

    If iSizeSmall > 13 Or iSizeSmall < 0 Then
            LogError(
    $"MashForm: ${fieldName} size small cannot be more than 13 or less than 1."$)

    Return

    End If

    If iSizeMedium > 13 Or iSizeMedium < 0 Then
            LogError(
    $"MashForm: ${fieldName} size medium cannot be more than 13 or less than 1."$)

    Return

    End If

    If iSizeLarge > 13 Or iSizeLarge < 0 Then
            LogError(
    $"MashForm: ${fieldName} size large cannot be more than 13 or less than 1."$)

    Return

    End If


    Dim acomp As EachComponent
        acomp.Initialize
        acomp.CanSearch = bCanSearch
        acomp.CanSort = bCanSort
        acomp.Cell = iCell
        acomp.CellTheme = sCellTheme
        acomp.HeaderTheme = sHeaderTheme
        acomp.Defaultvalue = sDefaultValue
        acomp.Enabled = bEnabled
        acomp.FieldName = fieldName
        acomp.HeaderHeight = iHeaderHeight
        acomp.HeaderTheme  = sHeaderTheme
        acomp.HeaderWidth = iHeaderWidth
        acomp.IsVisible = bIsVisible
        acomp.Label =
    Label
        acomp.OffsetLarge = iOffsetLarge
        acomp.OffsetMedium = iOffsetMedium
        acomp.OffsetSmall = iOffsetSmall
        acomp.Row = iRow
        acomp.SizeLarge = iSizeLarge
        acomp.SizeMedium = iSizeMedium
        acomp.SizeSmall = iSizeSmall
        acomp.UseInUpdates = bUseInUpdates
        acomp.required = bRequired
        acomp.Visibility =
    Visibility
        acomp.MarginTop =
    0
        acomp.MarginBottom =
    0
        acomp.MarginLeft =
    0
        acomp.MarginRight =
    0
        acomp.PaddingLeft =
    0
        acomp.PaddingRight =
    0
        acomp.PaddingTop =
    0
        acomp.PaddingBottom =
    0
        components.Put(fieldName,acomp)

    'to determine the number of rows to add
        If iRow > TotalRows Then
            TotalRows = iRow

    End If
    End Sub
    Adding controls. We are using the ABM.GEN enumeration for this..

    Code:
    Sub AddTextBox(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_TEXT,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddComboBox(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_COMBOSQL,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddCheckBox(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_CHECKBOX,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddTextArea(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_TEXTAREA,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub


    Sub AddSwitch(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_SWITCH,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddDateScroll(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_DATE_SCROLL,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddTimeScroll(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_TIME_SCROLL,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddDateTimeScroll(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_DATETIME_SCROLL,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddDatePick(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_DATE_PICK,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub


    Sub AddTimePick(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_TIME_PICK,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddDateTimePick(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_DATETIME_PICK,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddInteger(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_INTEGER,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

    Sub AddDouble(fieldName As StringLabel As String, sDefaultValue As String,iRow As Int, iCell As Int,iOffsetSmall As Int, iOffsetMedium As Int, iOffsetLarge As Int, iSizeSmall As Int, iSizeMedium As Int, iSizeLarge As Int,bRequired As Boolean)
        AddComponent(fieldName,
    Label,ABM.GEN_DOUBLE,sDefaultValue,iRow,iCell,iOffsetSmall,iOffsetMedium,iOffsetLarge,iSizeSmall,iSizeMedium,iSizeLarge,True,True,True,ABM.VISIBILITY_ALL,"","",True,True,bRequired,48,0)
    End Sub

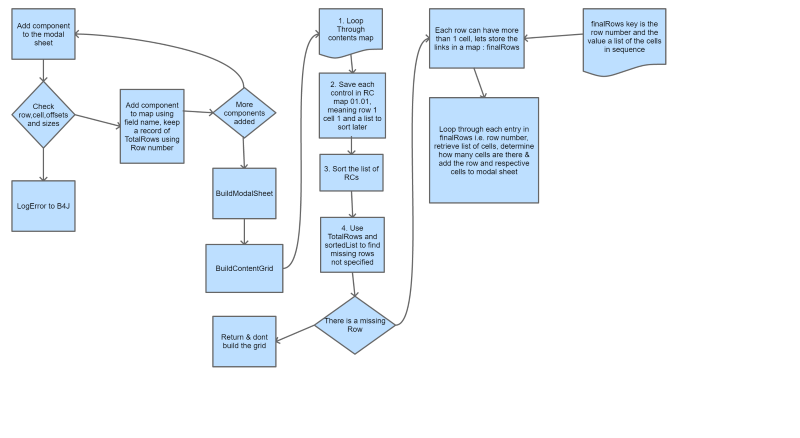

    When building the grid, we loop through each component and add it to the grid... this is done with... (see attached flow here)

    Code:
    private Sub BuildContentGrid(mdl As ABMModalSheet)

    ' lets define these as class variables as we will access them a multiple times
        sortitM.Initialize
        sortItL.Initialize

    'lets first sort the sequencing of controls
        Dim compTot As Int = components.Size - 1

    Dim compCnt As Int

    For compCnt = 0 To compTot

    Dim comp As EachComponent = components.GetValueAt(compCnt)

    'get row
            Dim sRow As String = comp.Row

    'get cell
            Dim sCell As String = comp.cell

    'padd stuff
            sRow = PadRight(sRow,2,"0")
            sCell = PadRight(sCell,
    2,"0")

    'define a key
            Dim rcKey As String = $"${sRow}.${sCell}"$
            sortitM.Put(rcKey,comp)
            sortItL.Add(rcKey)

    Next

    ' sort the rcs
        sortItL.Sort(True)

    'find out if we have a missing rc
        Dim missingRC As List
        missingRC.Initialize

    For compCnt = 1 To TotalRows

    Dim sRow As String = compCnt
            sRow = PadRight(sRow,
    2,"0")

    Dim sCell As String = PadRight("1",2,"0")

    Dim rcKey As String = $"${sRow}.${sCell}"$

    If sortItL.IndexOf(rcKey) = -1 Then
                missingRC.Add(rcKey)

    End If

    Next

    If missingRC.Size -1 >= 0 Then

    For Each rc As String In missingRC
                LogError(
    "MashForm: "& rc & ": no content is defined for " & ModalSheetName)

    Next

    'nothing will be drawn if there is a missing element
            Return

    End If

    'add the grid definition
        'link related columns to the rows use the sorted list
        'if we have records falling in the same row, sequence them
        Dim finalRows As Map
        finalRows.Initialize

    For Each rc As String In sortItL

    Dim sRow As String = MvField(rc,1,".")

    If finalRows.ContainsKey(sRow) Then

    Dim finalCells As List = finalRows.Get(sRow)

    Else

    Dim finalCells As List = NewList(finalCells)

    End If
            finalCells.Add(rc)
            finalRows.Put(sRow,finalCells)

    Next

    'build the grid
        Dim finalCell(11As String

    Dim ec(11As EachComponent

    Dim colCnt As Int

    For Each finalRow As String In finalRows.Keys

    'add the row
            Dim finalCells As List = finalRows.Get(finalRow)

    'how many controls do we have per row, add appropriate cells
            Dim finalCellsSize As Int = finalCells.Size - 1

    For colCnt = 0 To finalCellsSize
                finalCell(colCnt) = finalCells.Get(colCnt)
                ec(colCnt) = sortitM.Get(finalCell(colCnt))

    Next

    Select Case finalCellsSize

    Case 0

    '1 column
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "")

    Case 1

    '2 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "")

    Case 2

    '3 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "")

    Case 3

    '4 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "")

    Case 4

    '5 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "")

    Case 5

    '6 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "")

    Case 6

    '7 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "")

    Case 7

    '8 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(7).OffsetSmall,ec(7).OffsetMedium,ec(7).OffsetLarge,ec(7).SizeSmall,ec(7).SizeMedium,ec(7).SizeLarge,ec(7).margintop,ec(7).MarginBottom,ec(7).paddingleft,ec(7).paddingright,ec(7).Visibility, "")

    Case 8

    '9 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(7).OffsetSmall,ec(7).OffsetMedium,ec(7).OffsetLarge,ec(7).SizeSmall,ec(7).SizeMedium,ec(7).SizeLarge,ec(7).margintop,ec(7).MarginBottom,ec(7).paddingleft,ec(7).paddingright,ec(7).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(8).OffsetSmall,ec(8).OffsetMedium,ec(8).OffsetLarge,ec(8).SizeSmall,ec(8).SizeMedium,ec(8).SizeLarge,ec(8).margintop,ec(8).MarginBottom,ec(8).paddingleft,ec(8).paddingright,ec(8).Visibility, "")

    Case 9

    '10 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(7).OffsetSmall,ec(7).OffsetMedium,ec(7).OffsetLarge,ec(7).SizeSmall,ec(7).SizeMedium,ec(7).SizeLarge,ec(7).margintop,ec(7).MarginBottom,ec(7).paddingleft,ec(7).paddingright,ec(7).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(8).OffsetSmall,ec(8).OffsetMedium,ec(8).OffsetLarge,ec(8).SizeSmall,ec(8).SizeMedium,ec(8).SizeLarge,ec(8).margintop,ec(8).MarginBottom,ec(8).paddingleft,ec(8).paddingright,ec(8).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(9).OffsetSmall,ec(9).OffsetMedium,ec(9).OffsetLarge,ec(9).SizeSmall,ec(9).SizeMedium,ec(9).SizeLarge,ec(9).margintop,ec(9).MarginBottom,ec(9).paddingleft,ec(9).paddingright,ec(9).Visibility, "")

    Case 10

    '11 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(7).OffsetSmall,ec(7).OffsetMedium,ec(7).OffsetLarge,ec(7).SizeSmall,ec(7).SizeMedium,ec(7).SizeLarge,ec(7).margintop,ec(7).MarginBottom,ec(7).paddingleft,ec(7).paddingright,ec(7).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(8).OffsetSmall,ec(8).OffsetMedium,ec(8).OffsetLarge,ec(8).SizeSmall,ec(8).SizeMedium,ec(8).SizeLarge,ec(8).margintop,ec(8).MarginBottom,ec(8).paddingleft,ec(8).paddingright,ec(8).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(9).OffsetSmall,ec(9).OffsetMedium,ec(9).OffsetLarge,ec(9).SizeSmall,ec(9).SizeMedium,ec(9).SizeLarge,ec(9).margintop,ec(9).MarginBottom,ec(9).paddingleft,ec(9).paddingright,ec(9).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(10).OffsetSmall,ec(10).OffsetMedium,ec(10).OffsetLarge,ec(10).SizeSmall,ec(10).SizeMedium,ec(10).SizeLarge,ec(10).margintop,ec(10).MarginBottom,ec(10).paddingleft,ec(10).paddingright,ec(10).Visibility, "")

    Case 11

    '12 columns
                mdl.Content.AddRowsM(1,True,0,20,"") _
                .AddCellsOSMPV(
    1,ec(0).OffsetSmall,ec(0).OffsetMedium,ec(0).OffsetLarge,ec(0).SizeSmall,ec(0).SizeMedium,ec(0).SizeLarge,ec(0).margintop,ec(0).MarginBottom,ec(0).paddingleft,ec(0).paddingright,ec(0).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(1).OffsetSmall,ec(1).OffsetMedium,ec(1).OffsetLarge,ec(1).SizeSmall,ec(1).SizeMedium,ec(1).SizeLarge,ec(1).margintop,ec(1).MarginBottom,ec(1).paddingleft,ec(1).paddingright,ec(1).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(2).OffsetSmall,ec(2).OffsetMedium,ec(2).OffsetLarge,ec(2).SizeSmall,ec(2).SizeMedium,ec(2).SizeLarge,ec(2).margintop,ec(2).MarginBottom,ec(2).paddingleft,ec(2).paddingright,ec(2).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(3).OffsetSmall,ec(3).OffsetMedium,ec(3).OffsetLarge,ec(3).SizeSmall,ec(3).SizeMedium,ec(3).SizeLarge,ec(3).margintop,ec(3).MarginBottom,ec(3).paddingleft,ec(3).paddingright,ec(3).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(4).OffsetSmall,ec(4).OffsetMedium,ec(4).OffsetLarge,ec(4).SizeSmall,ec(4).SizeMedium,ec(4).SizeLarge,ec(4).margintop,ec(4).MarginBottom,ec(4).paddingleft,ec(4).paddingright,ec(4).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(5).OffsetSmall,ec(5).OffsetMedium,ec(5).OffsetLarge,ec(5).SizeSmall,ec(5).SizeMedium,ec(5).SizeLarge,ec(5).margintop,ec(5).MarginBottom,ec(5).paddingleft,ec(5).paddingright,ec(5).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(6).OffsetSmall,ec(6).OffsetMedium,ec(6).OffsetLarge,ec(6).SizeSmall,ec(6).SizeMedium,ec(6).SizeLarge,ec(6).margintop,ec(6).MarginBottom,ec(6).paddingleft,ec(6).paddingright,ec(6).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(7).OffsetSmall,ec(7).OffsetMedium,ec(7).OffsetLarge,ec(7).SizeSmall,ec(7).SizeMedium,ec(7).SizeLarge,ec(7).margintop,ec(7).MarginBottom,ec(7).paddingleft,ec(7).paddingright,ec(7).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(8).OffsetSmall,ec(8).OffsetMedium,ec(8).OffsetLarge,ec(8).SizeSmall,ec(8).SizeMedium,ec(8).SizeLarge,ec(8).margintop,ec(8).MarginBottom,ec(8).paddingleft,ec(8).paddingright,ec(8).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(9).OffsetSmall,ec(9).OffsetMedium,ec(9).OffsetLarge,ec(9).SizeSmall,ec(9).SizeMedium,ec(9).SizeLarge,ec(9).margintop,ec(9).MarginBottom,ec(9).paddingleft,ec(9).paddingright,ec(9).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(10).OffsetSmall,ec(10).OffsetMedium,ec(10).OffsetLarge,ec(10).SizeSmall,ec(10).SizeMedium,ec(10).SizeLarge,ec(10).margintop,ec(10).MarginBottom,ec(10).paddingleft,ec(10).paddingright,ec(10).Visibility, "") _
                .AddCellsOSMPV(
    1,ec(11).OffsetSmall,ec(11).OffsetMedium,ec(11).OffsetLarge,ec(11).SizeSmall,ec(11).SizeMedium,ec(11).SizeLarge,ec(11).margintop,ec(11).MarginBottom,ec(11).paddingleft,ec(11).paddingright,ec(11).Visibility, "")

    End Select

    Next
    End Sub
    Watch this space!!!

    Last edited: Aug 27, 2018
    amaxco and joulongleu like this.
  3. Mashiane

    Mashiane Expert Licensed User

    Yes!!!



    Code:
    'create a run time modal sheet
    Sub btnMdl_Clicked(Target As String)
        mymdl.Initialize(
    page,theme,"simplelogin",ABM.MODALSHEET_SIZE_FULL,ABM.MODALSHEET_TYPE_NORMAL,False,"id","users","FORM COMPONENTS")
        mymdl.IsTextSelectable =
    False
        mymdl.IsDismissible =
    False
        mymdl.ForceLeft =
    True
        mymdl.CenterHeading =
    True
        mymdl.WhiteHeading =
    True
        mymdl.AddTextBox(
    "emailaddress","Email Address","",2,1,0,0,0,12,6,6,True)
        mymdl.AddTextBox(
    "password","Password","",2,2,0,0,0,12,6,6,True)
        mymdl.AddCheckBox(
    "chk","ABMCheckBox","1",3,1,0,0,0,12,4,4,False)
        mymdl.AddComboBox(
    "cbo","ABMComboBox","",3,2,0,0,0,12,4,4,False)
        mymdl.AddDatePick(
    "dp","ABMDatePick","",3,3,0,0,0,12,4,4,True)
        mymdl.AddDateScroll(
    "ds","ABMDateScroll","",4,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimePick(
    "dtp","ABMDateTimePick","",5,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimeScroll(
    "dts","ABMDateTimeScroll","",6,1,0,0,0,12,12,12,True)
        mymdl.AddDouble(
    "dbl","ABMDouble","0",7,1,0,0,0,12,3,3,True)
        mymdl.AddInteger(
    "int","ABMInt","0",7,2,0,0,0,12,3,3,True)
        mymdl.AddSwitch(
    "swt","ABMSwitch","0",7,3,0,0,0,12,3,3,True)
        mymdl.AddTextArea(
    "txta","ABMTextArea","",7,4,0,0,0,12,3,3,False)
        mymdl.AddTextBox(
    "txt","ABMTextBox","",8,1,0,0,0,12,2,2,True)
        mymdl.AddTimePick(
    "tp","ABMTimePick","",8,2,0,0,0,12,2,2,True)
        mymdl.AddTimeScroll(
    "ts","ABMTimeScroll","",8,3,0,0,0,12,8,8,True)
        mymdl.showmodal
    End Sub
    Lets look at the code

    Code:
    mymdl.AddTextBox("emailaddress","Email Address","",2,1,0,0,0,12,6,6,True)
        mymdl.AddTextBox(
    "password","Password","",2,2,0,0,0,12,6,6,True)
    This adds two text boxes. One should sit on either half of row 2 (2.1 and 2.2), each should span 6 columns each.

    Code:
    mymdl.AddCheckBox("chk","ABMCheckBox","1",3,1,0,0,0,12,4,4,False)
        mymdl.AddComboBox(
    "cbo","ABMComboBox","",3,2,0,0,0,12,4,4,False)
        mymdl.AddDatePick(
    "dp","ABMDatePick","",3,3,0,0,0,12,4,4,True)
    The next row add stuff at row 3. For medium and large devices, the span of the columns should be 4 each. Each control will sit on a 1/3 of the row (3.1, 3.2 and 3.3). Remember each row should always be 12 columns each, so 4+4+4=12.

    Code:
    mymdl.AddDateScroll("ds","ABMDateScroll","",4,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimePick(
    "dtp","ABMDateTimePick","",5,1,0,0,0,12,12,12,False)
        mymdl.AddDateTimeScroll(
    "dts","ABMDateTimeScroll","",6,1,0,0,0,12,12,12,True)
    Add the above controls to take the whole row each per control.

    Code:
    mymdl.AddDouble("dbl","ABMDouble","0",7,1,0,0,0,12,3,3,True)
        mymdl.AddInteger(
    "int","ABMInt","0",7,2,0,0,0,12,3,3,True)
        mymdl.AddSwitch(
    "swt","ABMSwitch","0",7,3,0,0,0,12,3,3,True)
        mymdl.AddTextArea(
    "txta","ABMTextArea","",7,4,0,0,0,12,3,3,False)
    Add each control to take 1/4 of the row. Each control should span 3 columns each. 3+3+3+3=12

    Code:
    mymdl.AddTextBox("txt","ABMTextBox","",8,1,0,0,0,12,2,2,True)
        mymdl.AddTimePick(
    "tp","ABMTimePick","",8,2,0,0,0,12,2,2,True)
        mymdl.AddTimeScroll(
    "ts","ABMTimeScroll","",8,3,0,0,0,12,8,8,True)
    Add two controls to span 2 columns and 1 control to span 8 columns. Each sitting on 1/3 of the row.

    Enjoy.

    MashForm attached on first post!!

    Last edited: Aug 27, 2018
Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
