B4J Tutorial [ABMaterial] Populate a combo based on another selection

Discussion in 'B4J Tutorials' started by Harris, Jan 2, 2016.

  1. Harris

    Harris Well-Known Member Licensed User

    You may be thinking that I create these tutorials for myself. You may be right!!!
    My RAM memory is very limited. Erel has offered (us) a place to securely store them (he is so kind) for future reference... Anyways...

    As I have discovered, everything reacts by the on_click event - meaning - you must code an on_click event Sub in order to act upon your desired action. These are raised in the Page_ParseEvent(Params As Map) which are common to each page, and reacts to (almost) every mouse click (or touch). pretty neat way of handling this although I expect this is common... (what do I know? - just a hack).

    Here, I need to populate a combo list (to reduce items to logical selections) BASED on a previous selection.
    In this case, I must select a "vehicle type" - selection 1 (returns 1,2,3 as the SetActiveItemId ).

    Based on the combo.ActiveItemId of selection 1, I can call a sub to create a list of associated items for the associated combo (which depends on a selection of the first)...

    This is called when a "Vehicle Type" is selected (from the combo selection):

    Code:
    Sub utcombo1_clicked(target As String)

    Dim inp As ABMModalSheet = page.ModalSheet("vehicleinp")

    Dim utc As ABMCombo    = inp.Content.Component("utcombo1")


    Dim itc As ABMCombo    = inp.Content.Component("itcombo1")
        itc.Clear
        itc.SetActiveItemId(
    "")

    Dim itm As String = utc.GetActiveItemId


    Dim sql As SQL = DBM.GetSQL

    Dim users As List = DBM.SQLSelect(sql"SELECT * FROM insptype_mast WHERE Trk_Trl = "&itm&" ORDER by Name" )' & SelectedRowId)
        If users.Size > 0 Then

    For i = 0 To users.Size -1

    Dim user As Map = users.Get(i)

    Dim id As String = user.Get("pk")

    Dim val As String = user.Get("name")
               itc.AddItem(
    id, val, BuildSimpleItem("S"&id"mdi-action-star-rate""{NBSP} - {NBSP} {NBSP}"&val))

    Next

    End If
        DBM.CloseSQL(
    sql)

    Log(" Retreived vehicle items...")
        itc.Refresh
    End Sub
    This "over-rides" what ever I set when initializing the page with a current list (using - clear) based on vehicle type selection. Yes I know, clear as mud.... You must experiment to figure this out for the most part...

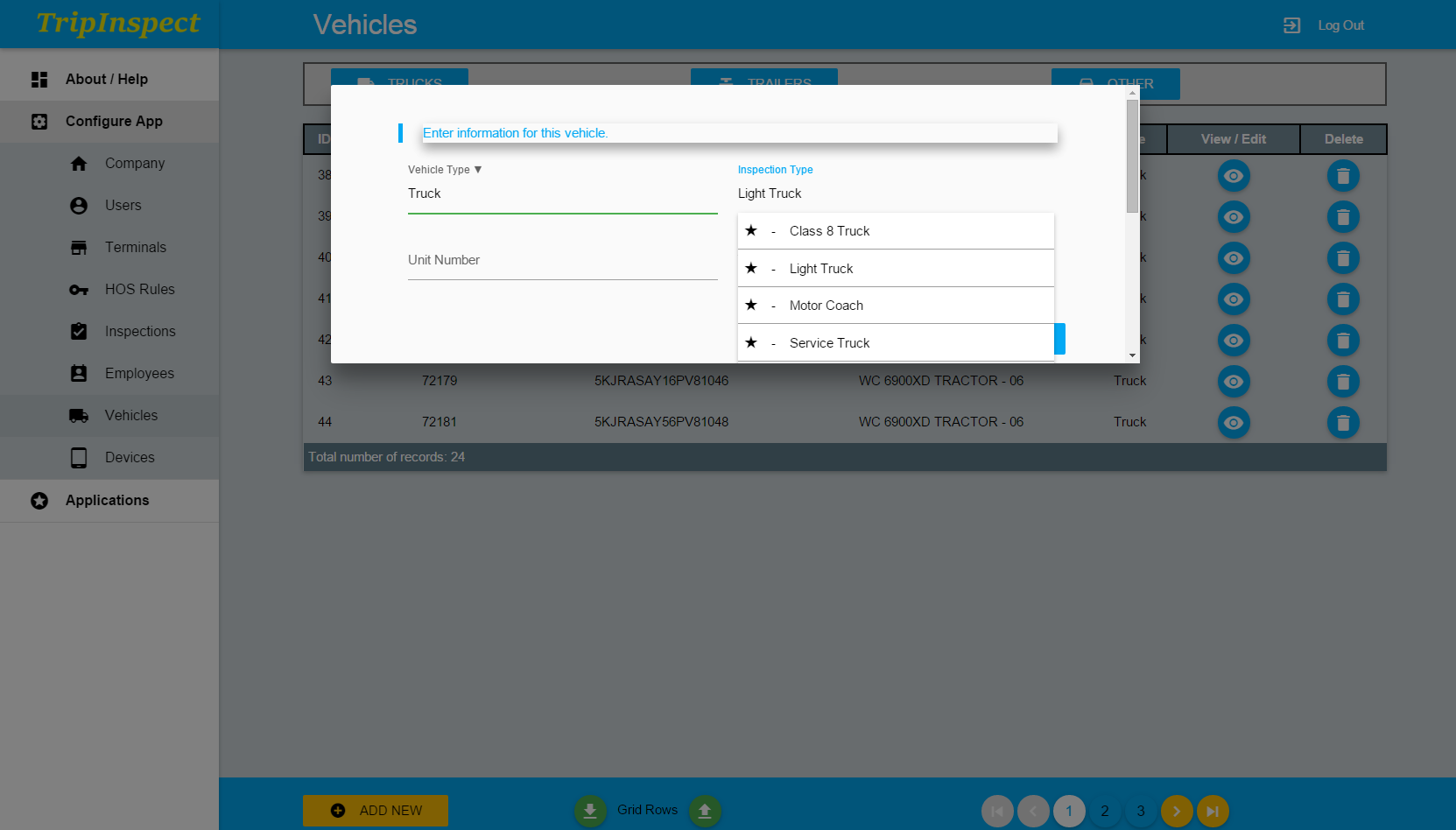

    Example image: Shows only Trucks in Inspection Type list. ("SELECT * FROM insptype_mast WHERE Trk_Trl = "&itm)... from above...



    One more note: Maps are our best friend.
    It took me a year to discover (4 years ago) how to use Maps.
    Recently, I discovered that a List (object) can contain Maps (objects)!
    It was always there and being used yet I couldn't wrap my head around it.

    Thanks

  2. codie01

    codie01 Member Licensed User

    Good Day Harris,

    This looks awesome. You may have read my other thread. I need help with my website connecting to the database. What is DBM? Can you provide some sample code for a connection Initialization and use of.

    Thanks, Ill send a trout. :)

  3. Harris

    Harris Well-Known Member Licensed User

    Yes, I saw your other post and responded.

    Thx.
