B4A Library ACheckBox - https://github.com/Bigmercu/ACheckBox

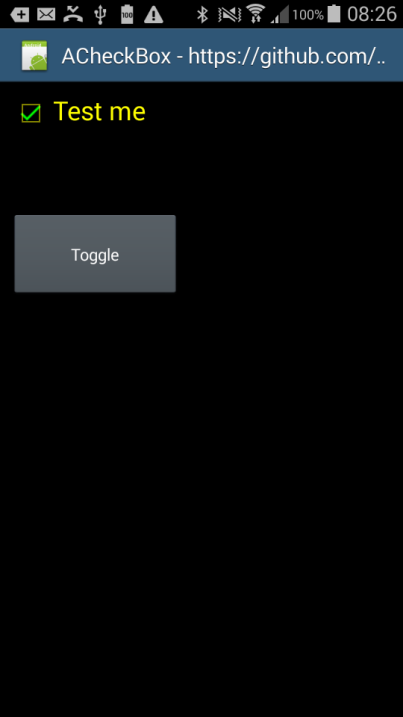

A wrap for this Github project. Use the button to toggle the state or touch the check box to toggle the state. Using either the button or just touching the checkbox will raise an event in the B4A project where the state of the checkbox can be determined.

Library:
ACheckBox
Author:
Github: Wallace (Bigmercu), Wrapped by: Johan Schoeman
Version: 1
  • ACheckBox
    Events:
    • check_changed (checked As Boolean)
    Fields:
    • ba As BA
    Methods:
    • BringToFront
    • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
    • Initialize (EventName As String)
    • Invalidate
    • Invalidate2 (arg0 As Rect)
    • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
    • IsInitialized As Boolean
    • RemoveView
    • RequestFocus As Boolean
    • SendToBack
    • SetBackgroundImage (arg0 As Bitmap)
    • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
    • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
    • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
    • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
    • isHook (isHook As Boolean)
    • isShowBorder (isShowBorder As Boolean)
    • toggle
    Properties:
    • Background As Drawable
    • Checked As Boolean [write only]
    • Color As Int [write only]
    • ColorAfter As Int [write only]
    • ColorBefore As Int [write only]
    • Enabled As Boolean
    • Height As Int
    • Left As Int
    • Parent As Object [read only]
    • Tag As Object
    • Text As String [write only]
    • TextColor As Int [write only]
    • TextSize As Int [write only]
    • Top As Int
    • Visible As Boolean
    • Width As Int

Sample code:
B4X:
#Region  Project Attributes
    #ApplicationLabel: ACheckBox
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private acb1 As ACheckBox
    Private Button1 As Button
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")

    acb1.Checked = True
    acb1.isHook(True)
    acb1.TextColor = Colors.Yellow
    acb1.Text = "Test me"
    acb1.TextSize = 25
    acb1.ColorBefore = Colors.Red
    acb1.ColorAfter = Colors.Green
    acb1.isShowBorder(True)

End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub acb1_check_changed(isboxchecked As Boolean)

    Log("isboxchecked = " & isboxchecked)

End Sub


Sub Button1_Click

    acb1.toggle

End Sub





Attachments

  • TheJavaCode.zip
    5.5 KB · Views: 173
  • b4aACheckBox.zip
    9.1 KB · Views: 168
  • ACheckBoxLibFiles.zip
    15 KB · Views: 164
