Wish Adafruit Motor Shield V2 Libary

Joerg Rothballer

Member
Licensed User
Longtime User
The library does NOT work with my Board
BUT:
I think my Board is an V1 Board.
https://www.amazon.de/gp/product/B0081JPBA6/ref=oh_aui_detailpage_o00_s00?ie=UTF8&psc=1

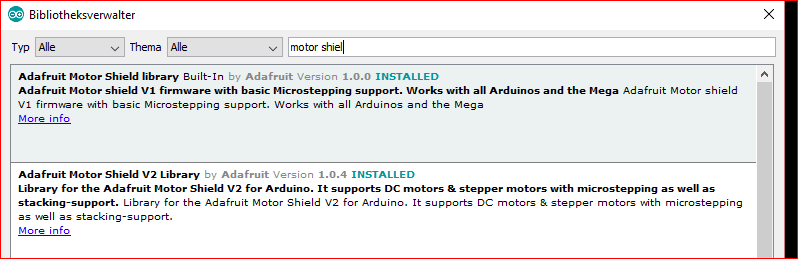

in my Arduino Compiler I have two entrys. This is why I can use my motorshield in the Arduino



I will order now an explicit Board V2
and will post the result up to end of this week

in Post #3 positrom2, Thursday at 10:25 AM
He use Adafruit Motor Shield V1
https://learn.adafruit.com/adafruit-motor-shield/downloads
Maybe it is possible to implement V1 and V2

Thanks Joerg


Joerg Rothballer

Member
Licensed User
Longtime User
I placed my order and I will get Adafruit MotorShield V2 this week. I will post the result.
With V2 you can control more than one shield and can connect >2 Step-Motors


Joerg Rothballer

Member
Licensed User
Longtime User
Today I got my Adafruit Motor Shield V2.

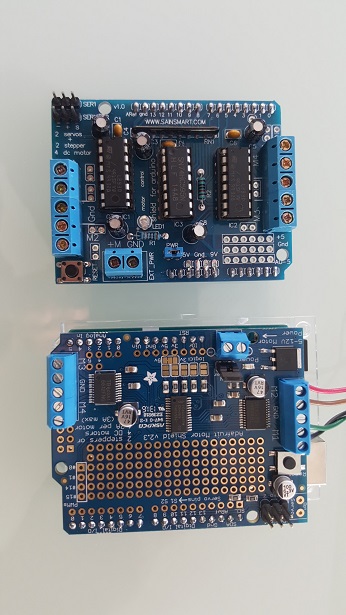

At the picture which is enclosed you see upside Board V1 and downside Board V2. These both are not compatible.

Inportant Message: The rAdafruitMotorShieldV2.zip works in my case without any problems.

@Erel: Thanks a lot for your help and your support. Sorry for the trouble


Attachments

  • 20160719_190007.jpg
    101.7 KB · Views: 234
