B4A Library Animated Check Box

The attached B4A project wraps this Github project. It is rounded check boxes with a very nice animation. Posting the B4A project, the B4A library files, and the Java Code. The library has a callback to the B4A project where you can pick up the status of the checkbox (true / false = checked / unchecked).

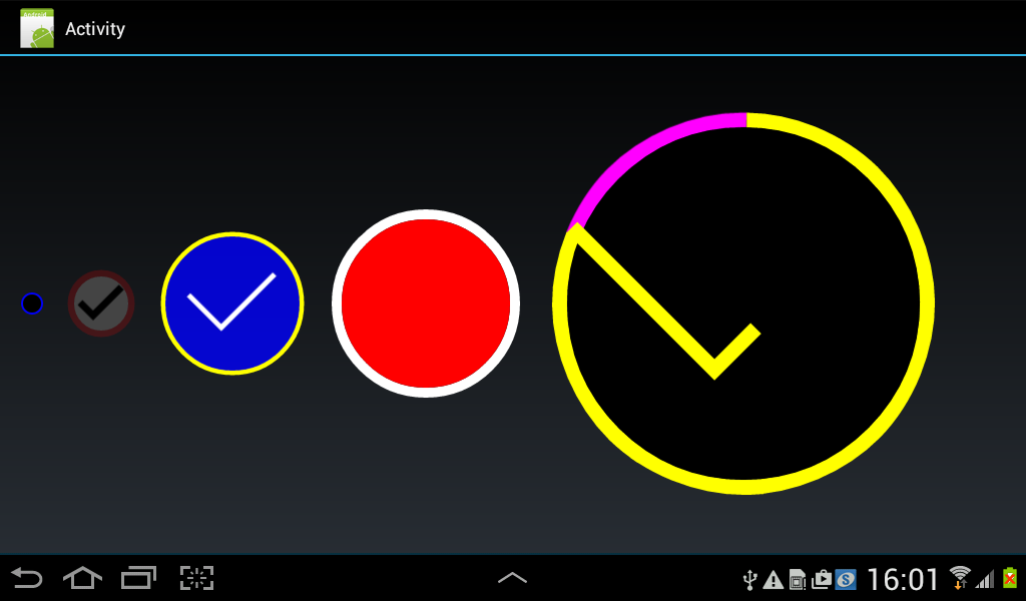

Caught the animation with this screenshot



Some sample code:

B4X:
#Region  Project Attributes
    #ApplicationLabel: AnimCheckBox
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private acb1, acb2, acb3, acb4, acb5 As AnimCheckBox
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")

    acb1.StrokeWidth = 2
    acb1.TickColor = Colors.Blue                      'the color of the tick mark when checked
    acb1.InnerCircleColor = Colors.black
    acb1.InnerCircleAlpha = 255
    acb1.CheckedOuterCircleColor = Colors.Blue        'this is outer circle color when checked
    acb1.OuterCircleAlpha = 100                       'when checked
    acb1.UncheckedOuterCircleColor = Colors.Blue      'unchecked outer circle color
    Log("acb1 status = " & acb1.isCheckBoxChecked)

    acb2.StrokeWidth = 7
    acb2.TickColor = Colors.Black                     'the color of the tick mark when checked
    acb2.InnerCircleColor = Colors.DarkGray
    acb2.InnerCircleAlpha = 255
    acb2.CheckedOuterCircleColor = Colors.Red         'this is outer circle color when checked
    acb2.OuterCircleAlpha = 50                        'when checked
    acb2.UncheckedOuterCircleColor = Colors.Green     'unchecked outer circle color
    Log("acb2 status = " & acb2.isCheckBoxChecked)

    acb3.StrokeWidth = 5
    acb3.TickColor = Colors.White                      'the color of the tick mark when checked
    acb3.InnerCircleColor = Colors.Blue
    acb3.InnerCircleAlpha = 200
    acb3.CheckedOuterCircleColor = Colors.Yellow       'this is outer circle color when checked
    acb3.OuterCircleAlpha = 255                        'when checked
    acb3.UncheckedOuterCircleColor = Colors.Magenta    'unchecked outer circle color
    Log("acb3 status = " & acb3.isCheckBoxChecked)

    acb4.StrokeWidth = 10
    acb4.TickColor = Colors.Green                      'the color of the tick mark when checked
    acb4.InnerCircleColor = Colors.Black
    acb4.InnerCircleAlpha = 255
    acb4.CheckedOuterCircleColor = Colors.White        'this is outer circle color when checked
    acb4.OuterCircleAlpha = 255                        'when checked
    acb4.UncheckedOuterCircleColor = Colors.White      'unchecked outer circle color
    Log("acb4 status = " & acb4.isCheckBoxChecked)

    acb5.StrokeWidth = 15
    acb5.TickColor = Colors.Yellow                      'the color of the tick mark when checked
    acb5.InnerCircleColor = Colors.Black
    acb5.InnerCircleAlpha = 255
    acb5.CheckedOuterCircleColor = Colors.Yellow        'this is outer circle color when checked
    acb5.OuterCircleAlpha = 255                        'when checked
    acb5.UncheckedOuterCircleColor = Colors.White      'unchecked outer circle color
    Log("acb5 status = " & acb5.isCheckBoxChecked)


End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub acb1_check_changed

    Log("acb1 status = " & acb1.isCheckBoxChecked)

End Sub

Sub acb2_check_changed

    Log("acb2 status = " & acb2.isCheckBoxChecked)

End Sub

Sub acb3_check_changed

    Log("acb3 status = " & acb3.isCheckBoxChecked)
    If acb3.isCheckBoxChecked = False Then acb3.InnerCircleColor = Colors.Black
    If acb3.isCheckBoxChecked = True Then acb3.InnerCircleColor = Colors.Blue


End Sub

Sub acb4_check_changed

    Log("acb4 status = " & acb4.isCheckBoxChecked)
    If acb4.isCheckBoxChecked = False Then acb4.InnerCircleColor = Colors.Red
    If acb4.isCheckBoxChecked = True Then acb4.InnerCircleColor = Colors.Black


End Sub

Sub acb5_check_changed

    Log("acb5 status = " & acb5.isCheckBoxChecked)
    If acb5.isCheckBoxChecked = False Then acb5.UncheckedOuterCircleColor = Colors.Magenta
    If acb5.isCheckBoxChecked = True Then acb5.CheckedOuterCircleColor = Colors.Yellow


End Sub

AnimCheckBox
Author:
Johan Schoeman
Version: 1
  • AnimCheckBox
    Fields:
    • ba As BA
    Methods:
    • BringToFront
    • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
    • Initialize (EventName As String)
    • Invalidate
    • Invalidate2 (arg0 As Rect)
    • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
    • IsInitialized As Boolean
    • RemoveView
    • RequestFocus As Boolean
    • SendToBack
    • SetBackgroundImage (arg0 As Bitmap)
    • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
    • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
    • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
    • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
    • isCheckBoxChecked As Boolean
    • setChecked (checked As Boolean, animation As Boolean)
      checked true if checked, false if unchecked
      animation true with animation,false without animation
    Properties:
    • Background As Drawable
    • Checked As Boolean [write only]
      setChecked with Animation
      checked true if checked, false if unchecked
    • CheckedOuterCircleColor As Int [write only]
    • Color As Int [write only]
    • Enabled As Boolean
    • Height As Int
    • InnerCircleAlpha As Int [write only]
    • InnerCircleColor As Int [write only]
    • Left As Int
    • OuterCircleAlpha As Int [write only]
    • StrokeWidth As Int [write only]
    • Tag As Object
    • TickColor As Int [write only]
    • Top As Int
    • UncheckedOuterCircleColor As Int [write only]
    • Visible As Boolean
    • Width As Int


Attachments

  • TheJavaCode.zip
    7 KB · Views: 228
  • b4aAnimCheckBoxLibraryFiles.zip
    11.9 KB · Views: 257
  • b4aAnimCheckBox.zip
    8.3 KB · Views: 235
