iOS Question B4i Download Images into a CustomListView

tamayo461

Member
Licensed User
Please help, I am trying to insert images into a CustomListView, the images are downloaded from internet, the code works half brings me updated list but only the last image of CustomListView.(see img below)



B4X:
Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private lst_tragos = "lst_tragos", fot_marca = "fot_marca", fot_pro = "fot_pro"
    Dim lv As CustomListView
    Type treslineas (First As String, Second As String, Tercero As String)
    Dim temp As Boolean
    Private pg As Page
    Private Label1 As Label
    Private ncarrito As Label
    Private carrito As ImageView
    Private foto_marca As ImageView
    Dim imgmarca As String
    'Dim b As Bitmap
    Dim im As ImageView
End Sub

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("carta")
    End If
    Main.NavControl.ShowPage(pg)
    im.Initialize("")
    llenar_lista
End Sub

Sub cargar_img(fot As String)
    des_img("http://www.xxxxxx.com/app/exxxxs/images/mxxx/" & fot, fot_marca)
End Sub

Sub llenar_lista
    ExecuteRemoteQuery("select * from inventario where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", lst_tragos)
End Sub

Sub ExecuteRemoteQuery(Query As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.PostString("http://www.xxxxx.com/xxxx_xxx.php", Query)
End Sub

Sub des_img(url As String, JobName As String)
    Dim job1 As HttpJob
    job1.Initialize(JobName, Me)
    job1.Download(url)
End Sub

Sub JobDone(Job As HttpJob)
    lv.Initialize(Me, "lv", 100%X)
    pg.RootPanel.AddView(lv.AsView, 0, 0, 100%x, 150%y)
    lv.SetSize(Label1.Width, 150%y)
    lv.AsView.Left = 0%x
    lv.AsView.Top = 0%y + foto_marca.Top + foto_marca.Height + 3dip
    lv.AsView.Color = Colors.ARGB(25,0,0,0)
    'ProgressDialogHide
    If Job.Success Then
        'Log("Response from server: " & res)
        Select Job.JobName
      '***********************************************
            Case lst_tragos
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                lv.Clear
                l2 = parser.NextArray
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                Log (l2.Size)
                    For i = 0 To l2.Size - 1
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        tl.First = m.Get("nombre")
                       tl.Second = m.Get("foto")
                        tl.Tercero = m.Get("descripcion")& Chr(13) & Chr(10) & " Valor: $" & m.Get("valor")
                        imgmarca = m.Get("foto_marca")
                        lv.Add(CreateListItem(tl.First,tl.Second , 120%x, 70dip), 70dip, "Item")
                    Next
                    'Msgbox(imgmarca,"")
                    cargar_img(imgmarca)
                End If
          '****************************************************
            Case fot_marca
                foto_marca.Bitmap=Job.GetBitmap
          '************************************************
            Case fot_pro
                im.Bitmap = Job.GetBitmap
            End Select
    Else
        Msgbox("Error: " & Job.ErrorMessage, True)
    End If
    Job.Release
End Sub

Sub CreateListItem(Text As String,foto As String, Width As Int, Height As Int) As Panel
    Dim m2 As Map
    m2.Initialize
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    'Dim b As Bitmap
    'b.Initialize(File.DirAssets,"flecha.png")
    Dim im As ImageView
    im.Initialize("")
    'im.Bitmap = b
    Dim lbl As Label
    lbl.Initialize("lbl")
    lbl.TextAlignment = lbl.ALIGNMENT_LEFT
    lbl.Text = Text
    lbl.Font = Font.CreateNew(13)
    lbl.TextColor = Colors.White
    p.AddView(lbl, Height+5dip,0,Width*0.8,Height)
    des_img("http://www.xxxxxx.com/axxxxp/exxxxxes/images/xxxx/" & foto, fot_pro)
    p.AddView(im, 0,0,Height,Height)
    Return p
End Sub


tamayo461

Member
Licensed User

walterf25

Expert
Licensed User
Please help, I am trying to insert images into a CustomListView, the images are downloaded from internet, the code works half brings me updated list but only the last image of CustomListView.(see img below)



B4X:
Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private lst_tragos = "lst_tragos", fot_marca = "fot_marca", fot_pro = "fot_pro"
    Dim lv As CustomListView
    Type treslineas (First As String, Second As String, Tercero As String)
    Dim temp As Boolean
    Private pg As Page
    Private Label1 As Label
    Private ncarrito As Label
    Private carrito As ImageView
    Private foto_marca As ImageView
    Dim imgmarca As String
    'Dim b As Bitmap
    Dim im As ImageView
End Sub

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("carta")
    End If
    Main.NavControl.ShowPage(pg)
    im.Initialize("")
    llenar_lista
End Sub

Sub cargar_img(fot As String)
    des_img("http://www.xxxxxx.com/app/exxxxs/images/mxxx/" & fot, fot_marca)
End Sub

Sub llenar_lista
    ExecuteRemoteQuery("select * from inventario where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", lst_tragos)
End Sub

Sub ExecuteRemoteQuery(Query As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.PostString("http://www.xxxxx.com/xxxx_xxx.php", Query)
End Sub

Sub des_img(url As String, JobName As String)
    Dim job1 As HttpJob
    job1.Initialize(JobName, Me)
    job1.Download(url)
End Sub

Sub JobDone(Job As HttpJob)
    lv.Initialize(Me, "lv", 100%X)
    pg.RootPanel.AddView(lv.AsView, 0, 0, 100%x, 150%y)
    lv.SetSize(Label1.Width, 150%y)
    lv.AsView.Left = 0%x
    lv.AsView.Top = 0%y + foto_marca.Top + foto_marca.Height + 3dip
    lv.AsView.Color = Colors.ARGB(25,0,0,0)
    'ProgressDialogHide
    If Job.Success Then
        'Log("Response from server: " & res)
        Select Job.JobName
      '***********************************************
            Case lst_tragos
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                lv.Clear
                l2 = parser.NextArray
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                Log (l2.Size)
                    For i = 0 To l2.Size - 1
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        tl.First = m.Get("nombre")
                       tl.Second = m.Get("foto")
                        tl.Tercero = m.Get("descripcion")& Chr(13) & Chr(10) & " Valor: $" & m.Get("valor")
                        imgmarca = m.Get("foto_marca")
                        lv.Add(CreateListItem(tl.First,tl.Second , 120%x, 70dip), 70dip, "Item")
                    Next
                    'Msgbox(imgmarca,"")
                    cargar_img(imgmarca)
                End If
          '****************************************************
            Case fot_marca
                foto_marca.Bitmap=Job.GetBitmap
          '************************************************
            Case fot_pro
                im.Bitmap = Job.GetBitmap
            End Select
    Else
        Msgbox("Error: " & Job.ErrorMessage, True)
    End If
    Job.Release
End Sub

Sub CreateListItem(Text As String,foto As String, Width As Int, Height As Int) As Panel
    Dim m2 As Map
    m2.Initialize
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    'Dim b As Bitmap
    'b.Initialize(File.DirAssets,"flecha.png")
    Dim im As ImageView
    im.Initialize("")
    'im.Bitmap = b
    Dim lbl As Label
    lbl.Initialize("lbl")
    lbl.TextAlignment = lbl.ALIGNMENT_LEFT
    lbl.Text = Text
    lbl.Font = Font.CreateNew(13)
    lbl.TextColor = Colors.White
    p.AddView(lbl, Height+5dip,0,Width*0.8,Height)
    des_img("http://www.xxxxxx.com/axxxxp/exxxxxes/images/xxxx/" & foto, fot_pro)
    p.AddView(im, 0,0,Height,Height)
    Return p
End Sub
I don't see anywhere in your code where you're assigning the downloaded image to the im as imageview variable, i think that's your problem.

Cheers,
Walter


tamayo461

Member
Licensed User
I don't see anywhere in your code where you're assigning the downloaded image to the im as imageview variable, i think that's your problem.

Cheers,
Walter
This code section regarding downloading images works well; in fact the designated image is discharged with that method. The problem with the code is that all the images, put them in the last row.




walterf25

Expert
Licensed User
This code section regarding downloading images works well; in fact the designated image is discharged with that method. The problem with the code is that all the images, put them in the last row.

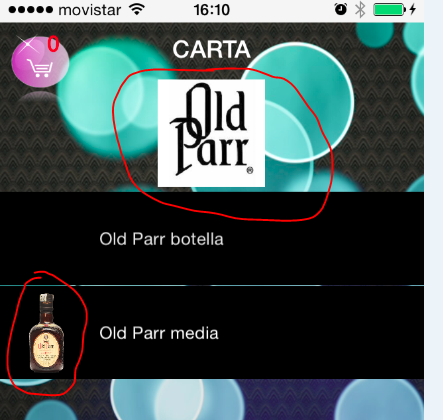

View attachment 32084
It seems like an index problem to me, but is hard to tell without seeing the entire project.


tamayo461

Member
Licensed User
It seems like an index problem to me, but is hard to tell without seeing the entire project.
Thanks for responding, The code you see is all code for that screen, I would think according to some evidence that the problem is in the response times of jobs, if you look carefully you will see that within one job.succes I open another job.


walterf25

Expert
Licensed User
Thanks for responding, The code you see is all code for that screen, I would think according to some evidence that the problem is in the response times of jobs, if you look carefully you will see that within one job.succes I open another job.
I really think the listview stuff should be handled in the
B4X:
Sub Handle_lst_tragos(job as httpjob)
'code to handle the items that must go in the list view should go here, once this is completed you can start the next httpjob
End sub


tamayo461

Member
Licensed User
I really think the listview stuff should be handled in the
B4X:
Sub Handle_lst_tragos(job as httpjob)
'code to handle the items that must go in the list view should go here, once this is completed you can start the next httpjob
End sub
We agree, the problem is in the nested jobs. I will modify the code so that jobs are made to order. Thank You


tamayo461

Member
Licensed User

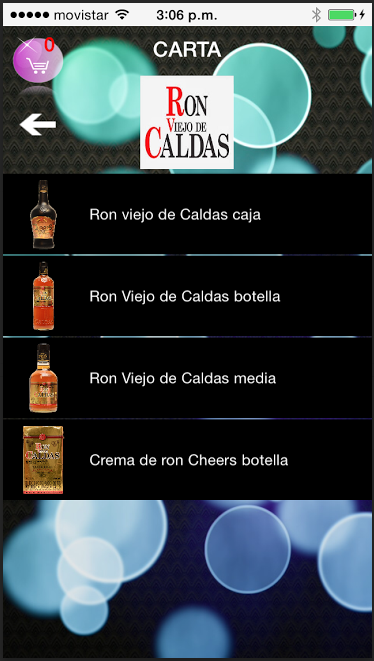

Ok, this is the code that downloads the images and then the text to display on a CustomListView, the problem is that downloading photos is in disarray and do not match the text, anyone have any idea? see img...

B4X:
Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private lst_tragos = "lst_tragos", fot_marca = "fot_marca", fot_pro = "fot_pro", fotos = "fotos"
    Dim lv As CustomListView
    Type treslineas (First As String, Second As String, Tercero As String)
    'Dim temp As Boolean
    Private pg As Page
    Private Label1 As Label
    Private ncarrito As Label
    Private carrito As ImageView
    Private foto_marca As ImageView
    Dim imgmarca,cod_foto As String
    Dim list_ima, list_ima2 As List
    Type list_ima_col(id As Int, tag As String, img As Bitmap)
    Type list_ima2_col(id As Int, tag As String, img As Bitmap)
    Dim list_imag As Map
    Dim cont, contfot As Int
    Private desc As Label
    Private atras As ImageView

End Sub

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("carta")
    End If
    Main.NavControl.ShowPage(pg)
    list_ima.Initialize
    list_ima2.Initialize
    list_imag.Initialize
    Dim Bm As Bitmap
    Bm.Initialize(File.DirAssets,"ic_action_refresh.png")
    foto_marca.Bitmap = Bm
    desc.Initialize("")

    lv.Clear
    traer_fotos '<-----call the work that brings photos and stored in a list
End Sub

Sub cargar_img(fot As String)
    des_img("http://www.xxxxxx.com/app/ejxxxes/ixxxges/marca/" & fot, fot_marca)
End Sub

Sub traer_fotos
    ExecuteRemoteQuery("select * from inxxxxtario where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", fotos)
End Sub

Sub llenar_lista
    ExecuteRemoteQuery("select * from xxxxxo where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", lst_tragos)
End Sub

Sub ExecuteRemoteQuery(Query As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.PostString("http://www.dxxxxx.com/netdbxxxxores.php", Query)
End Sub

Sub des_img(url As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.Download(url)
End Sub

Sub JobDone(Job As HttpJob)
    'ProgressDialogHide
    If Job.Success Then
        'Log("Response from server: " & res)
        Select Job.JobName
        '***************************************************************************************************************
            Case fotos '<-----Case Photo
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                l2 = parser.NextArray
                cont = l2.Size
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                Log ("Tamaño del rs: "&l2.Size)
                contfot = 0
                cod_foto = ""
                    For i = 0 To l2.Size - 1'<-----For that runs the sql result to know the name of the photo and call the function that discharge
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        tl.First = m.Get("nombre")
                        tl.Second = m.Get("foto")
                        imgmarca = m.Get("foto_marca")
                        cod_foto = tl.First
                        Log("Desde el for: "&cod_foto)
                        des_img("http://www.dxxxxxxx.com/app/ejxxxxres/images/tragos/" & tl.Second, fot_pro)'<-----function callback download images
                    Next
                    cargar_img(imgmarca)'<-----Call the function that discharge prevention image of Cabora screen
                End If
        '***************************************************************************************************************
            Case lst_tragos'<-----Case txt
                If lv.IsInitialized = False Then
                    lv.Initialize(Me, "lv", 100%X)
                    pg.RootPanel.AddView(lv.AsView, 0, 0, 100%x, 150%y)
                    lv.SetSize(Label1.Width, 150%y)
                    lv.AsView.Left = 0%x
                    lv.AsView.Top = 0%y + foto_marca.Top + foto_marca.Height + 3dip
                    lv.AsView.Color = Colors.ARGB(25,0,0,0)
                End If
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                lv.Clear
                l2 = parser.NextArray
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                    For i = 0 To l2.Size - 1
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        tl.First = m.Get("nombre")
                        tl.Second = m.Get("foto")
                        tl.Tercero = m.Get("descripcion")& Chr(13) & Chr(10) & " Valor: $" & m.Get("valor")
                        lv.Add(CreateListItem(tl.First,tl.Second , i, 120%x, 70dip), 70dip, "Item")
                    Next
                End If
        '***************************************************************************************************************
            Case fot_marca
                foto_marca.Bitmap=Job.GetBitmap
        '***************************************************************************************************************
            Case fot_pro
                Log("-> Fot_pro  contfot: "&contfot & " Tag: " & Job.Tag & " BitMap: " & Job.GetBitmap)
                Dim p As list_ima_col
                p.id = contfot
                p.tag = Job.Tag
                p.img = Job.GetBitmap
                list_ima.Add(p)
                contfot = contfot + 1
                If (contfot = cont) Then'<-----After you download all photos I call the function to download the data to match the photos
                    list_ima.SortType("id",True)'<-----ordered list of photos downloaded as recommended Erel
                    For i = 0 To list_ima.Size - 1
                        Dim q As list_ima_col
                        q = list_ima.Get(i)
                        list_ima2.InsertAt(i,q)'<-----ordered after I copy a new list
                        Log("Tag: " & q.tag & " Bitmap: " & q.img)
                    Next
                    llenar_lista
                End If
            End Select
    Else
        Msgbox("Error: " & Job.ErrorMessage, True)
    End If
    Job.Release
End Sub

Sub CreateListItem(Text As String,foto As String, indx As String, Width As Int, Height As Int) As Panel
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    Dim q As list_ima2_col
    q = list_ima2.Get(indx)
    Dim b As Bitmap    = q.img
    Dim im As ImageView
    im.Initialize("")
    im.Bitmap = b
    Dim lbl As Label
    lbl.Initialize("lbl")
    lbl.TextAlignment = lbl.ALIGNMENT_LEFT
    lbl.Text = Text
    lbl.Font = Font.CreateNew(13)
    lbl.TextColor = Colors.White
    p.AddView(lbl, Height+5dip,0,Width*0.8,Height)
    p.AddView(im, 0,0,Height,Height)
    Return p
End Sub


Attachments

Last edited:

tamayo461

Member
Licensed User
ok I got it, this code works perfectly downloading the images on a server, the name of the images is a list that gives me the server as a result of a SQL query, the images are first downloaded and stored with the respective index, then resulting data in SQL. all in the same class.

The problem I had was that initially did not coincide images and data in the CustomListView, what siolucione with Job.GetRequest and performing basic text to extract the name of the image decargada to serve me in the list of index images

B4X:
Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private lst_tragos = "lst_tragos", fot_marca = "fot_marca", fot_pro = "fot_pro", fotos = "fotos"
    Dim lv As CustomListView
    Type treslineas (First As String, Second As String, Tercero As String)
    'Dim temp As Boolean
    Private pg As Page
    Private Label1 As Label
    Private ncarrito As Label
    Private carrito As ImageView
    Private foto_marca As ImageView
    Dim imgmarca As String
    Dim list_ima As List
    Type list_ima_col(tag As String, img As Bitmap)
    'Type list_ima2_col(id As Int, tag As String, img As Bitmap)
    'Dim list_imag As Map
    Dim cont, contfot As Int
    Private desc As Label
    Private atras As ImageView

End Sub

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("carta")
    End If
    Main.NavControl.ShowPage(pg)
    list_ima.Initialize
    Dim Bm As Bitmap
    Bm.Initialize(File.DirAssets,"ic_action_refresh.png")
    foto_marca.Bitmap = Bm
    desc.Initialize("")
    lv.Clear
    traer_fotos '<-----call the work that brings photos and stored in a list
End Sub

Sub cargar_img(fot As String)
    des_img("http://www.xxxxx.com/app/xxxes/images/marca/" & fot, fot_marca)
End Sub

Sub traer_fotos
    ExecuteRemoteQuery("select foto,foto_marca from ixxxxxo where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", fotos)
End Sub

Sub llenar_lista
    ExecuteRemoteQuery("select * from inxxxrio where categoria = '"&Main.categoria&"' and marca = '"&Main.marca&"'", lst_tragos)
End Sub

Sub ExecuteRemoteQuery(Query As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.PostString("http://www.xxxxxxx.com/nexxb_ejx.php", Query)
End Sub

Sub des_img(url As String, JobName As String)
    Dim job As HttpJob
    job.Initialize(JobName, Me)
    job.Download(url)
End Sub

Sub JobDone(Job As HttpJob)
    'ProgressDialogHide
    If Job.Success Then
        'Log("Response from server: " & res)
        Select Job.JobName
        '***************************************************************************************************************
            Case fotos '<-----Case Photo
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                l2 = parser.NextArray
                cont = l2.Size
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                    contfot = 0
                    For i = 0 To l2.Size - 1'<-----For that runs the sql result to know the name of the photo and call the function that discharge
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        'tl.First = m.Get("nombre")
                        tl.Second = m.Get("foto")
                        imgmarca = m.Get("foto_marca")
                        'cod_foto = tl.First
                        'Log("Desde el for: "&cod_foto)
                        des_img("http://www.xxxxx.com/app/ejelicores/images/tragos/" & tl.Second, fot_pro)'<-----function callback download images
                    Next
                    cargar_img(imgmarca)'<-----Call the function that discharge prevention image of Cabora screen
                End If
        '***************************************************************************************************************
            Case fot_pro
                Dim tx As String '<----- extract the name of the photo from the result given me Job.GetRequest
                tx = Job.GetRequest
                tx = tx.SubString2(tx.IndexOf("{"),tx.IndexOf("}"))
                tx = tx.SubString2(58,tx.Length-1)'<-----58 are the initial characters of the url set before me the name of the image to be downloaded
                Dim p As list_ima_col
                p.tag = tx'<----- index
                p.img = Job.GetBitmap'<----- image
                list_ima.Add(p)
                contfot = contfot + 1
                If (contfot = cont) Then'<-----After you download all photos I call the function to download the data to match the photos
                    llenar_lista
                End If
        '***************************************************************************************************************
            Case fot_marca
                foto_marca.Bitmap=Job.GetBitmap
        '***************************************************************************************************************
            Case lst_tragos'<-----Case txt
                If lv.IsInitialized = False Then
                    lv.Initialize(Me, "lv", 100%X)
                    pg.RootPanel.AddView(lv.AsView, 0, 0, 100%x, 150%y)
                    lv.SetSize(Label1.Width, 150%y)
                    lv.AsView.Left = 0%x
                    lv.AsView.Top = 0%y + foto_marca.Top + foto_marca.Height + 3dip
                    lv.AsView.Color = Colors.ARGB(25,0,0,0)
                End If
                Dim res As String
                res = Job.GetString
                Dim parser As JSONParser
                parser.Initialize(res)
                Dim l2 As List
                lv.Clear
                l2 = parser.NextArray
                If l2.Size = 0 Then
                    Msgbox("No se encontraron registros", False)
                Else
                    For i = 0 To l2.Size - 1
                        Dim tl As treslineas
                        Dim m As Map
                        m = l2.Get(i)
                        tl.First = m.Get("nombre")
                        tl.Second = m.Get("foto")
                        tl.Tercero = m.Get("descripcion")& Chr(13) & Chr(10) & " Valor: $" & m.Get("valor")
                        lv.Add(CreateListItem(tl.First,tl.Second , i, 120%x, 70dip), 70dip, "Item")
                    Next
                End If
            End Select
    Else
        Msgbox("Error: " & Job.ErrorMessage, True)
    End If
    Job.Release
End Sub

Sub CreateListItem(Text As String,foto As String, indx As String, Width As Int, Height As Int) As Panel
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    Dim q As list_ima_col
    For i = 0 To contfot-1
        q = list_ima.Get(i)
        If (q.tag = foto) Then
            Dim b As Bitmap    = q.img
        End If
    Next
    Dim im As ImageView
    im.Initialize("")
    im.Bitmap = b
    Dim lbl As Label
    lbl.Initialize("lbl")
    lbl.TextAlignment = lbl.ALIGNMENT_LEFT
    lbl.Text = Text
    lbl.Font = Font.CreateNew(13)
    lbl.TextColor = Colors.White
    p.AddView(lbl, Height+5dip,0,Width*0.8,Height)
    p.AddView(im, 0,0,Height,Height)
    Return p
End Sub

Top
