Other B4R v1.20 BETA - Support for ESP8266 Boards

Discussion in 'B4R Questions' started by Erel, Jun 22, 2016.

Thread Status:
Not open for further replies.
  1. Erel

    Erel Administrator Staff Member Licensed User

    This version adds support for ESP8266 boards. The ESP8266 is a very interesting chip. For a few dollars you get a board that is more powerful than Arduino and with built-in support for wifi. This makes it a great component for IoT solutions.

    Working with ESP8266 can be a bit more challenging as Arduino is the de facto standard.

    I recommend developers new to B4R, to start with Arduino.

    I did all my tests with WeMos D1 R2: http://www.wemos.cc/Products/d1_r2.html

    [​IMG]

    It includes everything required for development and I highly recommend it.

    Installation instructions:

    1. Open Arduino IDE - File - Preferences and add the following URL: http://arduino.esp8266.com/stable/package_esp8266com_index.json

    [​IMG]

    2. Tools - Board - Boards Manager. Search for esp and install esp8266 by ESP8266 community.

    Open the boards selector in B4R and select the serial port and the board type (select the highest upload speed):

    [​IMG]

    B4R includes two ESP8266 specific libraries:
    rESP8266WiFi - Similar to rEthernet library. It includes the following types:
    ESP8266WiFi - Responsible for connecting or creating the wireless network.
    WiFiSocket - Equivalent to EthernetSocket.
    WiFiServerSocket - Equivalent to EthernetServerSocket.
    WiFiUDP - Equivalent to EthernetUDP

    WiFiSocket is compatible with AsyncStreams, MQTT and WebSocketClient libraries.

    rESP8266 - Currently only includes D1Pins. This type maps the pins names to the actual pin numbers. Relevant for WeMos boards only.



    Working with ESP8266WiFi is simple and similar to working with the Ethernet shield.

    Example of a socket connection (depends on rESP8266WiFi and rRandomAccessFile):
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private wifi As ESP8266WiFi

    Private client As WiFiSocket

    Private astream As AsyncStreams

    Private timer1 As Timer

    Private serverIp() As Byte = Array As Byte(19216806)
    End Sub

    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")

    'ScanNetworks
       If wifi.Connect("dlink"Then 'change to your network SSID (use Connect2 if a password is required).
         Log("Connected to wireless network.")

    Else

    Log("Failed to connect.")

    Return

    End If
       timer1.Initialize(
    "timer1_Tick"1000)
       timer1.Enabled =
    True
       Connect(
    0)
    End Sub

    Sub Timer1_Tick

    If client.Connected Then
         astream.Write(
    "Time here is: ").Write(NumberFormat(Millis, 00))

    End If
    End Sub

    Private Sub Connect(u As Byte)

    If client.ConnectIP(serverIp, 51042Then

    Log("Connected to server.")
         astream.Initialize(client.Stream,
    "astream_NewData""astream_Error")

    Else

    Log("Failed to connect to server")
         CallSubPlus(
    "Connect"10000)

    End If
    End Sub

    Sub AStream_NewData (Buffer() As Byte)

    Log("Received: ", Buffer)
    End Sub

    Sub AStream_Error

    Log("Error")
       CallSubPlus(
    "Connect"10000)
    End Sub

    Private Sub ScanNetworks 'ignore
       Dim numberOfNetworks As Byte = wifi.Scan

    Log("Found: ", numberOfNetworks, " networks.")

    For i = 0 To numberOfNetworks - 1

    Log(wifi.ScannedSSID(i))

    Next
    End Sub
    B4J code:
    Code:
    Sub Process_Globals

    Private server As ServerSocket

    Private astream As AsyncStreams
    End Sub

    Sub AppStart (Args() As String)

    server.Initialize(51042"server")

    server.Listen
       StartMessageLoop
    End Sub

    Sub Server_NewConnection (Successful As Boolean, NewSocket As Socket)

    If Successful Then

    If astream.IsInitialized Then astream.Close
         astream.Initialize(NewSocket.InputStream, NewSocket.OutputStream,
    "astream")

    End If

    server.Listen
    End Sub

    Sub AStream_NewData (Buffer() As Byte)

    Log(BytesToString(Buffer, 0, Buffer.Length, "utf8"))
    End Sub

    Sub AStream_Error

    Log("Error")
    End Sub

    Sub AStream_Terminated

    Log("Terminated")
    End Sub
    Notes

    - Under the hood there are many differences between ESP8266 and the Arduinos. One of the differences which can be relevant for developers is that the network stream is buffered. If you are writing directly to WiFiClient.Stream then you will need to call WiFiClient.Stream.Flush or the data will not be sent. This is not required when writing with AsyncStreams (which is the recommended way).
    - Check the board voltage. The WeMos board is 3.3v.
    - Not all libraries are supported. Specifically EEPROM is not supported (there may be others as well).
    - WebSocketClient library has moved to the internal libraries folder.
    - Serial.Initialize2 has been removed as it is not supported by many boards. It can be accessed with inline C.
    - WiFi remote configuration example: https://www.b4x.com/android/forum/threads/esp8266-wifi-remote-configuration.68596/

    Last edited: Jul 7, 2016
  2. barx

    barx Well-Known Member Licensed User

    It's funny that you have released this today as today I have ordered myself this exact thing before seeing your post. how crazy is that........?

    Erel likes this.
  3. rwblinn

    rwblinn Well-Known Member Licensed User

    Thanks a Lot = Great!
    First Experience using the example code above.
    • Connected a NodeMCU 0.9
    • Selected initially as board: NodeMCU 0.9 (ESP-12 Module) (UploadSpeed=115200) - COM6
    • When compiling, got error: c:/users/robert/appdata/local/arduino15/packages/esp8266/tools/xtensa-lx106-elf-gcc/1.20.0-26-gb404fb9-2/bin/../lib/gcc/xtensa-lx106-elf/4.8.2/../../../../xtensa-lx106-elf/bin/ld.exe: cannot open linker script file {build.flash_ld}: No such file or directory. collect2.exe: error: ld returned 1 exit status; exit status 1; Error compiling for board NodeMCU 0.9 (ESP-12 Module).
    • Found hint that this has to do with the flash size. Changed the board to NodeMCU 0.9 (ESP-12 Module) (Flashsize=4M1M)
    • Compiled but received timeout error. Increased the timeout from 60 to 90 seconds. Compile went OK.
    • Test socket example running fine :)

    Cableguy likes this.
  4. rwblinn

    rwblinn Well-Known Member Licensed User

    Another simple test successfully running: Switch, via B4J server, a LED ON/OFF (connected to ESP8266 pin D4).

    B4R Code
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private wifi As ESP8266WiFi

    Private client As WiFiSocket

    Private astream As AsyncStreams

    Private LEDPin As Pin

    Private serverIp() As Byte = Array As Byte(19216804)
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")

    If wifi.Connect2("SSID""**********"Then

    Log("Connected to wireless network.")

    Else

    Log("Failed to connect.")

    Return

    End If
        LEDPin.Initialize(
    4, LEDPin.MODE_OUTPUT)
           Connect(
    0)
    End Sub

    Private Sub Connect(u As Byte)

    If client.ConnectIP(serverIp, 51042Then

    Log("Connected to server.")
         astream.Initialize(client.Stream,
    "astream_NewData""astream_Error")

    Else

    Log("Failed to connect to server")
         CallSubPlus(
    "Connect"10000)

    End If
    End Sub

    Sub AStream_NewData (Buffer() As Byte)
        LEDPin.DigitalWrite(Buffer(
    0) = 1)

    Dim s As String = LEDPin.DigitalRead
        astream.Write(
    "ESP8266 reporting LED Status = ").Write(s)
    End Sub

    Sub AStream_Error

    Log("Error")
       CallSubPlus(
    "Connect"10000)
    End Sub
    B4J Code
    Code:
    Sub Process_Globals

    Private server As ServerSocket

    Private astream As AsyncStreams

    Private Timer1 As Timer

    Private LEDOn As Boolean = False
    End Sub

    Sub AppStart(Args() As String)

    server.Initialize(51042"server")

    server.Listen
       Timer1.Initialize(
    "Timer1"2000)
       Timer1.Enabled =
    True
       StartMessageLoop
    End Sub

    Sub Timer1_Tick

    Dim b(1As Byte
        LEDOn =
    Not(LEDOn)

    If LEDOn Then
            b(
    0) = 1

    Else
            b(
    0) = 0

    End If

    Log($"${DateTime.Time(DateTime.Now)}: Setting ESP8266 LED to ${b(0)}"$)
        astream.Write(b)
    End Sub

    Sub Server_NewConnection (Successful As Boolean, NewSocket As Socket)

    If Successful Then

    If astream.IsInitialized Then astream.Close
         astream.Initialize(NewSocket.InputStream, NewSocket.OutputStream,
    "astream")

    End If

    server.Listen
    End Sub

    Sub AStream_NewData (Buffer() As Byte)

    Log(BytesToString(Buffer, 0, Buffer.Length, "utf8"))
    End Sub

    Sub AStream_Error

    Log("Error")
    End Sub

    Sub AStream_Terminated

    Log("Terminated")
    End Sub
    Output
    Code:
    20:19:43: Setting ESP8266 LED to 1
    ESP8266 reporting
    LED Status = true

    Last edited: Jun 25, 2016
    Erel and inakigarm like this.
  5. Erel

    Erel Administrator Staff Member Licensed User

    V1.20 BETA #2 is now available for download. The board selector was updated and it now allows setting all the configurable parameters.

    [​IMG]

  6. rwblinn

    rwblinn Well-Known Member Licensed User

    Hi,

    tested MQTT sucessfully with B4R as client and a B4J server.
    The test experiments (B4R & B4J code) attached. As hardware a NodeMCU 0.9 (ESP-12 Module) (Flashsize=4M1M) is used.
    • Switch LED ON/OFF connected to ESP8266 pin D2 via B4J server using MQTT (ledcontrolmqtt.zip)
    • DHT11 sensor temperature & humidity publish to server using MQTT (dht11mqtt.zip)



    Attached Files:

    Cableguy and Erel like this.
  7. rwblinn

    rwblinn Well-Known Member Licensed User

    Hi,

    an observation:
    Compiling and Deploying does not give an error in the compiler information window, if no ESP8266 is connected to a COM port.
    An error occurs in the log after the compiler information window closes.

    To consider After compiling is completed and no ESP8266 connected, to provide a message like Compile successfull, deploy failed as no connected device found.

    Example
    compiler information window

    Code:
    Building project    (0.14s)
    Compiling & deploying Ino project (NodeMCU
    0.9 (ESP-12 Module) - COM6)    (15.89s)
        Sketch uses
    238,589 bytes (22%) of program storage space. Maximum is 1,044,464 bytes.
        Global variables use
    32,972 bytes (40%) of dynamic memory, leaving 48,948 bytes for local variables. Maximum is 81,920 bytes.

    Completed successfully.
    log
    Code:
    Error opening port
    jssc.SerialPortException: Port name - COM6; Method name - openPort();
    Exception type - Port not found.

  8. Erel

    Erel Administrator Staff Member Licensed User

    It shouldn't show: NodeMCU 0.9 (ESP-12 Module) (Flashsize=4M1M)
    Open the board selector and select the board again. It will allow you to configure all the parameters.

  9. rwblinn

    rwblinn Well-Known Member Licensed User

    Correct - was old info I used - during the beta 2 test did change the settings.

  10. Toley

    Toley Active Member Licensed User

    Hi Erel, I always get this error when I try to compile. Sorry it's in french but easy to understand, it says it cannot find the rwifi101 library but it is there.

  11. barx

    barx Well-Known Member Licensed User

    My board arrived today, got a simple example running just listing networks to see if it works. And of course it does. For the price, this thing is brill. just adding wifi is worth the money alone. The only downside I see it that it is 3.3v logic. There is alway lgic level converters though if you need to talk 5v.

  12. positrom2

    positrom2 Active Member Licensed User

    Does not compile (B4R).
    1.: Syntax error: Missing Gänsefüßchen (") (Line 14) (being too picky?:()
    2.: "Ein Teil des Pfades "C:\Program Files (x86)\Anywhere Software\B4R\libraries\rwifi101" konnte nicht gefunden werden".
    My libraries tree after having shuffeled the ESP entries to the Additional Libraries folder (path setting is ok) look as this: But I am not sure about the proper organization.
    What does rwifi101 mean?

  13. rwblinn

    rwblinn Well-Known Member Licensed User

    Regarding 1:
    The password must be in "" (I forgot that in during copy paste = post updated)
    Code:
    If wifi.Connect2("SSID""**********"Then
    Regarding 2:

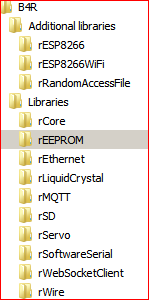

    The B4R Internal Lib folder I use after installing B4R = this includes the rWiFi101.

    Suggest to consider installing B4R new, to ensure the lib folder is setup correct.

  14. positrom2

    positrom2 Active Member Licensed User

    rwblinn:
    Thanks to your answer.
    Prior to reinstalling B4R I adjusted the libraries folder to your image above.
    Afterwards I restarted B4R and received the same rwifi101 error as posted above.
    The error message translated is:
    "Part of the path .... could not be found. " So apparently some part of the lib is found.
    Afterwards I reloaded B4R Beta from this link:
    https://www.b4x.com/android/forum/threads/b4r-beta-is-available-for-download.65651/page-2
    That turned out to be an old version not compatible with your code.
    Then I reloaded the hopefully most recent version from this link:
    http://www.b4x.com/b4r/files/beta.exe
    and installed as administrator (Win7).
    This yields the same rwifi101 error as posted above.
    So, there are two problems:
    Links to different versions of B4R (a B4X site problem)
    The "part of rwifi101" problem.


  15. Erel

    Erel Administrator Staff Member Licensed User

    Remove the reference to rWifi101. The file shouldn't have been there. There is no such library.

    Toley likes this.
  16. positrom2

    positrom2 Active Member Licensed User

    Thanks, Erel.
    rwblinn: I think it is not very useful for promoting B4R to post code that has not been tested in the posted version.
    Now "proceeding", B4J throws this error:
    Program started.
    An error occurred:
    (Line: 0) null
    java.lang.Exception: Sub appstart signature does not match expected signature.
    public static anywheresoftware.b4a.pc.RemoteObject b4j.example.main_subs_0._appstart(anywheresoftware.b4a.pc.RemoteObject) throws java.lang.Exception

  17. Erel

    Erel Administrator Staff Member Licensed User

    Please start a new thread for this.

  18. rwblinn

    rwblinn Well-Known Member Licensed User

    Hi,

    thanks for feedback:
    I did test the code with the latest B4R 1.20 (using the link in post #1) beta and no issues (else really would not post). To go for sure, tested again and worked fine.
    The B4J project is a non-ui app, so ensure when creating a new B4J project it is of type non-ui.

    Please find the project attached used for testing - hope that helps.


    Attached Files:

    inakigarm likes this.
  19. barx

    barx Well-Known Member Licensed User

    Is it possible to add the wifi.status?

    All the examples I have seen seem to use the following scheme

    Code:
    WiFi.begin(WiFiSSID, WiFiPSK);


    while (WiFi.status() != WL_CONNECTED)
      {
        digitalWrite(LED_PIN, ledStatus); // Write
    LED high/low
        ledStatus = (ledStatus == HIGH) ? LOW : HIGH;

        delay(
    100);

    }
    I'm assuming that WiFi.begin() is our wifi.connect() or wifi.connect2().

    but as I see it we don't have a way of checking if we actually have connected? unless I've missed something....

  20. Erel

    Erel Administrator Staff Member Licensed User

    WiFi.Connect will return True if it has connected successfully (see the code in the first post).

    barx likes this.
Thread Status:
Not open for further replies.
Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
