Android Code Snippet [B4X] [BitmapCreator] Draw radial gradients

Discussion in 'Code Snippets' started by Erel, May 10, 2018.

  1. Erel

    Erel Administrator Staff Member Licensed User

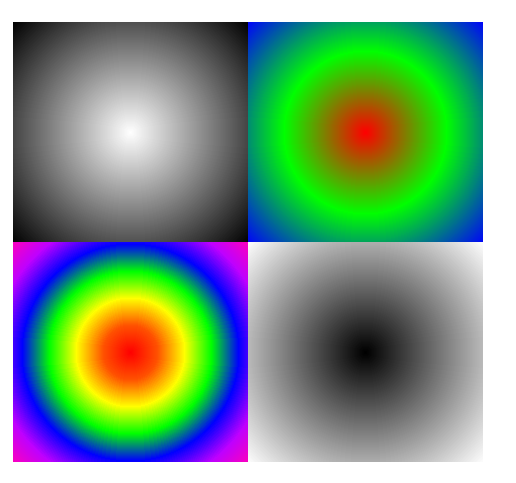

    Currently BitmapCreator supports linear and cubic gradients. This sub creates a radial gradient:

    [​IMG]

    Code:
    Public Sub FillRadialGradient (bc As BitmapCreator, GradColors() As Int, Rect As B4XRect)

    Dim RGBColor(GradColors.Length) As ARGBColor

    For i = 0 To GradColors.Length - 1
           bc.ColorToARGB(GradColors(i), RGBColor(i))

    Next

    Dim MaxDistance As Int = Ceil(Sqrt(Power(Rect.Width / 22) + Power(Rect.Height / 22)))

    Dim DistanceToColor(MaxDistance) As ARGBColor

    Dim CurrentColorIndex As Int

    Dim LengthOfEachColor As Int = Ceil(MaxDistance / (GradColors.Length - 1))

    Dim c As Int

    For i = 0 To MaxDistance - 1

    Dim l As Float = CurrentColorIndex / LengthOfEachColor
           DistanceToColor(i).a = RGBColor(c).a + l * (RGBColor(c +
    1).a - RGBColor(c).a)
           DistanceToColor(i).r = RGBColor(c).r + l * (RGBColor(c +
    1).r - RGBColor(c).r)
           DistanceToColor(i).g = RGBColor(c).g + l * (RGBColor(c +
    1).g - RGBColor(c).g)
           DistanceToColor(i).b = RGBColor(c).b + l * (RGBColor(c +
    1).b - RGBColor(c).b)
           CurrentColorIndex = CurrentColorIndex +
    1

    If CurrentColorIndex = LengthOfEachColor Then
               CurrentColorIndex =
    0
               c = c +
    1

    End If

    Next

    Dim cx As Int = Rect.CenterX

    Dim cy As Int = Rect.CenterY

    For x = Max(0Rect.Left) To Min(bc.mWidth - 1Rect.Right - 1)

    Dim dx As Int = Power(x - cx, 2)

    For y = Max(0Rect.Top) To Min(bc.mHeight - 1Rect.Bottom - 1)

    Dim distance As Int = Sqrt(dx + Power(y - cy, 2))
               bc.SetARGB(x, y, DistanceToColor(distance))

    Next

    Next
    End Sub
    Usage example:
    Code:
    Dim bc As BitmapCreator

    Dim scale As Float = 100dip / 100
       bc.Initialize(ImageView1.Width / scale, ImageView1.Height / scale)

    Dim r As B4XRect
       r.Initialize(
    00, bc.mWidth / 2, bc.mHeight / 2)
       FillRadialGradient(bc,
    Array As Int(xui.Color_White, xui.Color_Black), r)

       r.Initialize(bc.mWidth /
    20, bc.mWidth, bc.mHeight / 2)
       FillRadialGradient(bc,
    Array As Int(xui.Color_Red, xui.Color_Green, xui.Color_Blue), r)

       r.Initialize(bc.mWidth /
    2, bc.mHeight / 2, bc.mWidth, bc.mHeight)
       FillRadialGradient(bc,
    Array As Int(xui.Color_Black, xui.Color_White), r)

       r.Initialize(
    0, bc.mHeight / 2, bc.mWidth / 2, bc.mHeight)
       FillRadialGradient(bc,
    Array As Int(xui.Color_Red, 0xFFFF5200, xui.Color_Yellow, xui.Color_Green, xui.Color_Blue, _

    0xFFBF00FF0xFFFF00BB), r)

       ImageView1.SetBitmap(bc.Bitmap)

  2. Gunther

    Gunther Active Member Licensed User

    With the update to the new BitmapCreator the 'FillRadialGradient' became an own property of the BitmapCreator. The upper function is not necessary any more.

    Code:
    ' Brush with RadialGradient
        Dim bc2 As BitmapCreator
        bc2.Initialize( bc.mWidth, bc.mHeight )

    '
        Dim rect As B4XRect

    rect.Initialize( 00, bc2.mWidth-1, bc2.mHeight-1 )
        bc2.FillRadialGradient(
    Array As Int( Rnd(0xFF000000,-1), Rnd(0xFF000000,-1), Rnd(0xFF000000,-1), Rnd(0xFF000000,-1), Rnd(0xFF000000,-1) ), rect )

    Erel likes this.
