Android Code Snippet [B4X] Change the background alpha level

Discussion in 'Code Snippets' started by Erel, Aug 17, 2018.

  1. Erel

    Erel Administrator Staff Member Licensed User

    [​IMG]

    Code:
    Private Sub MakeViewBackgroundTransparent(View As B4XView, Alpha As Int)

    Dim clr As Int = View.Color

    If clr = 0 Then

    Log("Cannot get background color.")

    Return

    End If

    View.Color = Bit.Or(Bit.And(0x00ffffff, clr), Bit.ShiftLeft(Alpha, 24))
    End Sub
    Depends on: XUI (or jXUI or iXUI).

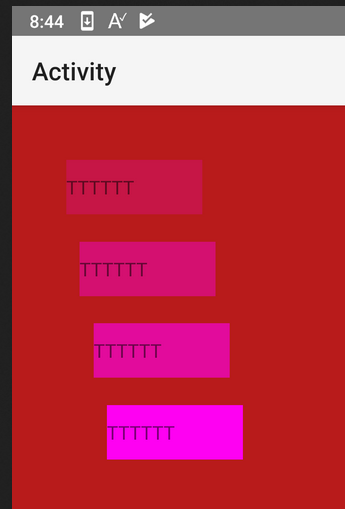

    Example:
    Code:
    Sub Activity_Create(FirstTime As Boolean)

    Activity.LoadLayout("1")
       MakeViewBackgroundTransparent(Label1,
    50)
       MakeViewBackgroundTransparent(Label2,
    100)
       MakeViewBackgroundTransparent(Label3,
    150)
       MakeViewBackgroundTransparent(Label4,
    250)
    End Sub

    Procesor, PassionDEV, Jaames and 8 others like this.
  2. anOparator

    anOparator Active Member Licensed User

    I'm hoping the Main Activity background color can be made Transparent, either with XUI or JavaObject.
    Code:
    Sub Activity_Create(FirstTime As Boolean)

    'I have also set Activity color to transparent in Visual Designer
       Activity.LoadLayout("Layout1")
    '   MakeViewBackgroundTransparent(Activity, 25)   ' does not help
    '   MakeViewBackgroundTransparent("", 25)   ' does not help
       Activity.Color = Colors.Transparent   ' not working, black background
    End Sub

    Private Sub MakeViewBackgroundTransparent(View As B4XView, Alpha As Int)

    Dim clr As Int = View.Color

    If clr = 0 Then

    Log("Cannot get background color")

    Return

    End If

    View.Color = Bit.Or(Bit.And(0x00ffffff, clr), Bit.ShiftLeft(Alpha, 24))
    End Sub

    Sub Activity_Resume
    '   Activity.Color = Colors.Transparent   ' not working, black background
    End Sub
    EDIT: Cancelled question. Just found it, thanks for the keyword search tools. -
    https://www.b4x.com/android/forum/threads/transparent-background-with-clip-function.97328/

    Last edited: Oct 20, 2018
