B4J Tutorial [B4X] Text Along Any Curve

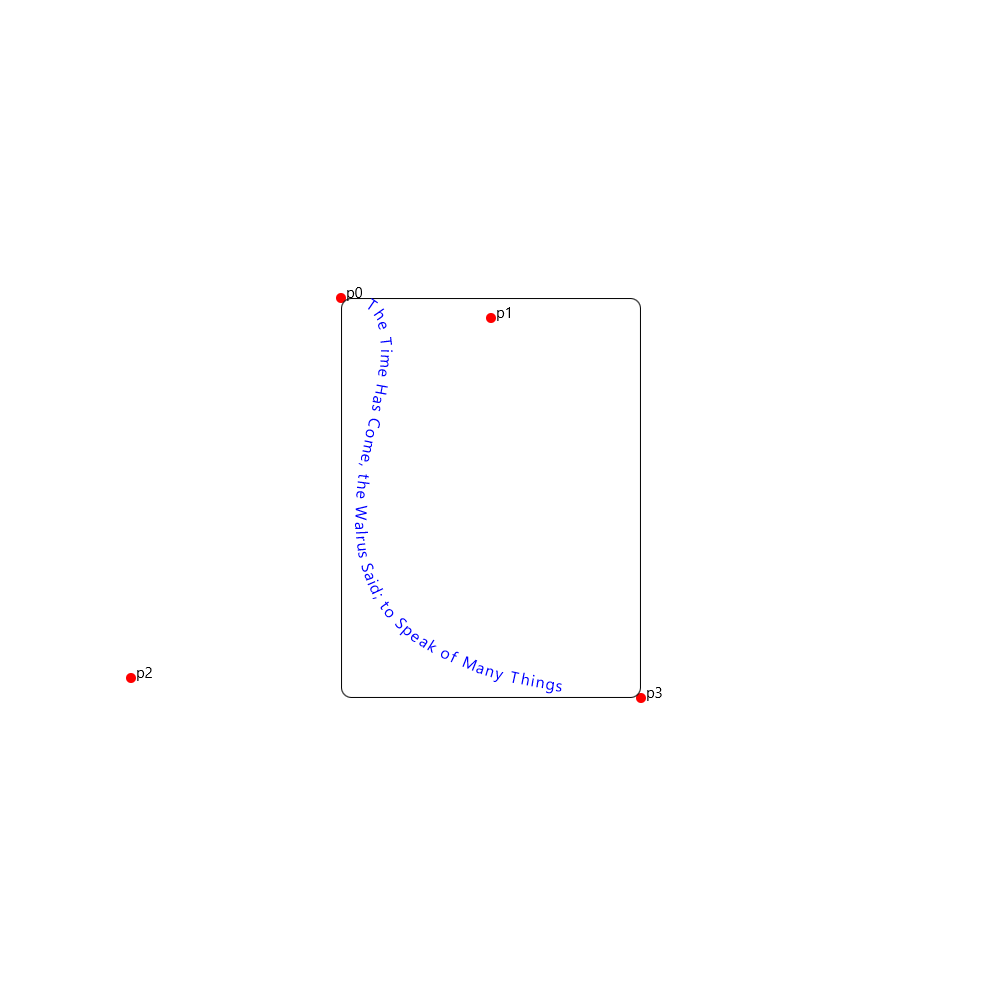

The example here uses a Bezier curve which is one of a lot of possible curves.
But the text drawing routine works on any list of points.
The attached .zip has all the code (140 lines).



B4X:
Sub Class_Globals
    Type myPoint (x As Float, y As Float)
    Type bezierSpec (p0 As myPoint, p1 As myPoint, p2 As myPoint, p3 As myPoint)
    Private fx As JFX
    Private Root As B4XView
    Private xui As XUI
    Private cv As B4XCanvas
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Dim w As Float = 300dip
    Dim h As Float = 400dip
    Dim basePanel As B4XView = xui.CreatePanel("")
    basePanel.SetColorAndBorder(xui.Color_Transparent, 1dip, xui.Color_Black, 10dip)
    Root.AddView(basePanel, Root.Width / 2 - w /2, Root.Height / 2 - h / 2, w, h)
    cv.Initialize(basePanel)

    Dim aw As Float = .5
    Dim ah As Float = -.7
    Dim p0 As myPoint = setP(0, 0)
    Dim p1 As myPoint = setP(aw * w, .05 * h)
    Dim p2 As myPoint = setP(ah * w, .95 * h)
    Dim p3 As myPoint = setP(w, h)
    Dim bz As bezierSpec = setSpec(p0, p1, p2, p3)

    Dim points As List = BuildBezierCurve(bz)
    TextOnCurve("The Time Has Come, the Walrus Said; to Speak of Many Things",    xui.CreateDefaultFont(16), 23dip, points)
    cv.Invalidate

'EXPLANATION
    'Bezier curves have two end points and two intermediate control points
    'To show control points of bezier curve make sure width and height >= 1000 (in example, p2 is not in the panel)
    'Also see how easy it would be to animate the curve and text by varying the control points in small increments
    'and redrawing the text
    Dim cv2 As B4XCanvas
    cv2.Initialize(Root)

    cv2.DrawCircle(basePanel.Left + p0.x, basePanel.top + p0.y, 5dip, xui.Color_Red, True, 0)
    cv2.DrawCircle(basePanel.Left + p1.x, basePanel.top + p1.y, 5dip, xui.Color_Red, True, 0)
    cv2.DrawCircle(basePanel.Left + p2.x, basePanel.top + p2.y, 5dip, xui.Color_Red, True, 0)
    cv2.DrawCircle(basePanel.Left + p3.x, basePanel.top + p3.y, 5dip, xui.Color_Red, True, 0)

    cv2.DrawText("p0", basePanel.Left + p0.x + 5dip, basePanel.top + p0.y, xui.CreateDefaultFont(15), xui.Color_Black, "LEFT")
    cv2.DrawText("p1", basePanel.Left + p1.x + 5dip, basePanel.top + p1.y, xui.CreateDefaultFont(15), xui.Color_Black, "LEFT")
    cv2.DrawText("p2", basePanel.Left + p2.x + 5dip, basePanel.top + p2.y, xui.CreateDefaultFont(15), xui.Color_Black, "LEFT")
    cv2.DrawText("p3", basePanel.Left + p3.x + 5dip, basePanel.top + p3.y, xui.CreateDefaultFont(15), xui.Color_Black, "LEFT")

    cv2.Invalidate
End Sub


Attachments

  • CurvedText.zip
    51.9 KB · Views: 129

William Lancee

Well-Known Member
Licensed User
Longtime User
I can put the text on a curve but I didn't get the quote correct. The Poem by Lewis Carroll seems oddly appropriate for today's world.
