B4A Library [B4X] [XUI] AS TabMenuAdvanced

A container view controller that manages a multiselection interface, where the selection determines which child view controller to display.

This view was developed and structured from scratch :)

i spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view cost a lot of time. If you want to support me, then you can do it here by Paypal or with a coffee. :)

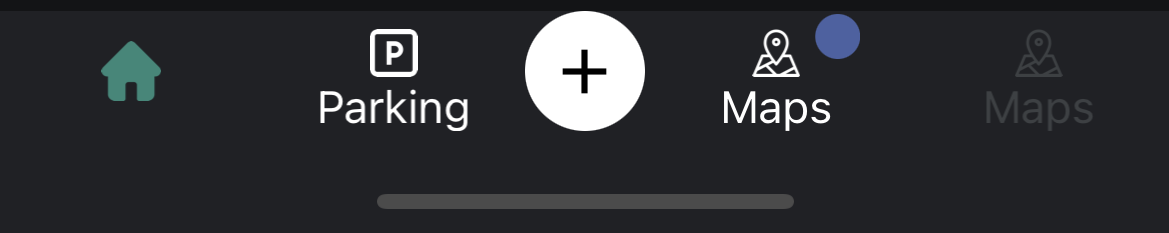

(17) mage.png

MiddleButton = True - Designer Property
Examples:
B4X:

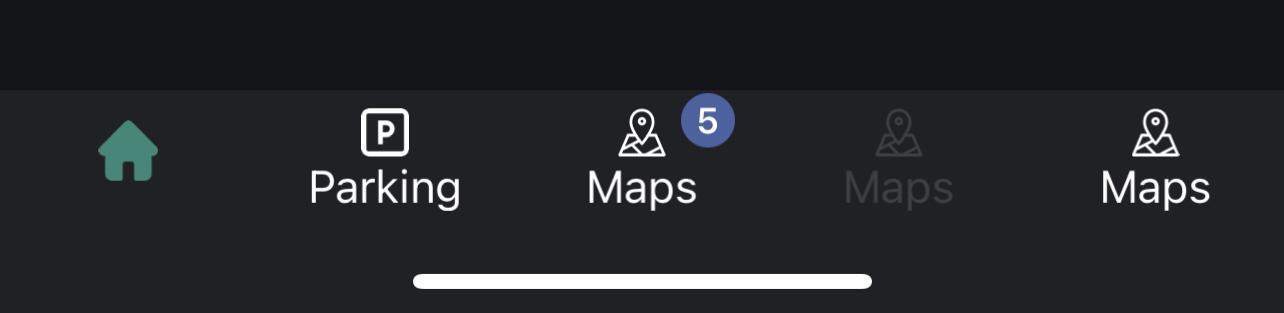

AS_TabMenuAdvanced1.GetTab(2).xTab.BadgeValue = 5 'Sets the Badge Value for the 3. Tab to 5
AS_TabMenuAdvanced1.GetTab(3).xTab.Enabled = False 'Disabled the 4. Tab
AS_TabMenuAdvanced1.Refresh 'Commits the changes
Example Projects
ASTabMenuAdvanced
Author: Alexander Stolte
Version: 1.02

  • ASTabMenuAdvanced_BadgeProperties
    • Fields:
      • BackgroundColor As Int
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • TextFont As B4XFont
      • TextPadding As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_Tab
    • Fields:
      • BadgeValue As Int
      • Enabled As Boolean
      • IconDisabled As B4XBitmap
      • IconSelected As B4XBitmap
      • IconUnselected As B4XBitmap
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Tag As Object
      • Text As String
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabIntern
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • xBadgeProperties As ASTabMenuAdvanced_BadgeProperties
      • xTab As ASTabMenuAdvanced_Tab
      • xTabProperties As ASTabMenuAdvanced_TabProperties
      • xTabViews As ASTabMenuAdvanced_TabViews
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabProperties
    • Fields:
      • BackgroundColor As Int
      • DisabledColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • SelectedColor As Int
      • TextFont As B4XFont
      • TextIconPadding As Float
      • UnselectedColor As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabViews
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • xiv_TabIcon As B4XView
      • xlbl_Badge As B4XView
      • xlbl_TabText As B4XView
      • xpnl_TabBackground As B4XView
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • AS_TabMenuAdvanced
    • Events:
      • TabClick (Index As Int)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • AddTab (Text As String, IconSelected As B4XBitmap, IconUnselected As B4XBitmap) As String
        Text - Pass "" if you dont want Text
        IconSelected - Pass NULL if you dont want a Icon
        IconUnselected - Pass NULL if you dont want a Icon
        If you want to change TabProperties then call this before you add the tab
        <code>AS_TabMenuAdvanced1.TabProperties.TextColor = xui.Color_White</code>
      • AddTabAdvanced (xTab As ASTabMenuAdvanced_Tab, xTabProperties As ASTabMenuAdvanced_TabProperties) As String
        Example:
        <code>
        Dim xTab As ASTabMenuAdvanced_Tab = AS_TabMenuAdvanced1.CreateASTabMenuAdvanced_Tab("Test Item",Null,Null)
        Dim xTabProperties As ASTabMenuAdvanced_TabProperties = AS_TabMenuAdvanced1.CreateASTabMenuAdvanced_TabProperties(xui.CreateDefaultFont(15),xui.Color_ARGB(255,32, 33, 37),xui.Color_ARGB(255,45, 136, 121),xui.Color_ARGB(255,255,255,255),xui.Color_ARGB(255,60, 64, 67),0)
        AS_TabMenuAdvanced1.AddTabAdvanced(xTab,xTabProperties)</code>
      • ChangeColorBasedOnAlphaLevel (bmp As B4XBitmap, NewColor As Int) As B4XBitmap
      • Class_Globals As String
      • CreateASTabMenuAdvanced_BadgeProperties (TextColor As Int, TextFont As B4XFont, Height As Float, TextPadding As Float, BackgroundColor As Int) As ASTabMenuAdvanced_BadgeProperties
      • CreateASTabMenuAdvanced_Tab (Text As String, IconSelected As B4XBitmap, IconUnselected As B4XBitmap) As ASTabMenuAdvanced_Tab
      • CreateASTabMenuAdvanced_TabIntern (xTab As ASTabMenuAdvanced_Tab, xTabProperties As ASTabMenuAdvanced_TabProperties, xBadgeProperties As ASTabMenuAdvanced_BadgeProperties, xTabViews As ASTabMenuAdvanced_TabViews) As ASTabMenuAdvanced_TabIntern
      • CreateASTabMenuAdvanced_TabProperties (TextFont As B4XFont, BackgroundColor As Int, SelectedColor As Int, UnselectedColor As Int, DisabledColor As Int, TextIconPadding As Float) As ASTabMenuAdvanced_TabProperties
      • CreateASTabMenuAdvanced_TabViews (xpnl_Tab As B4XView, xlbl_TabText As B4XView, xiv_TabIcon As B4XView, xlbl_Badge As B4XView) As ASTabMenuAdvanced_TabViews
      • CreateImageView (EventName As String) As B4XView
      • CreateLabel (EventName As String) As B4XView
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap
      • getIndex As Int
      • GetTab (Index As Int) As ASTabMenuAdvanced_TabIntern
        Example:
        <code>
        AS_TabMenuAdvanced1.GetTab(0).xTabProperties.SelectedColor = xui.Color_Magenta
        AS_TabMenuAdvanced1.Refresh</code>
      • getTabProperties As ASTabMenuAdvanced_TabProperties
      • GetTabs As List
        Example:
        <code>
        For Each TabIntern As ASTabMenuAdvanced_TabIntern In AS_TabMenuAdvanced1.GetTabs
        Log(TabIntern.xTab.Text)
        Next</code>
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Refresh As String
      • RemoveTabAt (Index As Int) As String
        Removes a tab
        <code>
        AS_TabMenuAdvanced1.RemoveTabAt(2)
        AS_TabMenuAdvanced1.Refresh</code>
      • setIndex (Index As Int) As String
    • Properties:
      • Index As Int
      • TabProperties As ASTabMenuAdvanced_TabProperties [read only]
Changelog
  • 1.00
    • Release
  • 1.01
    • xBadge renamed to xBadgeProperties
  • 1.02
    • Add GetTabs - Gets a list of tab properties of type ASTabMenuAdvanced_TabIntern
    • Add RemoveTabAt - Removes a tab
    • Add Tag Property to Type ASTabMenuAdvanced_Tab
    • Add new Type ASTabMenuAdvanced_TabViews - contains the control elements of a tab
  • 1.03
    • Add LeftPadding to ASTabMenuAdvanced_BadgeProperties - You can move the badge to left or right with this property
    • Add get BadgeProperties - here you can set the global Badge Properties
  • 1.04
    • The TabClick Event is now always triggered, even if the tab is already selected
    • The BadgeValue Data Type from Type ASTabMenuAdvanced_Tab is now String
  • 1.05
    • Add get and set CornerRadius
    • Add new Type ASTabMenuAdvanced_IndicatorProperties
    • Add Designer Property Indicator - If True the Indicator is visible
      • Default: False
    • BugFixes
  • 1.06
    • Add Designer Property MiddleButton - You can now show a middle button
      • Default: False
      • Limitation: Only an even number of tabs may be present 2,4,6,8,10...
    • Add Event MiddleButtonClick
    • Add Type ASTabMenuAdvanced_MiddleButtonProperties
      • CustomWidth
        • Default: 0
    • Add Designer Property BadgeWithoutText - If True then the badges have no text
      • Default: False
  • 1.07
    • Add Visible to Type ASTabMenuAdvanced_MiddleButtonProperties - If False then the middle button is not visible, but the space is still kept free
Have Fun :)


Attachments

  • AS TabMenuAdvanced Example.zip
    449.1 KB · Views: 313
  • AS_TabMenuAdvanced.b4xlib
    6.9 KB · Views: 128
Last edited:

Sandman

Expert
Licensed User
Very nice work. A couple of questions:
  • I couldn't find AS_TabMenuAdvanced.GetTabs As List, any chance for that to be added?

  • I couldn't find AS_TabMenuAdvanced.DeleteTab(ASTabMenuAdvanced_TabIntern), any chance for that to be added? (I get that I can hide to fake deletion, but it also makes sense to me to be able to delete if not needed.)

  • Would it be possible to add Tag to ASTabMenuAdvanced_TabIntern and also AS_TabMenuAdvanced.GetTabByTag(Tag)? (I get that I can do that myself outside the lib, but I thought I'd ask :) )

The last question is a somewhat weird, sorry about that. :)

In most cases an app wouldn't have a lot of buttons, but if they are generated dynamically depending on outside data, there might be a situation where there simply will be too many buttons. It will start to look cramped and ugly. For this edge-case, would it make sense to have an overflow menu to show? Something like this:

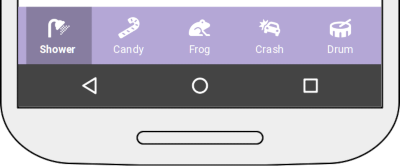

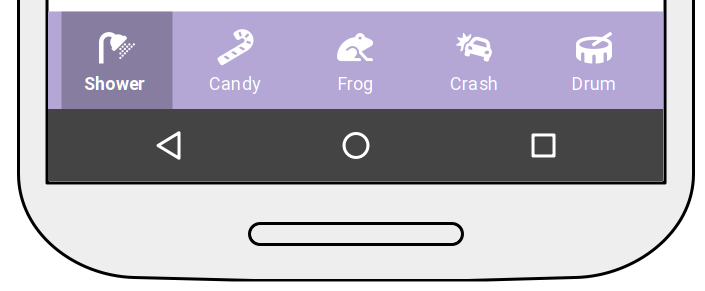

Five buttons. Looks fine, life is good.



But when we need to add one (or more) buttons it would look cramped. So enter the overflow menu, where the right-most button is moved into the first place of the overflow menu, and the rest below it:



I get that this might not fit your vision about this lib, but again I thought I should at least ask for your thoughts. :)


Attachments

  • 1654068799225.png
    21 KB · Views: 38

Alexander Stolte

Expert
Licensed User
Update
  • 1.02
    • Add GetTabs - Gets a list of tab properties of type ASTabMenuAdvanced_TabIntern
    • Add RemoveTabAt - Removes a tab
    • Add Tag Property to Type ASTabMenuAdvanced_Tab
    • Add new Type ASTabMenuAdvanced_TabViews - contains the control elements of a tab

I couldn't find AS_TabMenuAdvanced.GetTabs As List, any chance for that to be added?
B4X:
For Each TabIntern As ASTabMenuAdvanced_TabIntern In AS_TabMenuAdvanced1.GetTabs
    Log(TabIntern.xTab.Text)
Next
I couldn't find AS_TabMenuAdvanced.DeleteTab(ASTabMenuAdvanced_TabIntern), any chance for that to be added? (I get that I can hide to fake deletion, but it also makes sense to me to be able to delete if not needed.)
B4X:
AS_TabMenuAdvanced1.RemoveTabAt(2)
AS_TabMenuAdvanced1.Refresh
Would it be possible to add Tag to ASTabMenuAdvanced_TabIntern and also AS_TabMenuAdvanced.GetTabByTag(Tag)? (I get that I can do that myself outside the lib, but I thought I'd ask :) )
B4X:
AS_TabMenuAdvanced1.GetTab(2).xTab.Tag = "Test"
Log(AS_TabMenuAdvanced1.GetTab(2).xTab.Tag)
But you have to include a search, because a "tag" is of type object and therefore can contain everything.
B4X:
    For i = 0 To AS_TabMenuAdvanced1.GetTabs.Size -1

        Dim TabIntern As ASTabMenuAdvanced_TabIntern = AS_TabMenuAdvanced1.GetTabs.Get(i)
        If "Test" = TabIntern.xTab.Tag Then
            Log("Found Tab on Index: " & i)
        End If

    Next

is a somewhat weird, sorry about that
yes it is, but not impossible, because we have all what we need on the forum :)

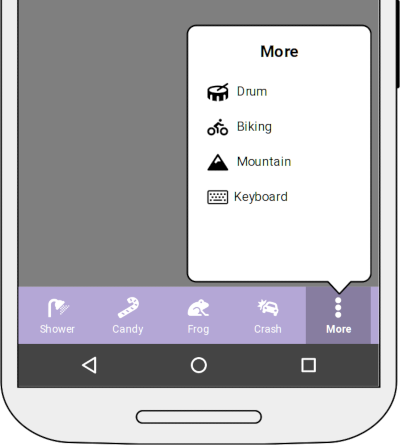

So enter the overflow menu, where the right-most button is moved into the first place of the overflow menu, and the rest below it:
You can do this togehter with the ASPopupMenu or ASPopupMenuAdvanced. Maybe i can create a example later.
with the following code you can detect the x position of a tab:
B4X:
Dim xpnl_Tab As B4XView = AS_TabMenuAdvanced1.GetTab(2).xTabViews.xpnl_TabBackground
Log("The middle of the tab is: " & (xpnl_Tab.Left + xpnl_Tab.Width/2))
and then add the PopupMenu to this position on the form


Alexander Stolte

Expert
Licensed User
Maybe i have time tomorrow for the ASPopupMenuAdvanced version.


incendio

Well-Known Member
Licensed User
Longtime User
Hi,

Thanks for this library.

I have a problem, when the same Tab clicked more than one, it was only registered one click event, the rest were not register.

For ex, when Tab no 2 clicked twice, the event only captured for the first clicked.

Is there a way to captured clicked event on the same tab that clicked more than once?


Alexander Stolte

Expert
Licensed User
Update
  • 1.04
    • The TabClick Event is now always triggered, even if the tab is already selected
    • The BadgeValue Data Type from Type ASTabMenuAdvanced_Tab is now String

have a problem, when the same Tab clicked more than one, it was only registered one click event, the rest were not register.
Yes that should actually serve as protection, but actually makes no sense, I changed it again.


Alexander Stolte

Expert
Licensed User
Update
  • 1.05
    • Add get and set CornerRadius
    • Add new Type ASTabMenuAdvanced_IndicatorProperties
    • Add Designer Property Indicator - If True the Indicator is visible
      • Default: False
    • BugFixes

B4X:
AS_TabMenuAdvanced_Design1.CornerRadius = AS_TabMenuAdvanced_Design1.mBase.Height/2 'Round
AS_TabMenuAdvanced_Design1.IndicatorVisible = True

AS_TabMenuAdvanced_Design1.IndicatorProperties.Color = xui.Color_White


yaqoob

Member
Licensed User
Longtime User
A container view controller that manages a multiselection interface, where the selection determines which child view controller to display.

This view was developed and structured from scratch :)

i spend a lot of time in creating views, some views i need by my self, but some views not and to create a high quality view cost a lot of time. If you want to support me, then you can do it here by Paypal or with a coffee. :)

View attachment 129807
Examples:
B4X:
AS_TabMenuAdvanced1.GetTab(2).xTab.BadgeValue = 5 'Sets the Badge Value for the 3. Tab to 5
AS_TabMenuAdvanced1.GetTab(3).xTab.Enabled = False 'Disabled the 4. Tab
AS_TabMenuAdvanced1.Refresh 'Commits the changes
Example Projects
ASTabMenuAdvanced
Author: Alexander Stolte
Version: 1.02

  • ASTabMenuAdvanced_BadgeProperties
    • Fields:
      • BackgroundColor As Int
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • TextFont As B4XFont
      • TextPadding As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_Tab
    • Fields:
      • BadgeValue As Int
      • Enabled As Boolean
      • IconDisabled As B4XBitmap
      • IconSelected As B4XBitmap
      • IconUnselected As B4XBitmap
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Tag As Object
      • Text As String
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabIntern
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • xBadgeProperties As ASTabMenuAdvanced_BadgeProperties
      • xTab As ASTabMenuAdvanced_Tab
      • xTabProperties As ASTabMenuAdvanced_TabProperties
      • xTabViews As ASTabMenuAdvanced_TabViews
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabProperties
    • Fields:
      • BackgroundColor As Int
      • DisabledColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • SelectedColor As Int
      • TextFont As B4XFont
      • TextIconPadding As Float
      • UnselectedColor As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASTabMenuAdvanced_TabViews
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • xiv_TabIcon As B4XView
      • xlbl_Badge As B4XView
      • xlbl_TabText As B4XView
      • xpnl_TabBackground As B4XView
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • AS_TabMenuAdvanced
    • Events:
      • TabClick (Index As Int)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • AddTab (Text As String, IconSelected As B4XBitmap, IconUnselected As B4XBitmap) As String
        Text - Pass "" if you dont want Text
        IconSelected - Pass NULL if you dont want a Icon
        IconUnselected - Pass NULL if you dont want a Icon
        If you want to change TabProperties then call this before you add the tab
        <code>AS_TabMenuAdvanced1.TabProperties.TextColor = xui.Color_White</code>
      • AddTabAdvanced (xTab As ASTabMenuAdvanced_Tab, xTabProperties As ASTabMenuAdvanced_TabProperties) As String
        Example:
        <code>
        Dim xTab As ASTabMenuAdvanced_Tab = AS_TabMenuAdvanced1.CreateASTabMenuAdvanced_Tab("Test Item",Null,Null)
        Dim xTabProperties As ASTabMenuAdvanced_TabProperties = AS_TabMenuAdvanced1.CreateASTabMenuAdvanced_TabProperties(xui.CreateDefaultFont(15),xui.Color_ARGB(255,32, 33, 37),xui.Color_ARGB(255,45, 136, 121),xui.Color_ARGB(255,255,255,255),xui.Color_ARGB(255,60, 64, 67),0)
        AS_TabMenuAdvanced1.AddTabAdvanced(xTab,xTabProperties)</code>
      • ChangeColorBasedOnAlphaLevel (bmp As B4XBitmap, NewColor As Int) As B4XBitmap
      • Class_Globals As String
      • CreateASTabMenuAdvanced_BadgeProperties (TextColor As Int, TextFont As B4XFont, Height As Float, TextPadding As Float, BackgroundColor As Int) As ASTabMenuAdvanced_BadgeProperties
      • CreateASTabMenuAdvanced_Tab (Text As String, IconSelected As B4XBitmap, IconUnselected As B4XBitmap) As ASTabMenuAdvanced_Tab
      • CreateASTabMenuAdvanced_TabIntern (xTab As ASTabMenuAdvanced_Tab, xTabProperties As ASTabMenuAdvanced_TabProperties, xBadgeProperties As ASTabMenuAdvanced_BadgeProperties, xTabViews As ASTabMenuAdvanced_TabViews) As ASTabMenuAdvanced_TabIntern
      • CreateASTabMenuAdvanced_TabProperties (TextFont As B4XFont, BackgroundColor As Int, SelectedColor As Int, UnselectedColor As Int, DisabledColor As Int, TextIconPadding As Float) As ASTabMenuAdvanced_TabProperties
      • CreateASTabMenuAdvanced_TabViews (xpnl_Tab As B4XView, xlbl_TabText As B4XView, xiv_TabIcon As B4XView, xlbl_Badge As B4XView) As ASTabMenuAdvanced_TabViews
      • CreateImageView (EventName As String) As B4XView
      • CreateLabel (EventName As String) As B4XView
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap
      • getIndex As Int
      • GetTab (Index As Int) As ASTabMenuAdvanced_TabIntern
        Example:
        <code>
        AS_TabMenuAdvanced1.GetTab(0).xTabProperties.SelectedColor = xui.Color_Magenta
        AS_TabMenuAdvanced1.Refresh</code>
      • getTabProperties As ASTabMenuAdvanced_TabProperties
      • GetTabs As List
        Example:
        <code>
        For Each TabIntern As ASTabMenuAdvanced_TabIntern In AS_TabMenuAdvanced1.GetTabs
        Log(TabIntern.xTab.Text)
        Next</code>
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Refresh As String
      • RemoveTabAt (Index As Int) As String
        Removes a tab
        <code>
        AS_TabMenuAdvanced1.RemoveTabAt(2)
        AS_TabMenuAdvanced1.Refresh</code>
      • setIndex (Index As Int) As String
    • Properties:
      • Index As Int
      • TabProperties As ASTabMenuAdvanced_TabProperties [read only]
Changelog
  • 1.00
    • Release
  • 1.01
    • xBadge renamed to xBadgeProperties
  • 1.02
    • Add GetTabs - Gets a list of tab properties of type ASTabMenuAdvanced_TabIntern
    • Add RemoveTabAt - Removes a tab
    • Add Tag Property to Type ASTabMenuAdvanced_Tab
    • Add new Type ASTabMenuAdvanced_TabViews - contains the control elements of a tab
  • 1.03
    • Add LeftPadding to ASTabMenuAdvanced_BadgeProperties - You can move the badge to left or right with this property
    • Add get BadgeProperties - here you can set the global Badge Properties
  • 1.04
    • The TabClick Event is now always triggered, even if the tab is already selected
    • The BadgeValue Data Type from Type ASTabMenuAdvanced_Tab is now String
  • 1.05
    • Add get and set CornerRadius
    • Add new Type ASTabMenuAdvanced_IndicatorProperties
    • Add Designer Property Indicator - If True the Indicator is visible
      • Default: False
    • BugFixes
Have Fun :)

Excellent job and thank you. Donation done.


Alexander Stolte

Expert
Licensed User
Update
  • 1.06
    • Add Designer Property MiddleButton - You can now show a middle button
      • Default: False
      • Limitation: Only an even number of tabs may be present 2,4,6,8,10...
    • Add Event MiddleButtonClick
    • Add Type ASTabMenuAdvanced_MiddleButtonProperties
      • CustomWidth
        • Default: 0
    • Add Designer Property BadgeWithoutText - If True then the badges have no text
      • Default: False
(17) mage.png

MiddleButton
Middle Button:
AS_TabMenuAdvanced1.MiddleButton = True
'or in the Designer
BadgeWithoutText
B4X:
AS_TabMenuAdvanced1.BadgeWithoutText = True
'or in the designer

Last edited:

Daica

Active Member
Licensed User
Could you add an option to remove all tabs or make certain tabs visible or not?
Disabling the tab works fine, but sometimes I would like the tabs to not be visible at all.

I use your other library, the DraggableBottomCard, when the card is shown, depending on some values, the menu is different.
I guess you could use 2 different TabMenuAdvanced and then set the visible property

I edited the library and added this function but I'm not sure if that messes with anything else.

B4X:
'Removes all tabs
'<code>
'AS_TabMenuAdvanced1.RemoveAllTabs
</code>
Public Sub RemoveAllTabs()
    Try
        xpnl_TabBackground.RemoveAllViews
        m_TabList.Clear
        Refresh
    Catch
        Log(LastException)
    End Try
End Sub

You could also remove all the tabs this way:
B4X:
For i = AS_TabMenuAdvanced1.GetTabs.Size - 1 To 0 Step -1
    AS_TabMenuAdvanced1.RemoveTabAt(i)
Next
AS_TabMenuAdvanced1.Refresh

Would be nice to have it as a function in the library though.

Awesome work as always!

Last edited:

Alexander Stolte

Expert
Licensed User
You could also remove all the tabs this way:
B4X:
For i = AS_TabMenuAdvanced1.GetTabs.Size - 1 To 0 Step -1
AS_TabMenuAdvanced1.RemoveTabAt(i)
Next
AS_TabMenuAdvanced1.Refresh
You have already found a way to remove all tabs ;)


Could you add an option to remove all tabs or make certain tabs visible or not?
Not a chance. This is too complicated, especially now that you still have the possibility to place a button in the middle. This is how I calculate the left value of a tab:
B4X:
TabWidth*i + IIf(i >= (m_TabList.Size/2)
And if I now have to check if the previous tab or the last 4 are invisible, no I'm out.


Alexander Stolte

Expert
Licensed User
Update
  • 1.07
    • Add Visible to Type ASTabMenuAdvanced_MiddleButtonProperties - If False then the middle button is not visible, but the space is still kept free
New Example Project

Top
