Android Question bitmap background image on a ROUND CORNERS Panel, How?

Cableguy

Expert
Licensed User
Hi Guys,

I'm trying to set a bitmap to be the background of a Panel, no issues there, my problem is, I want to keep the round corners of the panel, I can live with loosing the border... and I would like to not use other than core or JObject to do it...

I know it must be possible... graphic gurus, please help!!


Cableguy

Expert
Licensed User
@Informatix, my question may have been placed in an unclear way... I know the panel has no round corners and that in fact, the Drawable renders the corners transparent, BUT, you are an intelligent developer, so the base questions was/is correct.

@eurojam, Thanks for the pointer, but that solution is only suitable for fixed radius corners, and that is not what I need. in its base, that would be the same as taking the paint approach suggested by informatix.

What I need to find, is how to clip/mask the bitmap to a canvas, that has round corners.
Path only has "lineto" method, I would need a "ArcTo(x,y,radius)" method

Upvote 0

Informatix

Expert
Licensed User
I know the panel has no round corners
It's not obvious at all in your question.

What I need to find, is how to clip/mask the bitmap to a canvas, that has round corners.
Accelerated Surface has all what you need. If you want to do the same with only JavaObject, then good luck. That looks completely crazy to me.

Upvote 0

Cableguy

Expert
Licensed User
Java has arc path methods, I just don't know java to use them... has for the Panel being in my question... From your reasoning, no control has round corners, but they are a prop in the visual designer... so at the end of the day, I could say its EREL's fault, LoL(just kidding, obviously)

Upvote 0

Cableguy

Expert
Licensed User
we are discussing the wrong issue...
I stand by my question....
how to set a bitmap background to a panel, keeping the round corners with only jObject or core libs

Upvote 0

klaus

Expert
Licensed User
I know that you don't want an external library, but the ABExtDrawing library does what you want.
It contains the whole set of functions of a canvas.
So if you want to use only JavaObjects try to translate the library to what you need.

Upvote 0

JordiCP

Well-Known Member
Licensed User
Just B4A. Not fast, but works :D




B4X:
    Dim Panel1 As Panel
    Dim B1,B2 As Bitmap
    Dim cv As Canvas

    B1.InitializeMutable(Activity.Width/2,Activity.Width/2)
    cv.Initialize2(B1)
    Dim Rect1 As Rect
    Rect1.Initialize(0,0,B1.Width-1,B1.Height-1)
    cv.DrawBitmap(LoadBitmap(File.DirAssets,"a_512.png"),Null,Rect1)

    B2.InitializeMutable(Activity.Width/2,Activity.Width/2)

    cv.Initialize2(B2)
    Dim Drawable1 As ColorDrawable
    Drawable1.Initialize(Colors.White,30)
    cv.DrawDrawable(Drawable1,Rect1)
    For r=0 To B2.Height-1
        For c=0 To B2.Width-1
            If B2.GetPixel(c,r)=Colors.White Then
                cv.DrawPoint(c,r,B1.GetPixel(c,r))
            End If
        Next
    Next

    Panel1.Initialize("")
    Activity.Color=Colors.Blue
    Activity.AddView(Panel1,(Activity.Width-B2.Width)/2,(Activity.Height-B2.Height)/2,B2.Width,B2.Height)

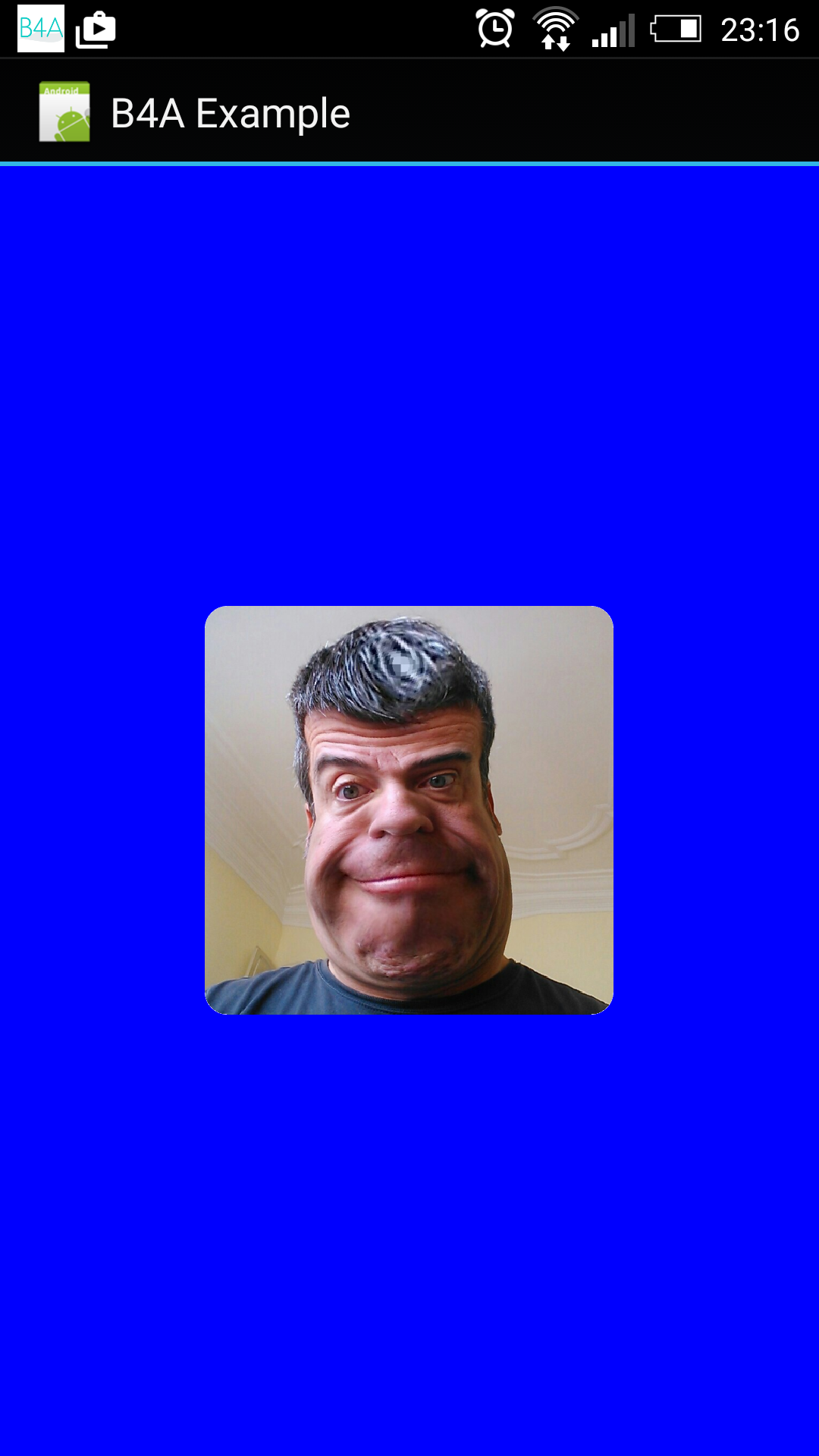

    Panel1.SetBackgroundImage(B2)

Upvote 0

Cableguy

Expert
Licensed User
It's a working solution, but not flexible enough for my needs, nor fast...

I guess I should be more specific, and ask for the "ArcTo" java method...

Upvote 0

JordiCP

Well-Known Member
Licensed User
Well, this one is quite faster. What do you mean by flexibility?

B4X:
Sub AssignBitmapToPanelWithRoundBorders( P As Panel, B0 As Bitmap, radius As Int)

    Dim B1,B2 As Bitmap
    Dim cv As Canvas
    Dim Rect1 As Rect

    B2.InitializeMutable(P.Width,P.Height)
    cv.Initialize2(B2)
    Dim Drawable1 As ColorDrawable
    Drawable1.Initialize(Colors.White,radius)
    Rect1.Initialize(0,0,B2.Width-1,B2.Height-1)
    cv.DrawDrawable(Drawable1,Rect1)

    B1.InitializeMutable(P.Width,P.Height)
    cv.Initialize2(B1)
    cv.DrawBitmap(B0,Null,Rect1)

    For r=0 To B2.Height-1
        For c=0 To B2.Width-1
            If B2.GetPixel(c,r)=0 Then
                cv.DrawPoint(c,r,0)
            End If
        Next
    Next

    P.SetBackgroundImage(B1)
End Sub

Upvote 0

JordiCP

Well-Known Member
Licensed User
I am very impressed, how powerfull B4A - yes I knew already before - and the Users are!!

Really powerful, I agree! It only lacks the ability to allow the user to develop a B4A IDE for Android with B4A ;):eek: (joking, or who knows?)
