iOS Question CanOpenURL Returning incorrect result

Discussion in 'iOS Questions' started by Andrew (Digitwell), Sep 12, 2018.

  1. Andrew (Digitwell)

    Andrew (Digitwell) Active Member Licensed User

    I want to open a map with directions, but I would prefer to open Google Maps than The Apple Maps.

    so I had the following code.
    Code:
    Private googstr As String = "comgooglemaps://maps.google.com?daddr="&Lat&","&Lng

    Private mainstr As String = "http://maps.apple.com/?daddr="&Lat&","&Lng&"ll="&Lat&","&Lng&"t=m&dirflg=d"

    if (main.app.canOpenURL(googstr)) then
            Main.App.OpenURL(googstr)

    end if

    If (Main.App.CanOpenURL(mainstr)) Then
            Main.App.OpenURL(mainstr)

    End If

    end sub
    However, it was always opening Apple maps.

    The following code works. It seems CanOpenURL on the Google string *always* failed
    Code:
    Sub NavigatetoLatLong(Lat As String, Lng As String)

    Private googstr As String = "comgooglemaps://maps.google.com?daddr="&Lat&","&Lng

    Private mainstr As String = "http://maps.apple.com/?daddr="&Lat&","&Lng&"ll="&Lat&","&Lng&"t=m&dirflg=d"

    Private done As Boolean = Main.App.OpenURL(googstr)

    Log("Opened google maps = " & done)

    If Not(done) Then

    If (Main.App.CanOpenURL(mainstr)) Then
                Main.App.OpenURL(mainstr)

    End If

    End If
    End Sub
    I have a queryscheme setup in Main,
    #UrlScheme: comgooglemaps

    Does anyone know why this is happening?

    Also, is there a way to get Apple Maps to navigate to a LATLNG point. There is this article
    https://developer.apple.com/library...s.html#//apple_ref/doc/uid/TP40007899-CH5-SW1
    but all it says is "An address string that geolocation can understand."

    Thanks

  2. Erel

    Erel Administrator Staff Member Licensed User

    This code works:
    Code:
    #UrlScheme: comgooglemaps
    Sub Process_Globals

    Public App As Application

    Public NavControl As NavigationController

    Private Page1 As Page

    End Sub

    Private Sub Application_Start (Nav As NavigationController)

    'SetDebugAutoFlushLogs(True) 'Uncomment if program crashes before all logs are printed.
       NavControl = Nav
       Page1.Initialize(
    "Page1")
       Page1.Title =
    "Page 1"
       Page1.RootPanel.Color =
    Colors.White
       NavControl.ShowPage(Page1)

    Log(App.CanOpenURL("comgooglemaps://")) 'prints true (Google Maps needs to be installed).
    End Sub

  3. Andrew (Digitwell)

    Andrew (Digitwell) Active Member Licensed User

    Erel,
    I agree it seems to work fine by itself, but for some strange reason it does not work in my app.
    I even put the NavigatetoLatLng sub in an app by itself and that works.

    I will continue to investigate why it does not work in my particular app.

  4. BillMeyer

    BillMeyer Active Member Licensed User

    Hi Andrew,

    This works for me. I call a new module and pass the Lat,Lng to it and then open a Webview in it with the required URL. Here's how:

    Calling it:
    Code:
    Sub btnNavigate_Click
            modNavigateTo.NavURL =
    "https://www.google.com/maps/dir/?api=1&origin="&Main.GlobLat&","&Main.GlobLon&"&destination="&Latitude&","&Longitude&"&travelmode=driving&dir_action=navigate"
            modNavigateTo.Show

    End Sub
    and then my module where the action happens: (it's called "modNavigateTo" and "scrWebView" is a page that contains a Webview)

    Action happens here:
    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.


    Dim scrWebView As Page

    Private hd As HUD

    Dim rs As ResultSet

    Dim RType As ActionSheet

    Private HOften As ActionSheet


    Private WebView1 As WebView

    Private HeaderIMG As ImageView

    Private lblIndicator As Label

    Public NavURL As String

    Dim ShowNav As Boolean


    Dim gMap As GoogleMap

    Private WebView1 As WebView
    End Sub

    Public Sub Show


    Log("In Public Show of mod Navigate To")

        scrWebView.Initialize(
    "scrWebView")

    Log("Init ? "&scrWebView.IsInitialized)


    If scrWebView.IsInitialized = False Then
            scrWebView.Initialize(
    "scrWebView")
            scrWebView.RootPanel.LoadLayout(
    "scrWebView")

    Else
            scrWebView.RootPanel.LoadLayout(
    "scrWebView")

    End If

        Main.NavControl.ShowPage2(scrWebView,
    True)
        Main.NavControl.ToolBarVisible =
    False
        hd.ProgressDialogShow(
    "Routing.....")

    Log("Nav URL: "&NavURL)
        WebView1.LoadUrl(NavURL)

    ''    If Main.App.CanOpenURL("telprompt:") = True Then
    '    Main.App.OpenUrl("google.navigation:q=" & Main.GlobLat & "," & Main.GlobLon)
    ''    End If

    End Sub

    Sub WebView1_PageFinished (Success As Boolean, Url As String)

        hd.ProgressDialogHide
    End Sub

    Sub HeaderIMG_Click

    Log("Header Clicked")
        Main.NavControl.RemoveCurrentPage2(
    True)
        Main.NavControl.ToolBarVisible =
    True

    End Sub

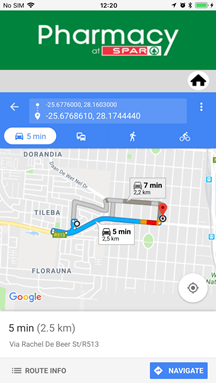

    Your end result will look like this: (my Screen has a "header" with the customers logo on it - this can be removed as you desire)


    I trust this will be an alternative method to what you want to do - Test on an iPhone 6S+

    Enjoy

    Andrew (Digitwell) likes this.
  5. Andrew (Digitwell)

    Andrew (Digitwell) Active Member Licensed User

    Thanks for the alternative Bill

    BillMeyer likes this.
