iOS Question cant add more than one TabStrip

Discussion in 'iOS Questions' started by ihabsharaf, Oct 15, 2017.

Similar threads

B4i Library TabStrip
B4A Library [B4X] [XUI] Page Indicator
B4i Question Change tabstrip label color when focus
B4i Question TabStrip error
B4i Question Side Menu plus TabStrip
  1. ihabsharaf

    ihabsharaf Member Licensed User

    i have problem with TabStrip i cant add more than one TabStrip in the project

    SignalHandler 11
    Error occurred on line: 47 (ImageDownloader)
    Signal - 11
    Stack Trace: (
    "0 Sendebad SignalHandler + 120",
    "1 libsystem_platform.dylib 0x0000000180907b34 _sigtramp + 36",
    "2 UIKit <redacted> + 228",
    "3 UIKit <redacted> + 148",
    "4 Sendebad -[XLButtonBarView moveFromIndex:toIndex:withProgressPercentage:pagerScroll:] + 156",
    "5 Sendebad -[XLButtonBarPagerTabStripViewController pagerTabStripViewController:updateIndicatorFromIndex:toIndex:withProgressPercentage:indexWasChanged:] + 128",
    "6 Sendebad -[B4IPagerTabStrip pagerTabStripViewController:updateIndicatorFromIndex:toIndex:withProgressPercentage:indexWasChanged:] + 128",
    "7 Sendebad -[XLPagerTabStripViewController updateContent] + 1536",
    "8 Sendebad -[XLPagerTabStripViewController viewDidLayoutSubviews] + 68",
    "9 UIKit <redacted> + 1580"
    )



    any solution for this issue ?

  2. Erel

    Erel Administrator Staff Member Licensed User

    No. You can only show a single TabStrip in a page.

    Last edited: Oct 17, 2017
  3. ihabsharaf

    ihabsharaf Member Licensed User

    I can’t add tabstrip in another page
    That’s mean one tabstrip in the same app. ?

  4. Erel

    Erel Administrator Staff Member Licensed User

    Do you get the same error?

  5. ihabsharaf

    ihabsharaf Member Licensed User

    Yes on another page

  6. Erel

    Erel Administrator Staff Member Licensed User

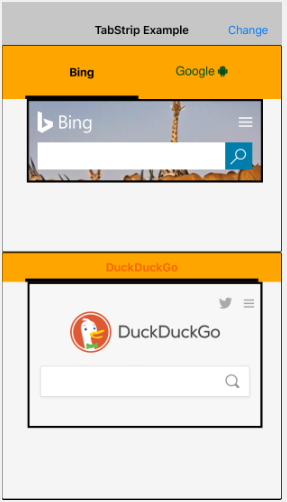

    My mistake. You can add multiple TabStrips:

    [​IMG]

    When I previously tested it I didn't add any page to the second TabStrip so it crashed. Make sure to always add at least one page.

  7. ihabsharaf

    ihabsharaf Member Licensed User

    My case is
    Main screen have one tapstrip
    And i have another
    Page (invoice screen ) when
    Add new tabstrip to invoice page
    And try to run debuger i have error
    After 3 hours to find what is the problem
    Im try to remove last tapstrip
    And run debuger its work but with one tabstrip

  8. ihabsharaf

    ihabsharaf Member Licensed User

    Hi erel can you uploade example

  9. Erel

    Erel Administrator Staff Member Licensed User

    I've just added another TabStrip with the designer and modified the example code to:
    Code:
    NavControl = Nav
       MainPage.Initialize(
    "MainPage")
       MainPage.RootPanel.LoadLayout(
    "Main")
       NavControl.ShowPage(MainPage)
       TabPages.Initialize

    Dim cs As CSBuilder

    Dim page1, page2, page3 As Page


       page1.Initialize(
    "page1")
       page1.RootPanel.LoadLayout(
    "Tab1")
       page1.Title =
    "Bing"
       WebView1.LoadUrl(
    "https://www.bing.com")
       TabPages.Add(page1)

       page2.Initialize(
    "page2")
       page2.RootPanel.LoadLayout(
    "Tab1")
       WebView1.LoadUrl(
    "https://www.google.com")
       cs.Initialize.Font(
    Font.CreateFontAwesome(18)).Color(0xFF014E1C).VerticalAlign(-1).Append("Google ").Append(Chr(0xF17B)).PopAll
       SetAttributedTitle(page2, cs)
       TabPages.Add(page2)

       page3.Initialize(
    "page3")
       page3.RootPanel.LoadLayout(
    "Tab1")
       WebView1.LoadUrl(
    "https://www.duckduckgo.com")
       SetAttributedTitle(page3, cs.Initialize.Color(
    0xFFF46903).Append("DuckDuckGo").PopAll)

    'TabPages.Add(page3)

       TabStrip1.SetPages(TabPages)
       TabStrip2.SetPages(
    Array(page3))

    ihabsharaf likes this.
  10. ihabsharaf

    ihabsharaf Member Licensed User

    on the same page its ok but if i want to load tabstrip on another page must call
    TabStrip1.SetPages before show page
    :):):):)
