ChartsDevice.dll thick line at bottom of chart

Discussion in 'Questions (Windows Mobile)' started by RB Smissaert, Dec 27, 2008.

  1. RB Smissaert

    RB Smissaert Well-Known Member Licensed User

    For some reason when I use the ChartsDevice dll (and same on the desktop)
    I get a thick line just above the x-axis going from position 0 to about 9 tenth
    of the x-axis. I noticed the provided example (the line chart) does the same and I have no idea how to get rid of it.
    Any ideas?

    RBS

  2. agraham

    agraham Expert Licensed User

    Assuming that you mean the line at y = 0 it is there by design to show the y axis origin.

  3. RB Smissaert

    RB Smissaert Well-Known Member Licensed User

    I attached a .gif file that shows what I am talking about.
    The line in this image runs till the 9 in the second date.

    RBS


    Attached Files:

  4. agraham

    agraham Expert Licensed User

    I don't see anything like that in the line chart example, Can you post the code that created the chart so I can try it on my system.

  5. RB Smissaert

    RB Smissaert Well-Known Member Licensed User

    This code shows it with me:

    Sub DrawLineChart

    LineChart.New1(Image1.Width, Image1.Height)
    LineChart.Text = "BP values"
    LineChart.Color = Rgb(255,255,230)
    LineChart.ColorGradient = cBlue
    LineChart.GridSpacingValue = 20
    LineChart.MaxScaleValue = 180
    LineChart.MinScaleValue = 80
    LineChart.ShowGrid = False
    LineChart.BorderSize = 10
    LineChart.MarginForTextOnAxis = 10

    LineChart.XAxisIntervalValue = 1
    LineChart.AddXAxisText(240,240, "")

    LineChart.NewLine(cRed)
    LineChart.AddPoint(0, 160)
    LineChart.AddPoint(1, 150)
    LineChart.AddPoint(2, 155)
    LineChart.AddPoint(3, 170)
    LineChart.AddPoint(4, 180)
    LineChart.AddPoint(5, 150)
    LineChart.AddPoint(6, 140)
    linechart.ShowGrid = True
    LineChart.AddLine

    LineChart.NewLine(cBlue)
    LineChart.AddPoint(0, 90)
    LineChart.AddPoint(1, 85)
    LineChart.AddPoint(2, 90)
    LineChart.AddPoint(3, 100)
    LineChart.AddPoint(4, 110)
    LineChart.AddPoint(5, 80)
    LineChart.AddPoint(6, 140)
    LineChart.AddLine

    LineChart.NewLine(cGreen)
    LineChart.LineWidth = 1
    LineChart.AddPoint(0, 85)
    LineChart.AddPoint(5, 25)
    LineChart.AddPoint(10, 65)
    LineChart.AddPoint(15, 75)
    LineChart.AddPoint(20, 10)
    LineChart.AddTrendLine

    Image1.Image =LineChart.Draw

    End Sub


    RBS

  6. klaus

    klaus Expert Licensed User

    I have looked at your code.
    The code you posted doesn't match your image, why didn't you post the right code?

    The problem lies in the line
    Code:
    [FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2]LineChart.AddXAxisText([/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080]240[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2],[/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080]240[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2], [/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800000][FONT=Courier New][SIZE=2][COLOR=#800000][FONT=Courier New][SIZE=2][COLOR=#800000]""[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2])[/SIZE][/FONT][/SIZE][/FONT]
    if you replae it by
    Code:
    [FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2]LineChart.AddXAxisText([/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080]0[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2],[/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080]20[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2], [/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800000][FONT=Courier New][SIZE=2][COLOR=#800000][FONT=Courier New][SIZE=2][COLOR=#800000]""[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2])[/SIZE][/FONT][/SIZE][/FONT]
    you get a 'normal' X axis.

    With you code the program tries to draw no text at position 240.

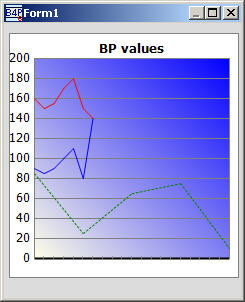

    Attached 2 images.


    @agraham
    In trying this example I noticed that the parameter MinScaleValue with posutive values has no effect.

    Code:
    [FONT=Courier New][SIZE=2][FONT=Courier New][SIZE=2]LineChart.MinScaleValue=[/SIZE][/FONT][/SIZE][/FONT][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080][FONT=Courier New][SIZE=2][COLOR=#800080]20[/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT][/COLOR][/SIZE][/FONT]
    Best regards.


    Attached Files:

    Last edited: Dec 27, 2008
  7. agraham

    agraham Expert Licensed User

    There are two problems here :(

    First this statment "LineChart.XAxisIntervalValue = 1" puts the X-axis ticks too close together for a maximum scale value of 240 so they run into each other as a grey bar.

    Second, why then does the grey bar not extend to the end? The answer is that there is a bug in drawing the ticks when the max value of the X axis (which is determined by the max value defined in the AddXAxisText statements) is greater than the number of display pixels along the the X-axis. If you need a larger value than this the solution is to scale the X values to be less than that number of pixels.

    @Klaus
    That is correct. MinScaleValue is intended for extending the Y value range into negative values. If it is greater than 0 it has no effect.

  8. klaus

    klaus Expert Licensed User

    In my mind I would have expected, that if I had a chart with values between 80 and 100 and setting the MinScaleValue to 80 and MaxScaleValue to 100, getting a diagram with a streched Y scale from 80 to 100.

    Unfortunately this seems not beeing the case.

    Best regards.

  9. RB Smissaert

    RB Smissaert Well-Known Member Licensed User

    > The code you posted doesn't match your image, why didn't you post the right code?

    The code that produced the image I posted is a lot more complex and I would have to simplify it a lot. The code I posted is simple and shows the problem.
    Will look at Graham's post now.

    RBS

  10. agraham

    agraham Expert Licensed User

  11. RB Smissaert

    RB Smissaert Well-Known Member Licensed User

    > First this statment "LineChart.XAxisIntervalValue = 1" puts the X-axis ticks too close together for a maximum scale value of 240 so they run into each other as a grey bar.

    Yes, thanks that was the problem and I can simply do:
    LineChart.XAxisIntervalValue = 240

    As Klaus mentioned, it would be nice if you could make:
    LineChart.MinScaleValue =
    respond to positive values, so setting a positive lowest value for the Y-axis.


    RBS
