B4A Library [Class] Flexible Table

This thread will be used by Erel, Melamoud and myself to discuss / post new releases of the Table class.

The table class is a flexible UI component that enable scrollable table like UI, with sortable columns, multiselect rows etc

the table is very efficient, maintaining labels only for visible rows

old thread with details : http://www.basic4ppc.com/forum/addi...view-supports-tables-any-size.html#post110901

The class depend on following libraries:
- StringUtils (standard)
- SQL (standard)
- JavaObject (standard)
- ScrollView2D (additional)

List of major features.
1. scrollable table UI
2. sortable columns
3. select a row, cell or multi select rows
4. callback for selection / click a cell / row
5. callback for long click action
6. read / write to CSV file

Current version --> 3.30 Custom View
Current version --> 1.44 Class

Other complementary routines:

Load data with the Remote Database Connector.


EDIT: LucaMs has written a routine to fill a table with a Remote Database Connector query result see post 182.
The routine hasn't been added into the Class for the reasons explained in post 183.
A sample program can be found HERE.

Code:
B4X:
'load data from a RDC Request
'Result = DBResult object got from a RDC request
'AutomaticWidths  True > set the column widths automaticaly
'Written by LucasMs
Public Sub LoadRDCResult(Result As DBResult, AutomaticWidths As Boolean)
    cAutomaticWidths = AutomaticWidths
    NumberOfColumns = Result.Columns.Size
    innerClearAll(NumberOfColumns)

    Dim Headers(NumberOfColumns) As String
    Dim ColumnWidths(NumberOfColumns) As Int
    Dim HeaderWidths(NumberOfColumns) As Int
    Dim DataWidths(NumberOfColumns) As Int
    Dim col, row As Int
    Dim str As String
    For col = 0 To NumberOfColumns - 1
        Headers(col) = Result.Columns.GetKeyAt(col)
        If AutomaticWidths = False Then
            ColumnWidths(col) = 130dip
            HeaderWidths(col) = 130dip
            DataWidths(col) = 130dip
        Else
            HeaderWidths(col) = cvs.MeasureStringWidth(Headers(col), Typeface.DEFAULT, cTextSize) + 8dip + cLineWidth
            DataWidths(col) = 0

            Dim FieldValue As Object
            For row = 0 To Result.Rows.Size - 1
                Dim Record() As Object = Result.Rows.Get(row)
                FieldValue = Record(col)
                If GetType(FieldValue) = "java.lang.String" Then
                    DataWidths(col) = Max(DataWidths(col), cvs.MeasureStringWidth(str, Typeface.DEFAULT, cTextSize) + 8dip + cLineWidth)
                End If
            Next
            ColumnWidths(col) = Max(HeaderWidths(col), DataWidths(col))
        End If
    Next
    SetHeader(Headers)
    SetColumnsWidths(ColumnWidths)

    For Each Record() As Object In Result.Rows
        Dim R(NumberOfColumns) As String
        Dim FieldV As String
        For col = 0 To NumberOfColumns - 1
            FieldV = Record(col)
            R(col) = FieldV
        Next
        AddRow(R)
    Next
End Sub

This is another routine updated by cimperia in post #392 using a Map for the columns and a List for the rows.
B4X:
'load data from a RDC Request
'A RDC request returns a DBResult object, therefore this method
'could be called as is:
'LoadRDCResult(DBResult.Columns, DBResult.Rows, True)
'AutomaticWidths  True > set the column widths automaticaly
'Written by LucasMs
Public Sub LoadRDCResult(Columns As Map, Rows As List, AutomaticWidths As Boolean)
  cAutomaticWidths = AutomaticWidths
  NumberOfColumns = Columns.Size
  innerClearAll(NumberOfColumns)

  Dim Headers(NumberOfColumns) As String
  Dim ColumnWidths(NumberOfColumns) As Int
  Dim HeaderWidths(NumberOfColumns) As Int
  Dim DataWidths(NumberOfColumns) As Int
  Dim col, row As Int
  Dim str As String
  For col = 0 To NumberOfColumns - 1
    Headers(col) = Columns.GetKeyAt(col)
    If AutomaticWidths = False Then
      ColumnWidths(col) = 130dip
      HeaderWidths(col) = 130dip
      DataWidths(col) = 130dip
    Else
      HeaderWidths(col) = cvs.MeasureStringWidth(Headers(col), Typeface.DEFAULT, cTextSize) + 8dip + cLineWidth
      DataWidths(col) = 0

      Dim FieldValue As Object
      For row = 0 To Rows.Size - 1
        Dim Record() As Object = Rows.Get(row)
        FieldValue = Record(col)
       If GetType(FieldValue) = "java.lang.String" Then
         DataWidths(col) = Max(DataWidths(col), cvs.MeasureStringWidth(str, Typeface.DEFAULT, cTextSize) + 8dip + cLineWidth)
       End If
      Next
      ColumnWidths(col) = Max(HeaderWidths(col), DataWidths(col))
    End If
  Next
  SetHeader(Headers)
  SetColumnsWidths(ColumnWidths)

  For Each Record() As Object In Rows
    Dim R(NumberOfColumns) As String
    Dim FieldV As String
    For col = 0 To NumberOfColumns - 1
      FieldV = Record(col)
      R(col) = FieldV
    Next
    AddRow(R)
  Next
End Sub


Load data from a MSMariaDB database.

Another routine for loading data from a MSMariaDB database can be found in post#727.
Thanks to @Magma.

Updates:
EDIT: 2021.06.28 Version 3.29
Added a check for none numeric values for numeric sorting.

EDIT: 2021.06.28 Version 3.29
Amended problem with column colors
Version 3.28
Added NumberOfColumns in the code
Added TopRowIndex method
Version 3.27
Amended MultiSelect EDIT: 2020.09.02 Version 3.26
Amended problem with sort with remove accents
Amended problem with SetRowColorN
Added SetCellAlignmentColN method
Added SetHeaderAlignmentColN method

EDIT: 2020.08.05 Version 3.24
Amended problem with JumpToRowAndSelect not being selected.
Amended error when setting RowHeight before the table initialized

EDIT: 2020.06.19 Version 3.22
Amended error in the insertRowAt routine.

EDIT: 2020.05.25 Version 3.21
Amended bug with TextSize in fixed columns

EDIT: 2020.05.16 Version 3.20
Added fast scroll feature
Version 3.19
Improved automatic width calculation and hidden columns
Version 3.18
Added a check in RemoveRowColorN to ensure that Row is not out of bounds
Added ShowRow event
Amended automatic width calculations
Amended hidden column width problem

EDIT: 2020.04.21 Version 3.17
Amended HeaderHight problem with fixed columns

EDIT: 2020.04.21 Version 3.16
Amended two errors.

EDIT: 2020.04.14 Version 3.14
Added the methods below
- LoadSQLiteDB4(SQLite As SQL, Query As String, AutomaticWidths As Boolean)
loads SQLite data with data type checking
- LoadSQLiteDB5(SQLite As SQL, Query As String, Values() As String, AutomaticWidths As Boolean).
loads SQLite data with data type checking , similar to LoadSQLiteDB4 but for parametrized queries.
- GetColumnDataTypes As String(), returns an Array with the data type for each column.
- GetColumnDataType(Column As Int) As String, returns the data type of the fiven column.
Added the InnerTotalWidth property, read only.
Added multiple first fiexed columns
Added line colors

EDIT: 2020.03.10 Version 3.10
Amended bug reported HERE

EDIT: 2020.03.06 Version 3.09
Amended bug reported HERE.

EDIT: 2020.02.29 Version 3.08
Amended SetHeaderTypefaces method problem reprted HERE.
Added HeaderTypeface property.

EDIT: 2020.01.08 Version 3.07
Amended bug ShowStatisLine = False property bug.
Added MultiSelect property to Designer properties.
You need to open and close the Designer when you use the new version the first time to make the MultiSelect property active.

EDIT: 2019.12.28 Version 3.06
Amened some bugs

EDIT: 2019.12.25 Version 3.05
Added FirstColumnFixed property which allows to fix the first column.
Attention: You need to open and close the Designer to make the new property active.

EDIT: 2019.11.15 Version 3.04
- Added SelectedRowTextColor and SlectedCellTextColor properties
- Added ZeroSelections property, True > when a selected row is pressed it will be unselected False > it remains selected.

EDIT: 2019.11.12 Version 3.03
- Changed JumpToRowAndSelect(Row As Int, Col As Int) to JumpToRowAndSelect(Col As Int, Row As Int)
- Changed LoadSQLiteDB2 signature. Replaced the possible values from "T", "I", "R" to "TEXT", "NUMBER" for coherence with SetColumnDataTypes.
- Added internal sorting bitmaps, avoids loading the image files into the Files folder.
- Added two new properties: SortBitmapWidth and SortBitmapColor.
- Added SetCustomSortingBitmaps method, which allows to use custom bitmaps instead of the internal ones.
Attention: You need to open and close the Designer to make the new properties active.
Attention: You need to invert the parameters in JumpToRowAndSelect.

EDIT: 2019.07.04 Version 3.02
Amended error reported in post #887

EDIT: 2019.06.26 Version 3.01
Amended SingleLine property setting in the code

EDIT: 2019.04.05 Version 3.00
Amended SetColumnColors and SetTextColors
Removed Reflection library dependency

EDIT: 2018.04.11 Version 2.29
Version 2.27
set the two variables sortedCol and sortingDir to Public instaed of Private
added RemoveAccent routine for sorting with accented characters
Version 2.28
Added SetHeaderTypeFaces
Added SortRemoveAccents property
Version 2.29
Added SaveTableToCSV2 with a user defined separator character

EDIT: 2018.04.11 Version 2.26
added LoadSQLiteDB3 method using SQLExec2 instead of SQLExec
The query can include question marks which will be replaced with the values in the array.

EDIT: 2018.03.27 Version 2.25
amended minor errors
added UpdateCell method

EDIT: 2017.11.19 Version 2.22
improved JumpToRowAndSelect scrolls horizontally to the selected column
improved setHeaderHeight
added padding for status bar Label

EDIT: 2017.06.27 Version 2.19
Replaced DoEvents by Sleep(0)
Asked HERE

EDIT: 2017.06.27 Version 2.19
Replaced DoEvents by Sleep(0)
Asked HERE

EDIT: 2017.05.16 Version 2.18
Amended error reported HERE.

EDIT: 2017.03.09 Version 2.17
Amended error reported HERE.

EDIT: 2017.03.09 Version 2.15
Amended error reported here, Event signatures
#Event: CellClick(col As Int, row As Int)
#Event: CellLongClick(col As Int, row As Int)

EDIT: 2016.12.05 Version 2.14
Added NumberOfColumns and NumberOfRows as Public variables.
Amended error reported here.

EDIT: 2016.12.05 Version 2.13
Amended error reported here.
Added NumberOfColumns as a property for the Designer.

EDIT: 2016.07.30 Version 2.10
Amended error with TextAlignment and HeaderTextAlignment reported in post #606

EDIT: 2016.03.15 Version 2.00
Added CustomView support.
This version can be compiled into a library.
Changes between the previous versions and version 2.00
For a Table added in the Designer, this is new
No need to initialize nor add it onto a parent view
'For a Table added in the Designer, this is new
'No need to initialize nor add it onto a parent view

For a Table added in the code:
The Initialize routine has been splittend into two routines.
New:
Initialize (CallBack As Object, EventName As String)
InitializeTable (vNumberOfColumns As Int, cellAlignement As Int, showStatusL As Boolean)

'Example:
Table1.Initialize(Me, "Table1")
Table1.InitializeTable(5, Gravity.CENTER_HORIZONTAL, True)


Old:
Initialize(CallBack As Object, EventName As String, vNumberOfColumns As Int, cellAlignement As Int, showStatusL As Boolean)
Example:
Table1.Initialize(Me, "Table1", 5, Gravity.CENTER_HORIZONTAL, True)

EDIT: 2015.04.29 Version 1.43
As the modifications in LoadSQLiteDB don't work in all cases I went back.
LoadSQLiteDB as in version 1.40
Added LoadSQLiteDB2 where the column data types must be given.

EDIT: 2015.04.26 Version 1.42
Changed he LoadSQLiteDB routine, version 1.41 didn't work as expected.
The final solution was suggested by cimperia HERE.

EDIT: 2015.04.16 Version 1.41
Changed the LoadSQLiteDB routine according to the error reported in the SQL issue thread
and the SQLite Cursor GetString versus GetDouble thread.
The problem appears with numbers bigger than 999999.
I left version 1.40 in case of problems.
I tested it with a few databases, but I am not sure if it works in all cases.

EDIT: 2015.03.05
Amended bugs reported in posts #383 and #386
Added SetAutomaticWidths routine

EDIT: 2015.02.19
Amended the problem alignment reported in post # 378

EDIT: 2015.02.13
Amended the problem of rows not shown reported in post # 371

EDIT: 2015.01.09
Added header aligments

EDIT: 2014.08.14
Added HeaderHeight property
Amended RowColor problem reported in post #260

EDIT: 2014.08.10
Added SortColumn property asked in post #266
Added UseColumnColors ColumnColors and HeaderColors propeties

EDIT: 2014.05.10 Added RowHeight as a property

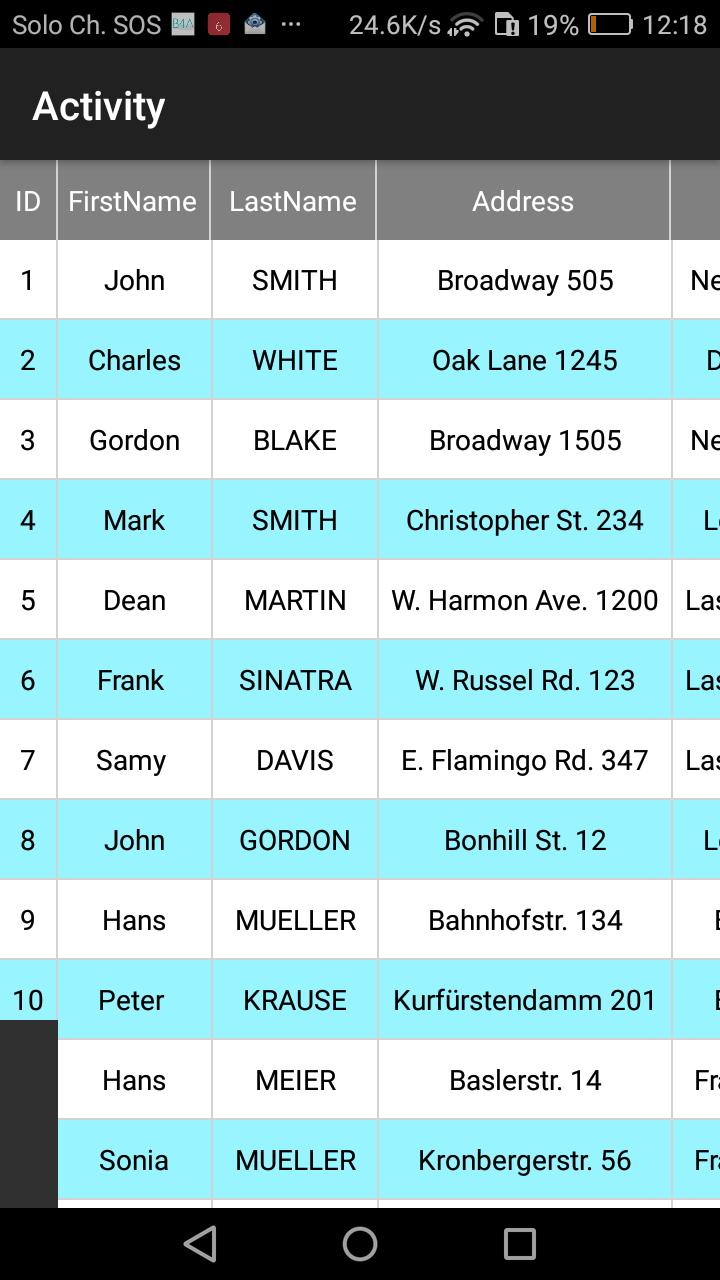

Screenshot:



Attachments

  • TableV1_44.zip
    44.8 KB · Views: 1,634
  • 1589638550715.png
    31.8 KB · Views: 1,030
  • TestFastScroll.zip
    50.6 KB · Views: 984
  • TableV3_30.zip
    105.6 KB · Views: 706
  • Table.bas
    129.6 KB · Views: 421
Last edited:

Eric McDonald

Member
Licensed User
Sorry, I hadn't read your post deeply enough.
It is not possible, in the current version, to append the table content to an existing *.csv file.
The SaveTableToCSV routines are based on the StringUtils library which doesn't allow to append data.
To append data you need to write your own routine.
B4X:
    If Register_CellClick(sCol,sRow) = False Then
        Log("Error")
    Else If Register_CellClick(sCol,sRow) = True Then
        Dim FullString As String
        Dim MyTextWriter As TextWriter
        MyTextWriter.Initialize(File.OpenOutput(File.DirRootExternal, "test.csv",True))
        newID = register.GetValue(0,sRow)
        newPO = register.GetValue(1,sRow)
        newCust = register.GetValue(2,sRow)
        newComm = register.GetValue(3,sRow)
        FullString = newID & "," & newPO & "," & newCust & "," & newComm
        MyTextWriter.WriteLine(FullString)
        MyTextWriter.Close
        Log("Success")
    End If

I was able to find a solution to this issue


fishwolf

Well-Known Member
Licensed User
Longtime User
With table to full screen and fixed first column

the table to bottom-left have a black-hole


Attachments

  • TableV3_08.zip
    47.4 KB · Views: 140
  • Screenshot_2020-03-06-12-18-08.png
    105.6 KB · Views: 156

fishwolf

Well-Known Member
Licensed User
Longtime User
Thank you for reporting this bug.
The Class has been updated to version 3.09 in the first post.
Thanks, but with this version and FirstColumnFixed = true the last column is showed for half size

is it possible have a parameter for set the number of fixed columns?


klaus

Expert
Licensed User
Longtime User
Thanks, but with this version and FirstColumnFixed = true the last column is showed for half size
On my device it works OK.
Can you post your project, so I can look what exactly happens.
is it possible have a parameter for set the number of fixed columns?
No, not in this version and not in my pipeline.


fishwolf

Well-Known Member
Licensed User
Longtime User
On my device it works OK.
Can you post your project, so I can look what exactly happens.
No, not in this version and not in my pipeline.

the table show 6 columns, but the class, show a error on columns number


Attachments

  • TableV3_09_FULL.zip
    171.1 KB · Views: 172

fishwolf

Well-Known Member
Licensed User
Longtime User
Sorry

but with FirstColumnFixed=True doesn't work the header align

B4X:
Dim Alignments() As Int
 Alignments = Array As Int(Gravity.LEFT, Bit.Or(Gravity.LEFT, Gravity.CENTER_VERTICAL), Gravity.CENTER, Gravity.LEFT, Gravity.LEFT, Gravity.LEFT, Gravity.LEFT, Gravity.LEFT, Gravity.LEFT, Gravity.LEFT)
 Table1.SetHeaderAlignments(Alignments)
 Table1.SetCellAlignments(Alignments)
[code]


Attachments

  • Bug3.png
    11.6 KB · Views: 143

fishwolf

Well-Known Member
Licensed User
Longtime User
Can you please test the class from the attached project.
Perfect, work fine. Thanks

I would like to contribute with a 3.12 version where you can set each row with a color from 5 custom colors


Attachments

  • Table.bas
    96.4 KB · Views: 146
  • Screen.png
    30.1 KB · Views: 150
  • use.png
    8.9 KB · Views: 154

klaus

Expert
Licensed User
Longtime User
I tried your project.
Unfortunately, it doesn't work.
You have three lines like this cRowColor3 = Props.Get("Row3Color") in DesignerCreateView.
But you don't have the equivalent #DesignerProperty: Key: Row3Color, DisplayName: Row 3 color, ... lines !?
Do you have a working project?

Are you sure that it works with the lazy loading method?


fishwolf

Well-Known Member
Licensed User
Longtime User
I tried your project.
Unfortunately, it doesn't work.
You have three lines like this cRowColor3 = Props.Get("Row3Color") in DesignerCreateView.
But you don't have the equivalent #DesignerProperty: Key: Row3Color, DisplayName: Row 3 color, ... lines !?
Do you have a working project?

Are you sure that it works with the lazy loading method?
Sorry, i have attach the original project and example for custom color


Attachments

  • TableV3_12_CUSTOMCOLOR.zip
    414.9 KB · Views: 145
  • TableV3_12_ORIGINAL.zip
    301.7 KB · Views: 145
  • Table.bas
    97 KB · Views: 126

fishwolf

Well-Known Member
Licensed User
Longtime User
other question:
i used a old version (1.11) and now migrate to last version

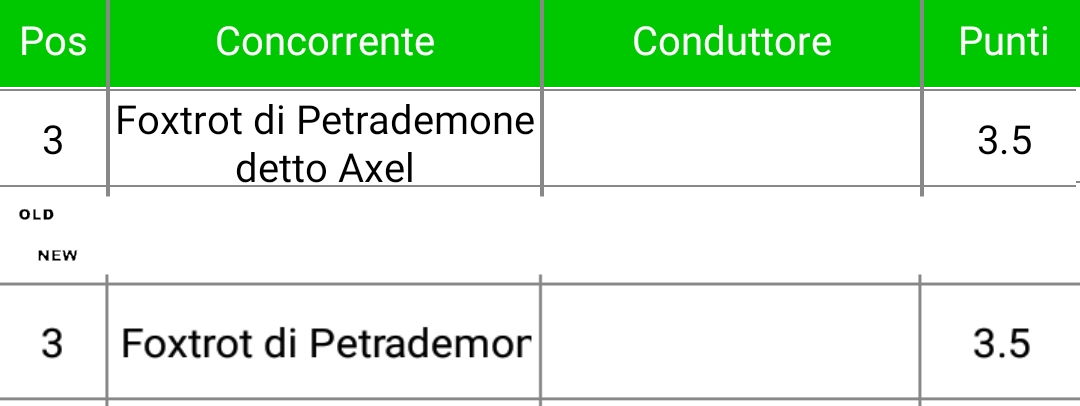

old version when the text are long, go to a new line, le new version not
is it possible replicate this feature on last version?

Thanks


Attachments

  • Acapo.jpg
    42.8 KB · Views: 129

klaus

Expert
Licensed User
Longtime User
Now, I got it to run.
There were two problems.
I first load your test project from post#936 and then copied the Table.bas file to my demo program..
There were these lines missing:
#DesignerProperty: Key: Row3Color, DisplayName: Row 3...
Added those, but then I got another error. So i stopped.
Then I tested your project from post#938, it worked.
I copied the Table.bas file to my demo program and got the same error as before.
I found the error:
In Table.bas, line 2432 cTypeFaces = TypeFaces must be cTypeFaces0 = TypeFaces.
I checked my Table.bas file from version 3.11 and that line was OK. Don't know when nor why the '0' was removed.

Another problem is the new AddRow method. As its signature has changed it is not backward compatible.
I renamed it to AddRow2 and added a new AddRow routine with the original signature to be backward compatible.

I will further work on it.
I have some other ideas.

Top
