B4J Tutorial Creating Excel Reports with jPOI - Part II

Discussion in 'B4J Tutorials' started by DMW, Jan 24, 2017.

  1. DMW

    DMW Member Licensed User

    Report Pivot Table - Pivot Chart
    Here in the part II of the tutorial I will present a solution including Pivot table and Pivot chart.

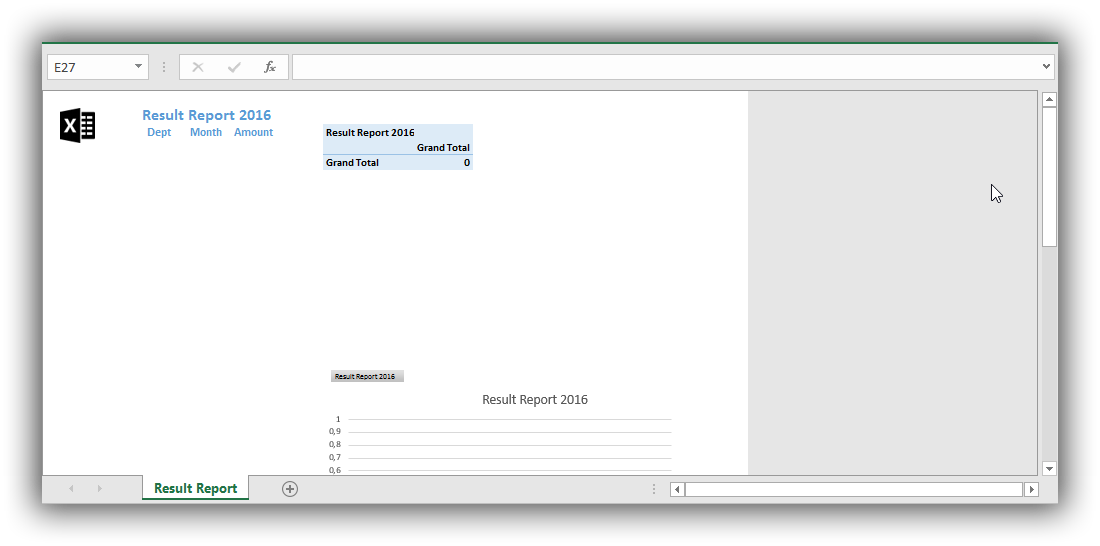

    The attached screen shot - pivotcharttemplate.png - shows the template in use:


    Here is the code to populate the data table:
    Code:
    #Region Project Attributes

    #MainFormWidth: -1

    #MainFormHeight: -1

    #AdditionalJar: sqlite-jdbc-3.7.2
    #End Region

    Sub Process_Globals

    Private fx As JFX

    Private MainForm As Form

    Private xlChartButton As Button

    Private xlPivotButton As Button

    Private btnClose As Button


    Private stTitle As String


    Private cutils As ControlsUtils


    Private gSQL As SQL

    Private Cursor As ResultSet


    'POI Variables
        Private wbData As PoiWorkbook

    Private wsData As PoiSheet

    Private row As PoiRow

    Private rnCell As PoiCell
    End Sub

    Sub AppStart (Form1 As Form, Args() As String)
        MainForm = Form1
        MainForm.RootPane.LoadLayout(
    "Start"
        stTitle =
    "Result Report"
        MainForm.Title =stTitle
        MainForm.Show
    End Sub


    Sub xlPivotButton_Action


    Dim stDateTime As String

    Dim sqlReport As String =  _

    "SELECT Dept, Month, Result AS Amount FROM Prod_Output Order By Dept;"


    Dim inRow As Int = 3

    Dim inCounter As Int = 2


    Try


    If gSQL.IsInitialized=False Then
                gSQL.InitializeSQLite(
    File.DirApp, "Production.db"True)

    End If

            wbData.InitializeExisting(
    File.DirApp,"PivotReport.xlsx","")
            wsData = wbData.GetSheet(
    0)


    Cursor = gSQL.ExecQuery(sqlReport)


    Do While Cursor.NextRow
                row = wsData.GetRow(inRow)
                row.IsInitialized
                row.CreateCellString(inCounter,
    Cursor.GetString("Dept"))
                row.CreateCellString(inCounter+
    1,Cursor.GetString("Month"))
                row.CreateCellNumeric(inCounter+
    2,Cursor.GetInt("Amount"))
                inRow = inRow +
    1

    Loop


    'No protection is added because the pivot table must be updated
            'when the workbook opens in MS Excel.


    'Creating an unique date and time stamp as part of the filename.
            DateTime.DateFormat= "MMddyy"

    DateTime.TimeFormat="HHmmss"
            stDateTime=
    "_" & DateTime.Date(DateTime.Now) & "_" & DateTime.Time(DateTime.now)

            wbData.Save(
    File.DirApp,"Pivot Report" & stDateTime & ".xlsx")

            wbData.Close

            cutils.ShowNotification3(stTitle,
    "Successfully created the report!", cutils.ICON_INFORMATION, _
            MainForm,
    "CENTER"2000)


    Catch

    Log(LastException.Message)
            cutils.ShowNotification3(stTitle,
    "Unable to execute the process!", cutils.ICON_ERROR, MainForm, _

    "CENTER"2000)


    End Try

    End Sub

    Sub btnClose_Action
        MainForm.Close
    End Sub

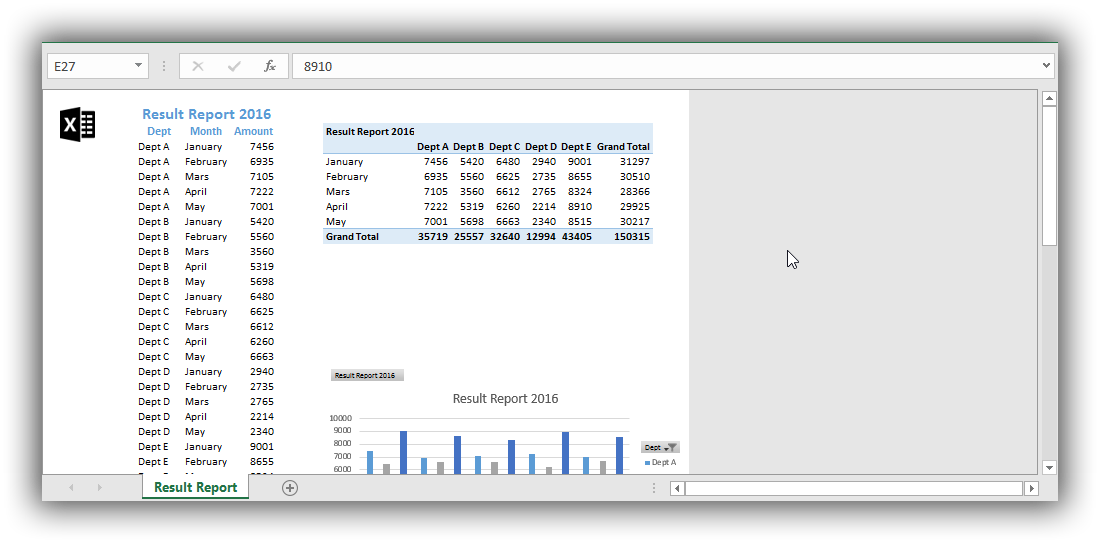

    Finally, the attached screen shot - pivotchartreport.png. - shows the report.


    Kind regards,
    Dennis
