  1. Takeru17

    Takeru17 Member Licensed User

    Hi,
    This is my first contribution to B4A.
    It's a very simple calendar clickable.

    Instructions are :

    Initialize(Callback, EventName, Width (same declare as addview), Height (idem), date (DateTimeFormat) )

    ShowCalendar(Boolean)
    LengthMonth(Year, Month) As Int
    SetTableColor(Color) : color of the grid
    SetBackGroundColor(Color) : color of the Background
    SetActiveButtonColor(Color) : color of calendar's buttons
    SetInactiveButtonColor(Color) : color of day's buttons
    SetFunctionButtonColor(Color) : color of PrevMonth, NextMonth, Years Buttons
    SetTextSize(value) : relative Size for Texts

    NmFullday(0..6) : name each days
    Nmday(0..6) : name (on 3 letters) for days
    NmFullMonth(0..12) :name each months
    NmMonth(0..11) : name (on 3 letters) for months
    (theses tables are in French actually)


    Attached Files:

    Last edited: Oct 5, 2012
  2. Erel

    Erel Administrator Staff Member Licensed User

    Thank you for sharing.
    :sign0098:

  3. StarinschiAndrei

    StarinschiAndrei Active Member Licensed User

    Hi ,

    i try to use your cutom calendar but i got an erroe message:
    "SomeTime=DateTime.DateParse(CallMonth&"/01/"&calYear)"
    java.text.ParseException:unparsable date:"12/01/2012"(at offset 2)

    it happen only if i call second time from same button your calendar.
    Sub btnscadenta_Click
    If btnscadenta.Text ="Urmatoarea scadenta :" Then
    CsCal.Initialize(Me,"CsCal",100%x,100%y,DateTime.Now)
    Activity.AddView(CsCal.AsView,0,0,100%x,100%y)
    CsCal.ShowCalendar(True)
    lansare="scadenta"
    End If
    End Sub
    Could you please tell me why it happen ?
    Thank you.

  4. Harris

    Harris Well-Known Member Licensed User

    New Version - modified original

    I liked this simple/easy calendar class so much, I modified it.

    1. Added the AHLocale lib to supply the lists of weekday, short and long month names. Now supports any language on a device. I recommend everyone use this for these purposes ( hey - why not?)

    2. Restricted day selection to the current month in view.

    3. Title shows the day selected. Added Sub BtJour_Down event to accomplish this.

    4. Added _ItemLongClick event (removed short click) to make the actual day selection.

    5. Created Private vars for Start and End years used in spinner view. Set the begin and end years in one place to whatever you need.


    Further mods: Could use bigger font size on lager devices (tablets)...


    Thanks to the author Takeru17 for this class and inspiration.

    Tested on Nexus 7 tablet and Samsung S phone.

    Cheers


    Attached Files:

    Merlot2309 likes this.
  5. Harris

    Harris Well-Known Member Licensed User

    Got me beat...

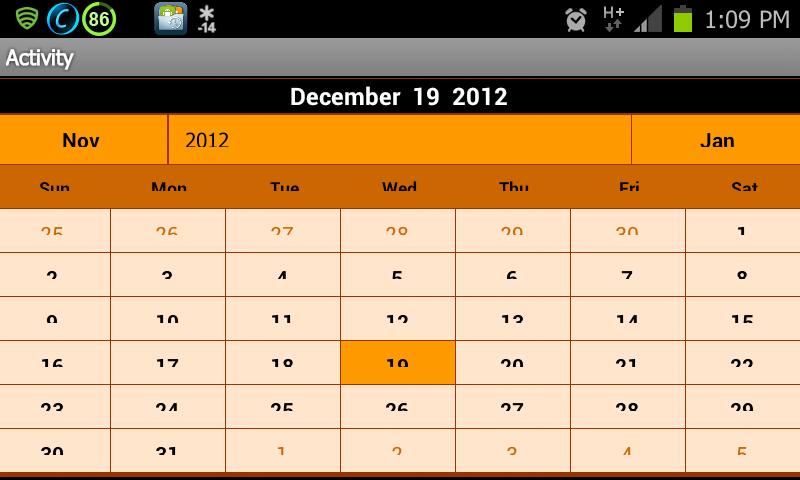

    This is how the cal looks on a SG2 phone in landscape (See Attached).

    My Galaxy S has 206 ppi. Cal looks fine in landscape
    Galaxy S2 has 240.

    Why does S2 cut off half the date number?

    Both look fine in portrait.


    Attached Files:

    Last edited: Dec 21, 2012
  6. Cableguy

    Cableguy Expert Licensed User

    I can point 2 reasons, and they may both occur simultaneously...

    . The 'S2' screen resolution being different from the 'S'
    . The Font is too big for the label size, which seem to be much smaller than the outlined box around it...

    For the first case, you must use some code to first establish the screen resolution, set it to a var and use it in the calculations for the sizing...
    For the second, widen up the label to the box size -1, play a bit with the font size and with theppositioning, try to align up vertically.

  7. JTmartins

    JTmartins Active Member Licensed User

    How can I Move and change font in YEAR

    Hi Takeru17,

    I've played with your class with diferent font sizes and colors, just one thing I can't catch.

    How can we center the year and change the font to bold...?

    Everyhting else is a button or a label, but this one is a spinner, right ?

    Just because in my opinion it does not look right there on to left.

    I've tryed, but couldn't find a way.

    Thanks,

    José

  8. Harris

    Harris Well-Known Member Licensed User

    "How can we center the year and change the font to bold...?"

    Check my post above - "New Version - modified original"

    In the supplied modified class (and example):
    Search for spLabel in the class. It explains how to accomplish what you asked for.

    Essentially, the code hides the spinner view and substitutes a label to present the UI, using the spinner list and events.

    Who knew that this kind of trickery could be performed (aside from Erel and possibly 1000 others).

    Note: Additional libs - AHLocal, Reflection

    Cheers


    Attached Files:

  9. JTmartins

    JTmartins Active Member Licensed User

    Dates do not change

    Hi Harris,

    *********************************************************
    SORTED OUT...NEVER MIND ..MISSING SUB CsCal_ItemLongClick IN ACTIVITY
    *********************************************************

    I've tryed to run your example calendar together with AHviewpager Library,
    however when I do that, the calendar displays OK in a page but when clicked in the days nothing happens. However the panel with previous month, year, and next month works as expected.

    Tried in tablet and emulator.

    I had the same problem with sliding menus, when Agenda menu selected clicking in a date does not work, so I presume that something else is catching the events, but do not know how to solve this.

    Help, please..

    Thanks
    José

    Last edited: Jan 29, 2013
  10. Harris

    Harris Well-Known Member Licensed User

    Yes,
    the comment in CsCal.itemlongclick somewhat gives it away...

    ' Comment out ALL lines below for production use. Use dt param above (selected date) as you wish...

    Glad you figured it out... It gets easier the more we code, study, experiment as well as read posts. Intents and Reflection are still quite puzzling however. Good thing for many examples to "borrow" code to get me thru...

  11. JTmartins

    JTmartins Active Member Licensed User

    Why is this ?

    I have Custom calendar working ok in a sample project however, when I run it from a button on the final project

    I get this

    An Error has occured in sub:CustomCalendar_printdate (java line 602)
    Java.Text.ParseException:Unparsable date "5/01/2013" (at offset 1)

    Any clues ?

    Thanks
    José

    I can see it has something to do with this SOMETIME lines

    SomeTime = DateTime.DateParse(CalMonth & "/01/" & CalYear)

    Last edited: May 28, 2013
  12. Erel

    Erel Administrator Staff Member Licensed User

    What is the value of DateTime.DateFormat ?

  13. JTmartins

    JTmartins Active Member Licensed User

    The Value is

    Hi Erel,

    The value in DateTime.DateFormat is

    DateTime.DateFormat="yyyy-MM-dd"

    I use it in other part of the app that depend on date and this is the date format in the server.

    In the sub of the button that opens the calendar I've changed to
    Code:
    DateTime.DateFormat="dd/MM/yyyy"
    Now the calendar shows up, but when I click on the date I get

    customcalendar_daypress (B4A line: 378)


    SomeTime = DateTime.DateParse(mm & "/" & dd & "/" & aa)
    java.text.ParseException: Unparseable date: "6/11/2013" (at offset 1)


    at java.text.DateFormat.parse(DateFormat.java:626)
    at anywheresoftware.b4a.keywords.DateTime.DateParse(DateTime.java:147)
    at Gesdev4.dev.customcalendar._daypress(customcalendar.java:385)
    at Gesdev4.dev.customcalendar._btjour_longclick(customcalendar.java:138)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:511)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:153)
    at anywheresoftware.b4a.objects.ViewWrapper$2.onLongClick(ViewWrapper.java:73)
    at android.view.View.performLongClick(View.java:4120)
    at android.widget.TextView.performLongClick(TextView.java:7875)
    at android.view.View$CheckForLongPress.run(View.java:16945)
    at android.os.Handler.handleCallback(Handler.java:615)
    at android.os.Handler.dispatchMessage(Handler.java:92)
    at android.os.Looper.loop(Looper.java:137)
    at android.app.ActivityThread.main(ActivityThread.java:4745)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:511)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:786)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:553)
    at dalvik.system.NativeStart.main(Native Method)
    java.text.ParseException: Unparseable date: "6/11/2013" (at offset 1)

    The same happens if I use

    Code:
    DateTime.DateFormat="MM/dd/yyyy"
    PS - AHlocale in use. I don't know if it has anything to do with that.

    Last edited: Jun 12, 2013
  14. Erel

    Erel Administrator Staff Member Licensed User

    This code works properly:
    Code:
    DateTime.DateFormat = "MM/dd/yyyy"
    Log(DateTime.DateParse("6/11/2013"))

  15. JTmartins

    JTmartins Active Member Licensed User

    This is my code

    In the button sub that calls the calendar this is what I have.

    Code:
    Sub btnMarcaAula_Click
    ' para marcar aula precisamos de pedir
    ' data
    ' hora de inicio, hora de fim
    ' aluno (por LA)
    ' primeiro esconder todos os paineis
    DateTime.DateFormat="MM/dd/yyyy"
    Panel1.Visible=
    False
    Panel2.Visible=
    False
    Panel3.Visible=
    False
    Panel4.Visible=
    False
    Panel6.Visible=
    False
    Panel7.Visible=
    False
    Panel8.Visible=
    False
    Panel9.Visible=
    False
    Panel10.Visible=
    False
    PanelLerMsg.Visible=
    False
    Panelmsg.Visible=
    False
    Panel5.Visible=
    True ' mostra o painel do calendário


    CsCal.Initialize(Me,
    "CsCal",100%x,90%y,DateTime.Now)

    Panel5.AddView(CsCal.AsView,
    0,0,Activity.Width,Activity.height)
    CsCal.ShowCalendar(
    True)


    End Sub
    Then I have

    Code:
    Sub CsCal_ItemLongClick(dt As Long)


    DateTime.DateFormat="MM/dd/yyyy" ' just to make sure again.

    CsCal.ShowCalendar(
    False)




    Dim aa,dd,mm As Int
       aa=
    DateTime.GetYear(dt)
       dd=
    DateTime.GetDayOfMonth(dt)
       mm=
    DateTime.GetMonth(dt)


    Msgbox( CsCal.NmFullMonth(mm-1) &"  "&dd& "  " & aa," Data escolhida")
        CsCal.ShowCalendar(
    True)


    End Sub
    This is the error i receive when I click on a calendar day , and can't understand why.



    java.text.ParseException: Unparseable date: "6/13/2013" (at offset 1)
    at java.text.DateFormat.parse(DateFormat.java:626)
    at anywheresoftware.b4a.keywords.DateTime.DateParse(DateTime.java:147)
    at Gesdev4.dev.customcalendar._daypress(customcalendar.java:274)
    at Gesdev4.dev.customcalendar._btjour_longclick(customcalendar.java:94)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:511)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:153)
    at anywheresoftware.b4a.objects.ViewWrapper$2.onLongClick(ViewWrapper.java:73)
    at android.view.View.performLongClick(View.java:4120)
    at android.widget.TextView.performLongClick(TextView.java:7875)
    at android.view.View$CheckForLongPress.run(View.java:16945)
    at android.os.Handler.handleCallback(Handler.java:615)
    at android.os.Handler.dispatchMessage(Handler.java:92)


    at android.os.Looper.loop(Looper.java:137)
    at android.app.ActivityThread.main(ActivityThread.java:4745)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:511)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:786)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:553)
    at dalvik.system.NativeStart.main(Native Method)
    java.text.ParseException: Unparseable date: "6/13/2013" (at offset 1)

  16. Erel

    Erel Administrator Staff Member Licensed User

    Check the class code. Maybe it changes the date format internally.

  17. JTmartins

    JTmartins Active Member Licensed User

    It works as an activity

    I couldn't find anything wrong in the class.

    Running in the same activity from a button gives the error mentioned before.

    However clicking on the button, launching a new activity with the calender it works. And I don't even touch the datetime.dateformat.

    Not the solution I wanted as reverting to the previous activity is going to be a little complicated, but at least it works.

    If someone has a little time, maybe can investigate why this happens, as I really didn't catch the problem.

  18. TsubasaOzora9

    TsubasaOzora9 Banned

    how to make when user click some date, the cell background color changed. so they will know what they click ?

    i try

    Last edited: Jul 15, 2013
  19. pesquera

    pesquera Active Member Licensed User

    Nice job! it was very useful to me..
    TsubasaOzora9: I did some changes for that

    on Sub PrintDate:
    Code:
    '        If (cmm=CalMonth) AND (caa=CalYear) Then
    '            If (z=cdd) Then
              If (z=CalDay) Then  ' pesquera
                    btDays(i).Color=ColFunction

    End If
    '        End If
    on Sub DayPress:
    Code:
    PrintDate(SomeTime)  ' pesquera
      Return True

  20. padvou

    padvou Active Member Licensed User

    How can we make the first day to be Monday and not Sunday?

Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
