I spent a dull hour copying these colour settings into a class.
These are the colours used in the designer which has a very nice drop down pickable list together with names. I personally think these are nice descriptive names.
There are probably more ways to handle colours than there are people in the forum but how about the following ideas.

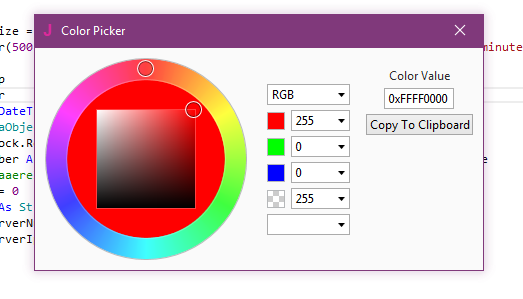

@Erel - could you make a colour picker work in the code IDE the same as the designer IDE? Update already done - Thanks I'm a release out of date.
@Erel - could an inbuilt "colors" class look like the one below - "colors2" say?
@Erel - could the IDE use the tool tip mechanism so that if a literal such as 0xFFF5F5DC were hovered over - then a colour block pops up to show that colour (not may literals of this format are likely to be anything other than colours - agree?)
@anyone - could someone advise or build out the stuff below into a nice custom control that can be dropped onto forms. I can do this myself but I know there are people with greater talents than myself who can do a better job. I've done some typing for us!
I've put the code together to build a map "zMap" which can can at least be used (refactored) to populate some control.
I may have reinvented a wheel here so don't be too harsh if there's a better way or an existing class using the designer IDE colours and names that I have missed.
These are the colours used in the designer which has a very nice drop down pickable list together with names. I personally think these are nice descriptive names.
There are probably more ways to handle colours than there are people in the forum but how about the following ideas.
@Erel - could you make a colour picker work in the code IDE the same as the designer IDE? Update already done - Thanks I'm a release out of date.
@Erel - could an inbuilt "colors" class look like the one below - "colors2" say?
@Erel - could the IDE use the tool tip mechanism so that if a literal such as 0xFFF5F5DC were hovered over - then a colour block pops up to show that colour (not may literals of this format are likely to be anything other than colours - agree?)
@anyone - could someone advise or build out the stuff below into a nice custom control that can be dropped onto forms. I can do this myself but I know there are people with greater talents than myself who can do a better job. I've done some typing for us!
I've put the code together to build a map "zMap" which can can at least be used (refactored) to populate some control.
I may have reinvented a wheel here so don't be too harsh if there's a better way or an existing class using the designer IDE colours and names that I have missed.
B4X:
Sub Class_Globals
Dim AntiqueWhite As Int=0xFFFAEBD7
Dim Aqua As Int = 0xFF00FFFF
Dim Aquamarine As Int=0xFF7FFFD4
Dim Azure As Int = 0xFFF0FFFF
Dim Beige As Int = 0xFFF5F5DC
Dim Bisque As Int = 0xFFFFE4C4
Dim Black As Int = 0xFF000000
Dim BlanchedAlmond As Int = 0xFFFFEBCD
Dim Blue As Int = 0xFF0000FF
Dim BlueViolet As Int = 0xFF8A2BE2
Dim Brown As Int = 0xFFA52A2A
Dim BurlyWood As Int = 0xFFDEB887
Dim CadetBlue As Int = 0xFF5F9EA0
Dim Chartreuse As Int = 0xFF7FFF00
Dim Chocolate As Int = 0xFFD2691E
Dim Coral As Int = 0xFFFF7F50
Dim CornflowerBlue As Int = 0xFF6495ED
Dim Cornsilk As Int = 0xFFFFF8DC
Dim Crimson As Int = 0xFFDC143C
Dim Cyan As Int = 0xFF00FFFF
Dim DarkBlue As Int = 0xFF00008B
Dim DarkCyan As Int = 0xFF008B8B
Dim DarkGoldenrod As Int = 0xFFB8860B
Dim DarkGray As Int = 0xFFA9A9A9
Dim DarkGreen As Int = 0xFF006400
Dim DarkKhaki As Int = 0xFFBDB76B
Dim DarkMagenta As Int = 0xFF8B008B
Dim DarkOliveGreen As Int = 0xFF556B2F
Dim DarkOrange As Int = 0xFFFF8C00
Dim DarkOrchid As Int = 0xFF9932CC
Dim DarkRed As Int = 0xFF8B0000
Dim DarkSalmon As Int = 0xFFE9967A
Dim DarkSeaGreen As Int = 0xFF8FBC8F
Dim DarkSlateBlue As Int = 0xFF483D8B
Dim DarkSlateGray As Int = 0xFF2F4F4F
Dim DarkTurquoise As Int = 0xFF00CED1
Dim DarkViolet As Int = 0xFF9400D3
Dim DeepPink As Int = 0xFFFF1493
Dim DarkPink As Int = 0xFFFF1493
Dim DeepSkyBlue As Int = 0xFF00BFFF
Dim DarkSkyBlue As Int = 0xFF00BFFF
Dim DimGray As Int = 0xFF696969
Dim DodgerBlue As Int = 0xFF1E90FF
Dim Firebrick As Int = 0xFFB22222
Dim FloralWhite As Int = 0xFFFFFAF0
Dim ForestGreen As Int = 0xFF228B22
Dim Fuchsia As Int = 0xFFFF00FF
Dim Gainsboro As Int = 0xFFDCDCDC
Dim GhostWhite As Int = 0xFFF8F8FF
Dim Gold As Int = 0xFFFFD700
Dim Goldenrod As Int = 0xFFDAA520
Dim Gray As Int = 0xFF808080
Dim Green As Int = 0xFF008000
Dim GreenYellow As Int = 0xFFADFF2F
Dim Honeydew As Int = 0xFFF0FFF0
Dim HotPink As Int = 0xFFFF69B4
Dim IndianRed As Int = 0xFFCD5C5C
Dim Indigo As Int = 0xFF4B0082
Dim Ivory As Int = 0xFFFFFFF0
Dim Khaki As Int = 0xFFF0E68C
Dim Lavender As Int = 0xFFE6E6FA
Dim LavenderBlush As Int = 0xFFFFF0F5
Dim LawnGreen As Int = 0xFF7CFC00
Dim LemonChiffon As Int = 0xFFFFFACD
Dim LightBlue As Int = 0xFFADD8E6
Dim LightCoral As Int = 0xFFF08080
Dim LightCyan As Int = 0xFFE0FFFF
Dim LightGoldenrodYellow As Int = 0xFFFAFAD2
Dim LightGray As Int = 0xFFD3D3D3
Dim LightGreen As Int = 0xFF90EE90
Dim LightPink As Int = 0xFFFFB6C1
Dim LightSalmon As Int = 0xFFFFA07A
Dim LightSeaGreen As Int = 0xFF20B2AA
Dim LightSkyBlue As Int = 0xFF87CEFA
Dim LightSlateGray As Int = 0xFF778899
Dim LightSteelBlue As Int = 0xFFB0C4DE
Dim LightYellow As Int = 0xFFFFFFE0
Dim Lime As Int = 0xFF00FF00
Dim LimeGreen As Int = 0xFF32CD32
Dim Linen As Int = 0xFFFAF0E6
Dim Magenta As Int = 0xFFFF00FF
Dim Maroon As Int = 0xFF800000
Dim MediumAquamarine As Int = 0xFF66CDAA
Dim MediumBlue As Int = 0xFF0000CD
Dim MediumOrchid As Int = 0xFFBA55D3
Dim MediumPurple As Int = 0xFF9370DB
Dim MediumSeaGreen As Int = 0xFF3CB371
Dim MediumSlateBlue As Int = 0xFF7B68EE
Dim MediumSpringGreen As Int = 0xFF00FA9A
Dim MediumTurquoise As Int = 0xFF48D1CC
Dim MediumVioletRed As Int = 0xFFC71585
Dim MidnightBlue As Int = 0xFF191970
Dim MintCream As Int = 0xFFF5FFFA
Dim MistyRose As Int = 0xFFFFE4E1
Dim Moccasin As Int = 0xFFFFE4B5
Dim NavajoWhite As Int = 0xFFFFDEAD
Dim Navy As Int = 0xFF000080
Dim OldLace As Int = 0xFFFDF5E6
Dim Olive As Int = 0xFF808000
Dim OliveDrab As Int = 0xFF6B8E23
Dim Orange As Int = 0xFFFFA500
Dim OrangeRed As Int = 0xFFFF4500
Dim Orchid As Int = 0xFFDA70D6
Dim PaleGoldenrod As Int = 0xFFEEE8AA
Dim PaleGreen As Int = 0xFF98FB98
Dim PaleTurquoise As Int = 0xFFAFEEEE
Dim PaleVioletRed As Int = 0xFFDB7093
Dim PapayaWhip As Int = 0xFFFFEFD5
Dim PeachPuff As Int = 0xFFFFDAB9
Dim Peru As Int = 0xFFCD853F
Dim Pink As Int = 0xFFFFC0CB
Dim Plum As Int = 0xFFDDA0DD
Dim PowderBlue As Int = 0xFFB0E0E6
Dim Purple As Int = 0xFF800080
Dim Red As Int = 0xFFFF0000
Dim RosyBrown As Int = 0xFFBC8F8F
Dim RoyalBlue As Int = 0xFF4169E1
Dim SaddleBrown As Int = 0xFF8B4513
Dim Salmon As Int = 0xFFFA8072
Dim SandyBrown As Int = 0xFFF4A460
Dim SeaGreen As Int = 0xFF2E8B57
Dim SeaShell As Int = 0xFFFFF5EE
Dim Sienna As Int = 0xFFA0522D
Dim Silver As Int = 0xFFC0C0C0
Dim SkyBlue As Int = 0xFF87CEEB
Dim SlateBlue As Int = 0xFF6A5ACD
Dim SlateGray As Int = 0xFF708090
Dim Snow As Int = 0xFFFFFAFA
Dim SpringGreen As Int = 0xFF00FF7F
Dim SteelBlue As Int = 0xFF4682B4
Dim Tan1 As Int = 0xFFD2B48C
Dim Teal As Int = 0xFF008080
Dim Thistle As Int = 0xFFD8BFD8
Dim Tomato As Int = 0xFFFF6347
Dim Transparent As Int = 0x00FFFFFF
Dim Turquoise As Int = 0xFF40E0D0
Dim Violet As Int = 0xFFEE82EE
Dim Wheat As Int = 0xFFF5DEB3
Dim White As Int = 0xFFFFFFFF
Dim WhiteSmoke As Int = 0xFFF5F5F5
Dim Yellow As Int = 0xFFFFFF00
Dim YellowGreen As Int = 0xFF9ACD32
Dim zMap As Map
End Sub
'Initializes the object. You can add parameters to this method if needed.
Public Sub Initialize
zMap.initialize
zMap.Put("AntiqueWhite",AntiqueWhite)
zMap.Put("Aqua", Aqua)
zMap.Put("Aquamarine",Aquamarine)
zMap.Put("Azure", Azure)
zMap.Put("Beige", Beige)
zMap.Put("Bisque", Bisque)
zMap.Put("Black", Black)
zMap.Put("BlanchedAlmond", BlanchedAlmond)
zMap.Put("Blue", Blue)
zMap.Put("BlueViolet", BlueViolet)
zMap.Put("Brown", Brown)
zMap.Put("BurlyWood", BurlyWood)
zMap.Put("CadetBlue", CadetBlue)
zMap.Put("Chartreuse", Chartreuse)
zMap.Put("Chocolate", Chocolate)
zMap.Put("Coral", Coral)
zMap.Put("CornflowerBlue", CornflowerBlue)
zMap.Put("Cornsilk", Cornsilk)
zMap.Put("Crimson", Crimson)
zMap.Put("Cyan", Cyan)
zMap.Put("DarkBlue", DarkBlue)
zMap.Put("DarkCyan", DarkCyan)
zMap.Put("DarkGoldenrod", DarkGoldenrod)
zMap.Put("DarkGray", DarkGray)
zMap.Put("DarkGreen", DarkGreen)
zMap.Put("DarkKhaki", DarkKhaki)
zMap.Put("DarkMagenta", DarkMagenta)
zMap.Put("DarkOliveGreen", DarkOliveGreen)
zMap.Put("DarkOrange", DarkOrange)
zMap.Put("DarkOrchid", DarkOrchid)
zMap.Put("DarkRed", DarkRed)
zMap.Put("DarkSalmon", DarkSalmon)
zMap.Put("DarkSeaGreen", DarkSeaGreen)
zMap.Put("DarkSlateBlue", DarkSlateBlue)
zMap.Put("DarkSlateGray", DarkSlateGray)
zMap.Put("DarkTurquoise", DarkTurquoise)
zMap.Put("DarkViolet", DarkViolet)
zMap.Put("DeepPink", DeepPink)
zMap.Put("DarkPink", DarkPink)
zMap.Put("DeepSkyBlue", DeepSkyBlue)
zMap.Put("DarkSkyBlue", DarkSkyBlue)
zMap.Put("DimGray", DimGray)
zMap.Put("DodgerBlue", DodgerBlue)
zMap.Put("Firebrick", Firebrick)
zMap.Put("FloralWhite", FloralWhite)
zMap.Put("ForestGreen", ForestGreen)
zMap.Put("Fuchsia", Fuchsia)
zMap.Put("Gainsboro", Gainsboro)
zMap.Put("GhostWhite", GhostWhite)
zMap.Put("Gold", Gold)
zMap.Put("Goldenrod", Goldenrod)
zMap.Put("Gray", Gray)
zMap.Put("Green", Green)
zMap.Put("GreenYellow", GreenYellow)
zMap.Put("Honeydew", Honeydew)
zMap.Put("HotPink", HotPink)
zMap.Put("IndianRed", IndianRed)
zMap.Put("Indigo", Indigo)
zMap.Put("Ivory", Ivory)
zMap.Put("Khaki", Khaki)
zMap.Put("Lavender", Lavender)
zMap.Put("LavenderBlush", LavenderBlush)
zMap.Put("LawnGreen", LawnGreen)
zMap.Put("LemonChiffon", LemonChiffon)
zMap.Put("LightBlue", LightBlue)
zMap.Put("LightCoral", LightCoral)
zMap.Put("LightCyan", LightCyan)
zMap.Put("LightGoldenrodYellow", LightGoldenrodYellow)
zMap.Put("LightGray", LightGray)
zMap.Put("LightGreen", LightGreen)
zMap.Put("LightPink", LightPink)
zMap.Put("LightSalmon", LightSalmon)
zMap.Put("LightSeaGreen", LightSeaGreen)
zMap.Put("LightSkyBlue", LightSkyBlue)
zMap.Put("LightSlateGray", LightSlateGray)
zMap.Put("LightSteelBlue", LightSteelBlue)
zMap.Put("LightYellow", LightYellow)
zMap.Put("Lime", Lime)
zMap.Put("LimeGreen", LimeGreen)
zMap.Put("Linen", Linen)
zMap.Put("Magenta", Magenta)
zMap.Put("Maroon", Maroon)
zMap.Put("MediumAquamarine", MediumAquamarine)
zMap.Put("MediumBlue", MediumBlue)
zMap.Put("MediumOrchid", MediumOrchid)
zMap.Put("MediumPurple", MediumPurple)
zMap.Put("MediumSeaGreen", MediumSeaGreen)
zMap.Put("MediumSlateBlue", MediumSlateBlue)
zMap.Put("MediumSpringGreen", MediumSpringGreen)
zMap.Put("MediumTurquoise", MediumTurquoise)
zMap.Put("MediumVioletRed", MediumVioletRed)
zMap.Put("MidnightBlue", MidnightBlue)
zMap.Put("MintCream", MintCream)
zMap.Put("MistyRose", MistyRose)
zMap.Put("Moccasin", Moccasin)
zMap.Put("NavajoWhite", NavajoWhite)
zMap.Put("Navy", Navy)
zMap.Put("OldLace", OldLace)
zMap.Put("Olive", Olive)
zMap.Put("OliveDrab", OliveDrab)
zMap.Put("Orange", Orange)
zMap.Put("OrangeRed", OrangeRed)
zMap.Put("Orchid", Orchid)
zMap.Put("PaleGoldenrod", PaleGoldenrod)
zMap.Put("PaleGreen", PaleGreen)
zMap.Put("PaleTurquoise", PaleTurquoise)
zMap.Put("PaleVioletRed", PaleVioletRed)
zMap.Put("PapayaWhip", PapayaWhip)
zMap.Put("PeachPuff", PeachPuff)
zMap.Put("Peru", Peru)
zMap.Put("Pink", Pink)
zMap.Put("Plum", Plum)
zMap.Put("PowderBlue", PowderBlue)
zMap.Put("Purple", Purple)
zMap.Put("Red", Red)
zMap.Put("RosyBrown", RosyBrown)
zMap.Put("RoyalBlue", RoyalBlue)
zMap.Put("SaddleBrown",SaddleBrown)
zMap.Put("Salmon", Salmon)
zMap.Put("SandyBrown", SandyBrown)
zMap.Put("SeaGreen", SeaGreen)
zMap.Put("SeaShell", SeaShell)
zMap.Put("Sienna", Sienna)
zMap.Put("Silver", Silver)
zMap.Put("SkyBlue", SkyBlue)
zMap.Put("SlateBlue", SlateBlue)
zMap.Put("SlateGray", SlateGray)
zMap.Put("Snow", Snow)
zMap.Put("SpringGreen", SpringGreen)
zMap.Put("SteelBlue", SteelBlue)
zMap.Put("Tan1", Tan1)
zMap.Put("Teal", Teal)
zMap.Put("Thistle", Thistle)
zMap.Put("Tomato", Tomato)
zMap.Put("Transparent", Transparent)
zMap.Put("Turquoise", Turquoise)
zMap.Put("Violet", Violet)
zMap.Put("Wheat", Wheat)
zMap.Put("White", White)
zMap.Put("WhiteSmoke", WhiteSmoke)
zMap.Put("Yellow", Yellow)
zMap.Put("YellowGreen", YellowGreen)
' For i = 1 To zMap.Size
' Log (zMap.GetkeyAt(i-1)&" - "&zMap.GetValueAt(i-1))
' Next
End Sub
Last edited:
