Android Question DraggableView Class help

rfresh

Well-Known Member
Licensed User
Longtime User
I'm trying to get the DraggableView example to work.

I'm getting an error: unknown type draggableview

As the attachment shows, I have the Reflection Lib checked.

B4X:
#Region  Project Attributes
    #ApplicationLabel: B4A Example
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

'Main activity module
Sub process_globals

End Sub

Sub Globals
    Dim Button1 As Button
    Dim Button2 As Button
    Dim EditText1 As EditText
End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("1")
    Dim dv1, dv2, dv3 As DraggableView '<---- error on this line
    dv1.Initialize(Activity, Button1)
    dv2.Initialize(Activity, Button2)
    dv3.Initialize(Activity, EditText1)
End Sub

'***************************
'DraggableView class module
Sub Class_Globals
    Private innerView As View
    Private panel1 As Panel
    Private downx, downy As Int
    Private ACTION_DOWN, ACTION_MOVE, ACTION_UP As Int
End Sub

Sub Initialize(Activity As Activity, v As View)
    innerView = v
    panel1.Initialize("")
    panel1.Color = Colors.Transparent
    Activity.AddView(panel1, v.Left, v.Top, v.Width, v.Height)
    ACTION_DOWN = Activity.ACTION_DOWN
    ACTION_MOVE = Activity.ACTION_MOVE
    ACTION_UP = Activity.ACTION_UP
    Dim r As Reflector
    r.Target = panel1
    r.SetOnTouchListener("Panel1_Touch") 'why reflection instead of the regular Panel_Touch event? Good question which deserves a forum thread of its own (not related to classes)...
End Sub

Private Sub Panel1_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
    If ACTION = ACTION_DOWN Then
        downx = x
        downy = y
    Else
        innerView.Left = innerView.Left + x - downx
        innerView.Top = innerView.Top + y - downy
        panel1.Left = innerView.Left
        panel1.Top = innerView.Top
    End If
    Return True
End Sub


Attachments

  • 2018-04-23_162918.png
    54.2 KB · Views: 240

LucaMs

Expert
Licensed User
Longtime User
DraggableView is a class. You must create a class named DraggleView and move all the code you have after the asterisks to this class (empty the new class before)

Upvote 0

rfresh

Well-Known Member
Licensed User
Longtime User
I've looked around here and on Youtube but I cannot find any examples of how that is done. There is a lot of discussions about classes and Erel has a tutorial but he doesn't talk about how you actually setup your files and class structure. He talks about modules and classes but gives no full examples that I can find.

Do I create a separate file? If yes, how do I reference it in my main file?

Thank you...

Upvote 0

LucaMs

Expert
Licensed User
Longtime User
Simply the code you found was not posted in separated blocks!

This one is the Main (activity module):
#Region Project Attributes
#ApplicationLabel: B4A Example
#VersionCode: 1
#VersionName:
'SupportedOrientations possible values: unspecified, landscape or portrait.
#SupportedOrientations: unspecified
#CanInstallToExternalStorage: False
#End Region

#Region Activity Attributes
#FullScreen: False
#IncludeTitle: True
#End Region

'Main activity module
Sub process_globals

End Sub

Sub Globals
Dim Button1 As Button
Dim Button2 As Button
Dim EditText1 As EditText
End Sub

Sub Activity_Create(FirstTime As Boolean)
Activity.LoadLayout("1")
Dim dv1, dv2, dv3 As DraggableView '<---- error on this line
dv1.Initialize(Activity, Button1)
dv2.Initialize(
Activity, Button2)
dv3.Initialize(
Activity, EditText1)
End Sub


This one is a class:
'***************************
'DraggableView class module

Sub Class_Globals
Private innerView As View
Private panel1 As Panel
Private downx, downy As Int
Private ACTION_DOWN, ACTION_MOVE, ACTION_UP As Int
End Sub

Sub Initialize(Activity As Activity, v As View)
innerView = v
panel1.Initialize(
"")
panel1.Color =
Colors.Transparent
Activity.AddView(panel1, v.Left, v.Top, v.Width, v.Height)
ACTION_DOWN =
Activity.ACTION_DOWN
ACTION_MOVE =
Activity.ACTION_MOVE
ACTION_UP =
Activity.ACTION_UP
Dim r As Reflector
r.Target = panel1
r.SetOnTouchListener(
"Panel1_Touch") 'why reflection instead of the regular Panel_Touch event? Good question which deserves a forum thread of its own (not related to classes)...
End Sub

Private Sub Panel1_Touch (o As Object, ACTION As Int, x As Float, y As Float, motion As Object) As Boolean
If ACTION = ACTION_DOWN Then
downx = x
downy = y
Else
innerView.Left = innerView.Left + x - downx
innerView.Top = innerView.Top + y - downy
panel1.Left = innerView.Left
panel1.Top = innerView.Top
End If
Return True
End Sub


Create a new class:



Name it: "DraggableView".

Delete all its (default) code.

Cut (from your project) the class code and paste it to the new class.

Upvote 0

rfresh

Well-Known Member
Licensed User
Longtime User

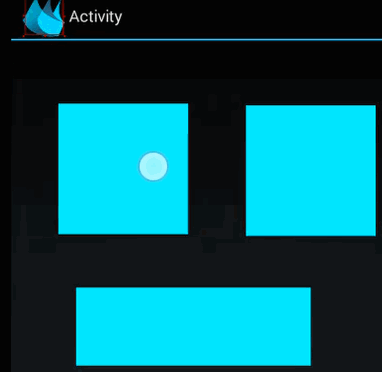

Unless I'm mistaken, Button1 and Button2 should be movable like the TextEdit1 object is, but I can't move either button with my finger on my phone screen. I can touch EditText1 and move it around the screen but not the buttons.


Attachments

  • TouchAdv.zip
    41.5 KB · Views: 246
Upvote 0

LucaMs

Expert
Licensed User
Longtime User
Unless I'm mistaken, Button1 and Button2 should be movable like the TextEdit1 object is, but I can't move either button with my finger on my phone screen. I can touch EditText1 and move it around the screen but not the buttons.

Tested your project:
I can move all the three views (how do you distinguish them? :) - write something).

Anyway, try to move:

Dim dv1, dv2, dv3 As DraggableView

to the Sub Globals.

Last edited:
Upvote 0

rfresh

Well-Known Member
Licensed User
Longtime User
Hmmm...I did those two things but still no go. I can't move the buttons. I'm using the B4A IDE if that makes any difference.


Attachments

  • TouchAdv2.zip
    41.5 KB · Views: 271
Upvote 0

rfresh

Well-Known Member
Licensed User
Longtime User
I'm testing on my phone an LG V20 and I'm testing on the 6 inch screen emulator.

Yes, I see it's working fine for you. Well, thanks for the help...I'll keep playing around with it and see if I can figure out how to get it working.

Upvote 0

LucaMs

Expert
Licensed User
Longtime User
Tried and I see different things! (buttons over panels).

Have to check the source code...

most likely it is due to the elevation of panels.
