B4J Question Drawing on top of views

[Daren463]

I am trying to draw lines over several different custom views. When the line is drawn it is drawn under the views. Is there a way to send the custom views to the back or an option to draw on top of the custom views?



[klaus]

How and where are you drawing the lines ?



[Daren463]

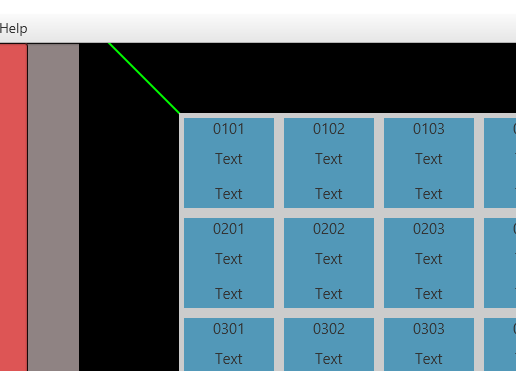

After the custom views are added I try and draw a line. In this example the green line starts a 0,0 of the pane and continues under the custom views to the other side. The custom views are on the same pane the canvas was initialized with.

Public Sub CreateNewMap
    Dim height As Int
    Dim width As Int
    Dim sqrCount As Int
    height = 7
    width = 7
    sqrCount = 0
    For column = 1 To 7
        For row = 1 To 7
            Msquare(sqrCount).Initialize(Me,"")
            pnlMap.AddNode(Msquare(sqrCount).GetBase,100* row,100 * column,1,1)
            Msquare(sqrCount).SetPOSx(column)
            Msquare(sqrCount).SetPOSy(row)
            Msquare(sqrCount).HighLightSqr(False)

            AddNewTile(sqrCount, column, row)
            sqrCount = sqrCount + 1
        Next

    Next



End Sub


Private Sub DrawLOS(p1 As point , p2 As point)

    cv.Initialize(pnlMap)
    cv.DrawLine(0, 0, 5000, 5000, xui.Color_Green, 2dip)

End Sub



[Erel]

Initializing the canvas every drawing is a big mistake.

Put a transparent panel above all views and use it for the drawings.



[Daren463]

Initializing there was the last thing I tried in a long list.

I tried your suggestion. The canvas was initialized to the red pane which is on top of the black pane (set in the designer) in which the custom views are nodes. The custom views appear to be above everything....?



[Erel]

1. Use B4XCanvas.
2. Initialize it in a panel (B4XView).
3. Call BringToFront to make sure that no other view was added above it.
