    This is an example of how UDP can be used to broadcast the current temperature and pressure to one or more clients.

    The nice thing about it is that there is no server involved. The ESP8266 just sends the packets to the broadcast address.

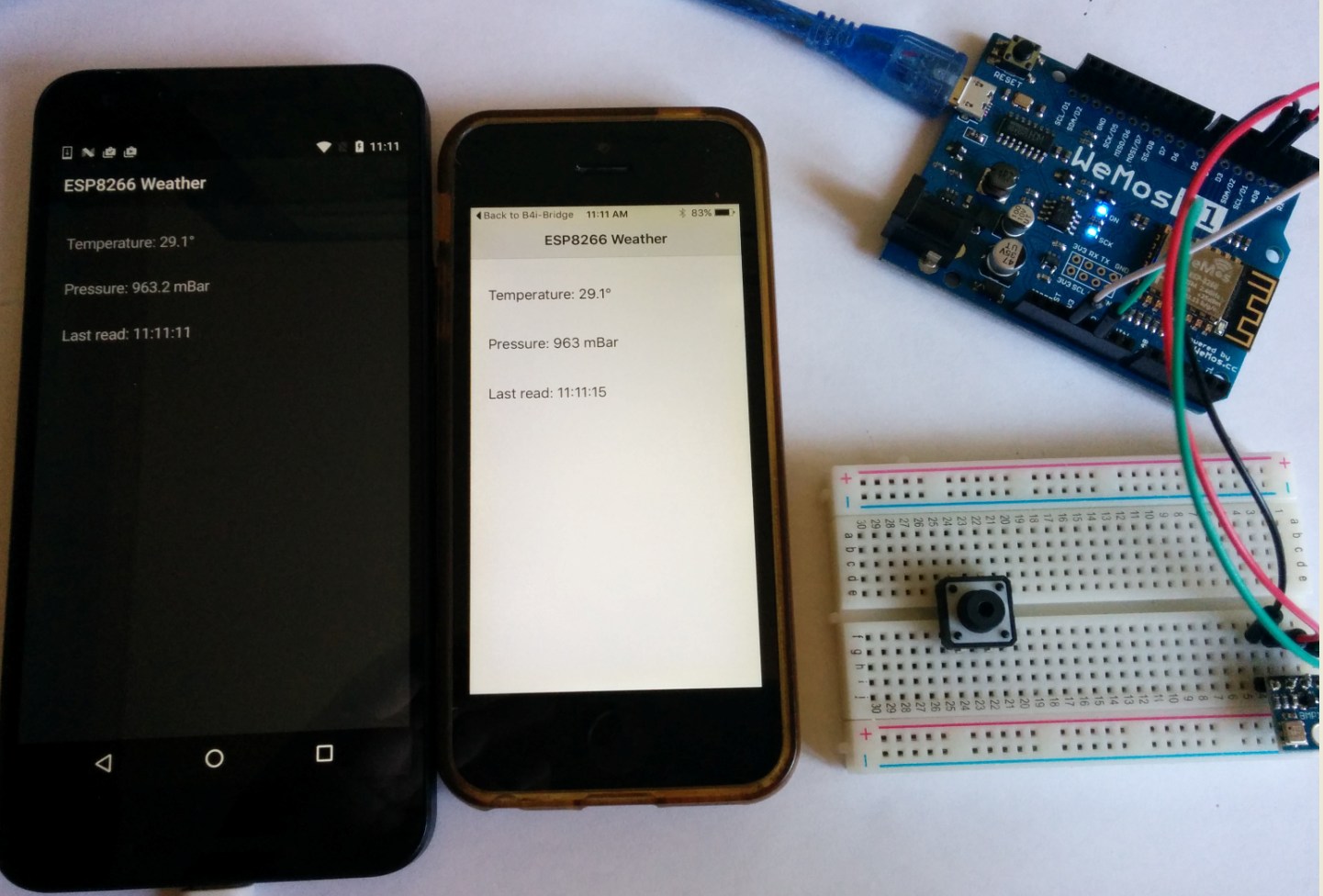

    [​IMG]

    RandomAccessFile is used to create the packets. B4R doubles are 4 bytes (equivalent to B4X floats).
    It is tempting to send the data as a string. However it is more efficient and actually simpler to deal with binary encoded numeric values.

    This is the main code of this example (B4R):
    Code:
    Dim buffer(8As Byte
    Dim raf As RandomAccessFile
    raf.Initialize(buffer,
    True)
    raf.WriteDouble32(bmp180.LastResult, raf.CurrentPosition)
    bmp180.GetPressure(
    0, bmp180.LastResult)
    raf.WriteDouble32(bmp180.LastResult, raf.CurrentPosition)
    usocket.BeginPacket(ip, port)
    usocket.Write(buffer)
    usocket.SendPacket
    The clients code:
    Code:
    Private Sub usocket_PacketArrived (Packet As UDPPacket)

    If Packet.Length <> 8 Then

    Log("Invalid data")

    Return

    Else

    Dim raf As RandomAccessFile
         raf.Initialize3(Packet.Data,
    True)
         raf.CurrentPosition = Packet.Offset

    Dim temperature, pressure As Float
         temperature = raf.ReadFloat(raf.CurrentPosition)
         pressure = raf.ReadFloat(raf.CurrentPosition)

    Log($"Temperature: $1.1{temperature}°"$)

    Log($"Pressure: $1.1{pressure} mBar"$)

    End If
    End Sub
    The broadcast address is usually the network address with 255 as the fourth byte. The B4J program prints it.

    BMP180 library is available here: https://www.b4x.com/android/forum/threads/bmp180-pressure-and-temperature.67730/


    Attached Files:

  2. Erel

    Erel Administrator Staff Member Licensed User

    The B4i client was updated. Fixed a bug where the socket became invalid while the app is in the background.

    sasidhar likes this.
  3. tonga

    tonga Member Licensed User

    Hi Erel,

    I'm starting to use ESP8266 so I have a board Nodemcu Amica. I try to use this board with BMP180 with this programs but it doesn't work.
    There are problems of compatibility? Or other?

    Thanks

  4. Erel

    Erel Administrator Staff Member Licensed User

    As you can see in this example, it does work with ESP8266.

    Try to connect the BMP180 to an Arduino and see whether it works.

  5. tonga

    tonga Member Licensed User

    BMP180 connected to board Nodemcu Amica works on IDE Arduino and I see the read values of temperature and pressure in the serial monitor. Instead I don't read nothing in log of B4R. In the display of Android Phone I see only the label "ESP8266 Weather"

  6. Erel

    Erel Administrator Staff Member Licensed User

    Please start a new thread in the questions forum. You need to first be able to read the sensor value. Start with this code.
