Android Question Full Screen Oriented
- Thread starter hdmiacc
- Start date
- Similar Threads Similar Threads
1. http://www.b4x.com/android/forum/pages/results/?query=screen+orientation&page=1
2. Not sure what you are looking for.
2. Not sure what you are looking for.
Upvote
0
Main layout
#Region Project Attributes
#ApplicationLabel: B4A Example
#VersionCode: 1
#VersionName:
'SupportedOrientations possible values: unspecified, landscape or portrait.
#SupportedOrientations: unspecified
#CanInstallToExternalStorage: False
#End Region
#Region Activity Attributes
#FullScreen: False
#IncludeTitle: True
#End Region
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
End Sub
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim ph As Phone
Dim imgz As ImageView
Dim lblInfo As Label
Dim lblTitle As Label
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
Activity.LoadLayout("vdr")
ph.SetScreenOrientation(1)
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub btnVZ2_Click
StartActivity(vz2)
End Sub
2nd Layout
#Region Activity Attributes
#FullScreen: False
#IncludeTitle: True
#End Region
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
End Sub
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim ph As Phone
Dim btnCal As Button
Dim btnMain As Button
Dim editZ1 As EditText
Dim editZ2 As EditText
Dim imgZ As ImageView
Dim editVin As EditText
Dim lblVin As Label
Dim lblZ1 As Label
Dim lblZ2 As Label
Dim lblCal As Label
Dim lblCal1 As Label
Dim lblResultVout As Label
Dim lblVout As Label
Dim z1 As Int
Dim z2 As Int
Dim vin As Int
Dim lblAnsZ2 As Label
Dim lblAnsVin As Label
Dim lblAnsZ1 As Label
Dim lblAnsZ22 As Label
Dim lblPlus As Label
Dim lblKurungan1 As Label
Dim lblKurungan2 As Label
Dim lblGarisan As Label
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
Activity.LoadLayout("vz2")
ph.SetScreenOrientation(1)
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub CheckResult
z1 = editZ1.Text
z2 = editZ2.Text
vin = editVin.Text
lblCal.Text = "Vout = Z2 (Vin)" & CRLF & TAB & TAB & TAB & "________" & CRLF & TAB & TAB & TAB & "Z1 + Z2"
lblCal1.Text = "Vout ="
lblPlus.Text = "+"
lblKurungan1.Text = "("
lblKurungan2.Text = ")"
lblGarisan.Text = "_________"
lblAnsZ2.Text = z2
lblAnsZ22.Text = z2
lblAnsZ1.Text = z1
lblAnsVin.Text = vin
lblVout.Text = "Vout ="
lblResultVout.Text = (z1/(z1+z2))*vin
End Sub
Sub btnMain_Click
StartActivity(Main)
End Sub
Sub btnCal_Click
If btnCal.Text = "Calculate" Then
CheckResult
End If
End Sub
Question
1. How to i configure screen oriented only for portrait ~ Done
2. how to setting for all screen device
#Region Project Attributes
#ApplicationLabel: B4A Example
#VersionCode: 1
#VersionName:
'SupportedOrientations possible values: unspecified, landscape or portrait.
#SupportedOrientations: unspecified
#CanInstallToExternalStorage: False
#End Region
#Region Activity Attributes
#FullScreen: False
#IncludeTitle: True
#End Region
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
End Sub
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim ph As Phone
Dim imgz As ImageView
Dim lblInfo As Label
Dim lblTitle As Label
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
Activity.LoadLayout("vdr")
ph.SetScreenOrientation(1)
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub btnVZ2_Click
StartActivity(vz2)
End Sub
2nd Layout
#Region Activity Attributes
#FullScreen: False
#IncludeTitle: True
#End Region
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
End Sub
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim ph As Phone
Dim btnCal As Button
Dim btnMain As Button
Dim editZ1 As EditText
Dim editZ2 As EditText
Dim imgZ As ImageView
Dim editVin As EditText
Dim lblVin As Label
Dim lblZ1 As Label
Dim lblZ2 As Label
Dim lblCal As Label
Dim lblCal1 As Label
Dim lblResultVout As Label
Dim lblVout As Label
Dim z1 As Int
Dim z2 As Int
Dim vin As Int
Dim lblAnsZ2 As Label
Dim lblAnsVin As Label
Dim lblAnsZ1 As Label
Dim lblAnsZ22 As Label
Dim lblPlus As Label
Dim lblKurungan1 As Label
Dim lblKurungan2 As Label
Dim lblGarisan As Label
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
Activity.LoadLayout("vz2")
ph.SetScreenOrientation(1)
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub CheckResult
z1 = editZ1.Text
z2 = editZ2.Text
vin = editVin.Text
lblCal.Text = "Vout = Z2 (Vin)" & CRLF & TAB & TAB & TAB & "________" & CRLF & TAB & TAB & TAB & "Z1 + Z2"
lblCal1.Text = "Vout ="
lblPlus.Text = "+"
lblKurungan1.Text = "("
lblKurungan2.Text = ")"
lblGarisan.Text = "_________"
lblAnsZ2.Text = z2
lblAnsZ22.Text = z2
lblAnsZ1.Text = z1
lblAnsVin.Text = vin
lblVout.Text = "Vout ="
lblResultVout.Text = (z1/(z1+z2))*vin
End Sub
Sub btnMain_Click
StartActivity(Main)
End Sub
Sub btnCal_Click
If btnCal.Text = "Calculate" Then
CheckResult
End If
End Sub
Question
1. How to i configure screen oriented only for portrait ~ Done
2. how to setting for all screen device
Last edited:
Upvote
0
Just change this:
#SupportedOrientations: unspecified
To this:
#SupportedOrientations: portrait
And change these:
#FullScreen: False
#IncludeTitle: True
To this:
#FullScreen: True
#IncludeTitle: False
This will remove the title, make your app full screen, and force portrait mode only.
You don't need to use ph.SetScreenOrientation(1) unless you want to change the orientation during the course of running the app.
#SupportedOrientations: unspecified
To this:
#SupportedOrientations: portrait
And change these:
#FullScreen: False
#IncludeTitle: True
To this:
#FullScreen: True
#IncludeTitle: False
This will remove the title, make your app full screen, and force portrait mode only.
You don't need to use ph.SetScreenOrientation(1) unless you want to change the orientation during the course of running the app.
Last edited:
Upvote
0
Sorry I didn't understand your question. To fix that issue just uncomment the AutoScaleAll code in the layout designer script area.
Refer to this tutorial: http://www.b4x.com/android/forum/threads/22522
Refer to this tutorial: http://www.b4x.com/android/forum/threads/22522
Upvote
0
for my 1st question.. already answer.. tq
Upvote
0

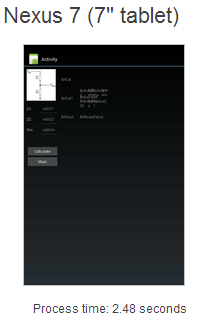

my question is.. how to make my application suitable for application.. not to small for large screen device.. i need to create many layout??
Upvote
