B4R Code Snippet HB100 RF sensor

Discussion in 'B4R Code Snippets' started by derez, Dec 5, 2016.

  1. derez

    derez Expert Licensed User


    This is a Doppler RF transmitter and receiver which can be used as a movement alert.
    You can read about it here http://www.theorycircuit.com/hb100-microwave-motion-sensor-interfacing-arduino/
    I have made the electrical circuit described there to amplify the signal, added a voltage level converter (2 resistors of 5 kohm and 10kohm) to connect it to WEMOS (which connects to a server).
    I connected the output to A0 pin.

    I tried first to use the sketch but it didn't work for me... so I wrote a little sub to measure the output.
    It is all experimental and probably needs calibration due to many variations in the complete device.
    The sensors output is not a steady voltage but some kind of waveform so I made the following:
    1. Measure the mean value of the output.
    2. Measure some sample of the frequency by counting every time that the value is above mean and the next value is below. I got a count of about 50-60 for a loop of 10000.
    3. The counted sample drops meaningfully when a movement is detected (both directions), so I have defined a number as a lower limit to define as detection.

    Notes:
    1. The antenna's face is the flat side of the sensor.
    2. The measured values are affected by the power supply's voltage and the position of the sensor so you need to define the values in the intended location and with the final power supply.
    3. The attached code is partial for the sensor's part only.

    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Public sensepin, ledpin As Pin

    Private D1 As D1Pins

    Private mean As UInt = 490
    ...
    end sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        sensepin.Initialize(sensepin.A0 , sensepin.MODE_INPUT)
        ledpin.Initialize(D1.D7, ledpin.MODE_OUTPUT)
        tmr.Initialize(
    "tmr_Tick",1000)
       ...
    end sub

    Sub tmr_tick

    Dim x As Int

    Dim flag As Boolean = False

    Dim count As UInt = 0

    For i = 0 To 10000
            x = sensepin.AnalogRead

    If x > mean Then
                flag =
    True

    End If

    If x < mean And flag = True Then
                count = count +
    1
                flag =
    False

    End If

    Next

    Log(count)

    If count < 40 Then
            ledpin.DigitalWrite(
    True)

    If RFClient.Connected Then
                astream.Write(
    Array As Byte(1))
                Delay(
    1000)

    End If

    Else
            ledpin.DigitalWrite(
    False)

    End If


    '                    Measure mean value
    'Dim x As Double = 0
    'For i = 0 To 15000
    '    x = x + sensepin.AnalogRead
    'Next
    'mean = x/15000
    'Log(mean)

    End Sub

    Last edited: Dec 5, 2016
  2. derez

    derez Expert Licensed User

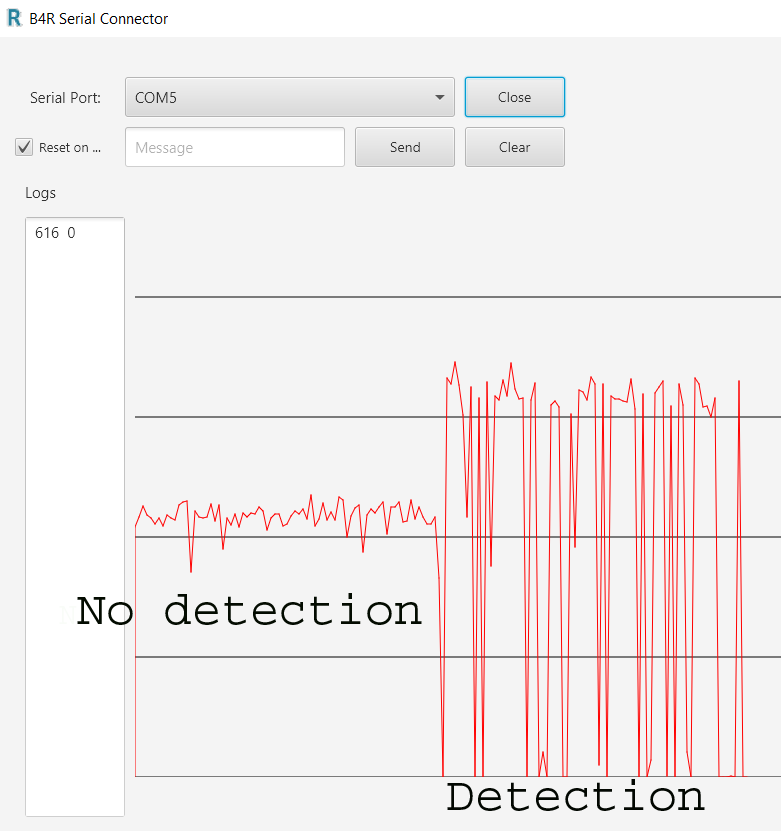

    Using B4j Serial Connector and drawing the output signal on canvas I got this graph, showing area of detection and no detection.
    The results are drawn every 80 msec so it is just a sample.
    Accordingly I changed the criteria for alert to getting a reading under value of 40:


    Code:
    Sub tmr_tick

    Dim x, minx As Int

    Dim flag As Boolean = False

    Dim count As UInt = 0
        minx =
    1023

    For i = 0 To 1000
            x = sensepin.AnalogRead
            minx =
    Min(x,minx)

    Log(minx)

    If minx < 40 Then
                ledpin.DigitalWrite(
    True)

    If RFClient.Connected Then
                    astream.Write(
    Array As Byte(1))
                    Delay(
    1000)

    End If

    Exit

    End If
            ledpin.DigitalWrite(
    False)

    Next
    end sub

    Peter Simpson, Erel and inakigarm like this.
  3. Erel

    Erel Administrator Staff Member Licensed User

    Great usage of B4J Serial Connector. This was exactly the reason for implementing it.

    derez likes this.
  4. Hans- Joachim Krahe

    Hans- Joachim Krahe Active Member Licensed User

    ... for simply detecting approaches, this easy example might work:

    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.
        Public Serial1 As Serial

    Public ti As Timer

    Public PHB100 As Pin

    Public change As Double

    Public inval As Double

    Public lastINval As Double

    Public forelastINval As Double

    Public count As Int
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")

        ti.Initialize(
    "myTickSub",20)
        ti.Enabled =
    True

        PHB100.Initialize(PHB100.A0,PHB100.MODE_INPUT)

    End Sub


    private Sub myTickSub

        count = count +
    1
        inval = PHB100.AnalogRead

    If inval <> lastINval And inval <> forelastINval Then ' wobbel filter
                change = change + Abs(inval- lastINval)

    End If
        forelastINval = lastINval
        lastINval = inval


    If count = 100 Then

    Log(change)
            count =
    0
            change =
    0

    End If





    'Log(PHB100.AnalogRead)

    End Sub

    Last edited: Jan 14, 2017
  5. Hans- Joachim Krahe

    Hans- Joachim Krahe Active Member Licensed User

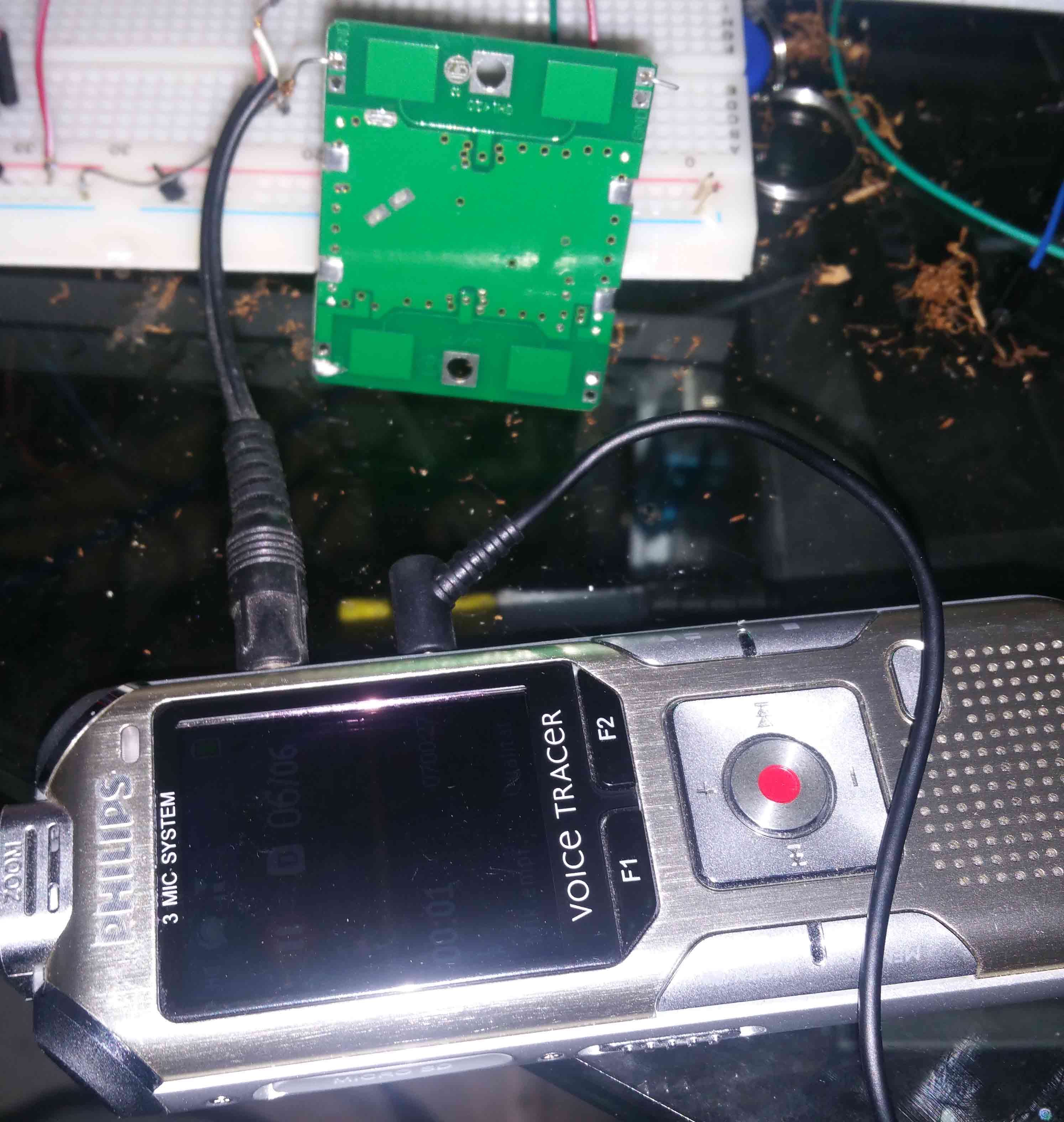

    for testing just use a voice recorder... you got the perfect cucumber and can difference noise, expecially from Handy net.
    loudness depends on distance, frequency (10 to 30 hz) depends on speed - together approaching and disapproaching


    Attached Files:

    Last edited: Jan 15, 2017
  6. Hans- Joachim Krahe

    Hans- Joachim Krahe Active Member Licensed User

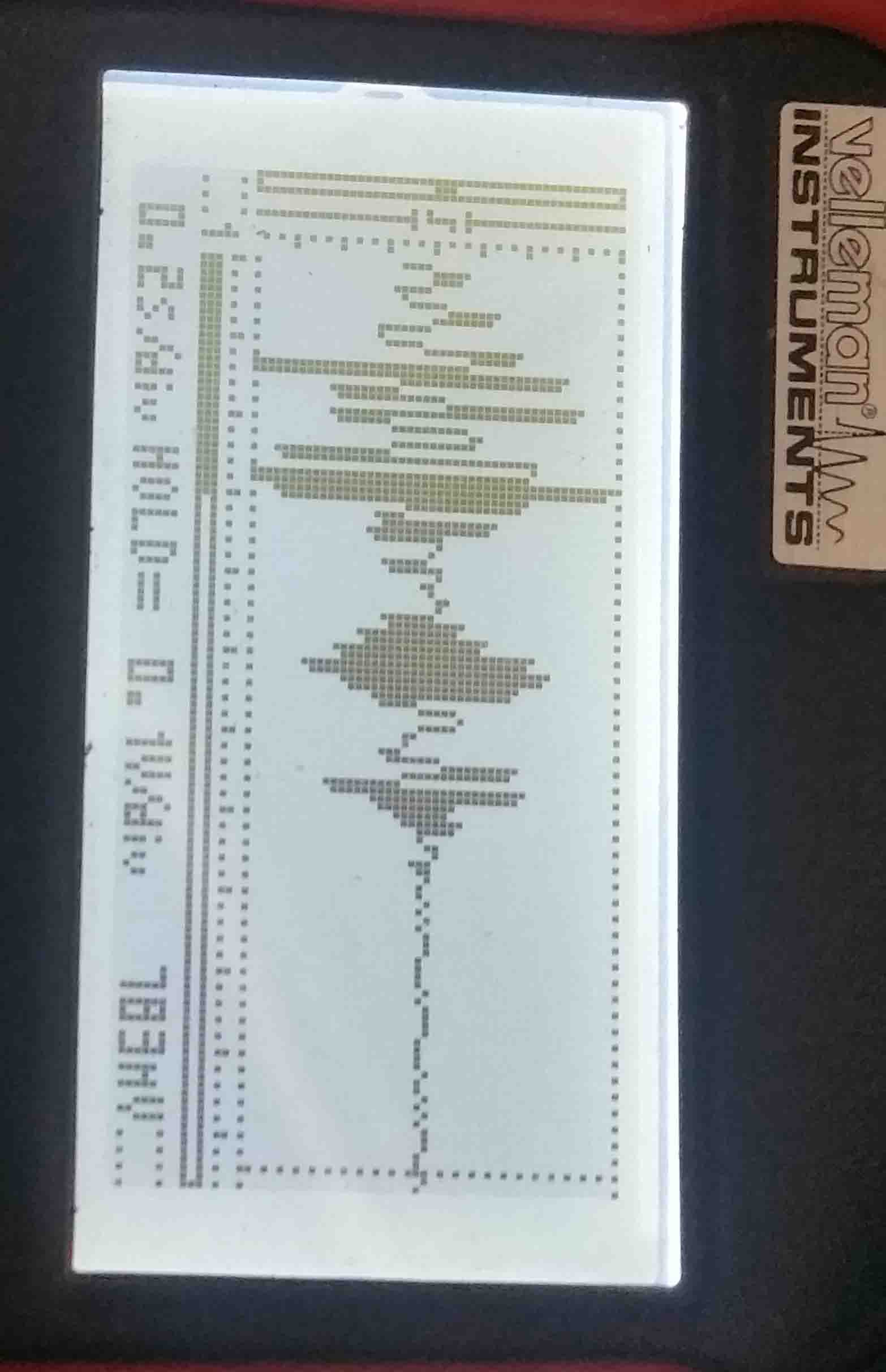

    ...looks like this: (and sounds like Jedi attack...)


    Attached Files:

    Last edited: Jan 16, 2017
    Peter Simpson likes this.
  7. Hans- Joachim Krahe

    Hans- Joachim Krahe Active Member Licensed User

    , within an amp, for instance: https://www.elv.de/mikrofonverstaerker.html

    you can split the signal with a schottky an fill an 10microFarad capacitor with 1MOhm leak to ground. Its better then, to take maxValues at A0, to find patterns, that could alarm you over VPN and let you check your cam....

    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.
        Public Serial1 As Serial

    Public ti As Timer

    Public PHB100 As Pin

    Public change As Double

    Public inval As Double

    Public lastINval As Double

    Public forelastINval As Double

    Public count As Int

    Public invalMax As Double
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")

        ti.Initialize(
    "myTickSub",20)
        ti.Enabled =
    True

        PHB100.Initialize(PHB100.A0,PHB100.MODE_INPUT)

    End Sub

    private Sub myTickSub

        count = count +
    1
        inval = PHB100.AnalogRead

    If invalMax<inval Then invalMax = inval

    If count = 50 Then

    Log(invalMax)
            invalMax=
    0
            count =
    0

    End If


    End Sub
    ... for more range try an low pass, followed by a smith trigger,

    Very fine: the ELV SMV5 (10€) has a trimmable noise reduction. With this trimmer, you can can directly trim the sensivity of the sensor - up to 5m and more im my case and 3m behind a wooden brick of 6 cm:))))))

    ... about 15% less distance at 3.3V (sensor and amp) minimum voltage 2.5V. Sensor and amp take 50 mA at 5V, 30 mA at 3V

    Last edited: Jan 18, 2017
    Peter Simpson likes this.
  8. Hans- Joachim Krahe

    Hans- Joachim Krahe Active Member Licensed User

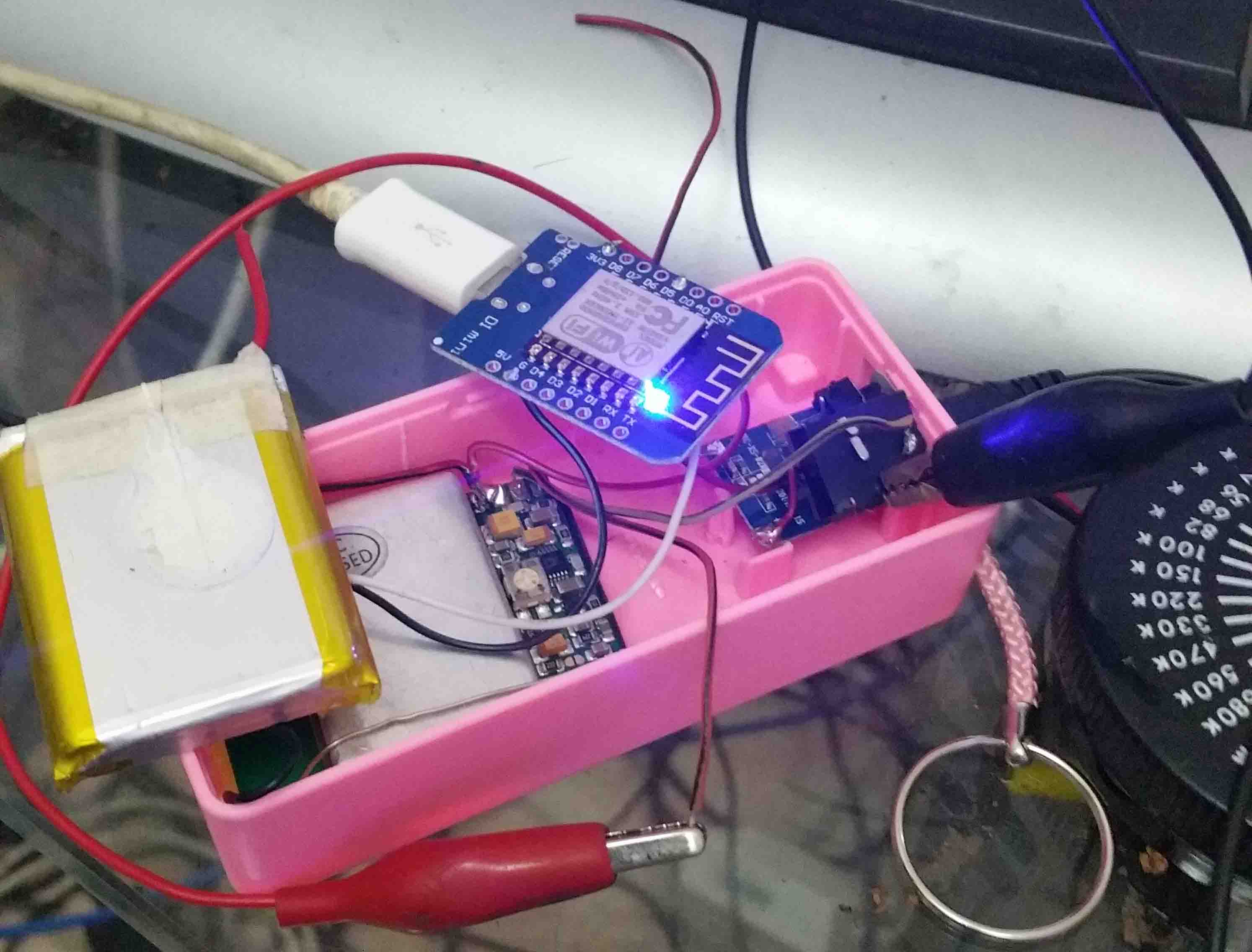

    ... integrated with powerbank, touchPad, wemos, amp & speaker for my milf-project :



    Attached Files:

    Peter Simpson likes this.
