Wish HC06 Bluetooth module example

[Cableguy]

HI R-duino Gurus!

I have this module!

Spoiler: Bkuetooth Module

This is NOT a BLE module...
Is there anyone that could set an example on how to use it to send/receive STRING values?

Spoiler: Schematics



[inakigarm]

Have you

HI R-duino Gurus!

I have this module!

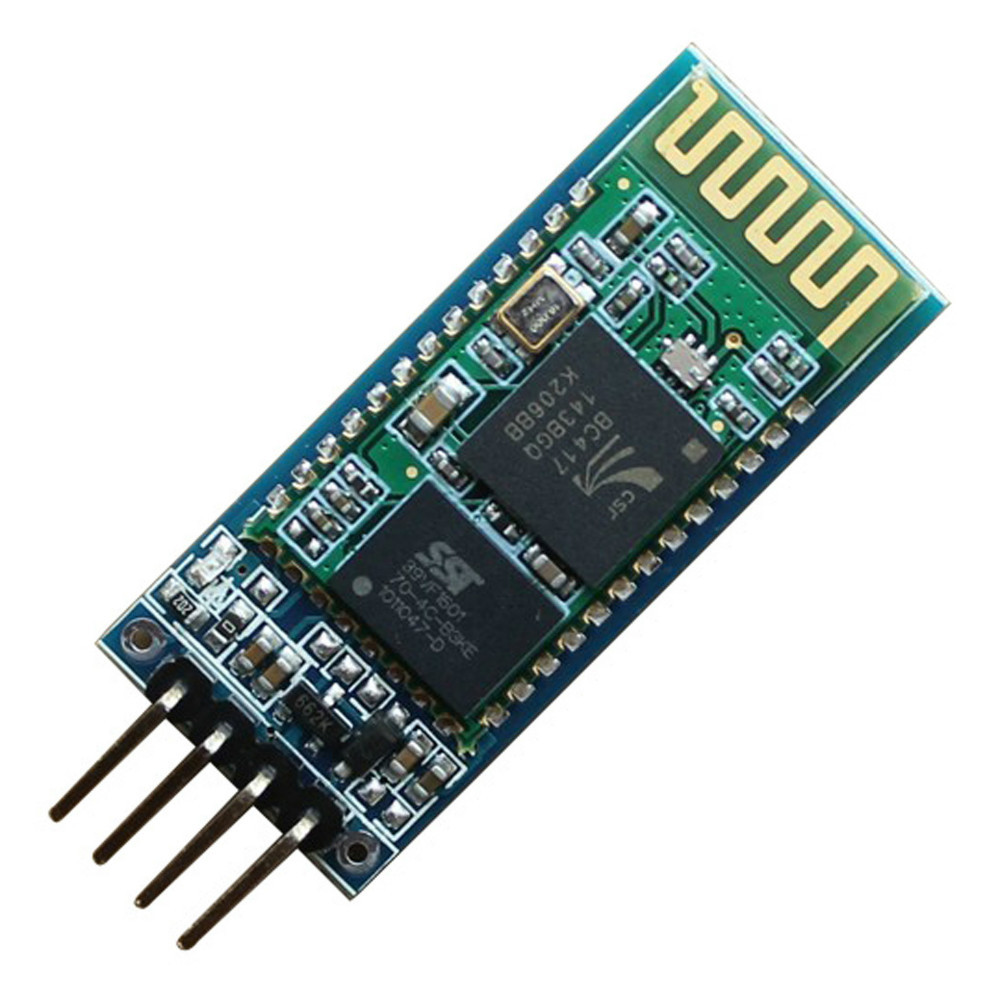

Spoiler: Bkuetooth Module

View attachment 43443

This is NOT a BLE module...
Is there anyone that could set an example on how to use it to send/receive STRING values?

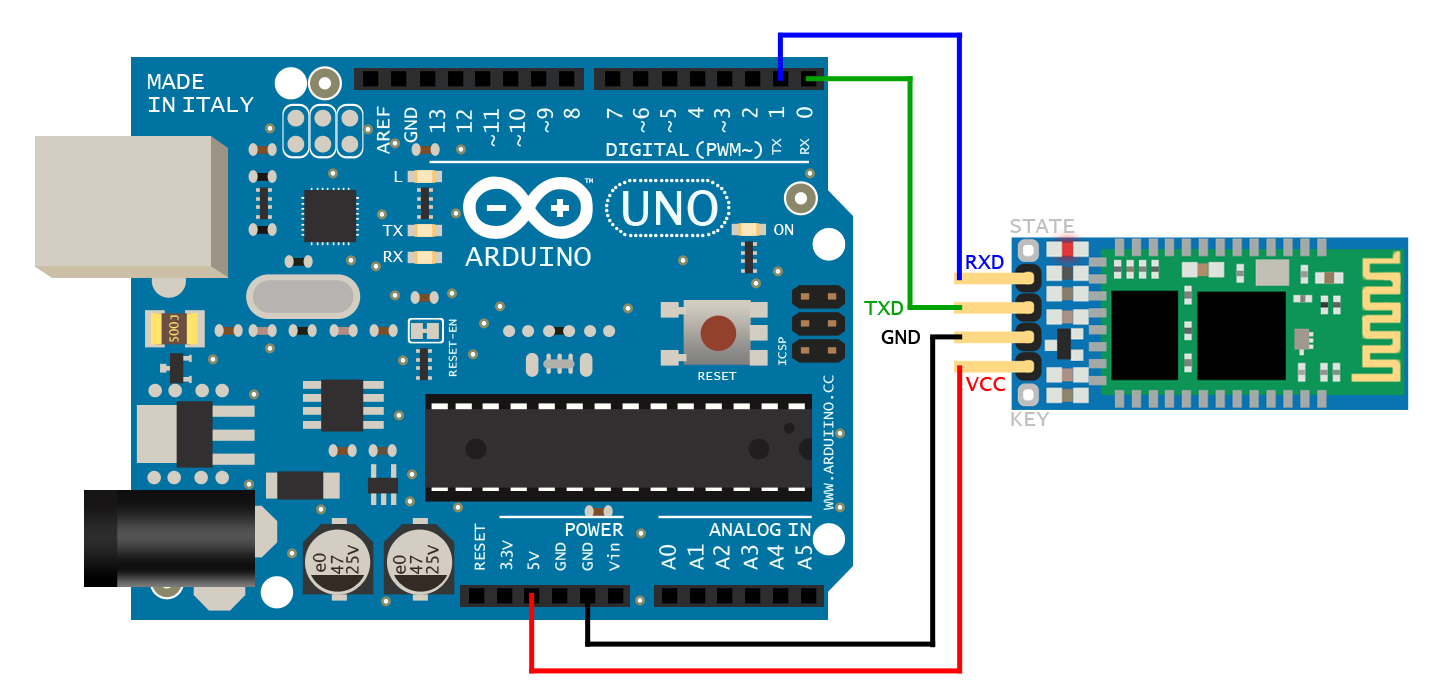

Spoiler: Schematics

View attachment 43444

Me too, if you follow this tutorial it works

Look also at https://b4x.com/android/forum/threads/hm10-without-shield-connection.66014/ and https://b4x.com/android/forum/threads/unexpected-results-on-bluetooth-comms-b4r-b4j.66060/



[Beja]

Is there anyone that could set an example on how to use it to send/receive STRING values?

Hi cableguy
Yes, I worked with this individual in many projects and it is straightforward and easy to use.. it's a slave so you may not use it to send or initiate communication session.
If you need to us it as master then you should use the HC-05 instead. Otherwise you can just see it as a wireless data transceiver, that's it. Your app will address it
as serial port. I didn't use it with Arduino, but If I wanted then I would first power it up, discover it by the B4A Bluetooth example and write down the MAC address, then
use that address in designing the B4R app.
good luck



[Cableguy]

Hi Beja, thanks for the info!
I'm hopping to use it as a slave(?) in a "robot" I'm planning... so it will not issue commands, but I still would like to receive feedback from it, like being able to set a flag on a response.



[Cableguy]

Found this page that explains very clearly the differences between HC-05 and HC-06



[Beja]

Hi Beja, thanks for the info!
I'm hopping to use it as a slave(?) in a "robot" I'm planning... so it will not issue commands, but I still would like to receive feedback from it, like being able to set a flag on a response.

They are the same, you can send and receive with HC-6 but the first time you can not use it to initiate the communication.
The link provided by cableguy is useful.
.
.
Edit:
The HC-5 can be configured as master or slave by AT commands.. the default is master, means that it comes from factory as master.
while the HC-6 can only be used as slave and can not be altered or re-configured.



[Jaames]

It's serial communication, from the arduino side you use it same as from this tutorial:
https://www.b4x.com/android/forum/threads/tool-external-serial-connector.65724/
It's that simple
