Android Question How to convert text to transparent bitmap

toby

Active Member
Licensed User
I need some custom bitmaps to show the google map marker titles of all markers automatically without tapping. The created bitmap should just be large enough to show entire text.

I'm facing two problems with following code:
1. B4XCanvas expects a view which I can't provide; the created bitmaps will be shown as part of google map marker icons.
2. I couldn't make the bitmap's background transparent.
following code block creates a bitmap with text provided:
'''''''''''''''''''''''''''''''''''''''
Sub Globals
   Dim cvs As B4XCanvas
   Private ImageView1 As ImageView
End Sub

sub CreateBitMap
    cvs.Initialize(ImageView1)
    Dim text As String="hello"
    Dim Fnt As B4XFont
    Fnt=xui.CreateDefaultFont(28)

    Dim centerX As Int=100
    Dim centerY As Int=60


    Dim r As B4XRect = cvs.MeasureText(text, Fnt)
    'ImageView1.Background=BackGround(Colors.Transparent) 'this line makes bitmap invisible
    ImageView1.Width=r.Width
    ImageView1.Height=r.Height
    Dim BaseLine As Int = centerY - r.Height / 2 - r.Top
    cvs.DrawText(text, centerX, BaseLine, Fnt, Colors.red, "CENTER")

   Dim bmp As Bitmap=cvs.CreateBitmap
   'to do: code to save the created bitmap
end sub


Sub BackGround(Color As Int) As ColorDrawable
    Dim cdb As ColorDrawable

    cdb.Initialize(Color, 5dip)
    Return cdb
End Sub

A few threads in the forum mention "TextToBitmap" which might be what I need; unfortunately I couldn't find out which library it belongs to.

Could someone help me create a bitmap, from text, for use as google map marker icon, and/or locate "TextToBitmap" function/library, please?

TIA


oparra

Well-Known Member
Licensed User
B4X multiplatform:

this works better:

library XUI Views

B4X:
    B4XImageView1.SetBitmap(TextToBitmap("Text to Bitmap", 20, xui.Color_Black, "CENTER"))
    B4XImageView1.mBackgroundColor = xui.Color_Transparent
    B4XImageView1.ResizeMode = "NONE"
    B4XImageView1.Update


B4X:
Public Sub TextToBitmap (Text As String, FontSize As Float, FontColor As Int, TextAlignment As String) As B4XBitmap
    Dim xui As XUI
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, 700dip, 700dip)
    Dim cvs1 As B4XCanvas
    cvs1.Initialize(p)
    Dim fnt As B4XFont = xui.CreateDefaultFont(FontSize)
    Dim r As B4XRect = cvs1.MeasureText(Text, fnt)
    Dim BaseLine As Int = cvs1.TargetRect.CenterY - r.Height / 2 - r.Top
    cvs1.DrawText(Text, cvs1.TargetRect.CenterX, BaseLine, fnt, FontColor, TextAlignment)
    Dim b As B4XBitmap = cvs1.CreateBitmap
    cvs1.Release
    Return b
End Sub

Last edited:
Upvote 0

oparra

Well-Known Member
Licensed User

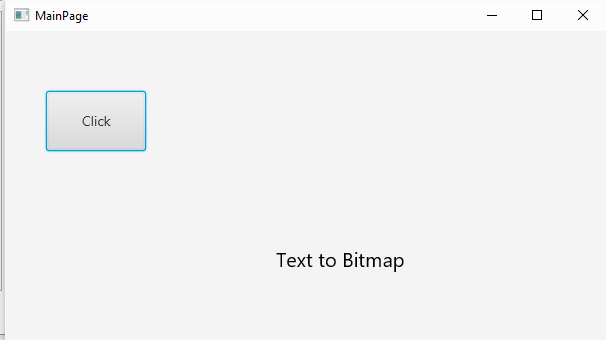

Test;


Attachments

  • TextToBitmap.zip
    3.3 KB · Views: 63
Upvote 0

oparra

Well-Known Member
Licensed User

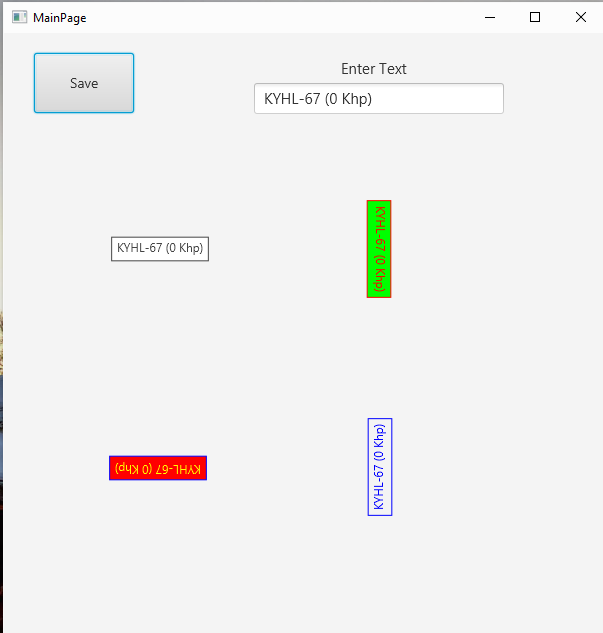

Some time ago, I made a text to bitmap subroutine for google maps, which you can also save to .png files.

Use this Post:

Demo:

Last edited:
Upvote 0

oparra

Well-Known Member
Licensed User

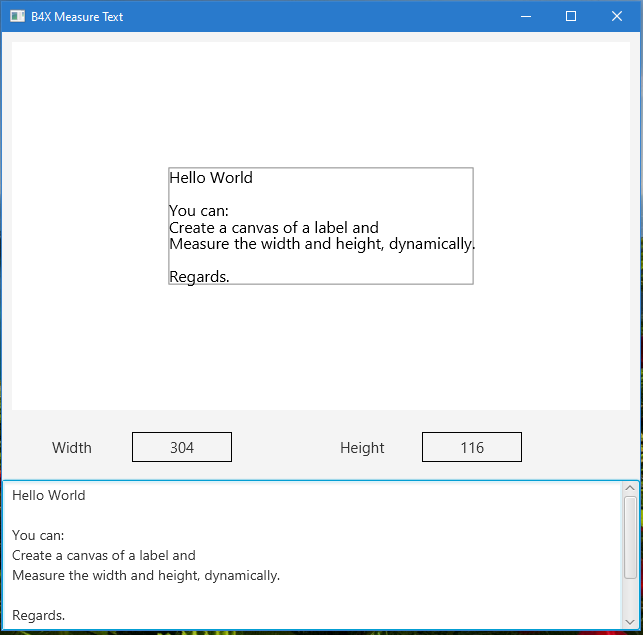

Check this out and it will give you an idea.

to create marker and information window


Upvote 0

oparra

Well-Known Member
Licensed User
see comments on this post:


Upvote 0

oparra

Well-Known Member
Licensed User

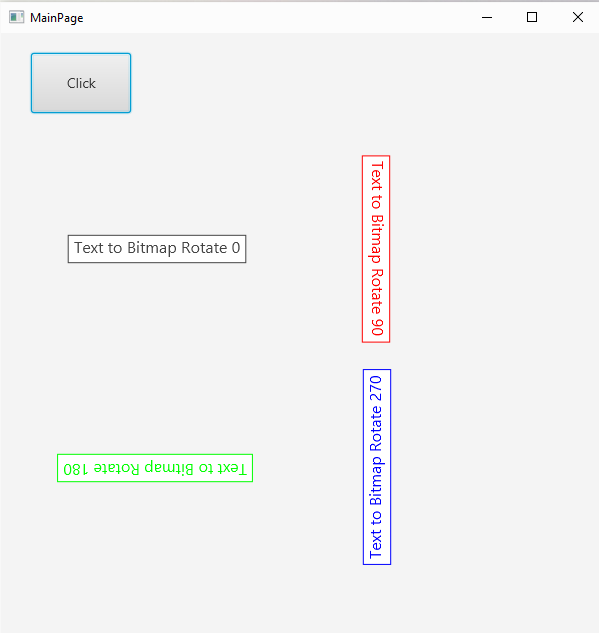

I found the subroutine that I used in a project.

demo:



Attachments

  • B4XImageView1.png
    640 bytes · Views: 48
  • B4XImageView2.png
    758 bytes · Views: 44
  • B4XImageView3.png
    666 bytes · Views: 44
  • B4XImageView4.png
    768 bytes · Views: 46
Upvote 0

AnandGupta

Well-Known Member
Licensed User
WOW ! WOW !! oparra !!!

You gave so much help that now toby is spoilt for choice ! Even me :)

Regards,

Anand

Upvote 0
