B4R Tutorial HX711 code module

Discussion in 'B4R Tutorials' started by Mostez, Sep 19, 2018.

  1. Mostez

    Mostez Active Member

    Hello;
    this code module is for using HX711 load cell amplifier board with Arduino, I used it with UNO and MEGA without any problems, only 4 pins are required for voltage supply and communication (+5V, GND, CLK and DT). the code is very easy to use (thanks @rwblinn for help) code module includes most of original C++ library functions.

    call this procedure to initialize scale:
    Code:
    private Sub InitializeScale()
        HX711.Begin(
    3,2,128)
        HX711.Raed
    ' read raw data from the ADC
        HX711.setscale(300)    ' this value is obtained by calibrating the scale with known weights
        Delay(100)
        HX711.tare()
    End Sub
    this function does weight calculations:
    Code:
    private Sub GetWeight(RawUnits As Long, UnitMeasure As StringAs String

    Dim weight As Double

    Dim Tmps As String

    Select UnitofMeasure

    Case "G" 'grams
                weight = RawUnits
                Tmps =
    NumberFormat(weight,1,0)

    Case "K" 'kilo grams
                weight = RawUnits /1000
                Tmps =
    NumberFormat(weight,1,3)

    Case "O" 'oz
                weight = RawUnits * 0.0352739619
                Tmps =
    NumberFormat(weight,1,3)

    Case "P" 'pounds
                weight = RawUnits * 0.0352739619 * 0.0625
                Tmps =
    NumberFormat(weight,1,3)

    End Select

    Return Tmps
    End Sub

    to get weight:
    Code:
    Dim weight As String = GetWeight(HX711.GetUnits(2)) 'number of samples to read
    Log(weight)

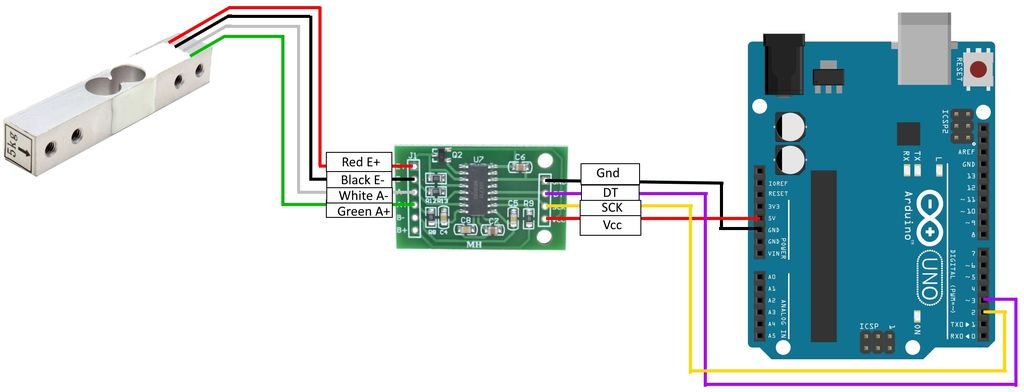

    Connecting load cell to HX711 board and Arduino


    Attached Files:

    Last edited: Sep 20, 2018
  2. Peter Simpson

    Peter Simpson Expert Licensed User

    Saved me from looking into it, cheers @Mostez.

    Nice job :)
