B4R Code Snippet Interfacing PCF8574 (8 BIT) & PCF8575 (16 bit )IO port expander module...

Discussion in 'B4R Code Snippets' started by rbghongade, Jun 6, 2017.

  1. rbghongade

    rbghongade Active Member Licensed User

    Dear friends,
    The code snippet interfaces Arduino Uno/ Wemos mini with PCF8574 , 8 bit IO port expander via I2C bus:
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private master As WireMaster


    Dim timer1 As Timer

    Dim state As Boolean
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        master.Initialize
        timer1.Initialize(
    "timer1_Tick",2000)
        timer1.Enabled=
    True


    End Sub

    Sub timer1_Tick

        state=DigitalRead(
    7)


    If state Then

            DigitalWrite(
    7,False)

    Else

            DigitalWrite(
    7,True)

    End If

    End Sub

    Private Sub DigitalRead(pin As UInt)  As Boolean

    Dim pinstatus As Int
        master.WriteTo(
    0x71Array As Byte(0x00))

    Dim result() As Byte = master.RequestFrom(0x381)

    If result.Length = 0 Then

    Return False

    Else
            pinstatus=
    Bit.Get(result(0),pin)

    Log(pinstatus)

    If pinstatus=0 Then

    Return False

    Else

    Return True

    End If


    End If
    End Sub

    Private Sub DigitalWrite(pin As UInt,pinstate As Boolean)

        master.WriteTo(
    0x71Array As Byte(0x00))

    Dim result() As Byte = master.RequestFrom(0x381)

    If pinstate =False Then

    Bit.Clear(result(0),pin)
            master.WriteTo(
    0x38Array As Byte(0x00,result(0)))

    Else

    Bit.Set(result(0),pin)
            master.WriteTo(
    0x38Array As Byte(0x00,result(0)))

    End If

    End Sub
    Note:
    The address for PCF8574 is: 0x20 whereas for PCF8574A it is :0x38 (which I have) with A0,A1,A2 all grounded.
    The functions written for DigitalRead and DigitalWrite are not perfect hence you may suggest modifications/changes...
    The code works with Arduino Uno as well as Wemos mini boards.
    Hope somebody finds this useful. BTW it was my first attempt of interfacing any I2C device right from scratch!

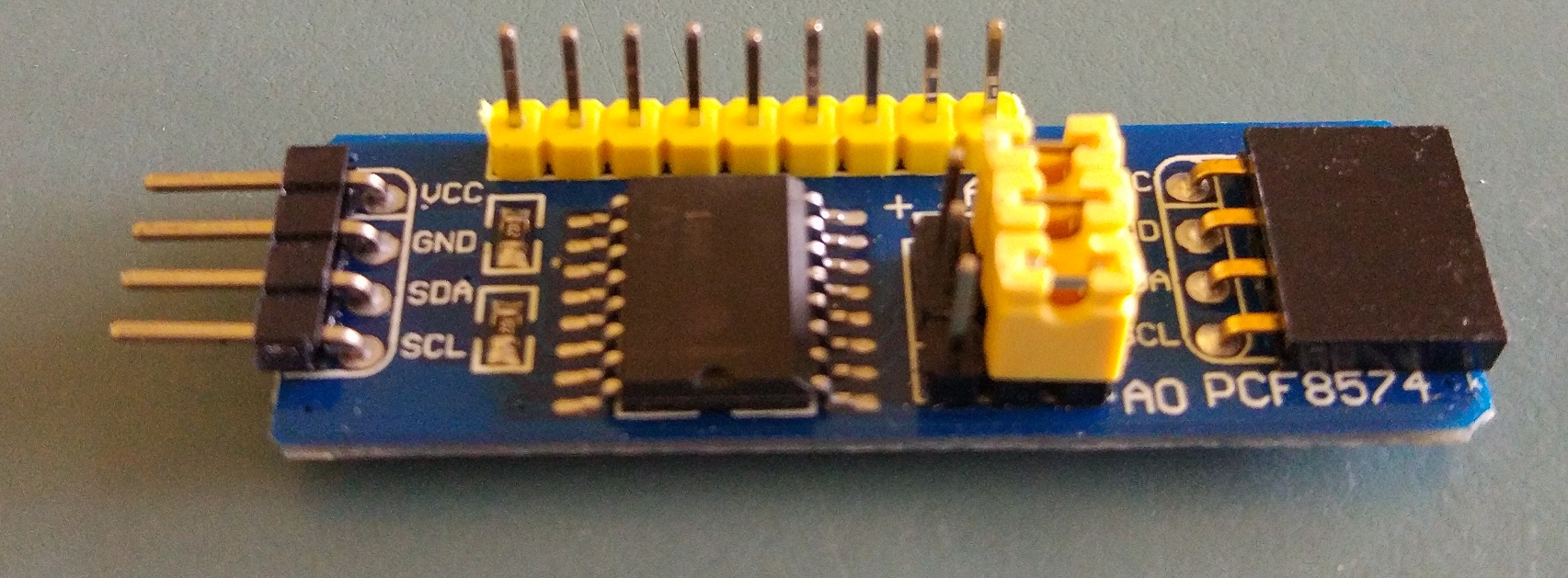

    Attached Files:

    embedded, inakigarm and Erel like this.
  2. rbghongade

    rbghongade Active Member Licensed User

    Here is the code for interfacing PCF8575 (16 bit) IO expander:
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private master As WireMaster


    Dim timer1,timer2 As Timer

    Dim state As Boolean
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        master.Initialize
        timer1.Initialize(
    "timer1_Tick",50)
        timer1.Enabled=
    True
        Clear_All

    End Sub

    Sub timer1_Tick
    Dim state As Boolean
        state=DigitalRead(
    13)
        state=
    Not(state)
        DigitalWrite(
    13,state)

    Log("Pin13:",state)
    End Sub


    Private Sub DigitalRead(pin As UInt)  As Boolean

    Dim pinstatus As Int
        master.WriteTo(
    0x20Array As Byte(0x01))

    Dim result() As Byte = master.RequestFrom(0x202)

    If result.Length = 0 Then

    Return False

    Else

    If pin>=0 And pin<=7 Then
            pinstatus=
    Bit.Get(result(0),pin)


    If pinstatus=0 Then

    Return False

    Else

    Return True

    End If

    End If

    If pin>=10 And pin<=17 Then
                pinstatus=
    Bit.Get(result(1),pin-10)


    If pinstatus=0 Then

    Return False

    Else

    Return True

    End If

    End If

    End If
    End Sub

    Private Sub DigitalWrite(pin As UInt,pinstate As Boolean)

        master.WriteTo(
    0x20Array As Byte(0x01))


    Dim result() As Byte = master.RequestFrom(0x202)

    If pinstate =False Then

    If pin >=0 And pin <=7 Then

    Bit.Clear(result(0),pin)
                master.WriteTo(
    0x20Array As Byte(result(0),result(1)))

    End If

    If pin >=10 And pin <=17 Then

    Bit.Clear(result(1),pin-10)
                master.WriteTo(
    0x20Array As Byte(result(0),result(1)))

    End If

    Else

    If pin >=0 And pin <=7 Then

    Bit.set(result(0),pin)
                master.WriteTo(
    0x20Array As Byte(result(0),result(1)))

    End If

    If pin >=10 And pin <=17 Then

    Bit.set(result(1),pin-10)
            master.WriteTo(
    0x20Array As Byte(result(0),result(1)))

    End If

    End If

    End Sub

    Private Sub Clear_All
        master.WriteTo(
    0x20Array As Byte(0x00,0x00))
    End Sub
    NOTE: The pin numbers are 0 through 7 and 10 through 17

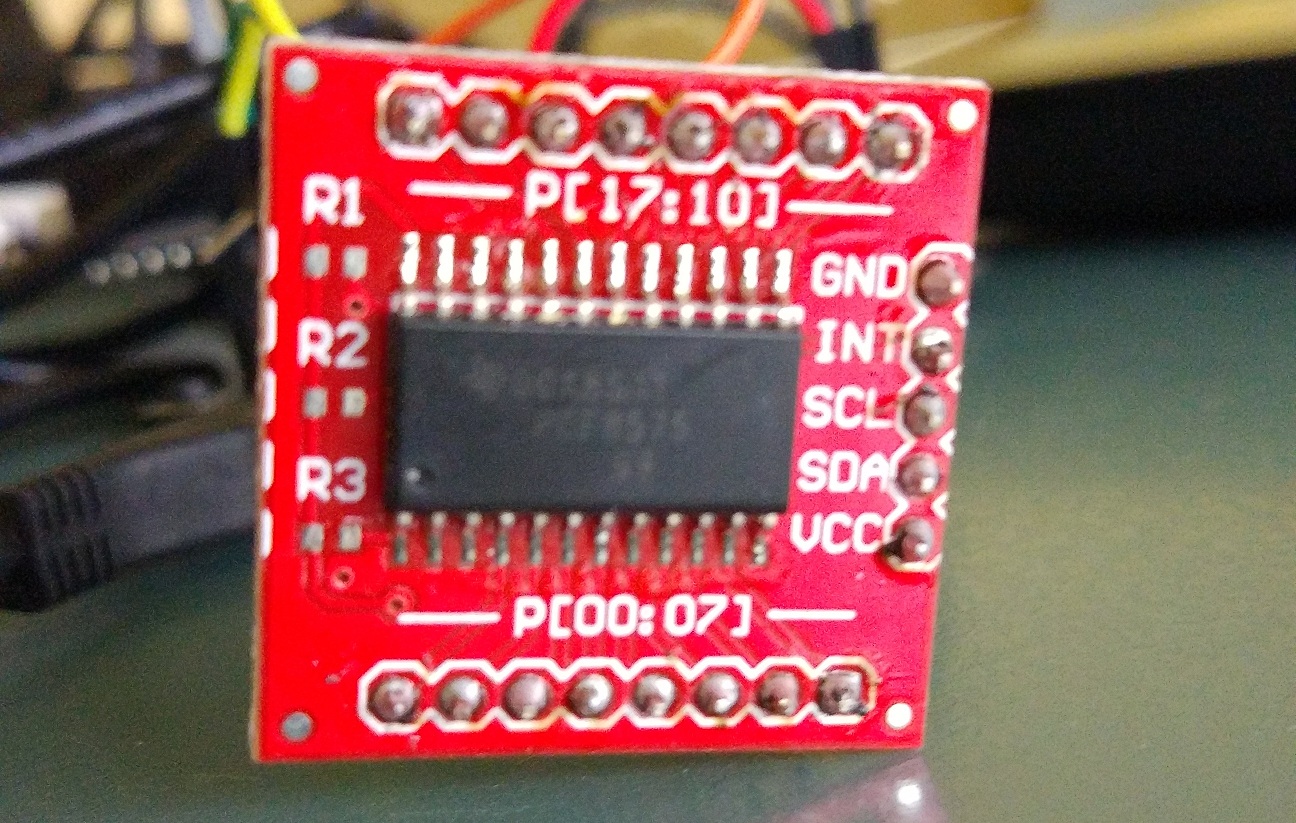

    Attached Files:

    embedded and Erel like this.
