Android Question Layout Issue

[junaidahmed]

I have developed Media Player application that contain 5 Layout File.I have used AutoScale script to adjust the layout in all screen resolution but I am getting gap in main layout.Please check attached file with screenshot of layout and advise how to do that....

Code :-

Activity.LoadLayout("Main.bal")
TabHost1.AddTab("Main Page", "QuranPage.bal")
TabHost1.AddTab("Book Mark", "bookmark.bal")
TabHost1.AddTab("Search", "Search.bal")
TabHost1.AddTab("Control Panel", "ControlPanel.bal")
TabHost1.AddTab("Manzil","manzil.bal")



[Erel]

You can replace most of the script with anchors.

Why are you using Android 2 theme? Set the targetSdkVersion to 19.

Why are you using TabHost instead of TabStripViewPager?

The gap you see is the internal padding in TabHost.



[junaidahmed]

Thanks Erel

When I use TabStripViewPager, it shows an compile error message as

Cannot find: C:\Program Files (x86)\Anywhere Software\Basic4android\libraries\android-support-v4.jar

I have downloaded "android-support-v4.jar" file from below link and pasted in "Libraries Folder",but When I compile its shows an error message as "Failure [INSTALL_FAILED_VERSION_DOWNGRADE]"


https://www.dropbox.com/s/qmggn0wm5a6bqa9/android-support-v4.jar?dl=0



[Erel]

You don't need this jar. See the last sentence in the tutorial: https://www.b4x.com/android/forum/threads/tabstripviewpager-better-viewpager.63975/#content



[junaidahmed]

Thanks Erel,

I have reviewed above link but still I have not solved my problem.Please check below screenshot and advise how to do that...

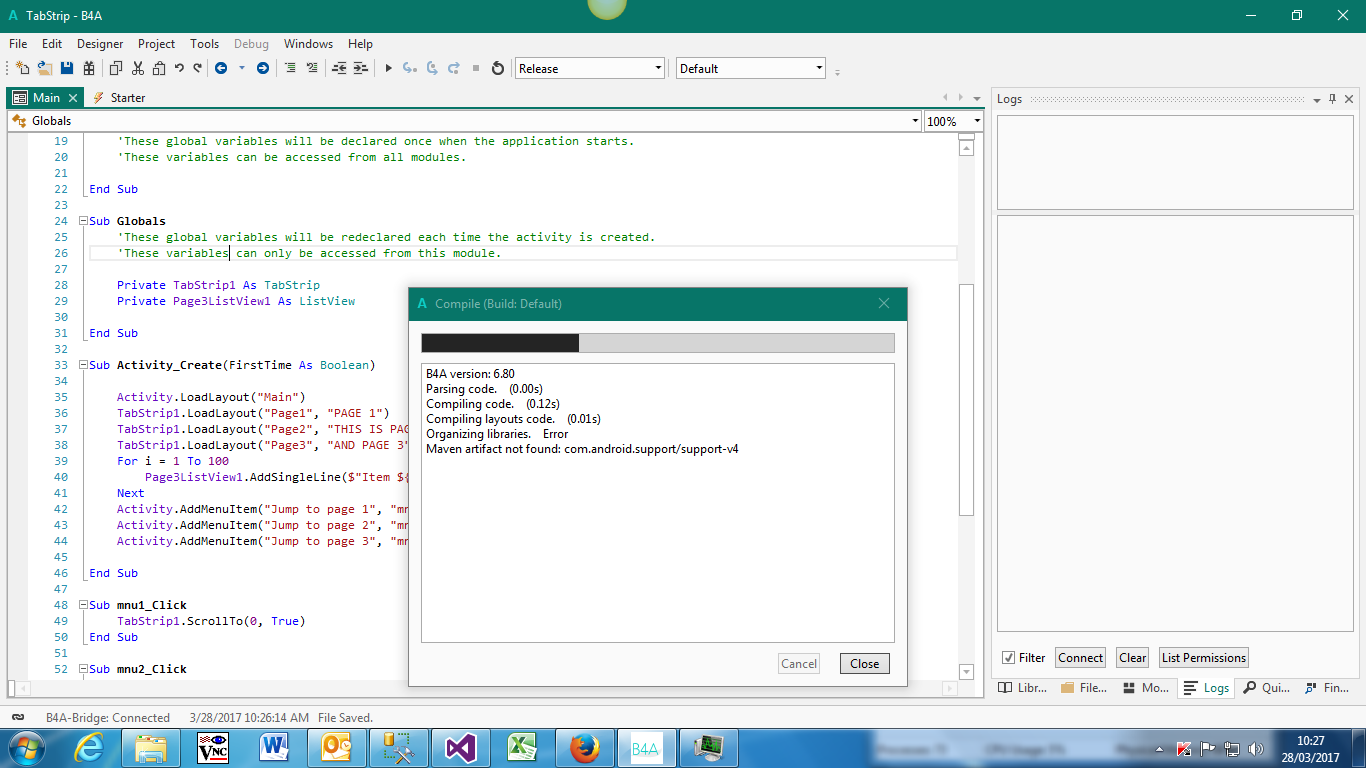

Error When I Compile



[DonManfred]

Do you have the two maven repositories installed correctly? See step 2 here: https://www.b4x.com/b4a.html



[junaidahmed]

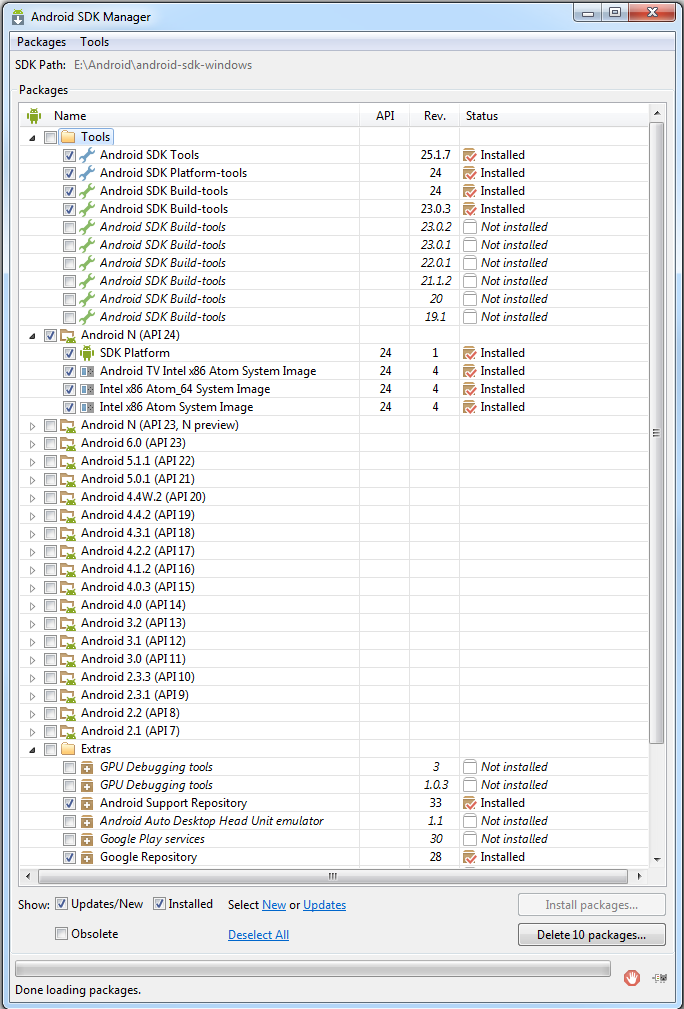

After installing above two repository
I am getting error message "Failure [INSTALL_FAILED_VERSION_DOWNGRADE]"
Please check below screenshot,



[ronell]

try to set the versioncode to 2 (or higher than the current versioncode)



[junaidahmed]

Thanks working now...
