B4J Question ListView Trasparent bug or my error

Discussion in 'B4J Questions' started by ivanomonti, Apr 26, 2015.

  1. ivanomonti

    ivanomonti Well-Known Member Licensed User

    I need to create a grid that is transparent to make the menu or data views, picture below just wants to be the result I would get


  2. ivanomonti

    ivanomonti Well-Known Member Licensed User

    Event click button, populate list

    Code:
    Sub bt_Action

    Dim bt As Button = Sender

    Select bt.Tag

    Case "Menu of Day"
            lw.Items.Clear
            lw.Style = CssModule.listviewTrasparent

    For Each colroot As Map In ListDay
                lw.Items.Add(colroot.Get(
    "descrizione"))

    Next

    Case "Event"

    Case "Profile"

    Case "Category"

    Case "Production"

    End Select
    End Sub
    css class
    HTML:
    .list-view {
        -fx-opacity: 0.1;
        -fx-font: bold 16pt "Comic Sans MS";
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }

    .list-view:focused {
        -fx-opacity: 0.1;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-background-color: white;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }

    .list-cell {
        -fx-background-color: transparent;
        -fx-padding: 10 10 10 10;
    }

    .list-cell:odd {
        -fx-background-color: null;
    }

  3. Erel

    Erel Administrator Staff Member Licensed User

    I've tried it with this css:
    Code:
    .list-view {
      -fx-
    font: bold 16pt "Comic Sans MS";
      -fx-background-color: transparent;

    }

    .list-view:focused {
      -fx-background-color: transparent;

    }

    .list-cell {
      -fx-background-color: transparent;
    }
    And this code:
    Code:
    Sub Process_Globals

    Private fx As JFX

    Private MainForm As Form

    Private lv As ListView
    End Sub

    Sub AppStart (Form1 As Form, Args() As String)
       MainForm = Form1
       MainForm.Show
       lv.Initialize(
    "lv")

    For i = 1 To 100
         lv.Items.Add(i)

    Next
       MainForm.RootPane.Style =
    " -fx-background-color: green;"
       MainForm.Stylesheets.Add(
    File.GetUri(File.DirAssets, "lv.css"))
       MainForm.RootPane.AddNode(lv,
    00200300)
    End Sub

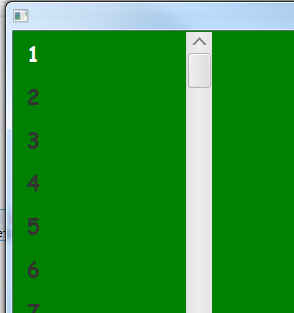

    The list itself is transparent:
    [​IMG]

    It does require some work to hide the scrollbar.

  4. ivanomonti

    ivanomonti Well-Known Member Licensed User

    Thank Erel,

    you stand to tell me where I can record, I would be grateful!!

  5. ivanomonti

    ivanomonti Well-Known Member Licensed User

    CSS full
    Code:
    .list-view {
        -fx-
    font: bold 12pt "Comic Sans MS";
        -fx-text-fill: black;
        -fx-background-color: transparent;
        -fx-background-radius:
    0;
        -fx-background-insets:
    0;
        -fx-padding:
    0;
    }

    .list-view:focused {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }

    .list-cell {
        -fx-background-color: transparent;
        -fx-padding: 10 10 10 10;
    }

    .list-cell:odd {
        -fx-background-color: null;
    }

    .list-view *.scroll-bar:horizontal {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
    }
    .list-view *.scroll-bar:vertical {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
    }
    .list-view *.scroll-bar:horizontal *.thumb {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar:vertical *.thumb {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar:horizontal *.track {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar:vertical *.track {
        -fx-background-color: transparent;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar *.increment-button {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar *.decrement-button {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0;
    }
    .list-view *.scroll-bar:horizontal *.increment-arrow {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
        -fx-shape: null;
    }
    .list-view *.scroll-bar:vertical *.increment-arrow {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
        -fx-shape: null;
    }
    .list-view *.scroll-bar:horizontal *.decrement-arrow {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
        -fx-shape: null;
    }
    .list-view *.scroll-bar:vertical *.decrement-arrow {
        -fx-background-color: null;
        -fx-background-radius: 0;
        -fx-background-insets: 0;
        -fx-padding: 0 0 0 0;
        -fx-shape: null;
    }
    Thank Erel

  6. Erel

    Erel Administrator Staff Member Licensed User

    Start with the css I posted and add the other required values.
