Android Question Making a Vumeter with a Vizualizer PeakLevelAudio for Exoplayer

Discussion in 'Android Questions' started by scsjc, Oct 27, 2018.

  1. scsjc

    scsjc Well-Known Member Licensed User

    I use this code to create a Vumeter with the Vizualizer class playing audio url with Exoplayer.

    Code:
    Sub Process_Globals

    Dim Timer As Timer

    Private player1 As SimpleExoPlayer
    End Sub
    Sub Globals

    Dim Viz As Vizualizer
    End Sub
    Sub Activity_Create(FirstTime As Boolean)

        player1.Initialize(
    "player")

    Dim sources As List
        sources.Initialize
        sources.Add(player1.CreateUriSource(
    "http://icecast-streaming.nice264.com/europafm"))
        player1.Prepare(player1.CreateListSource(sources))


    'Initialize the Visualizer
        Dim audiosession As Int = player1.CurrentWindowIndex
        Viz.Initialize(Me, audiosession)
        Viz.CaptureSize = Viz.CaptureSizeRange(
    1)
        Viz.SetDataCaptureListener(Viz.GetMaxCaptureRate /
    2,True,True)
        Viz.MeasurementMode =
    1


    Timer.Initialize("Timer"100)

    Timer.Enabled=True
        Viz.Enabled =
    True
    End Sub
    Sub Activity_Resume
    End Sub
    Sub Activity_Pause (UserClosed As Boolean)
        Viz.StopDataCapture
        Viz.Release
    End Sub
    Sub FFT_Capture(Data() As Byte,SamplingRate As Int)
    '    Log("FFT " & Data.Length)
    '    Log(SamplingRate)
    End Sub
    Sub Wave_Capture(Data() As Byte,SamplingRate As Int)
    '    Log("Wav " & Data.Length)
    '    Log(SamplingRate)
    End Sub
    Sub Timer_Tick

    Log("Peak LevelAudio: " & Viz.getMeasurementPeakRms.mPeak)
    End Sub

    Sub Player_Ready

    Log("Player_Ready")
        player1.Play
    End Sub

    Sub Player_Error (Message As String)

    Log("Player_Error " & Message)
    End Sub

    Sub Player_Complete

    Log("Player_Complete")
    End Sub

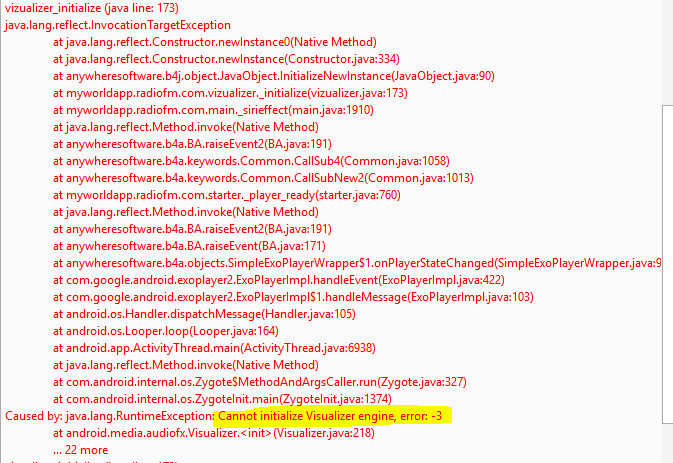

    This example works correctly, but I do not know why because when I try to add it to my code it gives me this error:



    I have read on https://github.com/felixpalmer/android-visualizer/issues/31 that may be due "android.permission.RECORD_AUDIO", but I have it correctly.

    Has anyone had a similar problem? or have some better solution than this to be able to do a Vumeter using the ExoPlayer


    Attached Files:

  2. stevel05

    stevel05 Expert Licensed User

    I have not used SimpleExoplayer, but player1.CurrentWindowIndex does not return a valid audiosystem id that can be used to initialize the Visualizer engine.

    Peter Simpson likes this.
  3. scsjc

    scsjc Well-Known Member Licensed User

    It's true, I just realized. But leaving that variable at 0, it continues to work perfectly in this example. and I do not know why it could be that in an app that I have in production, applying the same does not work.
