B4A Library MLhelp help reader

Discussion in 'Additional libraries, classes and official updates' started by HotShoe, May 26, 2015.

  1. HotShoe

    HotShoe Well-Known Member Licensed User

    This is a native library that allows you to display HTML help files from inside your app. The files can contains images, or other features supported in html pages. I'm sure it will need some tweeking for some, but it works for me. Let me know what you think.

    Version 1.01 Added 2 new methods


    MLHelp
    Author:
    Jem Miller
    Version: 1.01
    • MLHelp
      Events:
      • OverrideUrl (Url As String))
      • PageFinished (Url As String)
      • UserAndPasswordRequired (Host As String, Realm As String))
      Methods:
      • Back
        Back one page
      • Forward
        Forward one page
      • Hide
        Hides the help panel (sends it to back) and sets it to visible = false;
      • Initialize (Parent As ActivityWrapper, Top As Int, Left As Int, Width As Int, Height As Int, Color As Int, Event As String)
        Initializes all variables and creates the view
        Parent - The parent activity (pass Activity)
        Top - Top of the help panel
        Left - Left edge of help panel
        Width - Width of help panel
        Height - Height of help panel
        Color - background color of the title
        Event - Event name used for the WebView. These are OverrideURL, PageFinished and UserAndPasswordRequired. They are the same as for a WebView.
      • LoadPage (FileName As String)
        Loads an HTML help file
        FileName - The HTML file name to load and display
        <code>LoadPage("help.htm")</code>
        The help files and all images they may need to display MUST be named in all LOWERCASE and MUST be in your projects files/www directory (you will need to create the www directory)
      • LoadWebPage (URL As String)
        Loads an HTML page from the internet
        URL - The web address and page to load :
        <code>Dim help As MLHelp
        help.Initialize(Activity,0,0,100%x,100%y,Colors.Yellow,"help")
        help.LoadWebPage("http://www.mlsoft.org/me.jpg")</code>
      • Show
        Shows the help panel if it has already been initialized
      • isInitialized As Boolean
        Returns true if the help panel is initialized and ready to use.
      • isShowing As Boolean
        Returns true if the help panel is showing
      • setColor
        Sets the help panel background color
      Properties:
      • Height As Int
        Sets or gets the Height of the help panel
      • Left As Int
        Sets or gets the Left position of the help panel
      • Title As String
        Sets the title of the help panel
      • TitleColor As Int [write only]
        Sets the color of the title
      • TitleHeight As Int
        Sets or gets the current title bar height
      • TitleSize As Int [write only]
        Sets the title font size
      • TitleTextColor As Int [write only]
        Sets the color of the title text
      • Top As Int
        Sets the or gets top position of the help panel
      • Width As Int
        Sets or gets the Width of the help panel

    There is a small sample app included in the zip file.

    Version 1.00 - Initial release.

    Version 1.01 - Fixed the spelling on TitleSize, and added isInitialized and LoadWebPage methods. You can now load remote web pages, but be aware that the same PageFinished event is used for both local and remote pages. Also modified the mlhelptest project slightly.

    -


    Attached Files:

    Last edited: May 31, 2015
    Mashiane, Erel, walt61 and 8 others like this.
  2. johndb

    johndb Active Member Licensed User

    Works well. In the next version it may be worth correcting the spelling mistake TtileSize As Int [write only] to TitleSize ;)

    HotShoe likes this.
  3. HotShoe

    HotShoe Well-Known Member Licensed User

    Oops.. Yeah I'll do that in the next update. :)

    --- Jem

    johndb likes this.
  4. johndb

    johndb Active Member Licensed User

    Would it also be possible to allow the loading of a web page in addition to the asset html help? I have asset help pages in html but I also have a forum which is accessible by web. It would be terrific is I could use MLHelp for both .... say loadwwpage? :)

  5. HotShoe

    HotShoe Well-Known Member Licensed User

    John, the spelling is fixed, and I added LoadWebPage, and also an isInitialized method. Be aware that LoadPage and LoadWebPage both use the same events for PageFinished, etc. I also exposed the WebView events.

    Thanks,

    --- Jem

    NJDude likes this.
  6. Robert Valentino

    Robert Valentino Well-Known Member Licensed User

    Checked out your Help. Pretty cool

    Is it possible to have a Border around the window instead of the help bars Top and bottom.

    Instead of have the thick bar at the bottom would be nice to have a yellow (or whatever color) border around the whole screen

    Also: just noticed - is there any way to have a Back button to go back to the previous page. I am using hyperlinks to let the user jump from page to page.

    I see we have a back routine but no button.

    Thanks

    BobVal

    Last edited: Dec 14, 2015
  7. johndb

    johndb Active Member Licensed User

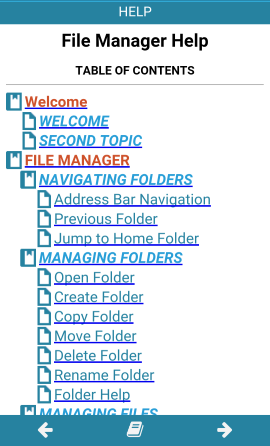

    I am using MLHelp in one of my applications (under development :)) and have added my own back/home/forward buttons. See below image. I prefer my own buttons as then I have full control.


  8. Robert Valentino

    Robert Valentino Well-Known Member Licensed User

    Very nice
    Do you have an example of this?
    If you don't mind me doing it the same way?

  9. johndb

    johndb Active Member Licensed User

    Sure, I'll post my code later today when I get home.

  10. Robert Valentino

    Robert Valentino Well-Known Member Licensed User

    Great, now the worst part of being a programmer having to write a help system
    :)

    Cannot wait to see how you added the buttons to his screen. Any chance of adding a full border around the screen?

  11. johndb

    johndb Active Member Licensed User

    It would be quite simple. The way I did it is by adding MLHelp to an activity with panels and buttons. A border would be easy to add as well. ;)

  12. Robert Valentino

    Robert Valentino Well-Known Member Licensed User

    Right. I was trying to use it off my current activity.

  13. johndb

    johndb Active Member Licensed User

    Activity code: activityHELP
    I'm using FontAwesome for defining the button images. http://www.b4x.com/android/forum/threads/fontawesome.53990/
    Code:
    #Region  Activity Attributes

    #FullScreen: true

    #IncludeTitle: True
    #End Region

    #ExcludeFromLibrary: true

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.
        'Dim sHelpURL As String

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Dim help As MLHelp

    Dim Back As Button

    Dim forward As Button

    Dim toc As Button

    Dim fa As FontAwesome


    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        'Activity.LoadLayout("Layout1")


    Activity.Color = Colors.RGB(38,130,160)

        help.Initialize(
    Activity,0dip,0dip,100%x,100%y-25dip,Colors.Yellow,"HELP")
        help.TitleSize  =
    18
        help.Title=
    "HELP"
        help.TitleHeight =
    30dip
        help.TitleColor =
    Colors.RGB(38,130,160)
        help.TitleTextColor =
    Colors.White


        fa.Initialize


    Dim textsize As Int = 24

        Back.Initialize(
    "Back")
        Back.Typeface = fa.FontAwesomeTypeface
        Back.Text = fa.GetFontAwesomeIconByName(
    "fa-arrow-left")
        Back.Color=
    Colors.Transparent
        Back.TextSize=textsize

    Activity.AddView(Back,0Activity.Height-45dip,Activity.Width/345dip)

        toc.Initialize(
    "toc")
        toc.Typeface = fa.FontAwesomeTypeface
        toc.Text = fa.GetFontAwesomeIconByName(
    "fa-book")
        toc.Color=
    Colors.Transparent
        toc.TextSize=textsize

    Activity.AddView(toc,Activity.Width/3Activity.Height-45dip,Activity.Width/345dip)

        forward.Initialize(
    "forward")
        forward.Typeface = fa.FontAwesomeTypeface
        forward.Text = fa.GetFontAwesomeIconByName(
    "fa-arrow-right")
        forward.Color=
    Colors.Transparent
        forward.TextSize=textsize

    Activity.AddView(forward,(Activity.Width/3)*2Activity.Height-45dip,Activity.Width/345dip)


    If cmHELP.ms_HelpURL = "" Then
            help.LoadPage(
    "index.html")

    Else
            help.LoadPage(cmHELP.ms_HelpURL)

    End If

    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub back_click()

        help.Back

    End Sub

    Sub forward_click()

        help.Forward

    End Sub

    Sub toc_click()

        help.LoadPage(
    "index.html")

    End Sub
    Code module: cmHELP used to call the help activity
    Code:
    'Code module
    'Subs in this code module will be accessible from all modules.
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.


    Dim ms_HelpURL As String

    End Sub

    Sub ShowHelp (HelpURL As String)

        ms_HelpURL = HelpURL

    StartActivity("activityHELP")

    End Sub
    It is quick and dirty code but does the trick for me.

    Cheers,

    John

    HotShoe likes this.
