Android Question Notification service that runs after 24 hours

Discussion in 'Android Questions' started by ThRuST, Feb 7, 2015.

  1. ThRuST

    ThRuST Well-Known Member Licensed User

    I want to create a service that runs after 24 hours from when it is started and show a notification, and at the same time the service must stop. (It will be run again in the app). Can someone please provide a working example with subs included to easily understand what's going on. Many people tend to post only a short code snippet in belief that everybody will know how a service works but this is not always the case. If the service is started at 12.00 the first time it will run again the next day at 12.00 even when the phone is restarted. I have read many posts about people using timers and that works for me as well but there's not much about what I want, which is more complicated but more effective as it saves the battery. It is not clear about the differences between ServiceStart and ServiceStartAt as well as how to associate the timed service with something that will happen so an explanation about service_create_service_start_service_tick and service_destroyed is appreciated to know how to start and stop the service. As this is more complex than using a counting timer please prove a complete example in which subs to put the code. It is important to use services with caution especially when started at bootup or else it will cause problems since it will be difficult to stop the service that's why I ask help in this matter. Adding the extra time to provide subs will probably be of great help to many.

    Cheers,
    ThRuST

  2. Erel

    Erel Administrator Staff Member Licensed User

    Timers will not help at all.

    Have you seen the services tutorial? http://www.b4x.com/android/forum/threads/7542/#content

    StartService - Starts the service now.

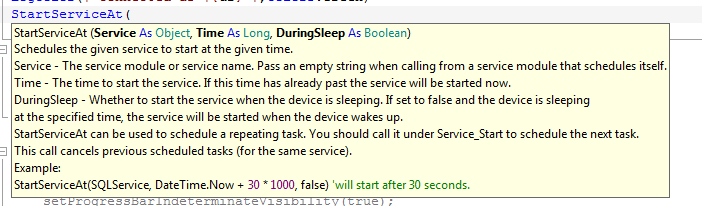

    StartServiceAt - Starts the service at the scheduled time.

    Nothing bad will happen if you don't stop the service.

    You just need to call:
    Code:
    StartServiceAt(me, DateTime.Add(DateTime.Now, 001), true)
    In Service_Start. The service will be started each day. You also need to start the service after boot (to make the first start).

  3. ThRuST

    ThRuST Well-Known Member Licensed User

    Thanks for pointing this out. The last parameters is what I understand time and during sleep on or off, and service_create takes care of the global variables and service_start handles the time service should start. But where to put the code to do stuff? If I put it right under service_start ir fires at the same time I start the service with StartService(TmrService) from a button in the activity. So what about this? I must start the service from a button, and the service should start after 24 hours!!
    The idea is to let to user decide if the notification after 24 hours should be active or not, then it's just to start or stop the service. I could use a little counter in service_start from 0 to 2 to avoid the notification to run directly. Perhaps I am making this more complex than it is. So what to do about this? Please also point out the parameters since they are more than what it says in the Intellisense. There's no need to fire the notification directly, since the whole idea is to remind the user the next 24 hours. In this case, to remind to take the medicine. Users will be annoyed if the notification fires once it is taken. I assume android will remember the time when the phone is restarted, or must the time be stored in a file for the phone to 'remember' where to continue? Sorry for growing questions but this is a great way to learn how to deal with the useful services.

  4. Erel

    Erel Administrator Staff Member Licensed User

    lemonisdead and thedesolatesoul like this.
  5. ThRuST

    ThRuST Well-Known Member Licensed User

    I just want to start the service from the activity that will show a notification after 24 hours when the user exits the app and a day has passed. When the service runs the code the service will stop (since it is started again from a button in the activity) The service will just need to act as a simple reminder showing a notification message. It is important that the notification (or other code) does not start directly. That's why it seems confusing to use StartService(TmrService) in the activity to start the service directly (which should run later!!). So to sum things up I appreciate you other programmers fill me in on this. Thanks.



    Service_Start

    hour and minute are global variables

    ' Here we start the service at a specific hour and minute value

    StartServiceAt(Me, DateTime.Add(DateTime.Now, hour, minute, 1), True)

    ' Code that will run because of the scheduled service
    If StartingIntent.HasExtra("android.intent.extra.ALARM_COUNT") Then

    ' Shows notification message
    ShowNotification

    end if

    end sub


    Sub ShowNotification

    Dim n As Notification
    n.Initialize
    n.Icon = "icon"
    n.AutoCancel = True
    n.Sound = False
    n.Vibrate = True
    n.SetInfo("appname", "message goes here", Main)
    n.Notify(1)

    End Sub

  6. lemonisdead

    lemonisdead Well-Known Member Licensed User

    Not if you plan your service in the Activity_Pause of your main Activity
    Code:
    Sub Activity_Pause (UserClosed As Boolean)

    If UserClosed Then

    StartServiceAt(TmrService,DateTime.Now+24*DateTime.TicksPerHour,True'Replace with your globals
        End If
    End Sub

  7. ThRuST

    ThRuST Well-Known Member Licensed User

    Will your solution start the code in the service module? because that's what I used. So lemonisdead, where to put the code that should be run after 24 hours have passed? I am suing a service module maybe your idea is better to keep it simple. Please provide more to your example where the code will run after the schedueled time, thanks.

  8. lemonisdead

    lemonisdead Well-Known Member Licensed User

    I am sorry, I don't know if I well understand the question : What I had understood is that you want to start your service 24 hours after the user had closed it.
    That's the reason why I have suggested to start the notification service using StartServiceAt when the user has closed the Activity. But you could eventually remove the check on "UserClosed" and it will restart the service 24 hours after the user has eventually put the app in the background

    In the same spirit, if you put a StartServiceAt inside your service's Sub Service_Destroy, you can restart the service automatically.

    The code ran after the scheduled time is the one inside your service TmrService. If the TmrService is already started, the Service_Start sub will be called directly.

    I am sorry again, I don't think I well understand the question but I will be happy to help more if needed

  9. ThRuST

    ThRuST Well-Known Member Licensed User

    Sorry for being unclear. Actually I am working on a hospital app that when the user clicks a button to take his medicine, the automatic service will show a notification after 24 hours. It seems to be the most flexible idea. For this to work I have to stop the service and restart it again everytime the user clicks a button. I created a service module for this, but after reading your answer it may seem better to use it directly in the activity. Where should the code be placed when the scheduled time is reached? My example specifies a service module but may be different when used in an activity since I learned to follow Erels advice by using process_globals, service_create, service_start in the service module.

  10. lemonisdead

    lemonisdead Well-Known Member Licensed User

    Please find attached a sample project. I hope it could help

    At the first time, the user has to press the Activity's button to acknowledge that he has taken the pill. Thereafter, the notification is shown after the delay.
    For that example, I have set a delay of 10 seconds after the button press and the new notification but you can change the delay as you wish of course

    What you'll have to add is to :
    • store / read the target time in case of the user restarts the phone/tablet
    • make the service to start at boot to plan the new notification again
    • a way to stop planning the new reminder


    Attached Files:

    Last edited: Feb 8, 2015
  11. ThRuST

    ThRuST Well-Known Member Licensed User

    Thanks alot I'll investigate this further :)

  12. ThRuST

    ThRuST Well-Known Member Licensed User

    Lemonisdead, do you mind post your code to TakeMyPill.zip in here. I discovered that I have an earlier version of B4A so I cannot open your source code. This will be a problem for everyone with an earlier version so I'd appreciate to study your solution as text. Cheers :rolleyes:

  13. lemonisdead

    lemonisdead Well-Known Member Licensed User

    Code:
    #Region  Project Attributes

    #ApplicationLabel: TakeMyPill

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: unspecified

    #CanInstallToExternalStorage: False
    #End Region

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Private Button1 As Button
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        Activity.LoadLayout("l1")

    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub Button1_click

    If Not(IsPaused(showNotification)) Then

    StopService(showNotification)

    Else

    StartServiceAt(showNotification,DateTime.Now+10*DateTime.TicksPerSecond,True'change the delay : 24*DateTime.TicksPerHour
        End If

    Activity.Finish
    End Sub

    Code:
    #Region  Service Attributes

    #StartAtBoot: False

    #StartCommandReturnValue: android.app.Service.START_STICKY
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.
        Dim n As Notification
    End Sub
    Sub Service_Create
        n.Initialize
        setNotification
    End Sub

    Sub Service_Start (StartingIntent As Intent)

    If n.IsInitialized Then n.Notify(1)
    End Sub

    Sub Service_Destroy

    If n.IsInitialized Then n.Cancel(1)

    StartServiceAt(Me,DateTime.Now+10*DateTime.TicksPerSecond,True'change the delay : 24*DateTime.TicksPerHour
    End Sub

    'this sub sets the notification configuration
    Sub setNotification

    If n.IsInitialized     Then
            n.Vibrate=
    True
            n.Icon=
    "alert"
            n.SetInfo(
    "Take your Pill","Click here to acknowledge",Main)
            n.Light=
    True
            n.Number=
    1
            n.OnGoingEvent=
    True
            n.AutoCancel=
    True
            n.Insistent=
    True
            n.Sound=
    True

    End If
    End Sub

    The l1 layout contains only a button named Button1
    And you'll need a alert.png image in \res\Drawable (read only) for the notification's image

    Last edited: Feb 8, 2015
