iOS Question Problem displaying pages

Discussion in 'iOS Questions' started by ciginfo, Apr 2, 2015.

  1. ciginfo

    ciginfo Active Member Licensed User

    With this code, I display Layout "Menu" with the BtnMenu button, then from Layout Menu I display Layout "Listing" with the BtnListing button.
    If I return to the Layout "Menu" using the back button, then I return to the Layout "Listing" with the BtnListing button it bugs. I think there is an initializing problem but I don't see where.
    Can you help me?
    Thank you
    Code:
    'Code module
    #Region  Project Attributes

    #ApplicationLabel: B4i Example

    #Version: 1.0.0

    'Orientation possible values: Portrait, LandscapeLeft, LandscapeRight and PortraitUpsideDown
        #iPhoneOrientations: Portrait, LandscapeLeft, LandscapeRight

    #iPadOrientations: Portrait, LandscapeLeft, LandscapeRight, PortraitUpsideDown
    #End Region

    Sub Process_Globals

    Public NavControl As NavigationController

    Private Page1, Cherche, Listing, Menu As Page

    Private LblCherche, LblBJ, LblLayoutMain As Label

    Private BtnCherche As Button

    Private segmentedcontrol1 As SegmentedControl

    Dim ClvListing As CustomListView

    Private hd As HUD

    Private Downloader As ImageDownloader

    Dim LISTING_LIST As String
    End Sub
    Private Sub Application_Start (Nav As NavigationController)
        NavControl = Nav
        Page1.Initialize(
    "Page1")
        Page1.Title =
    "SittingBreak"
        Page1.RootPanel.Color =
    Colors.Blue
        NavControl.ShowPage(Page1)
        Page1.RootPanel.LoadLayout(
    "Main")

        Cherche.Initialize(
    "Cherche")
        Cherche.RootPanel.LoadLayout(
    "Cherche")


    Menu.Initialize("Menu")

    Menu.RootPanel.LoadLayout("Menu")

    End Sub

    Sub BtnCherche_Click

        Cherche.Title =
    "Cherche"
        LblBJ.Text =
    "Bonjour"
        segmentedcontrol1.BringToFront
        NavControl.ShowPage(Cherche)
    End Sub
    Sub BtnListing_Click
        Listing.Initialize(
    "Listing")
        Listing.RootPanel.LoadLayout(
    "Listing")

        Listing.RootPanel.Color =
    Colors.ARGB(255,109,237,199)'(255,255,0,0)
        Listing.Title = "Listing"
        ClvListing.Initialize(Me,
    "clvListing"100%x)
        Listing.RootPanel.AddView(ClvListing.AsView,
    00100%x50%y)
        ExtraitListePardistance

        NavControl.ShowPage(Listing)
    End Sub
    Sub BtnMenu_Click

        NavControl.ShowPage(
    Menu)
    End Sub
    Sub CreateListItem3(Text1 As String, Text2 As String, Text3 As String, ImgPath As String, Width As Int, Height As Int) As Panel

    'Routine pour placer 2 labels dans l'item de la customListView
        Dim P As Panel
        P.Initialize(
    "")
        P.Color =
    Colors.White


    Dim lbl1, lbl2, lbl3 As Label

        lbl1.Initialize(
    "lbl1")
        lbl1.TextAlignment = lbl1.ALIGNMENT_LEFT
        lbl1.Text = Text1
        lbl1.Font =
    Font.CreateNew(22)

        lbl2.Initialize(
    "lbl2")
        lbl2.TextAlignment = lbl2.ALIGNMENT_LEFT
        lbl2.Multiline=
    True
        lbl2.Text = Text2
        lbl2.Font =
    Font.CreateNew(16)

        lbl3.Initialize(
    "lbl3")
        lbl3.TextAlignment = lbl2.ALIGNMENT_LEFT
        lbl3.Multiline=
    True
        lbl3.Text = Text3
        lbl3.Font =
    Font.CreateNew(18)


    Dim ImgVignette As ImageView
        ImgVignette.Initialize(
    "ImgVignette")

    Dim Repertoire = File.DirAssets As String

        P.AddView(ImgVignette,
    10dip5dip18%x18%x )
        P.AddView(lbl1,
    10dip + 20%x0dip75%x, Height/2-5dip )
        P.AddView(lbl2,
    10dip + 20%x, lbl1.Height, 75%x, Height/2)
        P.AddView(lbl3,
    10dip + 20%x, (lbl1.Height +lbl2.Height)-5dip75%x, Height/2)

    Return P


    End Sub

    Sub JobDone (Job As HttpJob)

    Log("JobName = " & Job.JobName & ", Success = " & Job.Success)

    If Job.Success = True Then



    Select Job.JobName

    'XXXXXXXXX LISTING XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
            Case LISTING_LIST

    'Downloader.Initialize
                Dim RES, RES2 As String
                RES = Job.GetString


    Dim parser As JSONParser
                parser.Initialize(RES)

    Dim Affiche_list As List
                Affiche_list = parser.NextArray
    'returns a list with maps
                    For i = 0 To Affiche_list.Size - 1

    Dim sb As StringBuilder

    Dim M As Map
                        M = Affiche_list.Get(i)

    Dim   Civilite, Prenom, Ville, Zip As String

    '----------------------------------------------------------------------------------
                        Civilite = M.Get("civilite")
                        Prenom = M.Get(
    "prenom")
                        Ville = M.Get(
    "ville")
                        Zip = M.Get(
    "zip")
                    ClvListing.Add(CreateListItem3(Civilite, Prenom, Ville, Zip,ClvListing.AsView.Width,
    55dip), 70dip, M)

    Next

    End Select


    Else

    Log("Error: " & Job.ErrorMessage)
            hd.ToastMessageShow(
    "Error: " & Job.ErrorMessage, True)

    End If
        Job.Release


    End Sub
    Sub ExtraitListePardistance
        ExecuteRemoteQuery(
    "SELECT ID, civilite,  prenom,  ville, zip FROM kindasitters ",LISTING_LIST)
    End Sub

    Sub ExecuteRemoteQuery(Query As String, JobName As String)

    Dim job As HttpJob
        job.Initialize(JobName, Me)
        job.PostString(
    "http://www.xxxxxxxx.com/xxxxxxxx/connection.php", Query)'
    End Sub
    Sub SegmentedControl1_IndexChanged (Index As Int)
    Select Index

    Case 0
            Cherche.RootPanel.Color =
    Colors.Green
            Cherche.Title =
    "Cherche"
            LblBJ.Text =
    "Bonjour"
            segmentedcontrol1.BringToFront
            NavControl.ShowPage(Cherche)

    Case 1
            Cherche.RootPanel.Color =
    Colors.Yellow
            Cherche.Title =
    "Cherche"
            LblBJ.Text =
    "Bonsoir"
            segmentedcontrol1.BringToFront
            NavControl.ShowPage(Cherche)
    End Select
    End Sub

    Private Sub Page1_Resize(Width As Int, Height As Int)

    End Sub

    Private Sub Application_Background

    End Sub


    Attached Files:

  2. Erel

    Erel Administrator Staff Member Licensed User

    Note that LISTING_LIST is never assigned any value.

    It crashes when I reach the list page as the server returns an empty string.

  3. ciginfo

    ciginfo Active Member Licensed User

    Yes but In fact it is not the real problem. If i add "Private LISTING_LIST = "listing_list" As String" for exemple the problem is when I come many times on the "layout Listing.

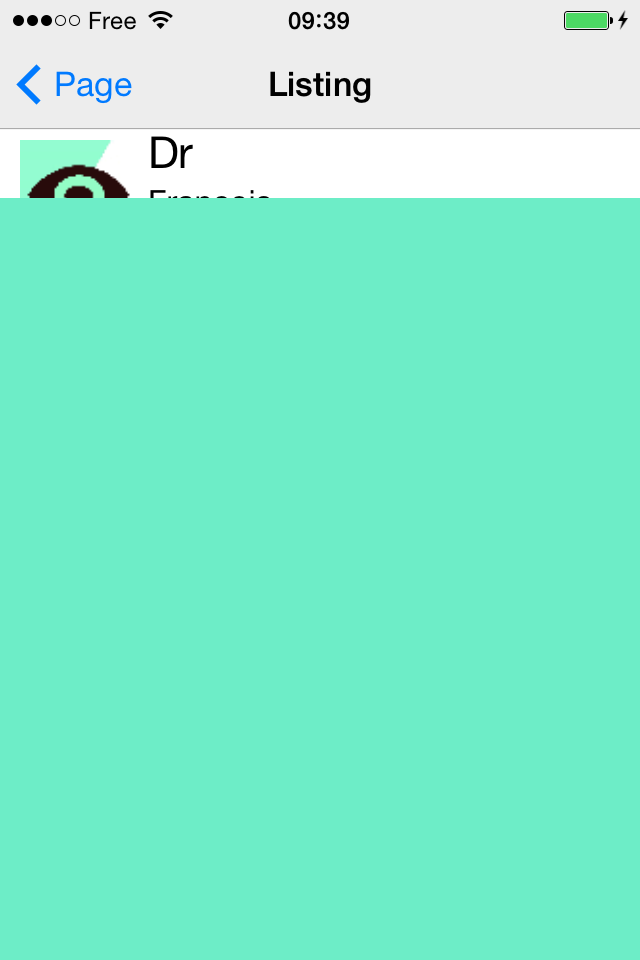

    The first time I display the "layout Listing", displaying is OK. But if I come back to "LayoutMenu" using the back button then display "layout Listing" a 2nd or 3th time, displaying is not OK, the listing in the customListView is incomplete or doubled. Do you think Initializing my pages is correct in my code?
    thank you

  4. ciginfo

    ciginfo Active Member Licensed User

    I simplify my question with this new code.
    I'm on "Layout MENU". I press the button "Vers listing" and I display "Layout LISTING" with my CustomListView (image1 joined)

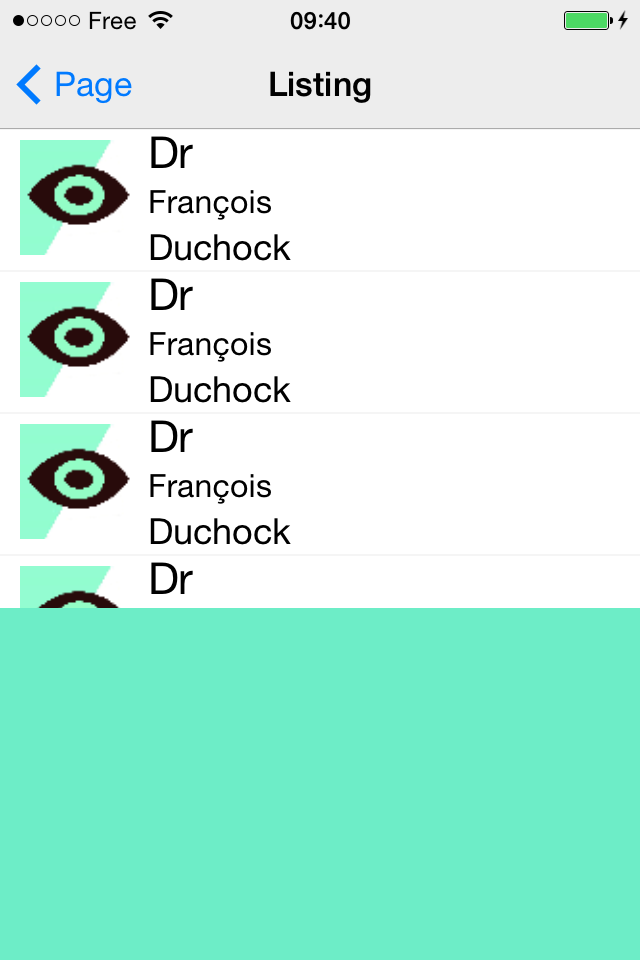

    1st question: How to do that CustomListView occupies the entire height of the page
    2nd question: If I return to "Layout MENU" with the back buttom and display one more time "Layout LISTING", I get sometimes the image1 (attached) Sometimes the image2 (attached) if i repeat several times this action. Why? See essai.zip uploaded.
    Thank you
    Code:
    'Code module
    #Region  Project Attributes

    #ApplicationLabel: B4i Example

    #Version: 1.0.0

    'Orientation possible values: Portrait, LandscapeLeft, LandscapeRight and PortraitUpsideDown
        #iPhoneOrientations: Portrait, LandscapeLeft, LandscapeRight

    #iPadOrientations: Portrait, LandscapeLeft, LandscapeRight, PortraitUpsideDown
    #End Region

    Sub Process_Globals

    Public NavControl As NavigationController

    Private Page1, Cherche, Listing, Menu As Page

    Private LblCherche, LblBJ, LblLayoutMain As Label

    Private BtnCherche As Button

    Private segmentedcontrol1 As SegmentedControl

    Dim ClvListing As CustomListView
    End Sub
    Private Sub Application_Start (Nav As NavigationController)
        NavControl = Nav
        Page1.Initialize(
    "Page1")
        Page1.Title =
    "SittingBreak"
        Page1.RootPanel.Color =
    Colors.Blue
        NavControl.ShowPage(Page1)
        Page1.RootPanel.LoadLayout(
    "Main")

        Cherche.Initialize(
    "Cherche")
        Cherche.RootPanel.LoadLayout(
    "Cherche")


    Menu.Initialize("Menu")

    Menu.RootPanel.LoadLayout("Menu")

    End Sub

    Sub BtnCherche_Click
        Cherche.Title =
    "Cherche"
        LblBJ.Text =
    "Bonjour"
        segmentedcontrol1.BringToFront
        NavControl.ShowPage(Cherche)
    End Sub
    Sub BtnListing_Click
        Listing.Initialize(
    "Listing")
        Listing.RootPanel.LoadLayout(
    "Listing")
        Listing.RootPanel.Color =
    Colors.ARGB(255,109,237,199)'(255,255,0,0)
        Listing.Title = "Listing"
        ClvListing.Initialize(Me,
    "clvListing"100%x)
        Listing.RootPanel.AddView(ClvListing.AsView,
    00100%x50%y)
        essai
        NavControl.ShowPage(Listing)
    End Sub
    Sub BtnMenu_Click
        NavControl.ShowPage(
    Menu)
    End Sub
    Sub CreateListItem3(Text1 As String, Text2 As String, Text3 As String, Vignette As String, Width As Int, Height As Int) As Panel

    'Routine pour placer 2 labels dans l'item de la customListView
        Dim P As Panel
        P.Initialize(
    "")
        P.Color =
    Colors.White


    Dim lbl1, lbl2, lbl3 As Label

        lbl1.Initialize(
    "lbl1")
        lbl1.TextAlignment = lbl1.ALIGNMENT_LEFT
        lbl1.Text = Text1
        lbl1.Font =
    Font.CreateNew(22)

        lbl2.Initialize(
    "lbl2")
        lbl2.TextAlignment = lbl2.ALIGNMENT_LEFT
        lbl2.Multiline=
    True
        lbl2.Text = Text2
        lbl2.Font =
    Font.CreateNew(16)

        lbl3.Initialize(
    "lbl3")
        lbl3.TextAlignment = lbl2.ALIGNMENT_LEFT
        lbl3.Multiline=
    True
        lbl3.Text = Text3
        lbl3.Font =
    Font.CreateNew(18)


    Dim ImgVignette As ImageView
        ImgVignette.Initialize(
    "ImgVignette")

    Dim Repertoire = File.DirAssets As String

        ImgVignette.Bitmap =
    LoadBitmap(Repertoire , Vignette)

        P.AddView(ImgVignette,
    10dip5dip18%x18%x )
        P.AddView(lbl1,
    10dip + 20%x0dip75%x, Height/2-5dip )
        P.AddView(lbl2,
    10dip + 20%x, lbl1.Height, 75%x, Height/2)
        P.AddView(lbl3,
    10dip + 20%x, (lbl1.Height +lbl2.Height)-5dip75%x, Height/2)

    Return P


    End Sub

    Sub essai

    Dim   Civilite, Prenom, Ville, MyVignette As String
        Civilite =
    "Dr"
        Prenom =
    "François"
        Ville =
    "Duchock"
        MyVignette =
    "kinda.png"
    For i = 1 To 6

    Dim sb As StringBuilder
        sb.Initialize
        ClvListing.Add(CreateListItem3(Civilite, Prenom, Ville, MyVignette,ClvListing.AsView.Width,
    55dip), 70dip, sb)

    Next
    End Sub


    Attached Files:

  5. Erel

    Erel Administrator Staff Member Licensed User

    Please upload a working project. You can export it with File - Export as zip.

  6. ciginfo

    ciginfo Active Member Licensed User

    Yes it is joined in my precedent post .
    essai.zip

  7. Erel

    Erel Administrator Staff Member Licensed User

    There are missing images. Check the zip file.

  8. ciginfo

    ciginfo Active Member Licensed User

    Export as zip does not take the image file "kinda.png" from file folder. I join it with the zip, to place into the file folder.


    Attached Files:

  9. Erel

    Erel Administrator Staff Member Licensed User

    Go to the files tab and press on the sync button. It will add all files to the project.

    You should handle the resize event and set the size of the custom list view:
    Code:
    Sub Listing_Resize (Width As Float, Height As Float)
       ClvListing.SetSize(Width, Height)
    End Sub
    Note that your current code creates a new page each time. I don't know whether this is on purpose or not.
    I recommend you to see this example: http://www.b4x.com/android/forum/threads/multiple-pages-example.48170/#content

  10. ciginfo

    ciginfo Active Member Licensed User

    Thank you very much for your still effective assistance.
    The page-Resize command is generally obscure to me. Is there a tutorial on detailed Page_Resize?
    Thank you

  11. Erel

    Erel Administrator Staff Member Licensed User

    See this tutorial: http://www.b4x.com/android/forum/threads/layouts-pages-and-viewcontrollers.45942/#content

    The Resize event is very important in B4i. This is one of the main differences between B4A and B4i. In B4A the activity is destroyed and created when the orientation changes. In B4i the page is never implicitly destroyed. Instead the Resize event is raised to allow you to reposition your views (usually automatically by the designer).
