B4A Class Programmatically set screen settings

Discussion in 'Additional libraries, classes and official updates' started by JackKirk, Mar 17, 2016.

  1. JackKirk

    JackKirk Well-Known Member Licensed User

    I recently had the need to work out how to set screen settings (orientation and full/non-full screen) via my B4A app.

    I found relevant information in the forums limited, scattered and decidedly opaque - if I missed the tutorial then please hit the reply button.

    So I set to and put together a small class and example, smothered in documentation...

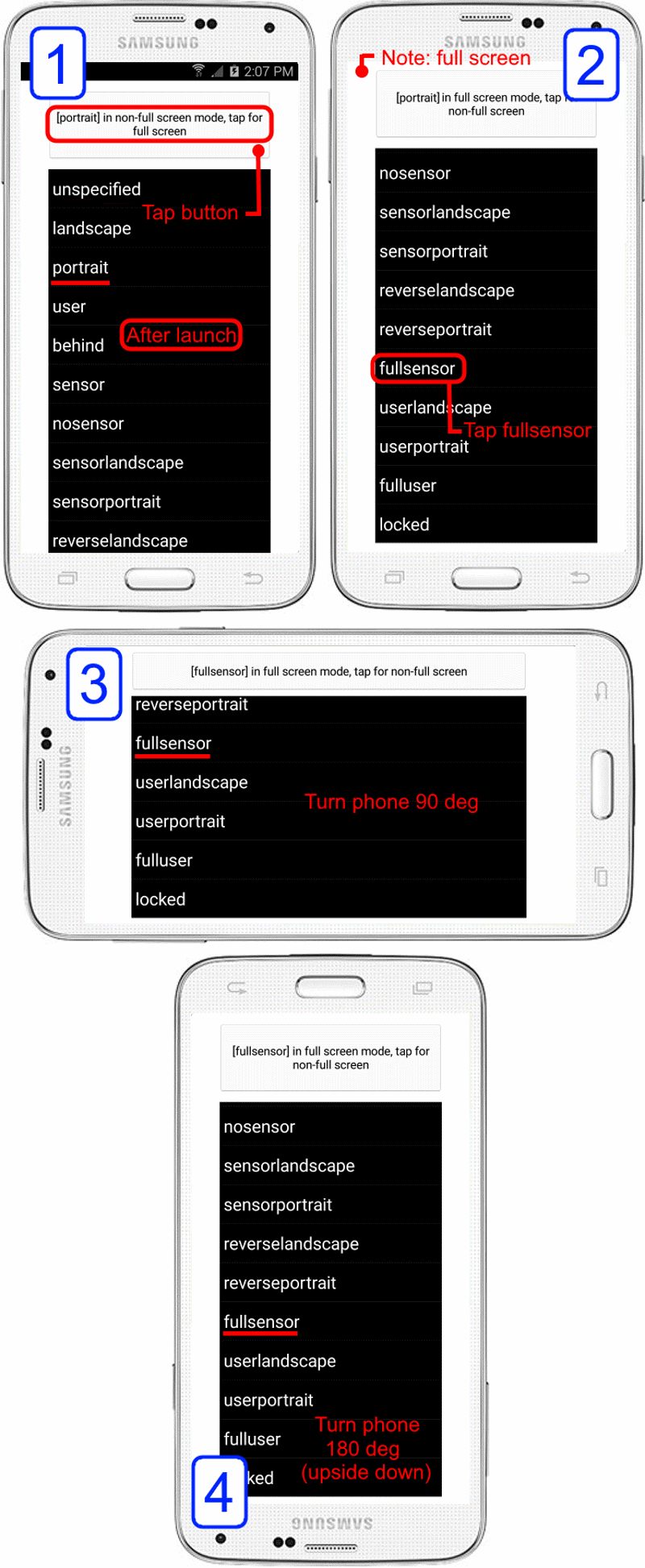

    The example is a bit crude as the following screenshots show, however it enables you to fully explore the 16 screen orientation options - unspecified, landscape and portrait and 13 others as detailed in:

    http://developer.android.com/reference/android/R.attr.html#screenOrientation

    It also shows you how to jump between non-full screen and full screen at will.

    Note screenshot #4 - the phone is upside down.


    -------------------------------------------------------------

    The class header documentation pretty well explains the intent:
    Code:
    '************************************************************************************
    '
    'This class module provides full programmatic control of screen settings, regardless
    'of how they have been initially defined
    '
    'Features:
    '
    '   o 16 screen orientations, as per:
    '     http://developer.android.com/reference/android/R.attr.html#screenOrientation
    '
    '   o Full screen mode on/off
    '
    'Methods:
    '
    '   Initialize
    '
    '   Change
    '
    '   Reset
    '
    'Events:
    '
    '   None
    '
    'Properties:
    '
    '   None
    '
    'Requirements:
    '
    '   o B4A libraries:
    '
    '         Phone (version 2.28 or later) - for screen orientation control
    '         Reflection (version 2.40 or later) - for full screen control
    '
    'Update history:
    '
    '   16 Mar 16 - 1.0
    '
    '************************************************************************************
    And the documentation of the Change method of the class describes the parameters that need to be passed:
    Code:
    '************************************************************************************
    '
    'This procedure gets control when Change method is called by parent module
    '
    'Input parameters are:
    '
    '       SS_Orientation = required orientation, which can be "unspecified",
    '                        "landscape", "portrait", "user", "behind", "sensor",
    '                        "nosensor", "sensorlandscape", "sensorportrait",
    '                        "reverselandscape", "reverseportrait", "fullsensor",
    '                        "userlandscape", "userportrait", "fulluser" or "locked"
    '       SS_Full_Screen = required full screen state (True or False)
    '
    'Returns:
    '
    '       None
    '
    'Notes on this procedure:
    '
    '       o Changes screen settings of current activity
    '
    '************************************************************************************
    Happy coding...


    Attached Files:

    Last edited: Mar 17, 2016
