B4A Library ProgressPieView

Discussion in 'Additional libraries, classes and official updates' started by Johan Schoeman, Jun 23, 2015.

  1. Johan Schoeman

    Johan Schoeman Expert Licensed User

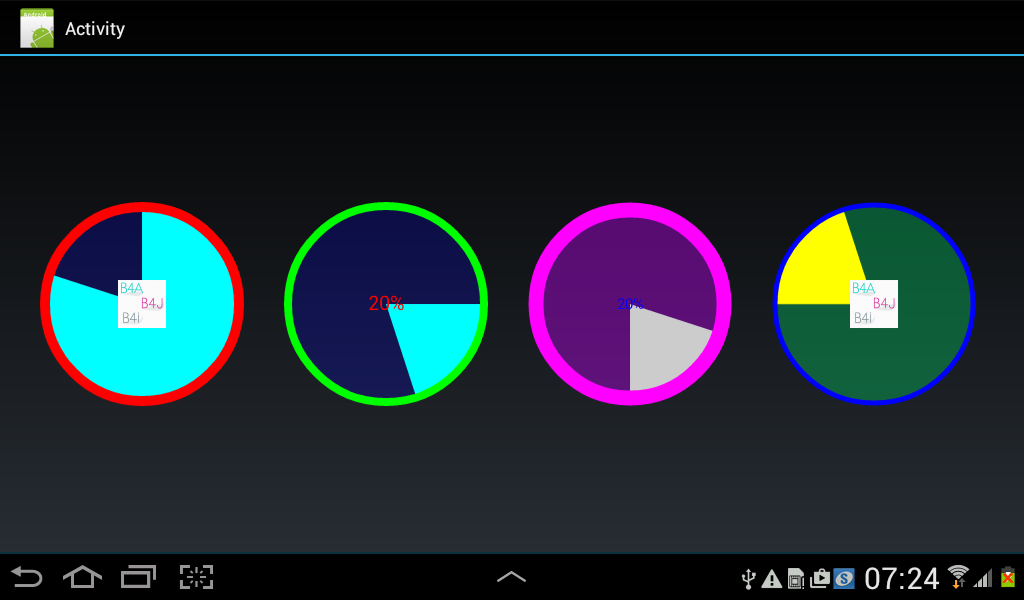

    Attached project draws progress pie charts. Library files are in the /files folder of the attached project:

    1. ProgressPieView.jar
    2. ProgressPieView.xml

    Copy both these files to your additional libraries folder. You will also need android-support-v4.jar to be present in your additional libraries folder. You can download it from here. The project makes use of files in the /Objects/res/values folder of the B4A project. Thus, use the attached B4A project as the base to work from.

    All methods called by ppv1 to ppv4 (blocked and unblocked in the B4A project) are available for use. Very simple to use/figure out.

    Sample code of methods as used in the attached project for ppv1 to ppv4 (CustomViews with CustomTypes set to ProgressPieVew):

    Code:
    mbm.Initialize(File.DirAssets,"2.png")
        md.Initialize(mbm)

        ppv1.ImageDrawable = md
    'load the drawable
        ppv1.ShowStroke = True       'show the outer circle
        ppv1.StrokeWidth = 10dip     'the width of the outer ring
        ppv1.StrokeColor = Colors.Red
        ppv1.ShowText =
    False
    '    ppv1.Text = "Hello"
    '    ppv1.TextSize = 30
        ppv1.TextColor = Colors.Black
        ppv1.BackgroundColor =
    Colors.ARGB(55,0,0,255)
        ppv1.ProgressColor =
    Colors.Cyan
        ppv1.AnimationSpeed =
    40             'the bigger the value, the longer it takes
        ppv1.Max = 100
    '    ppv1.animateProgressFill              'animate a complete fill of the pie view
    '    ppv1.animateProgressFillTo(70)        'the progress value the animation should stop at (0 - MAX)
    '   ppv1.Progress = 35                    'Sets the current progress (must be between 0 and max)
        ppv1.StartAngle = 270                 '0 = 3 o'clock, 90 = 6 o'clock, 180 = 9 o'clock, 270 = 12 o'clock
        ppv1.Inverted = True                  'Swop the colors of ppv.BackgroundColor with that of ppv1.ProgressColor
        ppv1.Counterclockwise = True          'True = run the sweeper in the ACW direction, False = run the sweeper in the CW direction

    '    ppv2.ImageDrawable = md      'load the drawable
        ppv2.ShowStroke = True       'show the outer circle
        ppv2.StrokeWidth = 8dip     'the width of the outer ring
        ppv2.StrokeColor = Colors.Green
        ppv2.ShowText =
    True
    '    ppv2.Text = "Hello"
        ppv2.TextSize = 20
        ppv2.TextColor =
    Colors.Red
        ppv2.BackgroundColor =
    Colors.ARGB(55,0,0,255)
        ppv2.ProgressColor =
    Colors.Cyan
        ppv2.AnimationSpeed =
    40             'the bigger the value, the longer it takes
        ppv2.Max = 100
    '    ppv2.animateProgressFill              'animate a complete fill of the pie view
    '    ppv2.animateProgressFillTo(70)        'the progress value the animation should stop at (0 - MAX)
    '   ppv2.Progress = 35                    'Sets the current progress (must be between 0 and max)
        ppv2.StartAngle = 0                 '0 = 3 o'clock, 90 = 6 o'clock, 180 = 9 o'clock, 270 = 12 o'clock
        ppv2.Inverted = False                  'Swop the colors of ppv.BackgroundColor with that of ppv2.ProgressColor
        ppv2.Counterclockwise = False          'True = run the sweeper in the ACW direction, False = run the sweeper in the CW direction

    '    ppv3.ImageDrawable = md      'load the drawable
        ppv3.ShowStroke = True       'show the outer circle
        ppv3.StrokeWidth = 15dip     'the width of the outer ring
        ppv3.StrokeColor = Colors.Magenta
        ppv3.ShowText =
    True
    '    ppv3.Text = "Hello"
        ppv3.TextSize = 15
        ppv3.TextColor =
    Colors.Blue
        ppv3.BackgroundColor =
    Colors.ARGB(100,200,0,255)
        ppv3.ProgressColor =
    Colors.LightGray
        ppv3.AnimationSpeed =
    40             'the bigger the value, the longer it takes
        ppv3.Max = 100
    '    ppv3.animateProgressFill              'animate a complete fill of the pie view
    '    ppv3.animateProgressFillTo(70)        'the progress value the animation should stop at (0 - MAX)
    '   ppv3.Progress = 35                    'Sets the current progress (must be between 0 and max)
        ppv3.StartAngle = 90                 '0 = 3 o'clock, 90 = 6 o'clock, 180 = 9 o'clock, 270 = 12 o'clock
        ppv3.Inverted = False                  'Swop the colors of ppv.BackgroundColor with that of ppv3.ProgressColor
        ppv3.Counterclockwise = True          'True = run the sweeper in the ACW direction, False = run the sweeper in the CW direction

        ppv4.ImageDrawable = md
    'load the drawable
        ppv4.ShowStroke = True       'show the outer circle
        ppv4.StrokeWidth = 5dip     'the width of the outer ring
        ppv4.StrokeColor = Colors.Blue
        ppv4.ShowText =
    True
    '    ppv4.Text = "Hello"
        ppv4.TextSize = 20
        ppv4.TextColor =
    Colors.Red
        ppv4.BackgroundColor =
    Colors.ARGB(100,0,200,100)
        ppv4.ProgressColor =
    Colors.Yellow
        ppv4.AnimationSpeed =
    40             'the bigger the value, the longer it takes
        ppv4.Max = 100
    '    ppv4.animateProgressFill              'animate a complete fill of the pie view
    '    ppv4.animateProgressFillTo(70)        'the progress value the animation should stop at (0 - MAX)
    '   ppv4.Progress = 35                    'Sets the current progress (must be between 0 and max)
        ppv4.StartAngle = 180                 '0 = 3 o'clock, 90 = 6 o'clock, 180 = 9 o'clock, 270 = 12 o'clock
        ppv4.Inverted = False                  'Swop the colors of ppv.BackgroundColor with that of ppv4.ProgressColor
        ppv4.Counterclockwise = False          'True = run the sweeper in the ACW direction, False = run the sweeper in the CW direction
    Enjoy!

    (Thanks @DonManfred and @thedesolatesoul);)

    It wraps the project that you will find here


    ProgressPieView
    Version:
    1
    • ProgressPieView
      Fields:
      • ba As BA
      Methods:
      • BringToFront
      • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
      • Initialize (EventName As String)
      • Invalidate
      • Invalidate2 (arg0 As Rect)
      • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • IsInitialized As Boolean
      • RemoveView
      • RequestFocus As Boolean
      • SendToBack
      • SetBackgroundImage (arg0 As Bitmap)
      • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
      • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
      • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
      • animateProgressFill
      • animateProgressFillTo (animateTo As Int)
      • stopAnimating
      Properties:
      • AnimationSpeed As Int [write only]
      • Background As Drawable
      • BackgroundColor As Int [write only]
      • Color As Int [write only]
      • Counterclockwise As Boolean [write only]
      • Enabled As Boolean
      • Height As Int
      • ImageDrawable As Drawable [write only]
      • Inverted As Boolean [write only]
      • Left As Int
      • Max As Int [write only]
      • Progress As Int [write only]
      • ProgressColor As Int [write only]
      • ShowStroke As Boolean [write only]
      • ShowText As Boolean [write only]
      • StartAngle As Int [write only]
      • StrokeColor As Int [write only]
      • StrokeWidth As Int [write only]
      • Tag As Object
      • Text As String [write only]
      • TextColor As Int [write only]
      • TextSize As Int [write only]
      • Top As Int
      • Visible As Boolean
      • Width As Int


    Attached Files:

    Last edited: Jul 4, 2015
  2. DonManfred

    DonManfred Expert Licensed User

    Really nice. Well done, @Johan Schoeman !

    Peter Simpson and Johan Schoeman like this.
  3. johndb

    johndb Active Member Licensed User

    How would you add the ProgressPieView to another view in code? There is no "ProgressPieView.initialize".

    John

  4. Johan Schoeman

    Johan Schoeman Expert Licensed User

    John, ProgressPieView makes use of a custom type view and the custom view's custom type property needs to be set. I stand to be corrected but as far as I know this can only be done in the IDE. In other words add the customview ins the IDE, set its custometype property to ProgressPieVie and then you can set its position (left, top, width, height) in code.

  5. DonManfred

    DonManfred Expert Licensed User

    No

    You need to add an INITIALIZE Method beside the already existent _INITIALIZE...
    Additional you need to create a Method to manually add a view to the activity. You then can do all in code too without using the Designer too...

    I´ll send you an example later.

    Johan Schoeman likes this.
  6. DonManfred

    DonManfred Expert Licensed User

    Johan: Can you send me your project of this lib. I´ll edit it and send it back to you this evening. So you then can use the source for the future...

    Johan Schoeman likes this.
  7. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Will do. Thanks Manfred.

  8. thedesolatesoul

    thedesolatesoul Expert Licensed User

    If you are extending ViewWrapper you dont need to do this.
    You should be able to use Activity.AddView(ProgressPieView,x,y,z)

    Johan Schoeman and DonManfred like this.
  9. DonManfred

    DonManfred Expert Licensed User

    Surely you are right, @thedesolatesoul
    But the 2nd initialize method he need to add to the lib-

    Johan Schoeman likes this.
  10. thedesolatesoul

    thedesolatesoul Expert Licensed User

    Yes. There is a @BA.Hide infront of it that needs to be removed to expose it.

    Johan Schoeman likes this.
  11. DonManfred

    DonManfred Expert Licensed User

    i usually do it like this

    Code:
    public void Initialize(final BA ba, String EventName) {
            _initialize(ba,
    null, EventName);

    }

        @Hide
        public void _initialize(final BA ba, Object activityClass, String EventName) {
            this.eventName = EventName.toLowerCase(BA.cul);
            this.ba = ba;
            this.setObject(new ProgressPieView(ba.context));

         }

    Johan Schoeman likes this.
  12. Johan Schoeman

    Johan Schoeman Expert Licensed User

    New project with library files (JAR & XML) in the /files folder. I have only amended the B4A code for ppv1. Other 3 are still via the Designer/IDE. You can change the rest of the B4A code as per ppv1. So you can now add it via code.

    Thanks @DonManfred and @thedesolatesoul


    Attached Files:

  13. thedesolatesoul

    thedesolatesoul Expert Licensed User

    Yes, thats how I would do it too.

    Johan Schoeman likes this.
  14. johndb

    johndb Active Member Licensed User

    Johan, This version works perfectly for creating the view in code!!! Thank you very much for your efforts!

    Johan Schoeman likes this.
