B4A Library ProgressWheel

Discussion in 'Additional libraries, classes and official updates' started by Johan Schoeman, Jun 24, 2015.

  1. Johan Schoeman

    Johan Schoeman Expert Licensed User

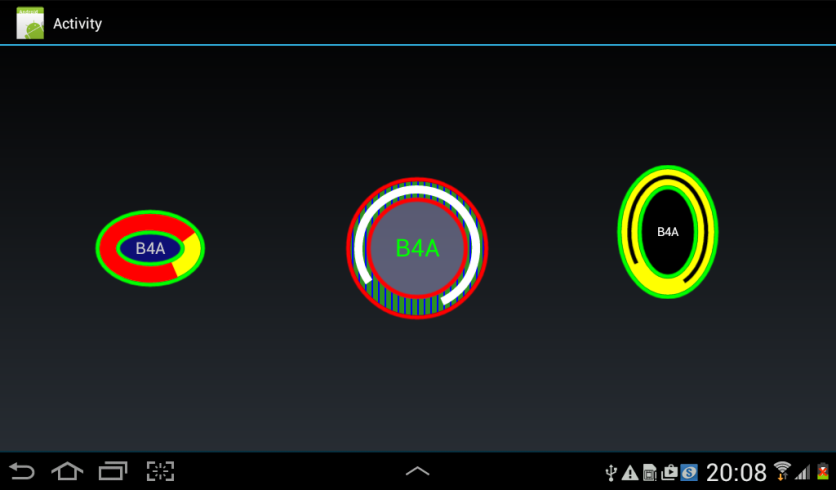

    The attached project wraps this. Library files are in the /files folder of the attached project. Copy them to your additional libraries folder. Play around with the calls to the 29 different methods presented in the code. It uses file attrs.xml in the Object/res/values folder.

    Enjoy

    (Thanks Teacher...;))


    Some sample code:
    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.
        Dim t As Timer

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Private pw1, pw2 As ProgressWheel

    Dim brlng As Int = 0


    Private pw3 As ProgressWheel
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        Activity.LoadLayout("main")

        t.Initialize(
    "t",50)

        pw1.CircleColor =
    Colors.ARGB(100,0,0,255)
        pw1.BarLength = brlng
        pw1.RimColor =
    Colors.Yellow
        pw1.RimWidth =
    20                          'limit this to 20
        pw1.BarColor = Colors.Red
        pw1.BarWidth =
    20
        pw1.Left =
    10%x
        pw1.Width =
    20%x
        pw1.Height =
    20%x
        pw1.Top =
    50%y - (pw1.Height/2)
        pw1.ContourColor =
    Colors.Green            'make the contour around the inner and outer of the blue rim grey
        pw1.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw1.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw1.Text = "B4A"
        pw1.TextColor =
    Colors.LightGray
        pw1.TextSize =
    20
        pw1.PaddingBottom =
    30
        pw1.PaddingLeft =
    10
        pw1.PaddingTop =
    30
        pw1.PaddingRight =
    10

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFFFFFFFF0xFFFFFFFF)
    '    pw1.RimShader = mycolors                    'does funny stuff to the rim - read up on android.graphics.Shader
        pw1.spin

        pw3.CircleColor =
    Colors.ARGB(100,200,200,255)
        pw3.BarLength = brlng
        pw3.RimColor =
    Colors.Yellow
        pw3.RimWidth =
    20                          'limit this to 20
        pw3.BarColor = Colors.White
        pw3.BarWidth =
    10
        pw3.Left =
    40%x
        pw3.Width =
    20%x
        pw3.Height =
    20%x
        pw3.Top =
    50%y - (pw3.Height/2)
        pw3.ContourColor =
    Colors.Red              'make the contour around the inner and outer of the blue rim grey
        pw3.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw3.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw3.Text = "B4A"
        pw3.TextColor =
    Colors.Green
        pw3.TextSize =
    30
        pw3.PaddingBottom =
    20
        pw3.PaddingLeft =
    20
        pw3.PaddingTop =
    20
        pw3.PaddingRight =
    20

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF0000FF0xFF0000FF)
        pw3.RimShader = mycolors
    'does funny stuff to the rim - read up on android.graphics.Shader
        pw3.Progress = 90
        pw3.spin

        pw2.CircleColor =
    Colors.Black
        pw2.BarLength = brlng
        pw2.RimColor =
    Colors.Yellow
        pw2.RimWidth =
    20                          'limit this to 20
        pw2.BarColor = Colors.Black
        pw2.BarWidth =
    5
        pw2.Left =
    70%x
        pw2.Width =
    20%x
        pw2.Height =
    20%x
        pw2.Top =
    50%y - (pw2.Height/2)
        pw2.ContourColor =
    Colors.Green            'make the contour around the inner and outer of the blue rim grey
        pw2.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw2.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw2.Text = "B4A"
        pw2.TextColor =
    Colors.White
        pw2.TextSize =
    15
        pw2.PaddingBottom =
    10
        pw2.PaddingLeft =
    30
        pw2.PaddingTop =
    10
        pw2.PaddingRight =
    30

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFFFFFF000xFFFF0000)
    '    pw2.RimShader = mycolors                    'does funny stuff to the rim - read up on android.graphics.Shader
        pw2.Progress = 90
        pw2.spin



    '   OTHER METHODS THAT YOU CAN TEST AND USE:

    '   pw1.stopSpinning
    '    pw1.Color = Colors.Gray
    '   pw1.incrementProgress
    '   pw1.Progress
    '    pw1.DelayMillis = 1000
    '   pw1.resetCount
    End Sub

    Sub Activity_Resume

    t.Enabled =
    True

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    t.Enabled =
    False

    End Sub
    Sub t_tick

    brlng = brlng +
    10
    If brlng = 360 Then brlng = 0
    pw1.BarLength = brlng
    pw2.BarLength = brlng
    pw3.BarLength = brlng

    End Sub

    ProgressWheel
    Version:
    1
    • ProgressWheel
      Fields:
      • ba As BA
      Methods:
      • BringToFront
      • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
      • Invalidate
      • Invalidate2 (arg0 As Rect)
      • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • IsInitialized As Boolean
      • RemoveView
      • RequestFocus As Boolean
      • SendToBack
      • SetBackgroundImage (arg0 As Bitmap)
      • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
      • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
      • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
      • incrementProgress
      • resetCount
      • spin
      • stopSpinning
      Properties:
      • Background As Drawable
      • BarColor As Int [write only]
      • BarLength As Int [write only]
      • BarWidth As Int [write only]
      • CircleColor As Int [write only]
      • Color As Int [write only]
      • ContourColor As Int [write only]
      • ContourSize As Float [write only]
      • DelayMillis As Int [write only]
      • Enabled As Boolean
      • Height As Int
      • Left As Int
      • PaddingBottom As Int [write only]
      • PaddingLeft As Int [write only]
      • PaddingRight As Int [write only]
      • PaddingTop As Int [write only]
      • Progress As Int [write only]
      • RimColor As Int [write only]
      • RimShader() As Int [write only]
      • RimWidth As Int [write only]
      • SpinSpeed As Int [write only]
      • Tag As Object
      • Text As String [write only]
      • TextColor As Int [write only]
      • TextSize As Int [write only]
      • Top As Int
      • Visible As Boolean
      • Width As Int


    Attached Files:

    Last edited: Jul 4, 2015
    shashkiranr, paragkini, Erel and 2 others like this.
  2. b4auser1

    b4auser1 Well-Known Member Licensed User

    How to Initialize the view in the code without designer ?

  3. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Here you go - new library files and B4A project attached. You now don't need to add the Customviews via designer - you can do it via B4A code.

    Sample code:

    Code:
    #Region  Project Attributes

    #ApplicationLabel: ProgressWheel

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: landscape

    #CanInstallToExternalStorage: False
    #End Region

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.
        Dim t As Timer

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Private pw1, pw2 As ProgressWheel

    Dim brlng As Int = 15


    Private pw3 As ProgressWheel
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        Activity.LoadLayout("main")

        t.Initialize(
    "t",50)

        pw1.Initialize(
    "")
        pw2.Initialize(
    "")
        pw3.Initialize(
    "")


    Activity.AddView(pw1, 10%x50%y - 10%x20%x20%x)

    Activity.AddView(pw2, 40%x50%y - 10%x20%x20%x)

    Activity.AddView(pw3, 70%x50%y - 10%x20%x20%x)

        pw1.CircleColor =
    Colors.ARGB(100,0,0,255)
        pw1.BarLength = brlng
        pw1.RimColor =
    Colors.Yellow
        pw1.RimWidth =
    20                          'limit this to 20
        pw1.BarColor = Colors.Red
        pw1.BarWidth =
    20
        pw1.Left =
    10%x
        pw1.Width =
    20%x
        pw1.Height =
    20%x
        pw1.Top =
    50%y - (pw1.Height/2)
        pw1.ContourColor =
    Colors.Green            'make the contour around the inner and outer of the blue rim grey
        pw1.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw1.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw1.Text = "B4A"
        pw1.TextColor =
    Colors.LightGray
        pw1.TextSize =
    20
        pw1.PaddingBottom =
    30
        pw1.PaddingLeft =
    10
        pw1.PaddingTop =
    30
        pw1.PaddingRight =
    10

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFFFFFFFF0xFFFFFFFF)
    '    pw1.RimShader = mycolors                    'does funny stuff to the rim - read up on android.graphics.Shader
        pw1.spin

        pw3.CircleColor =
    Colors.ARGB(100,200,200,255)
        pw3.BarLength = brlng
        pw3.RimColor =
    Colors.Yellow
        pw3.RimWidth =
    20                          'limit this to 20
        pw3.BarColor = Colors.White
        pw3.BarWidth =
    10
        pw3.Left =
    40%x
        pw3.Width =
    20%x
        pw3.Height =
    20%x
        pw3.Top =
    50%y - (pw3.Height/2)
        pw3.ContourColor =
    Colors.Red              'make the contour around the inner and outer of the blue rim grey
        pw3.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw3.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw3.Text = "B4A"
        pw3.TextColor =
    Colors.Green
        pw3.TextSize =
    30
        pw3.PaddingBottom =
    20
        pw3.PaddingLeft =
    20
        pw3.PaddingTop =
    20
        pw3.PaddingRight =
    20

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF0000FF0xFF0000FF)
        pw3.RimShader = mycolors
    'does funny stuff to the rim - read up on android.graphics.Shader
        pw3.Progress = 90
        pw3.spin

        pw2.CircleColor =
    Colors.Black
        pw2.BarLength = brlng
        pw2.RimColor =
    Colors.Black
        pw2.RimWidth =
    20                          'limit this to 20
        pw2.BarColor = Colors.White
        pw2.BarWidth =
    5
        pw2.Left =
    70%x
        pw2.Width =
    20%x
        pw2.Height =
    20%x
        pw2.Top =
    50%y - (pw2.Height/2)
        pw2.ContourColor =
    Colors.Blue            'make the contour around the inner and outer of the blue rim grey
        pw2.ContourSize = 5                        'set the size of the contour inner and outer around the blue rim
        pw2.SpinSpeed = 5                          'the bigger the number the faster it goes around
        pw2.Text = "B4A"
        pw2.TextColor =
    Colors.Red
        pw2.TextSize =
    15
        pw2.PaddingBottom =
    10
        pw2.PaddingLeft =
    30
        pw2.PaddingTop =
    10
        pw2.PaddingRight =
    30

    Dim mycolors(8As Int = Array As Int (0xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFF2E91210xFFFFFF000xFFFF0000)
    '    pw2.RimShader = mycolors                    'does funny stuff to the rim - read up on android.graphics.Shader
        pw2.Progress = 90
        pw2.spin



    '   OTHER METHODS THAT YOU CAN TEST AND USE:

    '   pw1.stopSpinning
    '    pw1.Color = Colors.Gray
    '   pw1.incrementProgress
    '   pw1.Progress
    '    pw1.DelayMillis = 1000
    '   pw1.resetCount
    End Sub

    Sub Activity_Resume

    t.Enabled =
    True

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    t.Enabled =
    False

    End Sub
    Sub t_tick

    brlng = brlng +
    10
    If brlng = 345 Then brlng = 15
    pw1.BarLength = brlng
    pw2.BarLength = brlng
    pw3.BarLength = brlng

    End Sub


    Attached Files:

    DonManfred and paulgr like this.
  4. Brian Robinson

    Brian Robinson Active Member Licensed User

    Hi, firstly, thanks for all your work on these libraries.

    I tried this one, but the example did not work.

    There are no Initialize methods in the library?

    I added via the designer and it all looks good from there.

    [EDIT]

    Ahh, ok... Looks like the lib files in the example are maybe the old ones. The ones in the separate "ProgressWheelLibFiles" zip file contain the newer ones.

    Cheers
    Brian

  5. Johan Schoeman

    Johan Schoeman Expert Licensed User

    That is correct. You need to use the new library files in post #3 above. I just forgot to remove the older lib files from the /files folder before I zipped the B4A project that I have posted in post #3 above.
