B4R Library RF24 - nRF24L01 radio modules

Discussion in 'B4R Libraries' started by Erel, May 17, 2016.

  1. Erel

    Erel Administrator Staff Member Licensed User

    [​IMG]

    This library wraps RF24 open source project: http://tmrh20.github.io/RF24/ (GPL license).

    With this library it is simple to transmit or receive small packets between two or more Arduinos using nRF24L01+ radio modules.

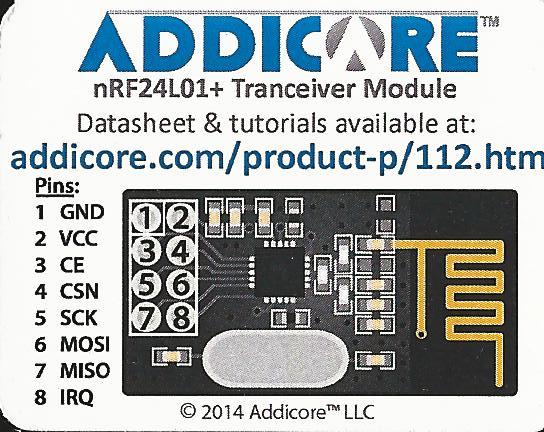

    Wiring:

    [​IMG]


    1 - Ground
    2 - 3.3 volt.
    3 - CE pin. Any available pin (7 in the next example)
    4 - CSN pin. Any available pin (8 in the next example)
    5 - SCK pin. Uno - 13, Mega - 52 (other boards: https://www.arduino.cc/en/reference/SPI)
    6 - MOSI pin. Uno - 11, Mega - 51
    7 - MISO pin. Uno - 12, Mega - 50
    8 - Not connected



    Code:

    - Initialize the RF24 object and set the CE and CSN pins.
    - Set the reading and writing addresses.
    - Handle the NewData event.

    The maximum packet size is 32 bytes. The length of the array passed in the NewData event will always be 32. It will be padded with zeroes after the actual data.

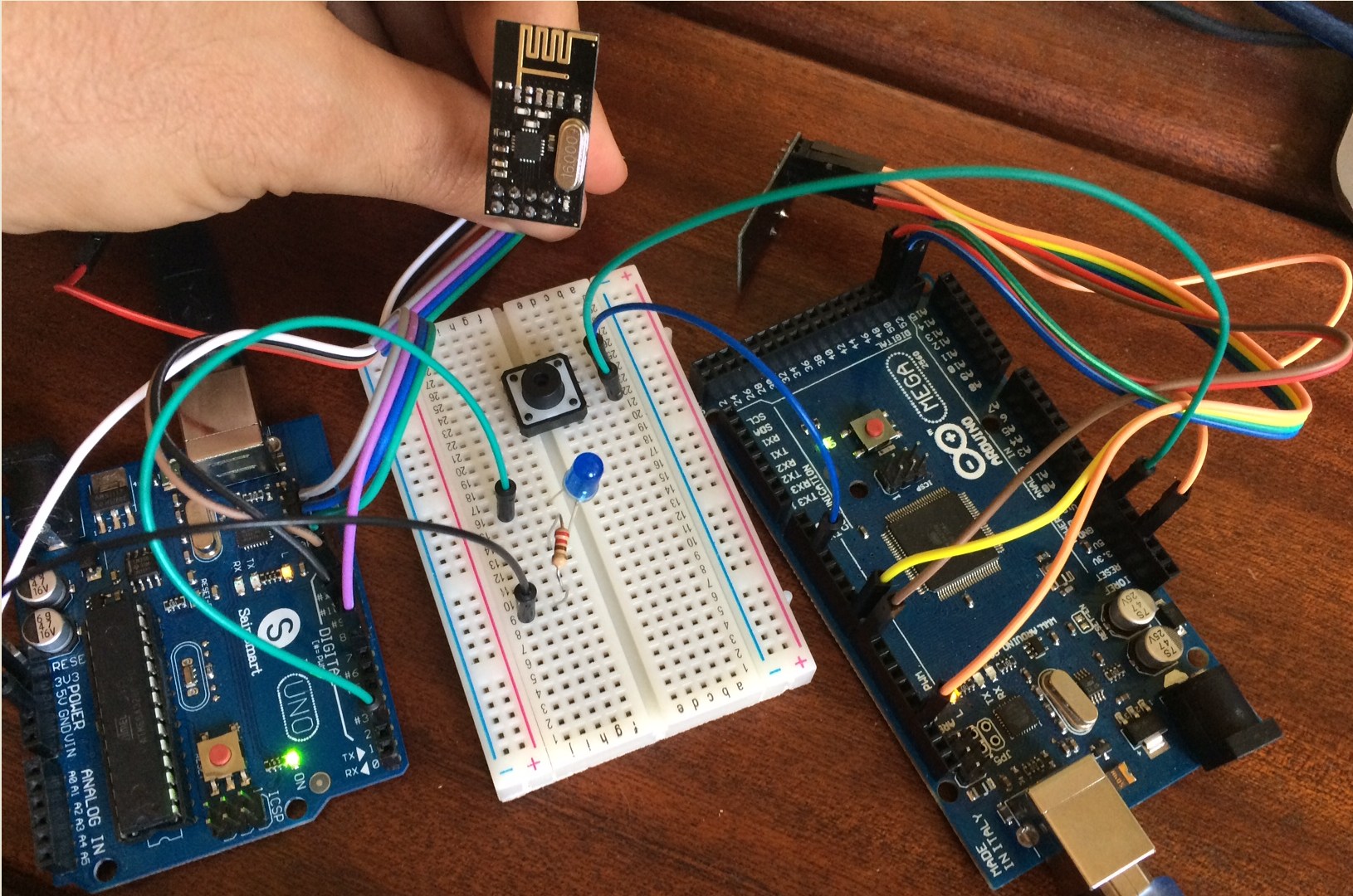

    Example of connecting an Uno and Mega. The Uno sends its current millis value every second. The Mega sends the button state.

    Code:
    'UNO
    Sub Process_Globals

    Public Serial1 As Serial

    Private rf24 As RF24

    Private raf As RandomAccessFile

    Private timer1 As Timer

    Private led As Pin

    Private const MEGA = 1, UNO = 2 As Byte

    Private buffer(4As Byte
    End Sub

    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")
       rf24.Initialize(
    78"rf24_NewData")
       rf24.OpenReadingPipe(UNO)
       rf24.OpenWritingPipe(MEGA)
       timer1.Initialize(
    "timer1_Tick"1000)
       timer1.Enabled =
    True

    led.Initialize(2led.MODE_OUTPUT) 'connect led to pin #2
       raf.Initialize(buffer, True)
    End Sub

    Sub rf24_NewData (Data() As Byte)

    led.DigitalWrite(Data(0) = 1)
    End Sub

    Sub Timer1_Tick
       raf.WriteULong32(Millis,
    0)
       rf24.Write(buffer)
    End Sub
    Code:
    'MEGA
    Sub Process_Globals

    Public Serial1 As Serial

    Private rf24 As RF24

    Private btn As Pin

    Private const MEGA = 1, UNO = 2 As Byte

    Private raf As RandomAccessFile
    End Sub

    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")
       rf24.Initialize(
    78"rf24_NewData")
       rf24.OpenReadingPipe(MEGA)
       rf24.OpenWritingPipe(UNO)
       btn.Initialize(
    2, btn.MODE_INPUT_PULLUP) 'button connected to pin #2.
       btn.AddListener("btn_StateChanged")
    End Sub

    Sub btn_StateChanged (State As Boolean)

    Dim b As Byte

    If Not(State) Then b = 1 Else b = 0

    Log("Write result: ", rf24.Write(Array As Byte(b)))
    End Sub

    Sub rf24_NewData (Data() As Byte)
       raf.Initialize(Data,
    True)

    Log("UNO Millis: ", raf.ReadULong32(raf.CurrentPosition))
    End Sub


    Attached Files:

    Last edited: May 18, 2016
    Beja, Laurent95, derez and 6 others like this.
  2. rwblinn

    rwblinn Well-Known Member Licensed User

    In the attachment post #1 there is no xml file for the library.

    Have created using b4rh2xml tool. Find attached.


    Attached Files:

    Last edited: May 18, 2016
    Erel likes this.
  3. Erel

    Erel Administrator Staff Member Licensed User

    Thank you. I've uploaded a new zip with the xml included.

  4. George Anifantakis

    George Anifantakis Member Licensed User

    Hi,
    Is there any example to stream audio using for example tv out audio signal as input to this module and use an android phone to receive the audio. Actually create a wireless headset using the android mobile.

  5. Erel

    Erel Administrator Staff Member Licensed User

    This thread is about RF communication. Android doesn't support it.

  6. Beja

    Beja Expert Licensed User

    Hi Erel,
    Thanks for this very important library and tutorial.
    The connections are not so clear to me, so would you please add illustrative diagram or schematics, like the one in the button tutorial?
    Thanks in advance.

  7. Erel

    Erel Administrator Staff Member Licensed User

  8. Beja

    Beja Expert Licensed User

    Yep!
    that's it.. thanks Erel

    [​IMG]

  9. Beja

    Beja Expert Licensed User

    Another quick question.
    I have Uno so should I buy a Mega or another Uno is ok.. my app wouldn't need more power or memory than Uno.
    If I wanted to use more than 2 UNOs in a network then how can I address individual UNO? is there a mac or IP address?

    Thanks in advance.

  10. Cableguy

    Cableguy Expert Licensed User

    I don't think there's an IP or Mac address on these boards... they are simple radios... so I would hard code an identifier to each "node" (uno + rf combo) and in each broadcasted message include the destination identifier

    Beja likes this.
  11. rwblinn

    rwblinn Well-Known Member Licensed User

    Addition to @Cableguy suggestion, a possible example attached of communication between two "RF24 Arduinos", one called client, the other gateway.
    And below an outline how this could be extended to handle more - in the example the gateway is handling communication.

    In the example each Arduino has an ID defined in the globals:
    Code:
    Private const GATEWAY = 1, CLIENT = 2 As Byte
    The client opens the pipes as:
    Code:
    rf24.OpenReadingPipe(CLIENT)
    rf24.OpenWritingPipe(GATEWAY)
    EXTEND OPTION:
    If there is more then one client, add to globals CLIENT2 = 3 etc. and open the pipes accordingly depending communication. Same applies for the gateway below.

    The gateway opens the pipes as:
    Code:
    rf24.OpenReadingPipe(GATEWAY)
    rf24.OpenWritingPipe(CLIENT)
    The client sends data to the gateway as array of bytes using randomaccessfile and rf24.
    Code:
    Dim b() As Byte = Array As Byte(temperature, humidity)
    raf.WriteBytes(b,
    0, b.Length, 0)
    rf24.Write(buffer)
    EXTEND OPTION:
    If there is more then one client, the array as byte could be extended like Array As Byte(id, temperature, humidity), where id is unique defined in the globals.
    Like
    Code:
    Dim b() As Byte = Array As Byte(ID, temperature, humidity)
    The gateway receives the data:
    Code:
    Sub rf24_NewData (Data() As Byte)
      raf.Initialize(Data,
    True)

    'Read the array of bytes. length is 2 as containing temp and hum
       Dim b() As Byte = raf.ReadBytes2(2, raf.CurrentPosition)

    'b(0) is temp, b(1) = hum
    ...
    EXTEND OPTION:
    If there is more then one client, then the array b(0) could be the unique id as mentioned previous and then take action accordingly.
    Code:
    Sub rf24_NewData (Data() As Byte)
      raf.Initialize(Data,
    True)

    'Read the array of bytes. length is 3 as containing id, temp and hum
       Dim b() As Byte = raf.ReadBytes2(3, raf.CurrentPosition)

    'b(0) is id, b(1) is temp, b(2) = hum
    ...


    Attached Files:

    Beja and inakigarm like this.
  12. Beja

    Beja Expert Licensed User

    Very smart solution.. thanks Cableguy and rwblinn

  13. rbghongade

    rbghongade Active Member Licensed User

    Dear friends,
    I tried to use Erel's example with rwblinn's modification with temperature and humidity as type doubles.
    Here is the transmitter code(partial)
    Code:
    Sub Timer1_Tick
        temperature=
    25+Rnd(20,50)/100
        humidity=
    35+Rnd(10,90)/100

    Dim data(2As Double
        data(
    0)=temperature
        data(
    1)=humidity

    Dim b() As Byte = bc.DoublestoBytes(data)
        raf.WriteBytes(b,
    0, b.Length, 0)
        rf24.Write(buffer)
    End Sub
    and receiver code (partial)
    Code:
    Sub rf24_NewData (Data() As Byte)

      raf.Initialize(Data,
    True)


    Dim b(8As Byte = raf.ReadBytes2(8, raf.CurrentPosition)

    Dim rData() As Double
       rData=bc.DoublesFromBytes(b)

    Log(rData(0)," ",rData(1))

    End Sub
    I am getting the temperature properly but humidity value is 0!
    I think I am messing around with conversions. Kindly suggest the remedy!
    Receiver Log:
    Code:
    AppStart
    25.2700 0
    25.2600 0
    25.4800 0
    25.4300 0
    25.4700 0
    Regards,

  14. Erel

    Erel Administrator Staff Member Licensed User

    You don't need the global buffer:
    Code:
    Log("humidity: ", data(1)) 'is it correct?
    Dim b() As Byte = bc.DoublestoBytes(data)
     rf24.Write(b)

  15. rbghongade

    rbghongade Active Member Licensed User

    Solved :
    I was using a buffer(4) as byte to transmit and it simply was not big enough!
    Thanks Erel.
    However I wish there was provision to set the PA level and Data Rates in the library!

  16. fbritop

    fbritop Active Member Licensed User

    Can this be used with an nRF905 module?

  17. Erel

    Erel Administrator Staff Member Licensed User

    Most probably no.
