iOS Question ScrollView load multiple times

Stefano Di Chiano

Active Member
Licensed User
Hi,
I have a problem with a scrollView. The app has more pages, and when I load the one with a scrollView the first time, everything's all right.

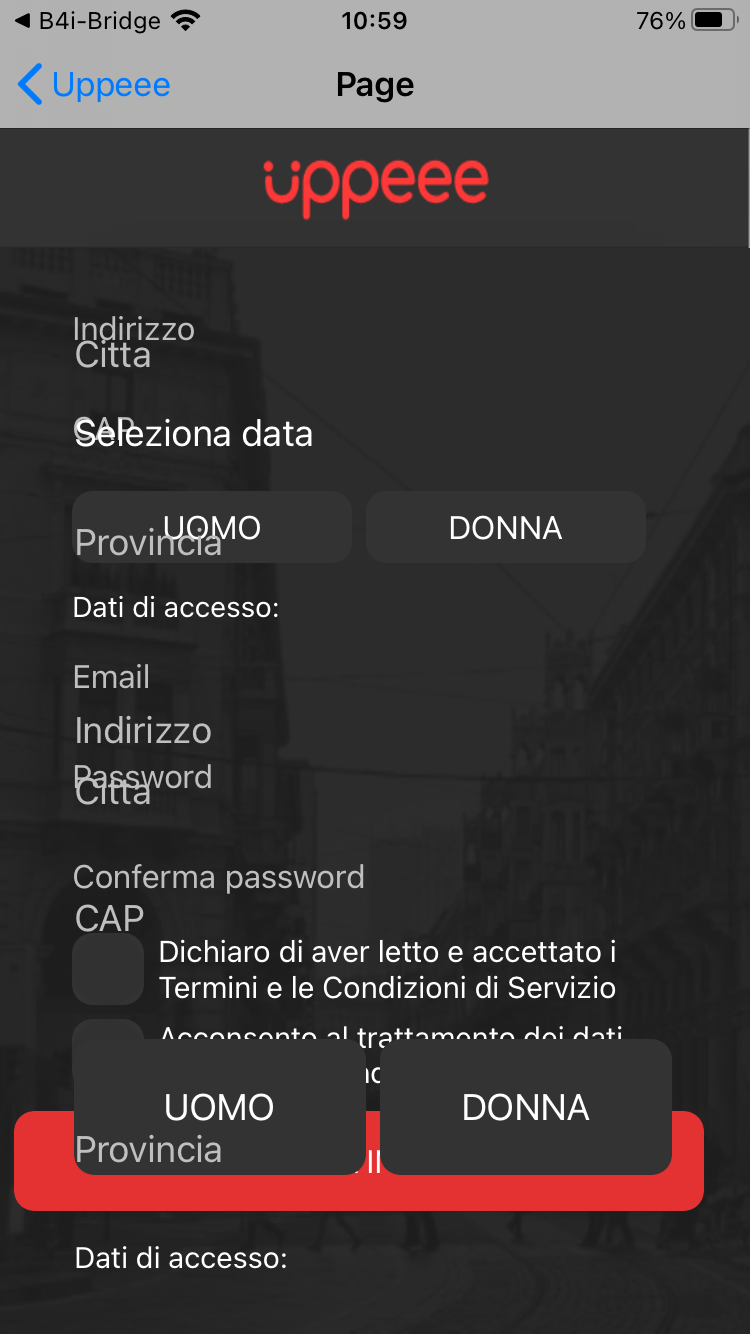

If I go back, and then load it again, it basically loads the same layout twice, so I have all views doubled. Like this, to be clear:

Also, each time I go back and reload the scrollView, the dimensions of the views inside of it get bigger.
To manage the page, I made another code module, and this is its code:
B4X:
'Code module

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private pg As Page
    Private Dialog As B4XDialog
    Private XUI As XUI
    Private Base As B4XView
    Private DateTemplate As B4XDateTemplate
    Private hd As HUD
    Private btnData As Button
    Private btnDonna As Button
    Private btnRegistrati As Button
    Private btnUomo As Button
    Private chkDati As Button
    Private chkTermini As Button
    Private lblDati As Label
    Private lblDatiAccesso As Label
    Private lblTermini As Label
    Private Panel1 As Panel
    Private txtCap As TextField
    Private txtCitta As TextField
    Private txtConfirm As TextField
    Private txtEmail As TextField
    Private txtIndirizzo As TextField
    Private txtPassword As TextField
    Private txtProvincia As TextField
    Private txtUser As TextField
    Private backgroundImage As ImageView
    Private logoImage As ImageView
    Private ScrollView1 As ScrollView
    Dim sesso As String = "N"
    Dim data As String = ""
    Dim check As Int = 0
    Dim checkdati As Int = 0
    Dim myImage As Bitmap
    Dim pref() As Int = Array As Int(0, 0, 0, 0, 0, 0, 0, 0)
    Private btnOk As Button
    Private Button1 As Button
    Private Button2 As Button
    Private Button3 As Button
    Private Button4 As Button
    Private Button5 As Button
    Private Button6 As Button
    Private Button7 As Button
    Private Button8 As Button
    Private Label1 As Label
    Private Label2 As Label
    Private Label3 As Label
    Private Label4 As Label
    Private Label5 As Label
    Private Label6 As Label
    Private Label7 As Label
    Private Label8 As Label
    Private lblCategoria As Label
    Private lblSeleziona As Label
    Private panelPreferenze As Panel
End Sub

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("Scroll")
    End If
    Main.NavControl.ShowPage(pg)
    ScrollView1.Panel.LoadLayout("Register")
    setScrollViewSize(ScrollView1, Panel1.Width, Panel1.Height, False)
    SetButtonAlignment(btnData, 1)
    hintcolor
    Base = pg.RootPanel
    Dialog.Initialize (Base)
    DateTemplate.Initialize
    coloritemplate
End Sub

Private Sub pg_Resize(Width As Int, Height As Int)
    ScrollView1.ContentWidth = Width
End Sub

Sub SetHintColor(tf As TextField, clr As Int)
    Dim no As NativeObject = tf
    Dim attr As AttributedString
    attr.Initialize(tf.HintText, tf.Font, clr)
    no.SetField("attributedPlaceholder", attr)
End Sub

Sub hintcolor
    SetHintColor(txtUser, Colors.RGB(192, 190, 190))
    SetHintColor(txtEmail, Colors.RGB(192, 190, 190))
    SetHintColor(txtPassword, Colors.RGB(192, 190, 190))
    SetHintColor(txtConfirm, Colors.RGB(192, 190, 190))
    SetHintColor(txtCap, Colors.RGB(192, 190, 190))
    SetHintColor(txtCitta, Colors.RGB(192, 190, 190))
    SetHintColor(txtProvincia, Colors.RGB(192, 190, 190))
    SetHintColor(txtIndirizzo, Colors.RGB(192, 190, 190))
End Sub

Public Sub setScrollViewSize (scrollViewInstance As ScrollView, floatWidth As Float, floatHeight As Float, booleanBounces As Boolean)

    scrollViewInstance.Panel.Width   = floatWidth
    scrollViewInstance.Panel.Height  = floatHeight
    scrollViewInstance.ContentWidth  = scrollViewInstance.Panel.Width
    scrollViewInstance.ContentHeight = scrollViewInstance.Panel.Height

    scrollViewInstance.Bounces = booleanBounces
    scrollViewInstance.ScrollTo (0, 0, False)

End Sub

Sub SetButtonAlignment(btn As Button, alignment As Int)
    Dim no As NativeObject = btn
    no.SetField("contentHorizontalAlignment", alignment)
End Sub

Sub SetBackgroundImage(b As Button, bmp As Bitmap, state As Int)
    Dim no As NativeObject = b
    no.RunMethod("setBackgroundImage:forState:", Array(bmp, state))
End Sub

Sub coloritemplate
    Dialog.Title = "Data di nascita"
    Dialog.TitleBarColor = Colors.RGB(228, 49, 49)
    DateTemplate.MinYear = 1940
    DateTemplate.MaxYear = DateTime.GetYear(DateTime.Now)
    DateTemplate.HighlightedColor = Colors.RGB(228, 49, 49)
    DateTemplate.SelectedColor = Colors.RGB(228, 49, 49)
End Sub

What am I doing wrong? How can I solve this problem?
Let me know if I have to provide more information.

Last edited:

Star-Dust

Expert
Licensed User
Try it
B4X:
....
Scrollview1.Panel.RemoveAllViews
ScrollView1.Panel.LoadLayout("Register")
....

Upvote 0

Stefano Di Chiano

Active Member
Licensed User
Scrollview1.Panel.RemoveAllViews
It worked. Also, to prevent the resizing of all views, I put these 3 lines:
B4X:
ScrollView1.Panel.RemoveAllViews
ScrollView1.Panel.LoadLayout("Register")
setScrollViewSize(ScrollView1, Panel1.Width, Panel1.Height, False)
inside of:
B4X:
If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("Scroll")
    End If
Now it doesn't seem to be any problem. Thanks for the suggestion!

Upvote 0
