Android Question sliding panel sliding proble for cosyumlistview

Tayfur

Well-Known Member
Licensed User
Hello ;

I used your sliding panels. it is very good.
I added in tabs "control list view". so, it is not sliding with tabs.

1.steps: run app
2.steps : sliding with tabs cheked . its runnig
3.steps: click button "create list" on Panel2
4.steps: sliding with tabs cheked, so list is not move.

our full sample code is attachemnt.
where is the problem.


Note : ı used costum list view links
http://www.b4x.com/android/forum/th...ew-a-flexible-list-based-on-scrollview.19567/

i used acrtionbar sliding links:
http://www.b4x.com/android/forum/threads/actionbar-sliding-pages-tutorial.36865/#post-350067

full sample project
You can download it from address: http://s000.tinyupload.com/?file_id=04389155563947391584

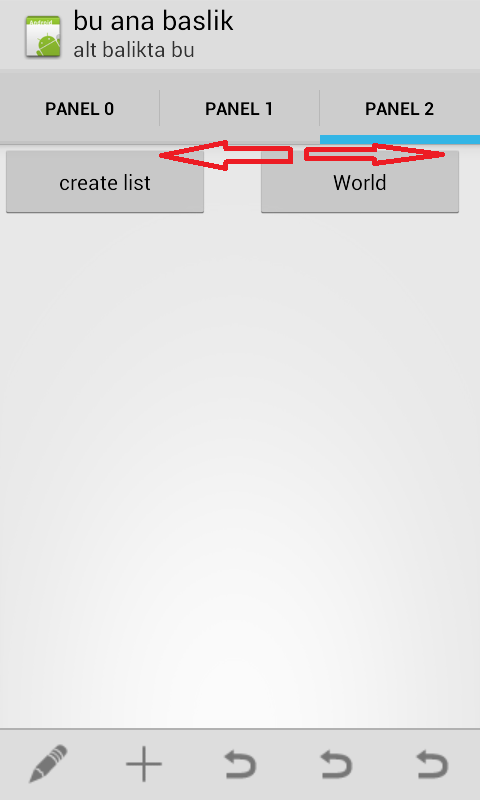

screenshots:

Screenshot_2015-06-29-10-03-43.png Screenshot_2015-06-29-10-05-56.png

'*************libraries****************
' contetn resolver
' CORe
' SQL
' stdActionbar
' stringutils
'*************libraries****************


B4X:
Sub Activity_Create(FirstTime As Boolean)
    If FirstTime Then
    'sh.Initialize
    cu.Initialize
    End If

    Dim height As Int = CalculateHeight(True, True)
    vp.Initialize("vp", 3, 100%x, height)
    Activity.AddView(vp.AsView, 0, 0, 100%x, height)
    'load the pages layouts
    vp.Panels(0).LoadLayout("0")
    vp.Panels(1).LoadLayout("1")
    vp.Panels(2).LoadLayout("2")
    bar.Initialize("bar")
    'bar.Icon = LoadBitmap(File.DirAssets, "giris.png")
    bar.NavigationMode = bar.NAVIGATION_MODE_TABS
    bar.AddTab("panel 0")
    bar.AddTab("panel 1")
    bar.AddTab("panel 2")
    bar.ShowUpIndicator = False' True
    bar.SelectedIndex = currentPage
    Activity.Title = "bu ana baslik"
    bar.Subtitle = "alt balikta bu"

    Activity.AddMenuItem3("", "mnuEdit", LoadBitmap(File.DirAssets, "ic_action_edit.png"), True)
    Activity.AddMenuItem3("", "mnuNew", LoadBitmap(File.DirAssets, "ic_action_new.png"), True)
    Activity.AddMenuItem3("", "mnuUndo", LoadBitmap(File.DirAssets, "ic_action_undo.png"), True)
    Activity.AddMenuItem3("Home", "ActionHome", LoadBitmap(File.DirAssets, "ic_action_undo.png"), True)
    Activity.AddMenuItem3("Search", "ActionSearch", LoadBitmap(File.DirAssets, "ic_action_undo.png"), True)
End Sub


...

B4X:
Sub Button1_Click
' cretae phobne list
    Rehber_yukleme
End Sub


Sub Rehber_yukleme

    '********************* SMS GÖNDERME VE ARAMA *****************************************
    'Dim xcall As PhoneCalls
    'Dim xsms As PhoneSms
    'xsms.Send("+905335135121","2 sistemm çalıstı")
    'Dim  sonuc As PhoneEvents
    'sonuc.Initialize("PE")


    'StartActivity( xcall.Call("02127711379"))
    '********************* SMS GÖNDERME VE ARAMA *****************************************
    'clv3.Initialize(Me, "clv3")
    clv3.Initialize(Me,"clv3")
    'clv3.Initialize(Panel_rehber,"clv3")
    'clv3.Initialize(vp.Panels(1),"clv3")
    Activity.AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-10)
    Dim reh_list As List
    reh_list.Initialize
    reh_list.Clear
    Dim adet As Int=cu.FindAllContacts(True).Size
    DoEvents
    Log (cu.FindAllContacts(True).Size)
    DoEvents
    Dim i As Int=0
    For Each c As cuContact In cu.FindAllContacts(True)
        reh_list.Clear
        For Each phone As cuPhone In cu.GetPhones(c.Id)
        'sb.Append(phone.Number & ", " & phone.PhoneType).Append(CRLF)
        reh_list.Add(phone.Number)
        Next
        i=i+1
        'clv3.Add(CreateListItem2( Rehber(i).isim, clv3.AsView.Width, 38dip,Rehber(i).telefon,i), 38dip, Rehber(i).id )
        DoEvents
        clv3.Add(CreateListItem2( c.DisplayName, clv3.AsView.Width, 38dip, reh_list,i ), 38dip, c.Id)
        'clv3.Add(CreateListItem2( Rehber(i).isim, clv3.AsView.Width, 38dip,Rehber(i).telefon,i), 38dip, Rehber(i).id )
    Next

End Sub


Sub CreateListItem2(Text As String, Width As Int, Height As Int, phonelist As List, index As Int) As Panel
    Dim p As Panel
    p.Initialize("")
    p.Color = Colors.Black
    Dim b As Button
    b.Initialize("button") 'all buttons click events will be handled with Sub Button_Click
    Dim chk As CheckBox
    chk.Initialize("chk")
    Dim lbl As Label
    lbl.Initialize("etiket")

    Dim spn As Spinner
    Dim spn2 As Spinner
    spn.Initialize("spn")
    spn2.Initialize("spn2")
    spn.AddAll(phonelist)
    spn2.AddAll(Array As String("< YOK >","bey","hanım"))
    lbl.Gravity = Bit.Or(Gravity.CENTER_VERTICAL, Gravity.LEFT)
    lbl.Text = Text
    lbl.TextSize = 16
    lbl.TextColor = Colors.White
    b.Text = "Click"
    chk.Tag=index
    spn2.Tag=index
    spn.Tag=index

    p.AddView(chk, 5dip, 2dip, 50dip, Height - 4dip) 'view #0
    p.AddView(lbl, 55dip, 2dip, 165dip, Height - 4dip) 'view #1
    p.AddView(spn, 220dip, 2dip, 170dip, Height - 4dip) 'view #2
    p.AddView(spn2, 390dip, 2dip, 150dip, Height - 4dip) 'view #3
    Return p
end sub


eurojam

Well-Known Member
Licensed User
Merhaba Tayfur,

I only took a short look to your project. The problem that your costumlistview is not sliding belongs to your sub Rehber yükleme where you load the listview:
B4X:
Activity.AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-10)
this means that you add the listview to the Activity and not to the Tab. this should be something like:
B4X:
vp.Panels(1).AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-70)
if you want to add it to the second panel...

İyi Şanslar
stefan


Tayfur

Well-Known Member
Licensed User
Merhaba Tayfur,

I only took a short look to your project. The problem that your costumlistview is not sliding belongs to your sub Rehber yükleme where you load the listview:
B4X:
Activity.AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-10)
this means that you add the listview to the Activity and not to the Tab. this should be something like:
B4X:
vp.Panels(1).AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-70)
if you want to add it to the second panel...

İyi Şanslar
stefan
thank you stefan it work;
( I worked it with diffrenet way last night. So your way is simple )

Last edited:

Tayfur

Well-Known Member
Licensed User
Merhaba Tayfur,

I only took a short look to your project. The problem that your costumlistview is not sliding belongs to your sub Rehber yükleme where you load the listview:
B4X:
Activity.AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-10)
this means that you add the listview to the Activity and not to the Tab. this should be something like:
B4X:
vp.Panels(1).AddView(clv3.AsView,0,Button1.Height , 100%x*0.90,100%y-Button1.Height-70)
if you want to add it to the second panel...

İyi Şanslar
stefan

Stefan, Vielen Dank für Ihre Informationen
