Android Question [SOLVED] Need assistance with RSA decryption

Johan Schoeman

Expert
Licensed User

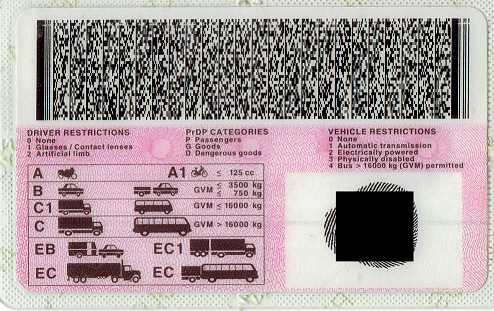

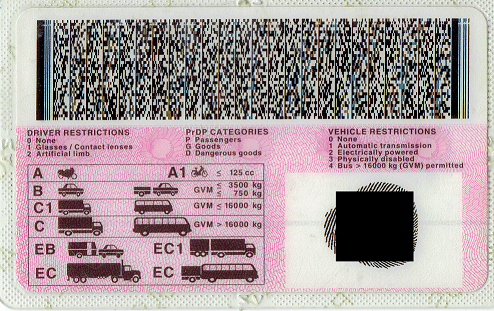

The below South African Drivers License comes from here:



It is an encrypted PDF417 barcode and contains a whole lot of information about the owner of the license (including a low res image).

When scanned with a barcode scanner, it returns the following string (scanner based on Android Mobile Vision - ZXING will not scan it):

B4X:
        E����JNÒsÑÿ!7nܵÈê'ß7¢ÿáÀük-Sc§s4ÿµ#6ÊN¿gµêðWsWà'cuz^¿;ýÐW-nÞýöîæ4wY)^þ«"í2ìÆ,<P8LKùà½äF`$2ÿÍ|BîÂt]·9©onkq©3çX
    ×ü<ª!¤&·��âí}cz}[q@>8Ñàt¨;åy¢`ãRÅÂEË¡ ÕdáÞKÒ/
    \©ð&Aìcaèü¸Ä<:¼"CÃÕ¿ÐDª/õL®ZæÄÚÍæÑü`¦"mLMÝmrAdk¨±ì:fð·!º®bó8¡y[£%.3ý³×Ð> ܪ    2¸wä$¹òz+Æή
    P0b£´
    F^y¾Ø#é SyúkÛ«uôHEyµþpÑÈÄ@<wæ_Ì×i)"ó꺼ð?Úr¥¬gñJö¾@îÐá    8H`J`¶d÷óqPǸu¢gg4õúVÌs7íµÉäVhL£¸gLè¶5ä1}&Å}¿QìüïÝ·+ùÏåzVÄCóÁ%¨§8ªÜ-JX¿ÚljpÆ<ض#åT5ýK§DÞNu;® Å÷¦LcgVñHL
    GñxÊYÊgî¾Ë¹üYSðP!1K#Ò|J}v©³°ZÓÒTB³eÉ.t~¼ñÀñ~h©|ü·ºÿ}`½}³k
    ~@K±ËÍ3·Ð×£«^)fö§    óñ¥Áx·O¯*U˵p°hD*úûéÿb
    ¬fÇO¸Kîß×á²B5Ûk]
    Ú±?ÚtÌàìʧâ#:9© ÓUÖëÛ
    Òø®EÅïi|÷q·

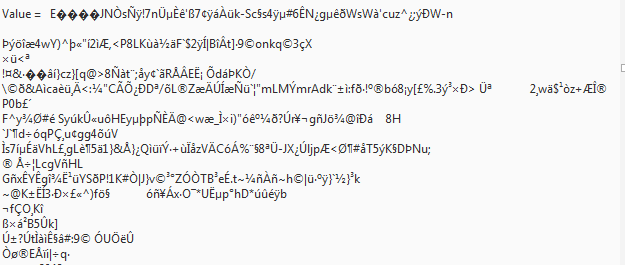

The above string looks like this in the B4A log:


When I process the above string with:
B4X:
    Dim bc As ByteConverter
    Dim ss As String = bc.HexFromBytes(val.GetBytes("ISO8859_1"))

    ss = ss.Replace("3F3F", "00")
    ss = ss.ToLowerCase

....I get this as the result:
B4X:
019b094500004a4ed27390d1ff21376edcb5c897ea27df8d37a2ffe1c0fc6b2d53631ca7730634ff1bb52336981eca4ebf1367b5eaf0577f067357128d9ae02763757a5e829cbf3bfdd0572d6e0b1585defdf6eee6347759295e1dfeab22ed32ecc62c903c507f384c4bf907e081bd9ae446602432ffcd7c42ee9498c274105db739a96f836e6b9471a933e7580dd79ffc1f013c92aa0b967f21a4261bb700e2ed7d631c7a7d1b5b1171403e38d1e01674a8073b0e99e50379a260e3521dc5c245cba11020d564e1de4bd22f0d5ca9899af02641ec6361e889fcb805c43c3a11bc9d14229b4382c3d5bfd044aa2f0ef59b4cae5ae6c41adacde6d1fc1060a6226d4c4ddd19196d729141646ba8b116ec99173a66f0b721ba83ae0e62f30438a1795b8914a3252e0233fdb398d7d03e20dcaa093287b877e4241c1cb9f27a2bc6ceae0a50033092966282a3b41a0a465e18791b1bbed823e920537912fa6bdbab75f4484579b5fe9370d1c8c4403c7710e65f1bccd7692922f3eababc9ff03fda72a586ac67f14af6be9b40eed0e1079314093816480c60804a6094b664f79cf37150c7b875a2676734f58cfa560ccc7337edb5c986e48656684ca301b8674c908fe8b61b35e406317d26c57dbf51ecfcef82ddb72bf91bcfe5ad877a56c44390f3c125a8a73887aadc2d4a58bfda069f6c156a70c618ad3cd8b623e55435fd4b90a744de844e15753b851eae20c513f7a64c636756f11648824c0d47f178ca59ca67ee1dbecbb9fc59539ff05021314b23d2027c4a7d76a905b3b05ad3d208544218b36583c92e747ebc03f1c0f1957e68a97cfc07b7baff7d60bd7db36b0d7e404bb11683cbcd331eb794d0d7a3ab5e2966f6a79109f3f1a5c178b74faf2a551dcbb570b068442afafbe9ff620dac66c74f81b84bee0cdfd78ee1b242358adb6b045d0dda06b13fda74cce0eccaa7e2233a14ad39a91420d30455d6ebdb0dd218f802ae8b45c5ef69827c8ef71071b7

The above is 720 bytes long. The first 4 byte (019b0945) is the license version number. The next two bytes are each "00". The remaining 714 bytes are split into 5 blocks of 128 bytes each and 1 block of 74 bytes. The first block of 128 contains all of the "readable" data. The 1st block needs to be decrypted with a RSA public key. Once decrypted the "readable information" can be extracted from the decrypted bytes. The RSA public key is hard coded in the inline Java code of the attached B4A project:

B4X:
        String longKey = "-----BEGIN RSA PUBLIC KEY-----" + "\r\n" +
                         "MIGWAoGBAMqfGO9sPz+kxaRh/qVKsZQGul7NdG1gonSS3KPXTjtcHTFfexA4MkGA" + "\r\n" +
                         "mwKeu9XeTRFgMMxX99WmyaFvNzuxSlCFI/foCkx0TZCFZjpKFHLXryxWrkG1Bl9+" + "\r\n" +
                         "+gKTvTJ4rWk1RvnxYhm3n/Rxo2NoJM/822Oo7YBZ5rmk8NuJU4HLAhAYcJLaZFTO" + "\r\n" +
                         "sYU+aRX4RmoF" + "\r\n" +
                         "-----END RSA PUBLIC KEY-----";

So, the first block of 128 bytes after the "6 byte header" is as follows:

B4X:
4a4ed27390d1ff21376edcb5c897ea27df8d37a2ffe1c0fc6b2d53631ca7730634ff1bb52336981eca4ebf1367b5eaf0577f067357128d9ae02763757a5e829cbf3bfdd0572d6e0b1585defdf6eee6347759295e1dfeab22ed32ecc62c903c507f384c4bf907e081bd9ae446602432ffcd7c42ee9498c274105db739a96f836e

The block is then passed to inline Java code to decrypt the block with the public RSA key so that the readable information can be extracted. The string after decryption of the first block of 128 bytes looks as follows:
B4X:
AQIDBAUCNRYDADIBFoJaRULh4eFLUklHReBaQeFaQeBaQeAw4eHhNjAzOTAwMDI2N0NT4Dc5MDIxMTUxMzEwODgCIAIRJqqhCgEZeQIRIBIJFSAXEBEBV0kEAPoAyENSKEAAKMbqRsq2NJfBrvb3p83e1vjMQzTm+NjV0O76K+8=

Processing the above string via.....
B4X:
    Dim s As String = BytesToString(MyBase64StringAsBytes, 0, MyBase64StringAsBytes.Length, "ISO8859_1")
    Log("s = " & s)
.....results in.....
B4X:
s = 5��2ZEBáááKRIGEàZAáZAàZAà0ááá6039000267CSà7902115131088 &ª¡y      WI��ú��ÈCR(@��(ÆêFʶ4Á®ö÷§ÍÞÖøÌC4æøØÕÐîú+ï

Some of the information above is now readable. Further processing of the above string give all the readable information:

B4X:
result.length = 128
result[0] = 1
returned string = AQIDBAUCNRYDADIBFoJaRULh4eFLUklHReBaQeFaQeBaQeAw4eHhNjAzOTAwMDI2N0NT4Dc5MDIxMTUxMzEwODgCIAIRJqqhCgEZeQIRIBIJFSAXEBEBV0kEAPoAyENSKEAAKMbqRsq2NJfBrvb3p83e1vjMQzTm+NjV0O76K+8=
s = 5��2ZEBáááKRIGEàZAáZAàZAà0ááá6039000267CSà7902115131088 &ª¡
y      WI��ú��ÈCR(@��(ÆêFʶ4Á®ö÷§ÍÞÖøÌC4æøØÕÐîú+ï
section1 = EB,,,,KRIGE,ZA,,ZA,ZA,0,,,,6039000267CS,7902115131088
License type 1:  EB
License type 2:
License Type 3:
License Type 4:
Surname:  KRIGE
Initials:  ZA
PrDP Code:
ID Country of Issue:  ZA
License Country of Issue:  ZA
Vehicle Restriction L1:  0
Vehicle Restriction L2:
Vehicle Restriction L3:
Vehicle Restriction L4:
License Number:  6039000267CS
ID Number:  7902115131088
amendedSection2 = 0220021126........................10........0119790211201209152017101101
ID Number Type: 02
Issue Date L1: 20021126
Issue Date L2: ........
Issue Date L3: ........
Issue Date L4: ........
Driver Restrictions: 10
PrDP Expiry Date: ........
License Issue Number: 01
Birth Date: 19790211
Valid From: 20120915
Valid To: 20171011
Gender: Male
Note that in the above it logs the following in method GetPaddedValue of the inline java code.

B4X:
result.length = 128
result[0] = 1

In the attached B4A project I have 6 of the 720 byte strings from 6 different licenses (i.e original scan strings converted to hex strings). I can successfully decrypt 4 of them. The other two, despite also being version 2 driver licenses (they also start with 019b09450000), causes an error.

So in the attached workbook I have the following 6 hex strings from the 6 licenses:

B4X:
    'belinda string - NOT WORKING
    'Dim ss As String = "019b09450000a2abb033685dcb5ff6166a28b5eb036166b2676362b8cb57cbe7f4d3b8075468db5633247f5e565ec1e774e746a4adc3e0a573a28c0d74f69b77c3027d62b3e256dcbe68d25e3c339da35b0290d89a559efcbc1a68be6a1fd5dfa7daebfe8d1ce60b11bd1bb82aa1c900e975dfd3ea056b77d35be221c307acc44c3148347ec180c65020f41d6348993f9ccebde625fec13c83a67c87222613c6167a559eacebddef6a93a70eba7b7073ce460313e8a814bbca5bdd4e65ec5a7a99da44964c48b151d1c8616f0ba2e7e8c11ab2ce9023339e1c0b00aca0bccc0be1471a77182893ae5318bf6bd3820d70561c438137adcf1fc3e4e9b623d1aabacc7a0a0128c98b5540ff346c51799de9ae6416bcc76aafeed683f10cb0e70ccaab2c676a107606e65fc00beea17a4eb6f12d2ba8af5050b70f6e0481533c4d06ada62cd84624db40cd4e3dd7451aefd7cfbed8d4f69d671b71833b4823c11d9e26aa4538b6ccb80c9a3200e0c73bd9e7841dd7dd9af9ca452ead93bcd88ff577170a6f063edf3d8918c11ebf24534b7f8328bbd2b174dcd70b1eecac2cc8da15710881f95e6a8ea22a7de7aeb07b82cbdd6c630fc76e3c1d94a419182558ae0428c57dbc8d52192683c1deda6b6bff76d792b0dc86e8582acc078c70ec2fa331ed90533cddf29c6d572ff79175ffb16eb5a2f00761d79b6acc226effe42f4a7c373a87065cac26e2631fb3b78a8a338de553f8a9fb954c7bf864ff45c5a239625fbf74ce0db2ab2c3a171c6ce17e7e2f0e5b37ef95cc3861a524f2bb12d46e09e0feb7a18a2e236cc162d455e8775e72a2f3f655acfd57f2b31fe0ddc182520aeab060459d41e4da7f0e4ed468cf3e96b41bfc83f8ee956626dde22c4c5fb26c91351b73dd35afcb1a963872cb187ff2ec3cc653cfbeb97a738be31d40f094eec1b1805812cdd19d1cb36704105ba1804497fc7df8de66323dc275a5265008a33a2d53ab23c9fb55e9fb34f8621932b4"

    'Unknow string - NOT WORKING
    'Dim ss As String = "019b09450000c07d3c8821b740587748fcbe6e6a28140f1d14cefd32d4817c1018d814e2a8244b579ca6f686ce6bb8280c5dadc9eea2621fdb51f64938f66ca2f2a75256d9ecaf14b4b8cef7290289dae91734ba70016fabf013d9f10fda610a0797b753db2e7906cc7417ffbfc45b90b6cf5d35b3ccb117a34af670a11eb3f7a8016f741405b2b3e942961132a728ab8d692acb2bdaddebda9987de7d50f8528df90f1061e5ba550605b560b7121a710f31c4b5447520bfa2b5fb6c146099ab7bc2b7a2a676a609eeee12711586df182133aef77bfe1c415cb74271dec882e002f7ac257744300a172579544940b39e7d39e21412bbf9da3490217661ad191d64337f4c2525681042b86a9bd268b85fdce8a9670f6d69772e04d06fcaf7cc9eefacd8903ac4c9681bde496c042bb0454cf24bb052961d5edd677116329ad51621cb81183b95a6af6aae00c38372c2dd7197e14b41292acd9d2fe4cfcb44127908c6f7fb89f2fe6d5419c5daae25435f2471e61d982bb1e51b2736f0c7070a81fc554f50aaf0703a3e2769946f7a40097b3847e6d55ce9ffd2d0f7db3a256b76eff48f3a75414a880d8978ed80bf48ef508e6acb8cb2e59c1a8d446494b330c8ce9aedfc99d9f527ac5704f7634a09621ec4576e5d24ea3f9169336c747af52106ea5acfeecc0b6d7f8d74e31ddea20c18f830529586d4015f41e380277f69e9c79c4ec9e62a4135c3eb401595aca79040760133d3698ddfa9c24dd519527caca9ef268d0029ef423cf6512306c419fce0e23f4bfec2b77154ef481f94fb6efbd28837c593cd5b818884eb83cf57628b958d88659e8145a8c51e0c582df8a3a999cf8d93f15421603f23103909984452e75ac19c31c07e6b2c70d56c4024dcfa5b8e67cd01db2dc8415930ca193a2dc02746e5a7693fcc1676b7177f859032bd79cbe985161199283688e5a63bfab628b52701fcf714b397253a5dde3a3e152814d4dda4b708c15af6b1747b0235d225"

    'jansen string WORKING
    'Dim ss As String = "019b0945000060e9a27a1e475f89af17cb3a5ae86bd91152d22fbca1f462ba8bd39e9341bb26ad82e3ab1b4e68069247b75286edb64fed476c1a444bba7ffeca8ac9ddcf629ac582a865b8eefec682f33de40e68a6fc08265df86ad058376db56e4a9d2a2da285d11f408493fb4706abc346632a156b517c87b58372a3afda8be11dbae4a8f5a3d1881559ce0c69acd026770fd9e75c28c4abd0b2796e70eca894d8546bd8456bdcd9af0aa112f78b56523471b46805ae844a66108ba2f12a28180e5ddded48436239eae212c6193d351201e6a24613d2482ddae552bf7e21729246667a9cd5c730ba4b80736586f5f90894b1017fcea7b299cd6241a266c4b7b28b704de1f0266025358d134686e1cac2ba9af74ea16b9524f4fca20792d2618beec8499dbab596f5a56531f26462c996dad5e1278400a5266c5b5aed2dd3cae135821148bdfd3d564ac127c90d3a125031cb263e63879dfdd10725dc80225a700e5d259a5a1d2340d7bd2d3fecc9b078e1726661e2c51b945b56d762fa3067f2b926dd2707a74e1535abf1a7ee09b0ec40689cd3b3b9995dfdda9b5f33482f1441afa48304a68b24b942464d0334d4b20c17a6f09d5db119257212f7b2d48860e22c64924dc53c03557624a020b175ef47553946ce2e60c3f2ba95865d73b2d440c2fd3eb3c9850447c249c869444dbc103d8197c5556355e6c46455b61aa0b176bcc73290b532726d4339bb35b144fecf5c5d4c5e90aef23fc9c9375ae7206f9ea5a22255365f7e0728e3360cb78562c805a4f9a2b4a674eb5af30b598b98b16227a223505e2e013e426296e8f3d1ff03d6506fa431162438afabbc4e8b9626e8821d6bd264ff9d35a2df90e2be27e0297c162a0a6bbc937f349d31413484b52ca27255b2263abde2793cb946387685de9662777cdf6808a18c3a25759ed4e6ab6410f7881b655421be87e3f3df100062f12ae806059ca3e11248557080a64e4ec6e0a46697cae4c5c5197e3defdc"

    'johannew string WORKING
    'Dim ss As String = "019b094500006713c45dcaf37a7573c2daed9badf4374e3629389f8a6bf3c65104384407f66f3233d4bab833052c89dd15cc80f930691ff8fcc77bf0494ea408b5ec0465a9b88580c95c46cc21349fca03a10b95778cbd9672c53d150e4aae7cbf9b61bdadcd3c69f11033236d2e1227f69f49db401a85a7021a547c616b7038337238d37d1086bb3c730c737faac164bae9cdaf0273904fa875799078779660f87fbf0a28af53739ac87c39758100fd9bcc3bedc8716c35212b7f911add64c43281bd18eb12f1bc7f01249f14ecf7e6e8ed2e2c66f32f0716aef21b5b7febd889457632caaa878b6d253d5d4f038de565df54b29c8b3dd87714780c0e8c027b1577d9375f76c2ee868bf2760e27dd2ac4b1611ac2f0695884d2eb80b00c2cd52505a3f3acf58a2306a47172519e67dd3c5ac1e6e49f8535fec93e8d9b322ef9ba2cc5b092ede4a45fa0ba7c014463e860d6faf105ebec9baee6a3255c343a0cc9974b379a7d70b346986688513ef22493fb4d1ae8443cd721827f7eec933891e07f471cc2e197c11ea82233d32c666f70802dae71d2bafcec2550f7458d40c23f0c0f3d9452253d9ae6c79bd7d9592fa744c1c3c40b945f48693ca1b447675987ea51d631bed99c63865b25a8446ff2259a454f3707646c27812f175410c930c82c60c3126755650c5d137dcd15b286c32dcccbb3074d667299144df44cc4eb24675e8827835a581ef384754c2c007d720d82c89c7608cac15437b060f2ef9a97547fca3adbad61da1e9b0db9061fe83c10cf326e92b8b7e787ef8e45ffc056e100a504ae09578fdcedd0d3abf1286c776e7a4bfd02b93f34e9121bf66f17a77a4db36ba04032a553892d1c3f6c377be4f7696357bebaa983ea3166592c8afc35282ae55aba64d83f7436aa0b4b58670855a28f2e14e67b2e84411e39b7fe19cd68be5ca411b9f60a9f0339e19ae8bda50223fb4930df0b8a20ed4528a601296a814721245db392b6afa929f1d547c3"

    'johanold string WORKING
    'Dim ss As String = "019b094500007cdcb8576ac0f92810ba68bce85d9b5cf4b76af287fe720bf1da17319046c9f844bd13bcdbb748e7b80891540bdfbbcb0b7f77aee2791edd331e831e45a6061986ed68cfa1110383a58e41a663ee202253a9c4c9b5ff369e2ed5c45e43250f97326bb3a399f8e581c407413fa48cb6b0b9d793410be17b6c9f19b9771022acda24be7b46e959f6e76ca8a845ecfee5da4abdb4852daf5ca12e8323d7299c204279dfa0e6b524441c1717407f7e91c0a7de349b9083c979b657983ae0f3b858fdd195068b2bd5f888bd955a0b617edc50e947b301a47465a6d9a5efde9c0dc0c05e8c6ecf84cf577754209d433e572f9a5cc32485f3f7aa529c576cd2371beef401d91734ecd50ac2b35f736c9652b0c53c758c48f685b360ff3892582ee148dda4e86221aac59ed267c43ac6ca3732e345382f3860ed117900519f698b68d394056c210c95ed38b3d1acab8b543a5751bc78b2f9840b69fe4e7baf823238683a92d789834838cbb7522a128bd386e3905b58a5dde243eaa5a8ded4881a8c923d51b102c55e3ca784afdff0d389e318d495f770505f74b911de71e3e920ff8d59082879c2f1f0c0de3ab9416d0c1805febe5f5bd46f99b6762654f6a3d1343d08dadfc879b221693d0cb5dd770df71a04b91c5c3f8268239e785c5018d4a87d6b6307b60cbed43c01dcfd15f0608da1b9f35aa2d02be07b75976efced38946abd8488c1f46e7c54e440cf561740afbd920b193ab633c21510f949ea905b3f42c47f905fe7caa246aa6b9ac14530b3a72d54ba7a4ad2973fac82019a361e1105ec5b261ca497c053266878d6fe14a56da5178840a3f11e46ba03469e4dd5cf280c956eb2156162a4ae7fc797bef428bb45693ea1a5885727adb2d237390cc8e8c63c74fa2c89c7212c692e72a7e0be0562463d07001ae8345db510256d9011951fd8d66cb4e0c2d228f323ca6afba185f7e454dc8d3621aa992a73e061c90c2b2be426d5a19c1205b53b41"

    'Krige string WORKING
    Dim ss As String = "019b094500004a4ed27390d1ff21376edcb5c897ea27df8d37a2ffe1c0fc6b2d53631ca7730634ff1bb52336981eca4ebf1367b5eaf0577f067357128d9ae02763757a5e829cbf3bfdd0572d6e0b1585defdf6eee6347759295e1dfeab22ed32ecc62c903c507f384c4bf907e081bd9ae446602432ffcd7c42ee9498c274105db739a96f836e6b9471a933e7580dd79ffc1f013c92aa0b967f21a4261bb700e2ed7d631c7a7d1b5b1171403e38d1e01674a8073b0e99e50379a260e3521dc5c245cba11020d564e1de4bd22f0d5ca9899af02641ec6361e889fcb805c43c3a11bc9d14229b4382c3d5bfd044aa2f0ef59b4cae5ae6c41adacde6d1fc1060a6226d4c4ddd19196d729141646ba8b116ec99173a66f0b721ba83ae0e62f30438a1795b8914a3252e0233fdb398d7d03e20dcaa093287b877e4241c1cb9f27a2bc6ceae0a50033092966282a3b41a0a465e18791b1bbed823e920537912fa6bdbab75f4484579b5fe9370d1c8c4403c7710e65f1bccd7692922f3eababc9ff03fda72a586ac67f14af6be9b40eed0e1079314093816480c60804a6094b664f79cf37150c7b875a2676734f58cfa560ccc7337edb5c986e48656684ca301b8674c908fe8b61b35e406317d26c57dbf51ecfcef82ddb72bf91bcfe5ad877a56c44390f3c125a8a73887aadc2d4a58bfda069f6c156a70c618ad3cd8b623e55435fd4b90a744de844e15753b851eae20c513f7a64c636756f11648824c0d47f178ca59ca67ee1dbecbb9fc59539ff05021314b23d2027c4a7d76a905b3b05ad3d208544218b36583c92e747ebc03f1c0f1957e68a97cfc07b7baff7d60bd7db36b0d7e404bb11683cbcd331eb794d0d7a3ab5e2966f6a79109f3f1a5c178b74faf2a551dcbb570b068442afafbe9ff620dac66c74f81b84bee0cdfd78ee1b242358adb6b045d0dda06b13fda74cce0eccaa7e2233a14ad39a91420d30455d6ebdb0dd218f802ae8b45c5ef69827c8ef71071b7"

I have commented WORKING and NOT WORKING for each of them. The 4 x commented as WORKING - I can successfully extract all the information. The two that are not working - a little bit lost why they don't work.

What I have noticed is that in this method....

B4X:
    //Unsigned integer types have no direct equivalent in Java:
    public byte[] GetPaddedValue(BigInteger value, int length) {
        //Unsigned integer types have no direct equivalent in Java:
//        byte[] result = org.bouncycastle.util.BigIntegers.asUnsignedByteArray(value);
        byte[] result = value.toByteArray();
        BA.Log("result.length = " + result.length);
        BA.Log("result[0] = " + result[0]);

        return result;

    }

.......the 4 x that are working logs

B4X:
result.length = 128
result[0] = 1

....while the two that are not working logs
B4X:
result.length = 129
result[0] = 0

I am a bit lost here as to why the length of the 2 x not working is 129 (should be 128)

The B4A project makes use of this jar

https://drive.google.com/open?id=1TW_Hv3spE_eoB8Qlr3b7InXfzsG1Qm5h

B4X:
#AdditionalJar: bcprov-jdk16-1.43

Anyone that can perhaps shed some light on why the 2 x NOT WORKING hex strings go skew in method GetPaddedValue?

B4A code is as follows:

B4X:
#Region  Project Attributes
    #ApplicationLabel: b4aScanDLtest
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: portrait
    #CanInstallToExternalStorage: False
    #MultiDex: True

#End Region

'#AdditionalJar: commons-codec-1.11
#AdditionalJar: bcprov-jdk16-1.43
'#AdditionalJar: bcprov-jdk15on-154
'#AdditionalRes: ..\LibRes


#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

    Dim nativeMe As JavaObject

    'https://github.com/ugommirikwe/sa-license-decoder

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.


    Dim su As StringUtils

    Private ListView1 As ListView

End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")

    nativeMe.InitializeContext

    calc



End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)


End Sub

Sub calc


    'STRING RETURNED FROM BARCODE SCANNER (PDF417 Code)

'    val =     E����JNÒsÑÿ!7nܵÈê'ß7¢ÿáÀük-Sc§s4ÿµ#6ÊN¿gµêðWsWà'cuz^¿;ýÐW-nÞýöîæ4wY)^þ«"í2ìÆ,<P8LKùà½äF`$2ÿÍ|BîÂt]·9©onkq©3çX
'    ×ü<ª!¤&·��âí}cz}[q@>8Ñàt¨;åy¢`ãRÅÂEË¡ ÕdáÞKÒ/
'    \©ð&Aìcaèü¸Ä<:¼"CÃÕ¿ÐDª/õL®ZæÄÚÍæÑü`¦"mLMÝmrAdk¨±ì:fð·!º®bó8¡y[£%.3ý³×Ð> ܪ    2¸wä$¹òz+Æή
'    P0b£´
'    F^y¾Ø#é SyúkÛ«uôHEyµþpÑÈÄ@<wæ_Ì×i)"ó꺼ð?Úr¥¬gñJö¾@îÐá    8H`J`¶d÷óqPǸu¢gg4õúVÌs7íµÉäVhL£¸gLè¶5ä1}&Å}¿QìüïÝ·+ùÏåzVÄCóÁ%¨§8ªÜ-JX¿ÚljpÆ<ض#åT5ýK§DÞNu;® Å÷¦LcgVñHL
'    GñxÊYÊgî¾Ë¹üYSðP!1K#Ò|J}v©³°ZÓÒTB³eÉ.t~¼ñÀñ~h©|ü·ºÿ}`½}³k
'    ~@K±ËÍ3·Ð×£«^)fö§    óñ¥Áx·O¯*U˵p°hD*úûéÿb
'    ¬fÇO¸Kîß×á²B5Ûk]
'    Ú±?ÚtÌàìʧâ#:9© ÓUÖëÛ
'    Òø®EÅïi|÷q·

'    Dim bc As ByteConverter
'    Dim ss As String = bc.HexFromBytes(val.GetBytes("ISO8859_1"))
'
'    ss = ss.Replace("3F3F", "00")
'    ss = ss.ToLowerCase

    Dim conv As ByteConverter

    ListView1.Visible = True
    ListView1.Clear


    'belinda string - NOT WORKING
    Dim ss As String = "019b09450000a2abb033685dcb5ff6166a28b5eb036166b2676362b8cb57cbe7f4d3b8075468db5633247f5e565ec1e774e746a4adc3e0a573a28c0d74f69b77c3027d62b3e256dcbe68d25e3c339da35b0290d89a559efcbc1a68be6a1fd5dfa7daebfe8d1ce60b11bd1bb82aa1c900e975dfd3ea056b77d35be221c307acc44c3148347ec180c65020f41d6348993f9ccebde625fec13c83a67c87222613c6167a559eacebddef6a93a70eba7b7073ce460313e8a814bbca5bdd4e65ec5a7a99da44964c48b151d1c8616f0ba2e7e8c11ab2ce9023339e1c0b00aca0bccc0be1471a77182893ae5318bf6bd3820d70561c438137adcf1fc3e4e9b623d1aabacc7a0a0128c98b5540ff346c51799de9ae6416bcc76aafeed683f10cb0e70ccaab2c676a107606e65fc00beea17a4eb6f12d2ba8af5050b70f6e0481533c4d06ada62cd84624db40cd4e3dd7451aefd7cfbed8d4f69d671b71833b4823c11d9e26aa4538b6ccb80c9a3200e0c73bd9e7841dd7dd9af9ca452ead93bcd88ff577170a6f063edf3d8918c11ebf24534b7f8328bbd2b174dcd70b1eecac2cc8da15710881f95e6a8ea22a7de7aeb07b82cbdd6c630fc76e3c1d94a419182558ae0428c57dbc8d52192683c1deda6b6bff76d792b0dc86e8582acc078c70ec2fa331ed90533cddf29c6d572ff79175ffb16eb5a2f00761d79b6acc226effe42f4a7c373a87065cac26e2631fb3b78a8a338de553f8a9fb954c7bf864ff45c5a239625fbf74ce0db2ab2c3a171c6ce17e7e2f0e5b37ef95cc3861a524f2bb12d46e09e0feb7a18a2e236cc162d455e8775e72a2f3f655acfd57f2b31fe0ddc182520aeab060459d41e4da7f0e4ed468cf3e96b41bfc83f8ee956626dde22c4c5fb26c91351b73dd35afcb1a963872cb187ff2ec3cc653cfbeb97a738be31d40f094eec1b1805812cdd19d1cb36704105ba1804497fc7df8de66323dc275a5265008a33a2d53ab23c9fb55e9fb34f8621932b4"

    'Unknow string - NOT WORKING
    'Dim ss As String = "019b09450000c07d3c8821b740587748fcbe6e6a28140f1d14cefd32d4817c1018d814e2a8244b579ca6f686ce6bb8280c5dadc9eea2621fdb51f64938f66ca2f2a75256d9ecaf14b4b8cef7290289dae91734ba70016fabf013d9f10fda610a0797b753db2e7906cc7417ffbfc45b90b6cf5d35b3ccb117a34af670a11eb3f7a8016f741405b2b3e942961132a728ab8d692acb2bdaddebda9987de7d50f8528df90f1061e5ba550605b560b7121a710f31c4b5447520bfa2b5fb6c146099ab7bc2b7a2a676a609eeee12711586df182133aef77bfe1c415cb74271dec882e002f7ac257744300a172579544940b39e7d39e21412bbf9da3490217661ad191d64337f4c2525681042b86a9bd268b85fdce8a9670f6d69772e04d06fcaf7cc9eefacd8903ac4c9681bde496c042bb0454cf24bb052961d5edd677116329ad51621cb81183b95a6af6aae00c38372c2dd7197e14b41292acd9d2fe4cfcb44127908c6f7fb89f2fe6d5419c5daae25435f2471e61d982bb1e51b2736f0c7070a81fc554f50aaf0703a3e2769946f7a40097b3847e6d55ce9ffd2d0f7db3a256b76eff48f3a75414a880d8978ed80bf48ef508e6acb8cb2e59c1a8d446494b330c8ce9aedfc99d9f527ac5704f7634a09621ec4576e5d24ea3f9169336c747af52106ea5acfeecc0b6d7f8d74e31ddea20c18f830529586d4015f41e380277f69e9c79c4ec9e62a4135c3eb401595aca79040760133d3698ddfa9c24dd519527caca9ef268d0029ef423cf6512306c419fce0e23f4bfec2b77154ef481f94fb6efbd28837c593cd5b818884eb83cf57628b958d88659e8145a8c51e0c582df8a3a999cf8d93f15421603f23103909984452e75ac19c31c07e6b2c70d56c4024dcfa5b8e67cd01db2dc8415930ca193a2dc02746e5a7693fcc1676b7177f859032bd79cbe985161199283688e5a63bfab628b52701fcf714b397253a5dde3a3e152814d4dda4b708c15af6b1747b0235d225"

    'jansen string WORKING
    'Dim ss As String = "019b0945000060e9a27a1e475f89af17cb3a5ae86bd91152d22fbca1f462ba8bd39e9341bb26ad82e3ab1b4e68069247b75286edb64fed476c1a444bba7ffeca8ac9ddcf629ac582a865b8eefec682f33de40e68a6fc08265df86ad058376db56e4a9d2a2da285d11f408493fb4706abc346632a156b517c87b58372a3afda8be11dbae4a8f5a3d1881559ce0c69acd026770fd9e75c28c4abd0b2796e70eca894d8546bd8456bdcd9af0aa112f78b56523471b46805ae844a66108ba2f12a28180e5ddded48436239eae212c6193d351201e6a24613d2482ddae552bf7e21729246667a9cd5c730ba4b80736586f5f90894b1017fcea7b299cd6241a266c4b7b28b704de1f0266025358d134686e1cac2ba9af74ea16b9524f4fca20792d2618beec8499dbab596f5a56531f26462c996dad5e1278400a5266c5b5aed2dd3cae135821148bdfd3d564ac127c90d3a125031cb263e63879dfdd10725dc80225a700e5d259a5a1d2340d7bd2d3fecc9b078e1726661e2c51b945b56d762fa3067f2b926dd2707a74e1535abf1a7ee09b0ec40689cd3b3b9995dfdda9b5f33482f1441afa48304a68b24b942464d0334d4b20c17a6f09d5db119257212f7b2d48860e22c64924dc53c03557624a020b175ef47553946ce2e60c3f2ba95865d73b2d440c2fd3eb3c9850447c249c869444dbc103d8197c5556355e6c46455b61aa0b176bcc73290b532726d4339bb35b144fecf5c5d4c5e90aef23fc9c9375ae7206f9ea5a22255365f7e0728e3360cb78562c805a4f9a2b4a674eb5af30b598b98b16227a223505e2e013e426296e8f3d1ff03d6506fa431162438afabbc4e8b9626e8821d6bd264ff9d35a2df90e2be27e0297c162a0a6bbc937f349d31413484b52ca27255b2263abde2793cb946387685de9662777cdf6808a18c3a25759ed4e6ab6410f7881b655421be87e3f3df100062f12ae806059ca3e11248557080a64e4ec6e0a46697cae4c5c5197e3defdc"

    'johannew string WORKING
    'Dim ss As String = "019b094500006713c45dcaf37a7573c2daed9badf4374e3629389f8a6bf3c65104384407f66f3233d4bab833052c89dd15cc80f930691ff8fcc77bf0494ea408b5ec0465a9b88580c95c46cc21349fca03a10b95778cbd9672c53d150e4aae7cbf9b61bdadcd3c69f11033236d2e1227f69f49db401a85a7021a547c616b7038337238d37d1086bb3c730c737faac164bae9cdaf0273904fa875799078779660f87fbf0a28af53739ac87c39758100fd9bcc3bedc8716c35212b7f911add64c43281bd18eb12f1bc7f01249f14ecf7e6e8ed2e2c66f32f0716aef21b5b7febd889457632caaa878b6d253d5d4f038de565df54b29c8b3dd87714780c0e8c027b1577d9375f76c2ee868bf2760e27dd2ac4b1611ac2f0695884d2eb80b00c2cd52505a3f3acf58a2306a47172519e67dd3c5ac1e6e49f8535fec93e8d9b322ef9ba2cc5b092ede4a45fa0ba7c014463e860d6faf105ebec9baee6a3255c343a0cc9974b379a7d70b346986688513ef22493fb4d1ae8443cd721827f7eec933891e07f471cc2e197c11ea82233d32c666f70802dae71d2bafcec2550f7458d40c23f0c0f3d9452253d9ae6c79bd7d9592fa744c1c3c40b945f48693ca1b447675987ea51d631bed99c63865b25a8446ff2259a454f3707646c27812f175410c930c82c60c3126755650c5d137dcd15b286c32dcccbb3074d667299144df44cc4eb24675e8827835a581ef384754c2c007d720d82c89c7608cac15437b060f2ef9a97547fca3adbad61da1e9b0db9061fe83c10cf326e92b8b7e787ef8e45ffc056e100a504ae09578fdcedd0d3abf1286c776e7a4bfd02b93f34e9121bf66f17a77a4db36ba04032a553892d1c3f6c377be4f7696357bebaa983ea3166592c8afc35282ae55aba64d83f7436aa0b4b58670855a28f2e14e67b2e84411e39b7fe19cd68be5ca411b9f60a9f0339e19ae8bda50223fb4930df0b8a20ed4528a601296a814721245db392b6afa929f1d547c3"

    'johanold string WORKING
    'Dim ss As String = "019b094500007cdcb8576ac0f92810ba68bce85d9b5cf4b76af287fe720bf1da17319046c9f844bd13bcdbb748e7b80891540bdfbbcb0b7f77aee2791edd331e831e45a6061986ed68cfa1110383a58e41a663ee202253a9c4c9b5ff369e2ed5c45e43250f97326bb3a399f8e581c407413fa48cb6b0b9d793410be17b6c9f19b9771022acda24be7b46e959f6e76ca8a845ecfee5da4abdb4852daf5ca12e8323d7299c204279dfa0e6b524441c1717407f7e91c0a7de349b9083c979b657983ae0f3b858fdd195068b2bd5f888bd955a0b617edc50e947b301a47465a6d9a5efde9c0dc0c05e8c6ecf84cf577754209d433e572f9a5cc32485f3f7aa529c576cd2371beef401d91734ecd50ac2b35f736c9652b0c53c758c48f685b360ff3892582ee148dda4e86221aac59ed267c43ac6ca3732e345382f3860ed117900519f698b68d394056c210c95ed38b3d1acab8b543a5751bc78b2f9840b69fe4e7baf823238683a92d789834838cbb7522a128bd386e3905b58a5dde243eaa5a8ded4881a8c923d51b102c55e3ca784afdff0d389e318d495f770505f74b911de71e3e920ff8d59082879c2f1f0c0de3ab9416d0c1805febe5f5bd46f99b6762654f6a3d1343d08dadfc879b221693d0cb5dd770df71a04b91c5c3f8268239e785c5018d4a87d6b6307b60cbed43c01dcfd15f0608da1b9f35aa2d02be07b75976efced38946abd8488c1f46e7c54e440cf561740afbd920b193ab633c21510f949ea905b3f42c47f905fe7caa246aa6b9ac14530b3a72d54ba7a4ad2973fac82019a361e1105ec5b261ca497c053266878d6fe14a56da5178840a3f11e46ba03469e4dd5cf280c956eb2156162a4ae7fc797bef428bb45693ea1a5885727adb2d237390cc8e8c63c74fa2c89c7212c692e72a7e0be0562463d07001ae8345db510256d9011951fd8d66cb4e0c2d228f323ca6afba185f7e454dc8d3621aa992a73e061c90c2b2be426d5a19c1205b53b41"

    'Krige string WORKING
    'Dim ss As String = "019b094500004a4ed27390d1ff21376edcb5c897ea27df8d37a2ffe1c0fc6b2d53631ca7730634ff1bb52336981eca4ebf1367b5eaf0577f067357128d9ae02763757a5e829cbf3bfdd0572d6e0b1585defdf6eee6347759295e1dfeab22ed32ecc62c903c507f384c4bf907e081bd9ae446602432ffcd7c42ee9498c274105db739a96f836e6b9471a933e7580dd79ffc1f013c92aa0b967f21a4261bb700e2ed7d631c7a7d1b5b1171403e38d1e01674a8073b0e99e50379a260e3521dc5c245cba11020d564e1de4bd22f0d5ca9899af02641ec6361e889fcb805c43c3a11bc9d14229b4382c3d5bfd044aa2f0ef59b4cae5ae6c41adacde6d1fc1060a6226d4c4ddd19196d729141646ba8b116ec99173a66f0b721ba83ae0e62f30438a1795b8914a3252e0233fdb398d7d03e20dcaa093287b877e4241c1cb9f27a2bc6ceae0a50033092966282a3b41a0a465e18791b1bbed823e920537912fa6bdbab75f4484579b5fe9370d1c8c4403c7710e65f1bccd7692922f3eababc9ff03fda72a586ac67f14af6be9b40eed0e1079314093816480c60804a6094b664f79cf37150c7b875a2676734f58cfa560ccc7337edb5c986e48656684ca301b8674c908fe8b61b35e406317d26c57dbf51ecfcef82ddb72bf91bcfe5ad877a56c44390f3c125a8a73887aadc2d4a58bfda069f6c156a70c618ad3cd8b623e55435fd4b90a744de844e15753b851eae20c513f7a64c636756f11648824c0d47f178ca59ca67ee1dbecbb9fc59539ff05021314b23d2027c4a7d76a905b3b05ad3d208544218b36583c92e747ebc03f1c0f1957e68a97cfc07b7baff7d60bd7db36b0d7e404bb11683cbcd331eb794d0d7a3ab5e2966f6a79109f3f1a5c178b74faf2a551dcbb570b068442afafbe9ff620dac66c74f81b84bee0cdfd78ee1b242358adb6b045d0dda06b13fda74cce0eccaa7e2233a14ad39a91420d30455d6ebdb0dd218f802ae8b45c5ef69827c8ef71071b7"


    Dim block1 As String = ss.SubString2(12,268)

    Dim conv As ByteConverter
    Dim mybyte() As Byte =  conv.HexToBytes(block1)

    Dim returnedstring As String
    returnedstring = nativeMe.RunMethod("decodeVersion2Block", Array(mybyte))
    Log("returned string = " &returnedstring)

    Dim MyBase64StringAsBytes() As Byte = su.DecodeBase64(returnedstring)

    Dim s As String = BytesToString(MyBase64StringAsBytes, 0, MyBase64StringAsBytes.Length, "ISO8859_1")
    Log("s = " & s)

    Dim karak(128) As String
    For i = 0 To s.Length - 1
        Dim c As Char = s.CharAt(i)
        Dim ub As Int = Bit.And(0xff, MyBase64StringAsBytes(i))
        karak(i) = Bit.ToHexString(ub)
        If karak(i).Length = 1 Then karak(i) = "0" & karak(i)
        'Log("char = " & c & "     karak = " & karak(i) & "     MyBase64StringAsBytes(" & i & ") = " & karak(i))
    Next

    Dim section1_length As Int = Bit.ParseInt(karak(10), 16)

    Dim section2_length As Int = Bit.ParseInt(karak(12), 16)


    Dim section1 As String = ""
    For i = 15 To (15 + section1_length)
        If karak(i).Trim = "e0" Then
            karak(i) = ","
            section1 = section1 & karak(i)
        else if karak(i).Trim = "e1" Then
            karak(i) = "[]"
            section1 = section1 & karak(i)
        Else
            Dim c As Char = s.CharAt(i)
            section1 = section1 & c
        End If
    Next
    section1 = section1

    section1 = section1.Replace("[][][]", ",,,,")
    section1 = section1.Replace("[][]", ",,,")
    section1 = section1.Replace("[]", ",,")

    Log("section1 = " & section1)

    ListView1.SingleLineLayout.Label.TextColor = Colors.Yellow

    Dim headings() As String = Array As String("License type 1: ", "License type 2: ", "License Type 3: ", "License Type 4: ", _
                                               "Surname: ", "Initials: ", "PrDP Code: ", "ID Country of Issue: ", "License Country of Issue: ", _
                                               "Vehicle Restriction L1: ", "Vehicle Restriction L2: ", "Vehicle Restriction L3: ", "Vehicle Restriction L4: ", _
                                               "License Number: ", "ID Number: ")


    DateTime.DateFormat = "yyyy/MM/dd"
    ListView1.AddSingleLine("Date: " & DateTime.Date(DateTime.Now))
    ListView1.AddSingleLine("Time: " & DateTime.Time(DateTime.Now))
    Dim Lines() As String = Regex.Split(",",section1)
    For i = 0 To Lines.Length - 1
            ListView1.AddSingleLine(headings(i) & Lines(i))
            Log(""& headings(i) & " " & Lines(i))
    Next
    ListView1.SingleLineLayout.Label.TextSize = 14


    Dim section2 As String = ""

    For i = (15 + section1_length) To (15 + section1_length + section2_length - 1)
        If i = 15 + section1_length Then
            section2 = section2 & karak(i).Trim
        End If

        If i > 15 + section1_length Then
            If karak(i).Trim.SubString2(0,1) = "a" Then
                section2 = section2 & "."
            Else
                section2 = section2 & karak(i).Trim.SubString2(0,1)
            End If

            If karak(i).Trim.SubString2(1,2) = "a" Then
                section2 = section2 & "."
            Else
                section2 = section2 & karak(i).Trim.SubString2(1,2)
            End If
        End If

    Next

    If section2.EndsWith(".") = True Then
        section2 = section2.SubString2(0, section2.Length - 1)
    End If


    Dim amendedSection2 As String = ""
    For i = 0 To section2.Length - 1
        If section2.SubString2(i, i+1) <> "." Then
            amendedSection2 = amendedSection2 & section2.SubString2(i, i+1)
        Else
            amendedSection2 = amendedSection2 & "........"
        End If
    Next

    Log("amendedSection2 = " & amendedSection2)

    Dim idType As String = amendedSection2.SubString2(0,2)
    Dim issueDate1 As String = amendedSection2.SubString2(2, 10)
    Dim issueDate2 As String = amendedSection2.SubString2(10,18)
    Dim issueDate3 As String = amendedSection2.SubString2(18, 26)
    Dim issueDate4 As String = amendedSection2.SubString2(26, 34)
    Dim driverRestrictions As String = amendedSection2.SubString2(34, 36)
    Dim PrDPdate As String = amendedSection2.SubString2(36, 44)
    Dim licenseIssueNumber As String = amendedSection2.SubString2(44, 46)
    Dim birthDate As String = amendedSection2.SubString2(46, 54)
    Dim validFrom As String = amendedSection2.SubString2(54, 62)
    Dim validTo As String = amendedSection2.SubString2(62, 70)
    Dim gender As String = amendedSection2.SubString2(70, 72)

    ListView1.AddSingleLine("ID Number Type: " & idType)
    Log("ID Number Type: " & idType)
    ListView1.AddSingleLine("Issue Date L1: " & issueDate1)
    Log("Issue Date L1: " & issueDate1)
    ListView1.AddSingleLine("Issue Date L2: " & issueDate2)
    Log("Issue Date L2: " & issueDate2)
    ListView1.AddSingleLine("Issue Date L3: " & issueDate3)
    Log("Issue Date L3: " & issueDate3)
    ListView1.AddSingleLine("Issue Date L4: " & issueDate4)
    Log("Issue Date L4: " & issueDate4)
    ListView1.AddSingleLine("Driver Restrictions: " & driverRestrictions)
    Log("Driver Restrictions: " & driverRestrictions)
    ListView1.AddSingleLine("PrDP Expiry Date: " & PrDPdate)
    Log("PrDP Expiry Date: " & PrDPdate)
    ListView1.AddSingleLine("License Issue Number: " & licenseIssueNumber)
    Log("License Issue Number: " & licenseIssueNumber)
    ListView1.AddSingleLine("Birth Date: " & birthDate)
    Log("Birth Date: " & birthDate)
    ListView1.AddSingleLine("Valid From: " & validFrom)
    Log("Valid From: " & validFrom)
    ListView1.AddSingleLine("Valid To: " & validTo)
    Log("Valid To: " & validTo)
    If gender = "01" Then gender = "Male" Else gender = "Female"
    ListView1.AddSingleLine("Gender: " & gender)
    Log("Gender: " & gender)

End Sub


#If Java

import java.io.StringReader;
import java.math.BigInteger;
import java.security.interfaces.RSAPublicKey;
import org.bouncycastle.openssl.PEMReader;
import org.bouncycastle.crypto.params.RSAKeyParameters;
import java.util.Base64;
import org.bouncycastle.util.BigIntegers;

    RSAPublicKey pubKey;

    //Unsigned integer types have no direct equivalent in Java:
    public byte[] GetPaddedValue(BigInteger value, int length) {
        //Unsigned integer types have no direct equivalent in Java:
//        byte[] result = org.bouncycastle.util.BigIntegers.asUnsignedByteArray(value);
        byte[] result = value.toByteArray();
        BA.Log("result.length = " + result.length);
        BA.Log("result[0] = " + result[0]);

        return result;

    }

    public byte[] EncryptValue(byte[] rgb, BigInteger e, BigInteger n, int size) {
        BigInteger input = new BigInteger(rgb);
        BigInteger output = input.modPow(e, n);
        byte[] result = GetPaddedValue(output, size);
        return result;
    }

    //Version 2 code for first 5 blocks of 128 bytes
    public String decodeVersion2Block(byte[] mybyte) {
        String longKey = "-----BEGIN RSA PUBLIC KEY-----" + "\r\n" +
                         "MIGWAoGBAMqfGO9sPz+kxaRh/qVKsZQGul7NdG1gonSS3KPXTjtcHTFfexA4MkGA" + "\r\n" +
                         "mwKeu9XeTRFgMMxX99WmyaFvNzuxSlCFI/foCkx0TZCFZjpKFHLXryxWrkG1Bl9+" + "\r\n" +
                         "+gKTvTJ4rWk1RvnxYhm3n/Rxo2NoJM/822Oo7YBZ5rmk8NuJU4HLAhAYcJLaZFTO" + "\r\n" +
                         "sYU+aRX4RmoF" + "\r\n" +
                         "-----END RSA PUBLIC KEY-----";

        String base64 = null;

        try {
            StringReader reader = new StringReader(longKey);
            PEMReader pem = new PEMReader(reader);

            pubKey = (RSAPublicKey) new PEMReader(reader).readObject();

            RSAKeyParameters o = new RSAKeyParameters(false, pubKey.getModulus(), pubKey.getPublicExponent());

            //Unsigned integer types have no direct equivalent in Java:
            byte[] data = mybyte;
            //Unsigned integer types have no direct equivalent in Java:
            byte[] decrypted = EncryptValue(data, o.getExponent(), o.getModulus(), 128);
            base64 = Base64.getEncoder().encodeToString(decrypted);
        } catch (Exception e) {
            BA.Log("RSA decryption error : " + e);
        }
        return base64;
    }


Attachments

  • jhsScanDriverLicenseTest.zip
    32.4 KB · Views: 134
Last edited:

Johan Schoeman

Expert
Licensed User
.....or is there perhaps a better (more efficient) way to do this decryption with any of the encryption/decryption libraries posted in the forum that will yield the correct result for the 2 x licenses that do not decrypt successfully?

Upvote 0

agraham

Expert
Licensed User
I don't fully understand what is going on here but making the assumption that the contents of ss represent a very large integer value represented as hex digits then the two failing ones, after the 12 character header is stripped off, are both negative numbers (starting with 'a2' and 'c0') while the working four are all positive numbers (starting with '60', '67', '7c' and '4a').

I postulate that the conversion to BigInteger will result in a negative BigInteger value and that is the reason for failure. I can't run the project because I don't have bcprov-jdk16-1.43.jar but maybe prefixing the strings with '00' to make them positive values might work!

Last edited:
Upvote 0

Johan Schoeman

Expert
Licensed User
ss is the original scanned string (returned from the Mobile Vision based barcode scanner) converted to "hex from bytes" via

B4X:
Sub StringToHex(StrToHex As String) As String
    Dim bc As ByteConverter
    Return bc.HexFromBytes(StrToHex.GetBytes("ISO8859_1"))
End Sub

In other word, the scanned string....

B4X:
        E����JNÒsÑÿ!7nܵÈê'ß7¢ÿáÀük-Sc§s4ÿµ#6ÊN¿gµêðWsWà'cuz^¿;ýÐW-nÞýöîæ4wY)^þ«"í2ìÆ,<P8LKùà½äF`$2ÿÍ|BîÂt]·9©onkq©3çX
    ×ü<ª!¤&·��âí}cz}[q@>8Ñàt¨;åy¢`ãRÅÂEË¡ ÕdáÞKÒ/
    \©ð&Aìcaèü¸Ä<:¼"CÃÕ¿ÐDª/õL®ZæÄÚÍæÑü`¦"mLMÝmrAdk¨±ì:fð·!º®bó8¡y[£%.3ý³×Ð> ܪ    2¸wä$¹òz+Æή
    P0b£´
    F^y¾Ø#é SyúkÛ«uôHEyµþpÑÈÄ@<wæ_Ì×i)"ó꺼ð?Úr¥¬gñJö¾@îÐá    8H`J`¶d÷óqPǸu¢gg4õúVÌs7íµÉäVhL£¸gLè¶5ä1}&Å}¿QìüïÝ·+ùÏåzVÄCóÁ%¨§8ªÜ-JX¿ÚljpÆ<ض#åT5ýK§DÞNu;® Å÷¦LcgVñHL
    GñxÊYÊgî¾Ë¹üYSðP!1K#Ò|J}v©³°ZÓÒTB³eÉ.t~¼ñÀñ~h©|ü·ºÿ}`½}³k
    ~@K±ËÍ3·Ð×£«^)fö§    óñ¥Áx·O¯*U˵p°hD*úûéÿb
    ¬fÇO¸Kîß×á²B5Ûk]
    Ú±?ÚtÌàìʧâ#:9© ÓUÖëÛ
    Òø®EÅïi|÷q·

converted to a hex string that gives this result:

B4X:
"019b094500004a4ed27390d1ff21376edcb5c897ea27df8d37a2ffe1c0fc6b2d53631ca7730634ff1bb52336981eca4ebf1367b5eaf0577f067357128d9ae02763757a5e829cbf3bfdd0572d6e0b1585defdf6eee6347759295e1dfeab22ed32ecc62c903c507f384c4bf907e081bd9ae446602432ffcd7c42ee9498c274105db739a96f836e6b9471a933e7580dd79ffc1f013c92aa0b967f21a4261bb700e2ed7d631c7a7d1b5b1171403e38d1e01674a8073b0e99e50379a260e3521dc5c245cba11020d564e1de4bd22f0d5ca9899af02641ec6361e889fcb805c43c3a11bc9d14229b4382c3d5bfd044aa2f0ef59b4cae5ae6c41adacde6d1fc1060a6226d4c4ddd19196d729141646ba8b116ec99173a66f0b721ba83ae0e62f30438a1795b8914a3252e0233fdb398d7d03e20dcaa093287b877e4241c1cb9f27a2bc6ceae0a50033092966282a3b41a0a465e18791b1bbed823e920537912fa6bdbab75f4484579b5fe9370d1c8c4403c7710e65f1bccd7692922f3eababc9ff03fda72a586ac67f14af6be9b40eed0e1079314093816480c60804a6094b664f79cf37150c7b875a2676734f58cfa560ccc7337edb5c986e48656684ca301b8674c908fe8b61b35e406317d26c57dbf51ecfcef82ddb72bf91bcfe5ad877a56c44390f3c125a8a73887aadc2d4a58bfda069f6c156a70c618ad3cd8b623e55435fd4b90a744de844e15753b851eae20c513f7a64c636756f11648824c0d47f178ca59ca67ee1dbecbb9fc59539ff05021314b23d2027c4a7d76a905b3b05ad3d208544218b36583c92e747ebc03f1c0f1957e68a97cfc07b7baff7d60bd7db36b0d7e404bb11683cbcd331eb794d0d7a3ab5e2966f6a79109f3f1a5c178b74faf2a551dcbb570b068442afafbe9ff620dac66c74f81b84bee0cdfd78ee1b242358adb6b045d0dda06b13fda74cce0eccaa7e2233a14ad39a91420d30455d6ebdb0dd218f802ae8b45c5ef69827c8ef71071b7"

I have tried to drop result[0] by copying the right most 128 bytes of array "result" to a new byte array and then return the new byte array but it still does not work as the first byte (result[0]) after the copy is then not "1" as is the case with the 4 x codes that are working.

When you say prefixing the strings with "00", are you referring to the first block of 128 bytes after the 6-byte-header"? That will make the first block of 128 bytes having a length of 129 bytes? Or am I misinterpreting what you are suggesting?

Any chance that you can download bcprov-jdk16-1.43.jar from here.....

https://drive.google.com/open?id=1TW_Hv3spE_eoB8Qlr3b7InXfzsG1Qm5h

...and see if your suggestion will decrypt the 2 x strings that I get an error with?

Rgds

JS

Upvote 0

JordiCP

Well-Known Member
Licensed User
Belinda's surname = WHITE? :)

Agraham's assumption is right. Just make sure that you are passing a positive integer to BigInteger, by changing the below line. Otherwise, the result is totally wrong because exponentiation and modulus will give different results for positive and negative versions of a number.
B4X:
    Dim block1 As String = ss.SubString2(10,268) 'insted of 12, so no trailing one, no assumption that it is negative

Upvote 0

Johan Schoeman

Expert
Licensed User
Belinda's surname = WHITE? :)

Agraham's assumption is right. Just make sure that you are passing a positive integer to BigInteger, by changing the below line. Otherwise, the result is totally wrong because exponentiation and modulus will give different results for positive and negative versions of a number.
B4X:
    Dim block1 As String = ss.SubString2(10,268) 'insted of 12, so no trailing one, no assumption that it is negative
Yes, her surname is White! I need to check what it is that you have done.....how to decide when to start at "10" and not "12".....

Upvote 0

Johan Schoeman

Expert
Licensed User
You can always start a position 10, sice the content is "00". This will assure that the most significant bit in the whole sequence is not 1 (and thus negstive), but the number will always be the same ;)
You are so sharp!!!!!!!!

B4X:
** Activity (main) Create, isFirst = true **
result.length = 128
result[0] = 1
returned string = AQIDBAUCAx4DADEBFoJbRULh4eFXSElUReBC4VpB4FpB4DDh4eEyMDU1MDAwM0REWk3gNjcwMzMwMDE1NzA4MQIgAgERqqEKARlnAzAgGAMTICMEEwJXSQQA+gDIQtQoQAAwEkUDbLrc01MKiUM01CrTrC9VExEzLi6D0p7MLDo=
s = ��1[EBáááWHITEàBáZAàZAà0ááá20550003DDZMà6703300157081 ª¡
g0  #WI��ú��ÈBÔ(@��0ElºÜÓS
C4Ô*Ó¬/U3..ÒÌ,:
section1 = EB,,,,WHITE,B,,ZA,ZA,0,,,,20550003DDZM,6703300157081
License type 1:  EB
License type 2:
License Type 3:
License Type 4:
Surname:  WHITE
Initials:  B
PrDP Code:
ID Country of Issue:  ZA
License Country of Issue:  ZA
Vehicle Restriction L1:  0
Vehicle Restriction L2:
Vehicle Restriction L3:
Vehicle Restriction L4:
License Number:  20550003DDZM
ID Number:  6703300157081
amendedSection2 = 0220020111........................10........0119670330201803132023041302
ID Number Type: 02
Issue Date L1: 20020111
Issue Date L2: ........
Issue Date L3: ........
Issue Date L4: ........
Driver Restrictions: 10
PrDP Expiry Date: ........
License Issue Number: 01
Birth Date: 19670330
Valid From: 20180313
Valid To: 20230413
Gender: Female
** Activity (main) Resume **

Upvote 0

Johan Schoeman

Expert
Licensed User
You can always start a position 10, sice the content is "00". This will assure that the most significant bit in the whole sequence is not 1 (and thus negstive), but the number will always be the same ;)
It only kept me busy for approximately 2 years....you are a master of note!

Upvote 0

Johan Schoeman

Expert
Licensed User
The other "NOT WORKING" string is now also working and giving this result:

B4X:
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
result.length = 128
result[0] = 1
returned string = AQIDBAUCGBEDADIBFoJaQuHh4UtJVExFWeBKReFaQeBaQeAw4eHhNjA0NjAwMDI5RFBH4Dg2MDIxMTUwODAwODICIAQCEqqgCgEZhgIRIAkCESAUAhABV0kEAPoAyEKUKEAAMBdfRljlnpXdnlnrllbdQ7fjfhdfO1bjjhbg7Hc=
s = ��2ZBáááKITLEYàJEáZAàZAà0ááá604600029DPGà8602115080082 ª
      WI��ú��ÈB(@��0_FXåÝYëVÝC·ã~_;Vãàìw
section1 = B,,,,KITLEY,JE,,ZA,ZA,0,,,,604600029DPG,8602115080082
License type 1:  B
License type 2:
License Type 3:
License Type 4:
Surname:  KITLEY
Initials:  JE
PrDP Code:
ID Country of Issue:  ZA
License Country of Issue:  ZA
Vehicle Restriction L1:  0
Vehicle Restriction L2:
Vehicle Restriction L3:
Vehicle Restriction L4:
License Number:  604600029DPG
ID Number:  8602115080082
amendedSection2 = 0220040212........................00........0119860211200902112014021001
ID Number Type: 02
Issue Date L1: 20040212
Issue Date L2: ........
Issue Date L3: ........
Issue Date L4: ........
Driver Restrictions: 00
PrDP Expiry Date: ........
License Issue Number: 01
Birth Date: 19860211
Valid From: 20090211
Valid To: 20140210
Gender: Male

This is just pure magic.....thanks a million @JordiCP and @agraham. You guys rock!

Upvote 0
Top
