B4J Question TabPage inside TabPage

[PatrikCavina]

Hi to everyone,
i'm trying to insert TabPage inside tabPage with recursive method.
Everything to create different levels of tabPage inside another.
Code is:

Sub b(tabPage As TabPage) As Pane
    Dim pane As Pane
    pane.Initialize("")
    Dim tabPane As TabPane
    tabPane.Initialize("")

    pane.AddNode(tabPane,0,0,600,600)
    tabPane.Tabs.Add(tabPage)

    tabPage.Text = "lv"&increment
    If increment < lv Then
        increment = increment + 1
        Dim t As TabPage
        t.Initialize
        tabPage.Content = b(t)
    End If
    Return pane
End Sub

But at last call of the function i receive an error:

Waiting for debugger to connect...
Program started.
java.lang.IllegalArgumentException: Children: cycle detected: parent = TabPane@471bf3b9[styleClass=tab-pane], node = TabPaneSkin$TabContentRegion@43c41713[styleClass=tab-content-area]
    at javafx.scene.Parent$2.onProposedChange(Parent.java:445)
    at com.sun.javafx.collections.VetoableListDecorator.add(VetoableListDecorator.java:317)
    at com.sun.javafx.scene.control.skin.TabPaneSkin.addTabContent(TabPaneSkin.java:428)
    at com.sun.javafx.scene.control.skin.TabPaneSkin.<init>(TabPaneSkin.java:191)
    at javafx.scene.control.TabPane.createDefaultSkin(TabPane.java:517)
    at javafx.scene.control.Control.impl_processCSS(Control.java:872)
    at javafx.scene.Parent.impl_processCSS(Parent.java:1280)
    at javafx.scene.Parent.impl_processCSS(Parent.java:1280)
    at javafx.scene.Parent.impl_processCSS(Parent.java:1280)
    at javafx.scene.control.Control.impl_processCSS(Control.java:868)
    at javafx.scene.Node.processCSS(Node.java:9058)
    at javafx.scene.Node.processCSS(Node.java:9051)
    at javafx.scene.Scene.doCSSPass(Scene.java:545)
    at javafx.scene.Scene.access$3600(Scene.java:159)
    at javafx.scene.Scene$ScenePulseListener.pulse(Scene.java:2392)
    at com.sun.javafx.tk.Toolkit.lambda$runPulse$30(Toolkit.java:355)
    at java.security.AccessController.doPrivileged(Native Method)
    at com.sun.javafx.tk.Toolkit.runPulse(Toolkit.java:354)
    at com.sun.javafx.tk.Toolkit.firePulse(Toolkit.java:381)
    at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:510)
    at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:490)
    at com.sun.javafx.tk.quantum.QuantumToolkit.lambda$runToolkit$404(QuantumToolkit.java:319)
    at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
    at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at com.sun.glass.ui.win.WinApplication.lambda$null$148(WinApplication.java:191)
    at java.lang.Thread.run(Thread.java:745)



[PatrikCavina]

I've solve the problem, but now i need identify every tabPane created. Any tips?

Private Sub SetLevelTabPane(tPane As TabPane)
    If tPane.Width <> 0 Then
        tabPaneHeight = tPane.Width
    Else
        tabPaneHeight = tabPaneHeight - 100
    End If
    Dim pane As Pane
    Dim newTPane As TabPane
    pane.Initialize("NewTabPane")
    newTPane.Initialize("")
    pane.AddNode(newTPane,0,0,tabPaneHeight,-1)

    Dim tPage As TabPage
    tPage.Initialize
    tPage.Tag = increase
    tPage.Text = "Lv"&increase
    tPage.Content = pane

    tPane.Tabs.Add(tPage)
    If increase < lv Then
        increase = increase + 1
        SetLevelTabPane(newTPane)
    End If
End Sub
End Sub



[Erel]

It is a mistake to create tabs like this. You need to use the designer and call TabPane.LoadLayout to add pages.



[PatrikCavina]

But with loadLayout i can't create more level inside that



[Erel]

Complete code:

Sub AppStart (Form1 As Form, Args() As String)
   MainForm = Form1
   MainForm.Show
   MainForm.RootPane.LoadLayout("Main")
   TabPaneMain.LoadLayout("MainPage1", "MainPage1")
   TabPanePage1.LoadLayout("Page1Child1", "Page1Child1")
End Sub

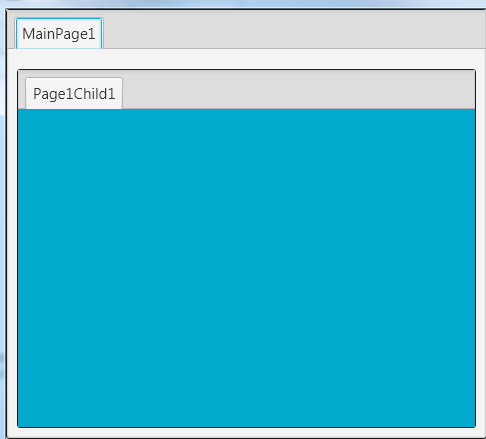

Notice how all views are resized automatically when the form is resized (based on the anchors).



[PatrikCavina]

Thank you @Erel.
If i need to set undefined number of TabPane inside MainPane, can i use an array of TabPanePage and a recursive method to do it?



[Erel]

You can store references to nodes in any way you like.
