Android Tutorial two dimensional database/reports

Discussion in 'Tutorials & Examples' started by anuj0sharma, Apr 11, 2011.

  1. anuj0sharma

    anuj0sharma Member Licensed User

    Hello Everyone,
    wants to have a two dimensional database.
    Is it feasible using the great DBUtils by Erel.

    the table should look like this..

    [​IMG]

    if, storing in 2D is not possible, then how can we use DBUtils with webView to generate similar looking report.

    any suggestions are welcome.

    Regards,


    Attached Files:

    • db.jpg
      File size:
      15.3 KB
      Views:
      718
  2. Erel

    Erel Administrator Staff Member Licensed User

    DBUtils.ExecuteHtml creates Html tables. Using DBUtils you can create the required database and then display such a table.

    Code:
    Sub Process_Globals

    Dim SQL As SQL
    End Sub

    Sub Globals

    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    If FirstTime Then

    SQL.Initialize(File.DirRootExternal, "1.db"True)

    End If

    Dim m As Map
        m.Initialize
        m.Put(
    "Device", DBUtils.DB_TEXT)
        m.Put(
    "Param 1", DBUtils.DB_TEXT)
        m.Put(
    "Param 2", DBUtils.DB_TEXT)
        m.Put(
    "Param 3", DBUtils.DB_TEXT)
        DBUtils.DropTable(
    SQL"devices")
        DBUtils.CreateTable(
    SQL"devices", m, "Device")

    Dim List As List

    List.Initialize

    For i = 1 To 100

    Dim values As Map
            values.Initialize
            values.Put(
    "Device""Device " & i)
            values.Put(
    "Param 1", i)
            values.Put(
    "Param 2", i * 3)
            values.Put(
    "Param 3", i * 5)

    List.Add(values)

    Next
        DBUtils.InsertMaps(
    SQL"devices"List)


    Dim wv As WebView
        wv.Initialize(
    "")

    activity.AddView(wv, 00100%x100%y)
        wv.LoadHtml(DBUtils.ExecuteHtml(
    SQL"SELECT * FROM devices"Null0))
    End Sub

  3. Erel

    Erel Administrator Staff Member Licensed User

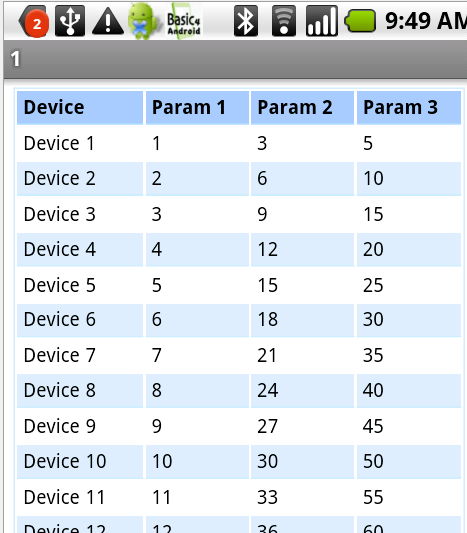

    Screenshot:

    [​IMG]
