B4A Library ValueBar V1.0.1

Discussion in 'Additional libraries, classes and official updates' started by DonManfred, Mar 8, 2015.

Similar threads

B4A Code Snippet Custom Toast Message
Games [XUI2D] Example Pack
B4A Question Do we have ksoap2 functionality?
B4A Library ChatMessageView
B4A Code Snippet SD: Spinner with CustomView
  1. DonManfred

    DonManfred Expert Licensed User

    This is a Wrapper for this github Project.

    You need to download the newest jar file from the Authors releasesection here.
    Download the file valuebarlibrary-1-0-2.jar and put it into your Additional libs folder.

    Additionally download the Libraryfiles from this Post and put them into the additional libs folder too.

    ValueBar
    Version:
    1.01
    • ValueBar
      Events:
      • onselectionupdate (val As Float, maxval As Float, minval As Float, Tag As Object)
      • onvalueselected (val As Float, maxval As Float, minval As Float, Tag As Object)
      Fields:
      • ba As BA
      Methods:
      • AddToParent (Parent As ViewGroup, left As Int, top As Int, width As Int, height As Int)
      • BringToFront
      • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
      • Initialize (EventName As String)
      • Invalidate
      • Invalidate2 (arg0 As Rect)
      • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • IsInitialized As Boolean
      • RemoveView
      • RequestFocus As Boolean
      • SendToBack
      • SetBackgroundImage (arg0 As Bitmap)
      • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
      • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
      • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
      • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
      • animate (from As Float, to As Float, animationDuration As Int)
        Animates the bar from a specific value to a specific value.
      • animateDown (to As Float, durationMillis As Int)
        Animates the bar down from it's current value to the specified value.
      • animateUp (to As Float, durationMillis As Int)
        Animates the bar up from it's minimum value to the specified value.
      • getValueForPosition (xPos As Int) As Float
        Returns the corresponding value for a pixel-position on the horizontal
        axis.
      • isDrawMinMaxTextEnabled As Boolean
        Returns true if drawing the minimum and maximum label is enabled.
      • isDrawValueTextEnabled As Boolean
        Returns true if drawing the text that describes the actual value is
        enabled.
      • setMinMax (min As Float, max As Float)
        Sets the minimum and maximum value the bar can display.
      Properties:
      • Background As Drawable
      • BackgroundColor As Int [write only]
      • BorderColor As Int [write only]
        Sets the color of the border around the bar (if drawn).
      • BorderWidth As Float [write only]
        Sets the width of the border around the bar (if drawn).
      • Color As Int [write only]
        Sets the color the ValueBar should have.
      • ColorFormatter As Boolean [write only]
        Sets a custom BarColorFormatter for the ValueBar. Implement the
        BarColorFormatter interface in your own formatter class and return
        whatever color you like from the getColor(...) method. You can for
        example make the color depend on the current value of the bar. Provide
        null to reset all changes.
      • DrawBorder As Boolean [write only]
        Set this to true to enable drawing the border around the bar, or false to
        disable it.
      • DrawMinMaxText As Boolean [write only]
        Set this to true to enable drawing the minimum and maximum labels below
        the bar.
      • DrawValueText As Boolean [write only]
        Set this to true to enable drawing the actual value that is currently
        displayed onto the bar.
      • Enabled As Boolean
      • Height As Int
      • Interval As Float [write only]
        Sets the interval in which the values can be chosen and dispalyed from
        on the ValueBar. If interval <= 0, there is no interval.
      • Left As Int
      • Max As Float [read only]
        Returns the maximum value the bar can display.
      • Min As Float [read only]
        Returns the minimum value the bar can display.
      • MinMaxTextSize As Float [write only]
        Sets the size of the min-max text in density pixels.
      • MinMaxTextTypeface As Typeface [write only]
        Sets the Typeface of the min-max text.
      • OverlayColor As Int [write only]
        Sets the color of the overlay that is placed below the value-text.
      • Tag As Object
      • Textformat As String [write only]
      • Top As Int
      • Value As Float
        Returns the currently displayed value.
      • ValueTextSize As Float [write only]
        Sets the size of the value-text in density pixels.
      • ValueTextTypeface As Typeface [write only]
        Sets the Typeface of the value-text.
      • Visible As Boolean
      • Width As Int

    Example code can look like this (assuming you have added the bars via Designer

    Code:
    Sub Globals

    Private vb1 As ValueBar

    Private vb2 As ValueBar

    Private vb3 As ValueBar

    Private t1 As Timer
    End Sub
    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        Activity.LoadLayout("Layout1")
        vb1.Textformat =
    "###,###,##0"
        vb1.Color =
    Colors.Red
        vb1.OverlayColor =
    Colors.Blue
        vb1.BackgroundColor =
    Colors.LightGray
        vb1.DrawBorder =
    True
        vb1.Interval =
    10
        vb1.setMinMax(
    0,100)
        vb1.animate(
    0,80,5000)
        vb1.Tag =
    1

        vb2.Textformat =
    "###,###,##0.0"
        vb2.Color =
    Colors.Red
        vb2.OverlayColor =
    Colors.Green
        vb2.BackgroundColor =
    Colors.LightGray
        vb2.DrawBorder =
    True
        vb2.Interval =
    10
        vb2.setMinMax(
    0,10)
        vb2.animate(
    0,7.5,1000)
        vb1.Tag =
    2


        vb3.Textformat =
    "###,###,##0.00"
        vb3.OverlayColor =
    Colors.Yellow
        vb3.BackgroundColor =
    Colors.DarkGray
        vb3.DrawBorder =
    True
        vb3.Interval =
    10
        vb3.setMinMax(
    0,100)
        vb3.animate(
    0,69.95,1000)
        vb3.Tag =
    3

        t1.Initialize(
    "timer",2000)
        t1.Enabled =
    True
    End Sub
    Sub timer_tick

    If vb3.Value < (vb3.Max/2Then

    Dim rndNum As Int = Rnd(50101)
            vb3.animateUp(rndNum,
    1000)

    Else

    Dim rndNum As Int = Rnd(050)
            vb3.animateDown(rndNum,
    1000)

    End If
    End Sub
    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub vb_onselectionupdate(val As Float, maxval As Float, minval As Float, tag As Object)

    Log("vb_onselectionupdate(bar "&tag&","&val&","&maxval&","&minval&")")
    End Sub




    This library is Donationware. You can download the library, you can test the library. But if you want to USE the library in your App you need to Donate for it.
    Please click here to donate for my work to write the wrapper (You can donate any amount you want :))
    [​IMG]

    Please consider to donate to the Original Author of this Library, Philip Jahoda, too! See Donatebutton here.

    I just wrote the Wrapper for this Library so it can be used in our beloved B4A :D


    Attached Files:

    Last edited: Mar 8, 2015
    Ohanian, wineos, shashkiranr and 7 others like this.
  2. MarcoRome

    MarcoRome Expert Licensed User

    Ehy DonManfred you are unleashed with the library :D.
    Great job ;)

    DonManfred likes this.
  3. DonManfred

    DonManfred Expert Licensed User

    Updated to V1.0.1
    Forgot the OnValueSelected event
    Library can be found on #1

  4. itgirl

    itgirl Active Member Licensed User

    i was working on a poll app and that's will be handy, thanks

    Peter Simpson likes this.
  5. Mahares

    Mahares Well Known Member Licensed User

    I tried to use an increment that is decimal say .5, but it only jumps 1 at a time:
    Code:
    vb2.Textformat = "0.0"
        vb2.setMinMax(
    0,10)
        vb2.Interval =
    .5
    1. Thank you @DomManfred. It is amazing what you have been putting out lately in terms of libraries.
    2. I hope you will not desert us like some that created some libraries and are no longer supporting them or no longer members of the forum.
    3. Do you have one link that brings up exclusively all you libraries in one place?
    4. Do you have plans to create a library for the Date picker as you did for the time picker?
    5. I hope you are better looking than your avatar.

  6. DonManfred

    DonManfred Expert Licensed User

    you are welcome :)
    I hope that too ;)
    I got a login to the wiki lately... Will do an overview there when i have time
    A Datepicker to select date with an circular Clock? Maybe i misunderstood
    Do you find a suiteable here?
    Insignificant :D

    Peter Simpson likes this.
  7. DonManfred

    DonManfred Expert Licensed User

    Code:
    vb2.Textformat = "###,###,##0.0"
        vb2.Color =
    Colors.Red
        vb2.OverlayColor =
    Colors.Green
        vb2.BackgroundColor =
    Colors.LightGray
        vb2.DrawBorder =
    True
        vb2.Interval =
    10
        vb2.setMinMax(
    0,10)
        vb2.animate(
    0,7.5,10000)
    i used this and this counts in 0.1 steps... I really dont have understand the system here too actually ;)

    Peter Simpson likes this.
  8. ArminKH

    ArminKH Well-Known Member

  9. Johan Schoeman

    Johan Schoeman Expert Licensed User

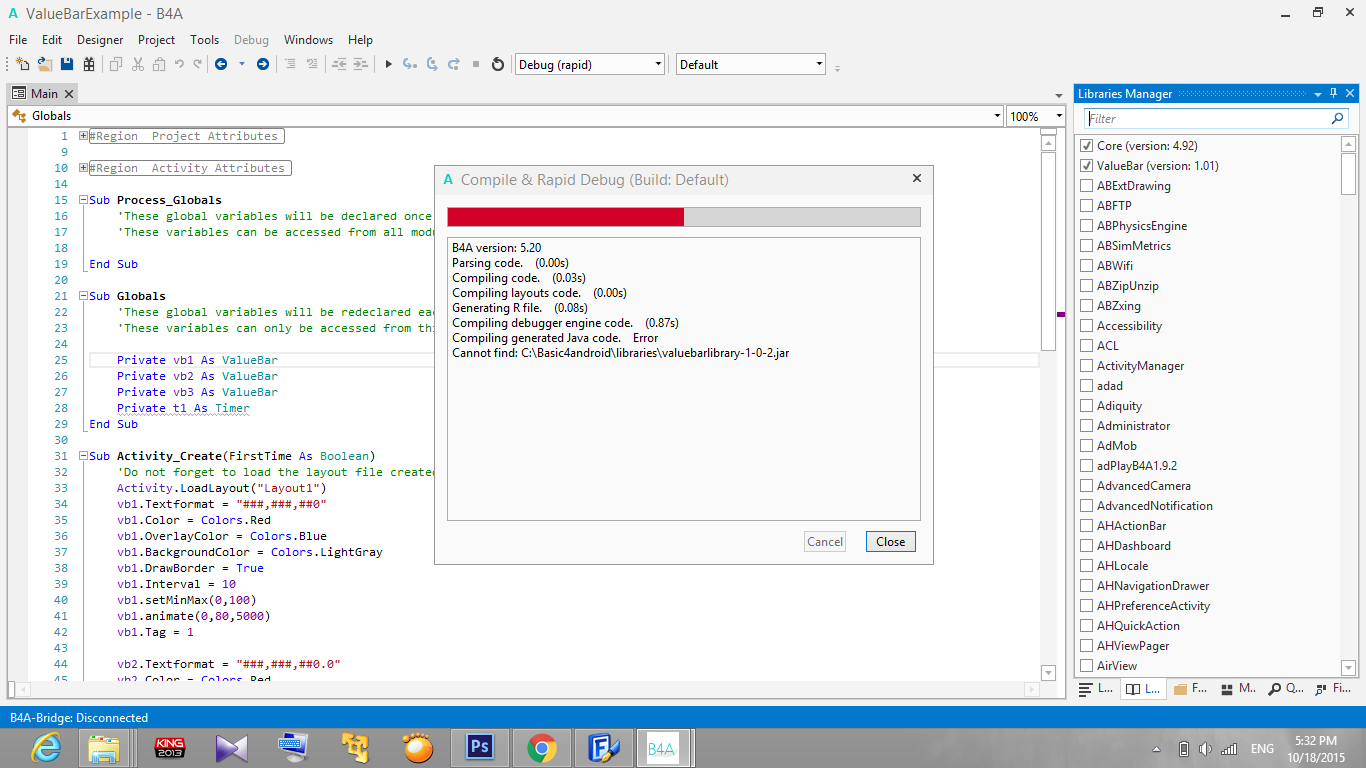

    See post #1. There is a library that you need to download and that you then have to add to your additional library folder.

    MarcoRome, ArminKH and DonManfred like this.
  10. ArminKH

    ArminKH Well-Known Member

    ooooops sorry
    thank u , i just looking for that in attached files:D

  11. rbtcotton

    rbtcotton Member Licensed User

    Great value bar!

    I have 3 questions.
    1.) How to set the bar where the user cannot change the values by touching the bar after the bar is display?
    2.) Can the text in the bar be rotated ?
    3.) The colors that are define in the app are not the colors on the display?

    Much thanks in advance

  12. DonManfred

    DonManfred Expert Licensed User

    1. not possible
    2. no
    3. Not?
