B4J Library WebCam class: how to choose a second camera ?

Hi, All

Thanks to the developer of SarxosWebCam wrapper !
SarxosWebCam lib was updated to "webcam-capture-0.3.12", so i was trying and got success in updating the webcam class - we can choose any camera by the name.

Extra .JARS (sorry, no store for files, they were googled one by one on the net):
#AdditionalJar : webcam-capture-0.3.12.jar
#AdditionalJar : slf4j-api-2.0.0.jar
#AdditionalJar : bridj-0.6.2.jar
#AdditionalJar : slf4j-nop-2.0.3.jar


B4X:
'v.0.3.12.2
'Class module
Private Sub Class_Globals
    Private fx As JFX
    Private WebCam,ImageIO,BufferedImage,FileIO,Dimension As JavaObject
    Private lstWebCams As List
    Type WebCamDeviceDimension (width As Int, height As Int)
End Sub

'Initializes the object. You can add parameters to this method if needed.
Public Sub Initialize
    ImageIO.InitializeStatic("javax.imageio.ImageIO")
    WebCam.InitializeStatic("com.github.sarxos.webcam.Webcam")
    BufferedImage.InitializeStatic("java.awt.image.BufferedImage")
End Sub

Public Sub getDefaultCam As JavaObject
    WebCam=WebCam.RunMethod("getDefault",Null)
    Return WebCam
End Sub

Public Sub setDimension(cam As JavaObject,width As Int,height As Int)
    cam.RunMethod("setViewSize",Array(Dimension.InitializeNewInstance("java.awt.Dimension",Array(width,height))))
End Sub

Public Sub OpenCam(cam As JavaObject)
    cam.RunMethod("open",Null)
End Sub

Public Sub TakePicture(cam As JavaObject,filename As String)
    FileIO = FileIO.InitializeNewInstance("java.io.File",Array(filename))
    BufferedImage=cam.RunMethod("getImage",Null)

    ImageIO.RunMethod("write",Array(BufferedImage, "PNG", FileIO))

    cam.RunMethod("close",Null)

End Sub

Public Sub TakePicture2(cam As JavaObject) As Image
    Dim fxutils As JavaObject
    fxutils.initializestatic("javafx.embed.swing.SwingFXUtils")
    Dim im As Image = fxutils.runmethod("toFXImage", Array(cam.RunMethod("getImage", Null), Null))
    Return im
End Sub

Public Sub CloseCam(cam As JavaObject)
    cam.RunMethod("close",Null)
End Sub

Sub getWebcams As List
    Return WebCam.RunMethod("getWebcams",Null)
End Sub

Public Sub WebCam_Names() As List
    lstWebCams = getWebcams
    Dim names As List
    names.Initialize
    For i = 0 To lstWebCams.Size - 1
        Dim newcam As JavaObject = lstWebCams.Get(i)
        Dim name As String = getName(newcam)
        names.Add(name)
    Next
    Return names
End Sub

Public Sub getWebcamByName(name As String) As JavaObject
    WebCam = WebCam.RunMethodJO("getWebcamByName", Array As String(name))
    Return WebCam
End Sub

Public Sub getName(cam As JavaObject) As String
    Return cam.RunMethod("getName",Null)
End Sub

Private Sub getDevice(cam As JavaObject) As JavaObject
    Return cam.RunMethod("getDevice",Null)
End Sub

Public Sub getViewSize() As JavaObject
    Dim device As JavaObject = getDevice(WebCam)
    Return device.RunMethodJO("getResolution",Null)
End Sub

Sub getViewSizes As List
    Dim device As JavaObject = getDevice(WebCam)
    Dim Dimensions() As Object = device.RunMethod("getResolutions",Null)
    Dim L As List
    L.Initialize
    For i = 0 To Dimensions.Length - 1
        Dim d As JavaObject
        d.InitializeNewInstance("java.awt.Dimension", Array(0, 0))
        d = Dimensions(i)
        Dim dd As WebCamDeviceDimension
        dd.Initialize
        dd.width = d.GetField("width")
        dd.height = d.GetField("height")
        L.Add(dd)
    Next
    Return L
End Sub

Public Sub setDimension2(cam As JavaObject, NewDimension As WebCamDeviceDimension)
    setDimension(cam, NewDimension.width, NewDimension.height)
End Sub

Class was updated.


Attachments

  • Sarxos_v.0.3.12.2.zip
    3.3 KB · Views: 287
Last edited:

Johan Schoeman

Expert
Licensed User
Longtime User
I have added some code to the project in post #1 so that you can scan QR Codes (also some other 1D and 2D codes) with the WebCam.
B4J project is attached
Copy attached javase-2.2.jar to your B4J additional library folder.

Download core-3.2.1.jar from here and copy it to your B4J additional library folder.

Hold the QR Code close enough to the WebCam.

enjoy!



Attachments

  • Sarxos.zip
    4.3 KB · Views: 202
  • javase-2.2.jar
    38.8 KB · Views: 200
Last edited:

asales

Expert
Licensed User
Longtime User
I have added some code to the project in post #1 so that you can scan QR Codes (also some other 1D and 2D codes) with the WebCam.
B4J project is attached
Copy attached javase-2.2.jar to your B4J additional library folder.

Download core-3.2.1.jar from here and copy it to your B4J additional library folder.

Hold the QR Code close enough to the WebCam.

enjoy!

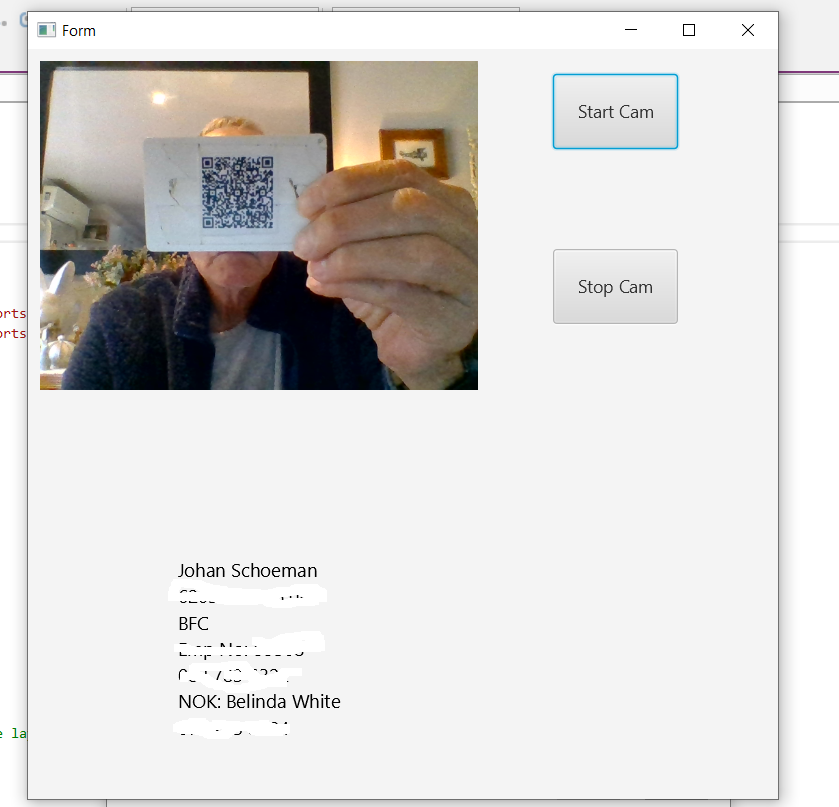

View attachment 142180
I tried to run this example, but I got this errors:

B4X:
SLF4J: No SLF4J providers were found.
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See https://www.slf4j.org/codes.html#noProviders for further details.
main._appstart (java line: 82)
java.lang.IndexOutOfBoundsException: Index 0 out of bounds for length 0
at java.base/jdk.internal.util.Preconditions.outOfBounds(Preconditions.java:64)
at java.base/jdk.internal.util.Preconditions.outOfBoundsCheckIndex(Preconditions.java:70)

What could be?


asales

Expert
Licensed User
Longtime User
I tried to run this example, but I got this errors:

B4X:
SLF4J: No SLF4J providers were found.
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See https://www.slf4j.org/codes.html#noProviders for further details.
main._appstart (java line: 82)
java.lang.IndexOutOfBoundsException: Index 0 out of bounds for length 0
at java.base/jdk.internal.util.Preconditions.outOfBounds(Preconditions.java:64)
at java.base/jdk.internal.util.Preconditions.outOfBoundsCheckIndex(Preconditions.java:70)

What could be?

solved with this line code:
B4X:
#AdditionalJar : slf4j-nop-2.0.3.jar
