B4R Question WEMOS pins names mismatch ?

derez

Expert
Licensed User
I have bought few WEMOS D1 through Aliexpress.
Checking them I have found that the names (using D1Pins) are not matching the actual pins. What I have is this:


This explains why I had problems and thought that I have burned some pins...

https://www.b4x.com/android/forum/threads/pin-8-in-wemos-d1.69467/#post-440939

https://www.b4x.com/android/forum/threads/esp8266-spi-bus.71230/#post-454204


Is this my private problem or it is the same in every WEMOS D1 ?


derez

Expert
Licensed User

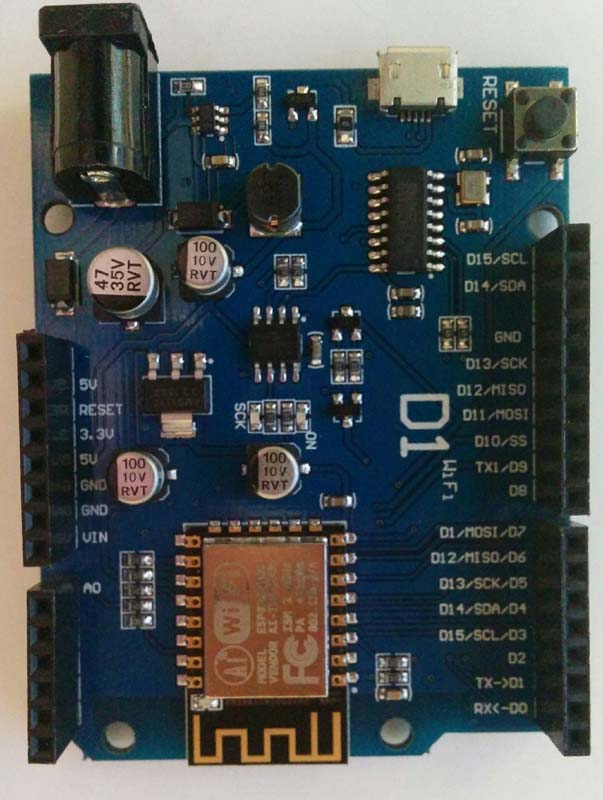

This is the one I have, looks like the original with the following differs:
1. no legend "powered by wemos.cc"
2. Pin D7 has also legend D1 which is wrong, should be D11
