B4J Question Where to put .dll used in LoadLibary() in library?

Discussion in 'B4J Questions' started by alwaysbusy, Apr 1, 2014.

  1. alwaysbusy

    alwaysbusy Expert Licensed User

    I'm writing a library that uses an external dll (ThinkGear.dll). In the eclipse library it is used as:

    static { System.loadLibrary("thinkgear"); }

    No problems so far. When I now run it, I'll get the following error:

    Code:
    java.lang.ExceptionInInitializerError
    Caused by: java.lang.RuntimeException: java.lang.UnsatisfiedLinkError: no thinkgear
    in java.library.path
        at anywheresoftware.b4a.BA.raiseEvent2(BA.java:
    113)
        at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:
    82)
        at b4j.example.main.<clinit>(main.java:
    16)
    Caused by: java.lang.UnsatisfiedLinkError: no thinkgear
    in java.library.path
        at java.lang.ClassLoader.loadLibrary(ClassLoader.java:
    1886)
        at java.lang.Runtime.loadLibrary0(Runtime.java:
    849)
        at java.lang.System.loadLibrary(System.java:
    1088)
        at com.AB.ABThinkGear.ABThinkGear.<clinit>(ABThinkGear.java:
    12)
        at java.lang.Class.forName0(Native Method)
        at java.lang.Class.forName(Class.java:
    190)
        at anywheresoftware.b4a.shell.Shell.getCorrectClassName(
    Shell.java:451)
        at anywheresoftware.b4a.shell.Shell.createObject(
    Shell.java:438)
        at anywheresoftware.b4a.shell.Shell.raiseEventImpl(
    Shell.java:239)
        at anywheresoftware.b4a.shell.Shell.raiseEvent(
    Shell.java:156)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:
    57)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:
    43)
        at java.lang.reflect.Method.invoke(Method.java:
    606)
        at anywheresoftware.b4a.BA.raiseEvent2(BA.java:
    93)
        ...
    2 more
    Exception in thread "main"

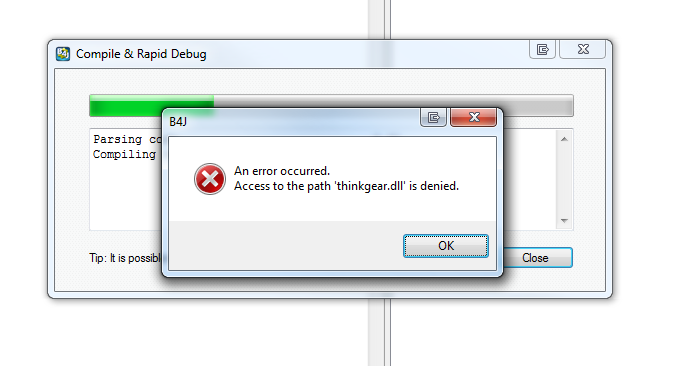

    Makes sense, I haven't put the dll anywhere. I would suspect it needs to be in the \B4J\Objects\shell\bin\classes\b4j\example folder. I made it read only, but then I can't compile the project anymore.

    [​IMG]


    Is there a special folder I can use?

    Cheers,

    Alain

  2. Erel

    Erel Administrator Staff Member Licensed User

    Try this:
    Put the file in the Objects folder. This is equivalent to File.DirApp.

    Now call
    Code:
    System.load(anywheresoftware.b4a.objects.streams.File.getDirApp & "/thinkgear.dll"); //load not loadLibrary.

    eps likes this.
  3. alwaysbusy

    alwaysbusy Expert Licensed User

    Closer, but no sigar!

    I can compile, but not run:

    Code:
    Program started.
    java.lang.RuntimeException: java.lang.UnsatisfiedLinkError: com.AB.ABThinkGear.ABThinkGear.TG_GetDriverVersion()I
        at anywheresoftware.b4a.BA.raiseEvent2(BA.java:
    113)
        at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:
    82)
        at anywheresoftware.b4a.BA.raiseEvent(BA.java:
    84)
        at b4j.example.main.start(main.java:
    35)
        at com.sun.javafx.application.LauncherImpl$
    5.run(LauncherImpl.java:319)
        at com.sun.javafx.application.PlatformImpl$
    5.run(PlatformImpl.java:219)
        at com.sun.javafx.application.PlatformImpl$
    4$1.run(PlatformImpl.java:182)
        at com.sun.javafx.application.PlatformImpl$
    4$1.run(PlatformImpl.java:179)
        at java.security.AccessController.doPrivileged(Native Method)
        at com.sun.javafx.application.PlatformImpl$
    4.run(PlatformImpl.java:179)
        at com.sun.glass.ui.InvokeLaterDispatcher$
    Future.run(InvokeLaterDispatcher.java:76)
        at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
        at com.sun.glass.ui.win.WinApplication.access$
    100(WinApplication.java:17)
        at com.sun.glass.ui.win.WinApplication$
    3$1.run(WinApplication.java:67)
        at java.lang.Thread.run(
    Thread.java:744)
    Caused by: java.lang.UnsatisfiedLinkError: com.AB.ABThinkGear.ABThinkGear.TG_GetDriverVersion()I
        at com.AB.ABThinkGear.ABThinkGear.TG_GetDriverVersion(Native Method)
        at com.AB.ABThinkGear.ABThinkGear.GetDriverVersion(ABThinkGear.java:
    95)
        at b4j.example.main._appstart(main.java:
    74)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:
    57)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:
    43)
        at java.lang.reflect.Method.invoke(Method.java:
    606)
        at anywheresoftware.b4a.shell.Shell.runMethod(
    Shell.java:558)
        at anywheresoftware.b4a.shell.Shell.raiseEventImpl(
    Shell.java:224)
        at anywheresoftware.b4a.shell.Shell.raiseEvent(
    Shell.java:156)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:
    57)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:
    43)
        at java.lang.reflect.Method.invoke(Method.java:
    606)
        at anywheresoftware.b4a.BA.raiseEvent2(BA.java:
    93)
        ...
    14 more
    Attached is the B4J project and the java library project. In my view, this should be a very simple 'wrap'. The GetDriverVersion() function shuold work without having the hardware. I did this wrapper in Xojo (using declares) but thought this could be a grood project to test out B4J :)

    Cheers,

    Alain


    Attached Files:

  4. Erel

    Erel Administrator Staff Member Licensed User

  5. alwaysbusy

    alwaysbusy Expert Licensed User

    I found several versions around. I think this one is based on the Official SDK of NeuroSky.

    Here are some versions I have:

    ThinkGear1: using jna to access the dll (could not get it working as it had problems finding the jna lib)
    ThinkGear2: The official one I based mine on
    ThinkGearSocket3: The one using sockets (like you suggested), written for Processing (is java like)

    I was just trying it out like this at it seemed straightforward (and very similar to use as the xojo one). But I guess I will have to try to get a go with the third option anyway.


    Attached Files:

  6. Thuong

    Thuong Member Licensed User

    Dear
    I code static { System.load("/thinkgear.dll"); } and compile is ok to B4A library
    It is correct ?

  7. alwaysbusy

    alwaysbusy Expert Licensed User

    No. B4A cannot work with Windows dlls. This was me trying to build a library for B4J, but I've never got it working. For B4A, you'll need the code I've PM'ed you, using the .jar files. 'see the @DependsOn()' lines.

  8. lindomar

    lindomar Member Licensed User

    I'm having the same problem to load a DLL library...
    Can you help me?

  9. Erel

    Erel Administrator Staff Member Licensed User

    You cannot work directly with dlls. You need to create a Java wrapper that will call the native dll with jni calls.

  10. lindomar

    lindomar Member Licensed User
