B4J Question Write window image to file.


Active Member
Licensed User
Longtime User
I wrote a program that writes the image of a windows window to a file.

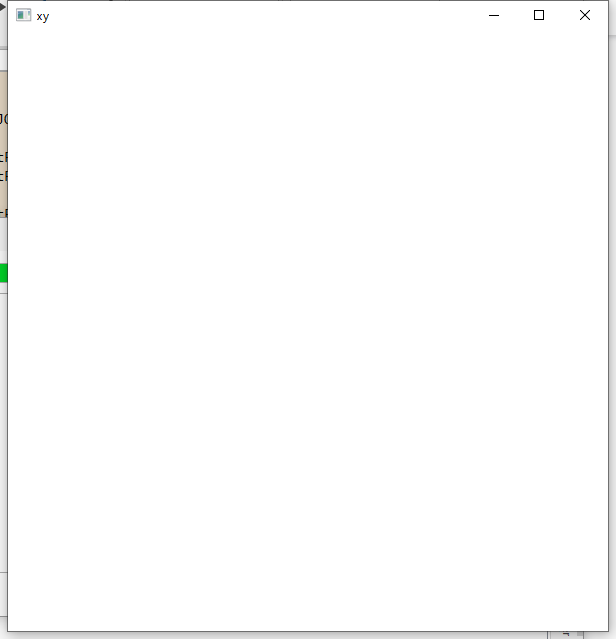

Almost made it. The only problem is that the file has "leftovers" on the right, on the left and below (8 pixels, to be exact).

I realized that this only happens for windows created in B4J (form.show).
For other windows the program works as expected.

I need the image to be exactly the size of the window.


Apparently the two lines below are not returning the size correctly:

Dim w As Double = awtrect.GetField("width")
Dim h As Double = awtrect.GetField("height")

Code (It depends on JNA):

#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600

    #AdditionalJar: jna-5.2.0
    #AdditionalJar: jna-platform-5.2.0

#End Region

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    'MainForm.RootPane.LoadLayout("Layout1") 'Load the layout file.

    MainForm.Title = "xy"
End Sub

Sub GetWindow()
    Dim wu As JavaObject
    Dim Ls As List = wu.RunMethod("getAllWindows",Array(True)) ' or False if you want to include windows that are not visible

    Dim tit As String

    For Each JO As JavaObject In Ls
        tit = JO.RunMethod("getTitle",Null)
        If tit = "xy" Then

            Dim awtrect As JavaObject = JO.RunMethod("getLocAndSize", Null)
            Dim x As Double = awtrect.GetField("x")
            Dim y As Double = awtrect.GetField("y")
            Dim w As Double = awtrect.GetField("width")
            Dim h As Double = awtrect.GetField("height")
            WriteImg(x, y, w, h)
        End If

End Sub

Sub WriteImg(x As Int, y As Int, w As Int, h As Int)
    Dim bitmap As B4XBitmap = Capturar(x, y, w, h)
    Dim out As OutputStream
    out = File.OpenOutput(File.DirApp, "window.png", False)
    bitmap.WriteToStream(out, 100, "PNG")
End Sub

Sub Capturar(x As Int, y As Int, largura As Int, altura As Int) As B4XBitmap

    Dim c3po As AWTRobot

    c3po.ScreenCurrentRectangleSetAsArbitrary(x, y, largura, altura)
    Return BytesToImage(c3po.ScreenCaptureAsByteArray)

End Sub

Public Sub BytesToImage(bytes() As Byte) As B4XBitmap
    Dim In As InputStream
    In.InitializeFromBytesArray(bytes, 0, bytes.Length)

    Dim bmp As Image

    Return bmp
End Sub

'Return true to allow the default exceptions handler to handle the uncaught exception.
Sub Application_Error (Error As Exception, StackTrace As String) As Boolean
    Return True
End Sub

Could anyone help help me?
