Games [XUI2D] Single Screen Tile Map Example / Hello World With Background

Discussion in 'Game Development' started by Erel, Sep 27, 2018.

  1. Erel

    Erel Administrator Staff Member Licensed User

    [​IMG]

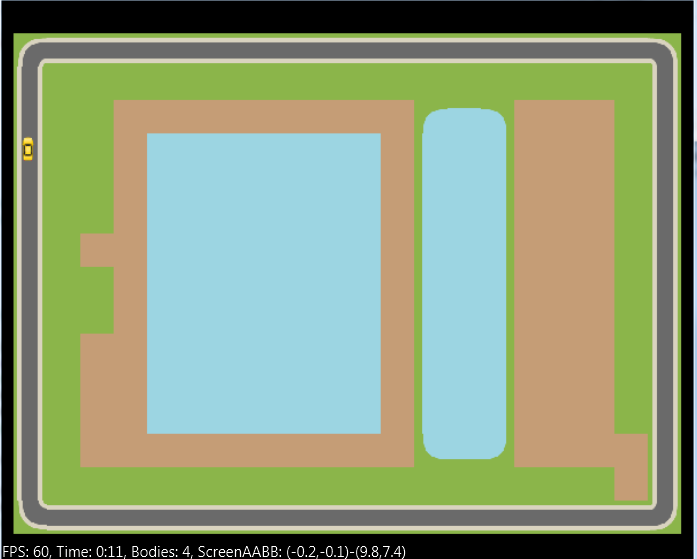

    This example shows how to use X2TileMap to create a single screen game with tiles based background. This means that the background is never scrolled.

    To avoid drawing issues we want that the size of each tile will be a whole number and that each tile will be square shaped.

    This is done with:
    Code:
    Dim TileSize As Int = Min(X2.MainBC.mWidth / TileMap.TilesPerRow, X2.MainBC.mHeight / TileMap.TilesPerColumn)
    TileMap.SetSingleTileDimensionsInBCPixels(TileSize, TileSize)
    And:
    Code:
    Private Sub SetWorldCenter

    'The map size will not be identical to the screen size. This happens because the tile size in (bc) pixels needs to be a whole number.
       'So we need to update the world center and move the map to the center.
       X2.UpdateWorldCenter(TileMap.MapAABB.Center)
    End Sub
    Drawing a tiles map is done with:
    Code:
    Public Sub Tick (GS As X2GameStep)
       TileMap.DrawScreen(
    Array("Tile Layer 1"), GS.DrawingTasks)
    End Sub

    Public Sub DrawingComplete
       TileMap.DrawingComplete
    End Sub
    The example is included in the examples pack.
